Ball Mill Lathe Sw Design

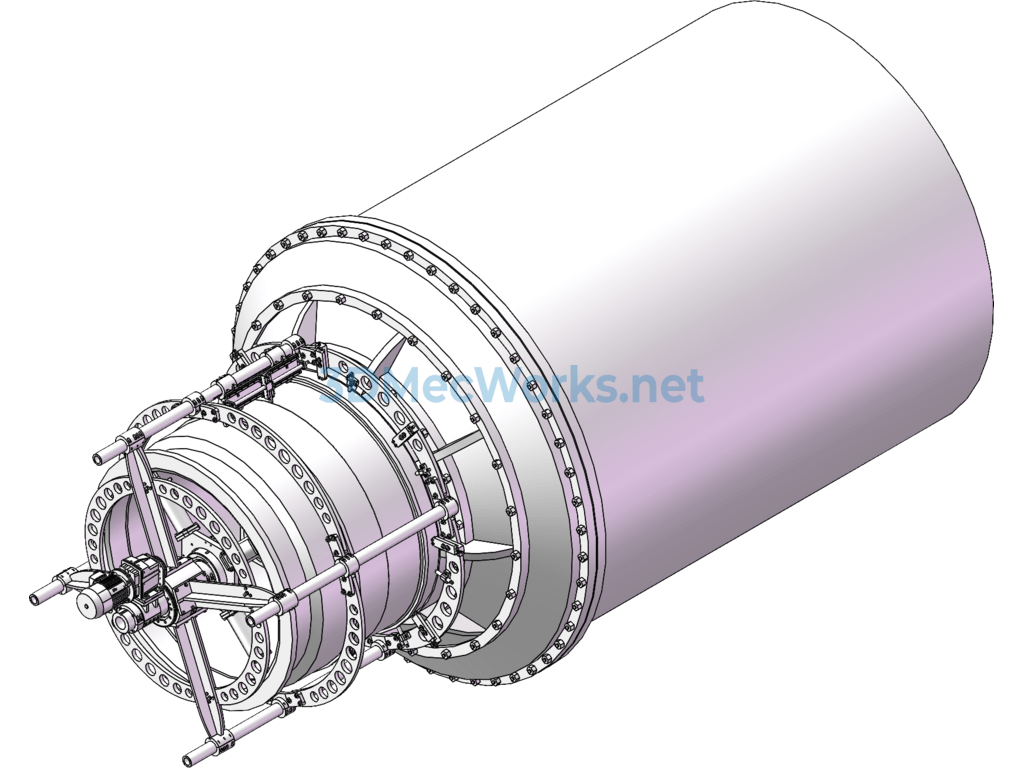

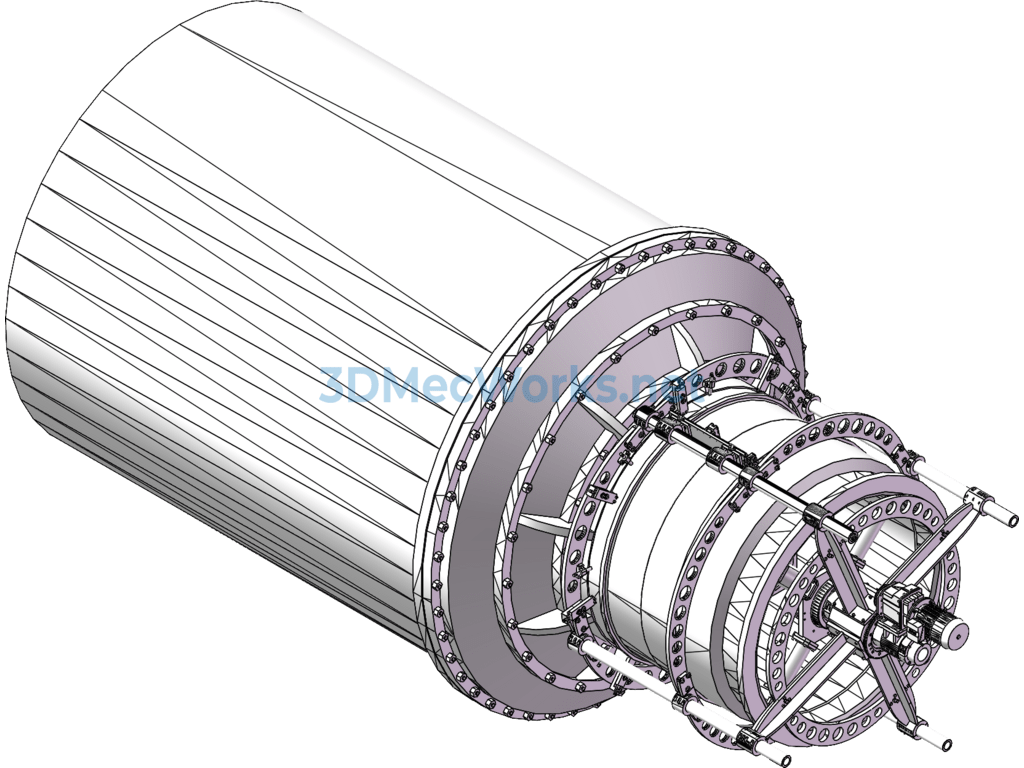

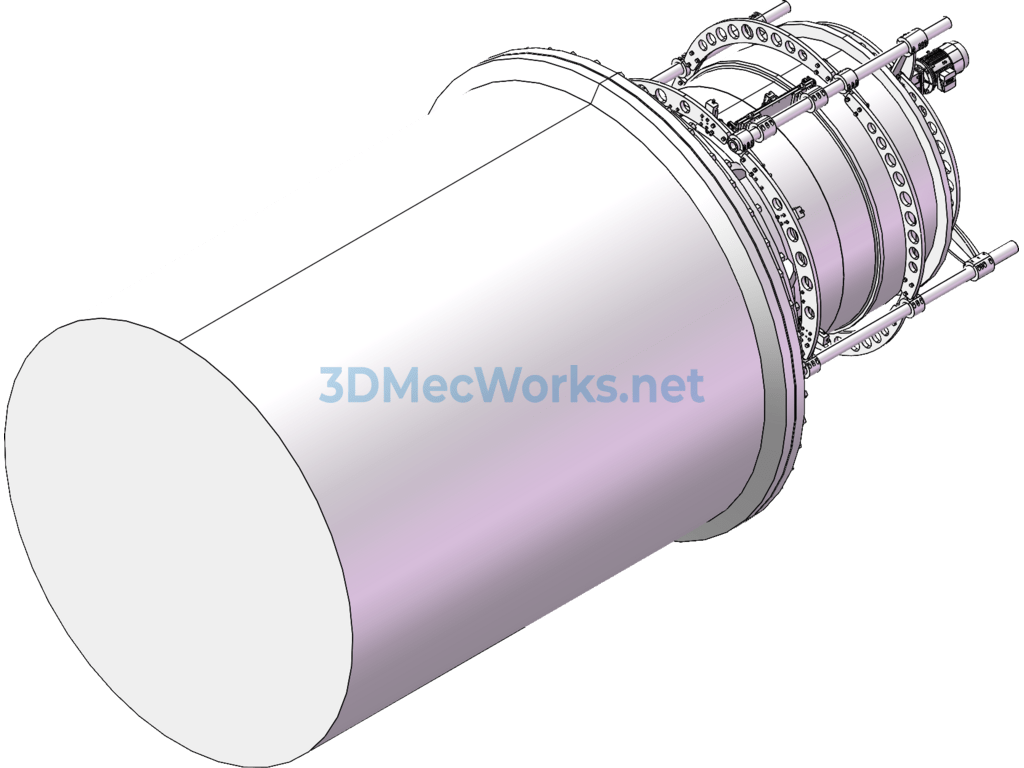

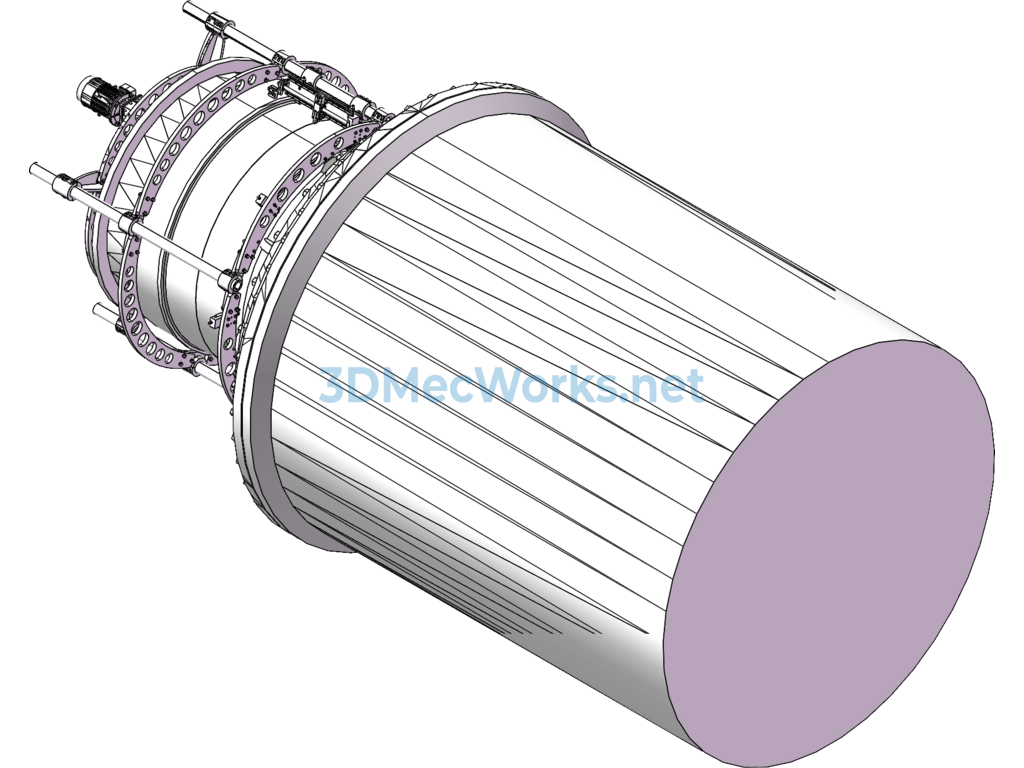

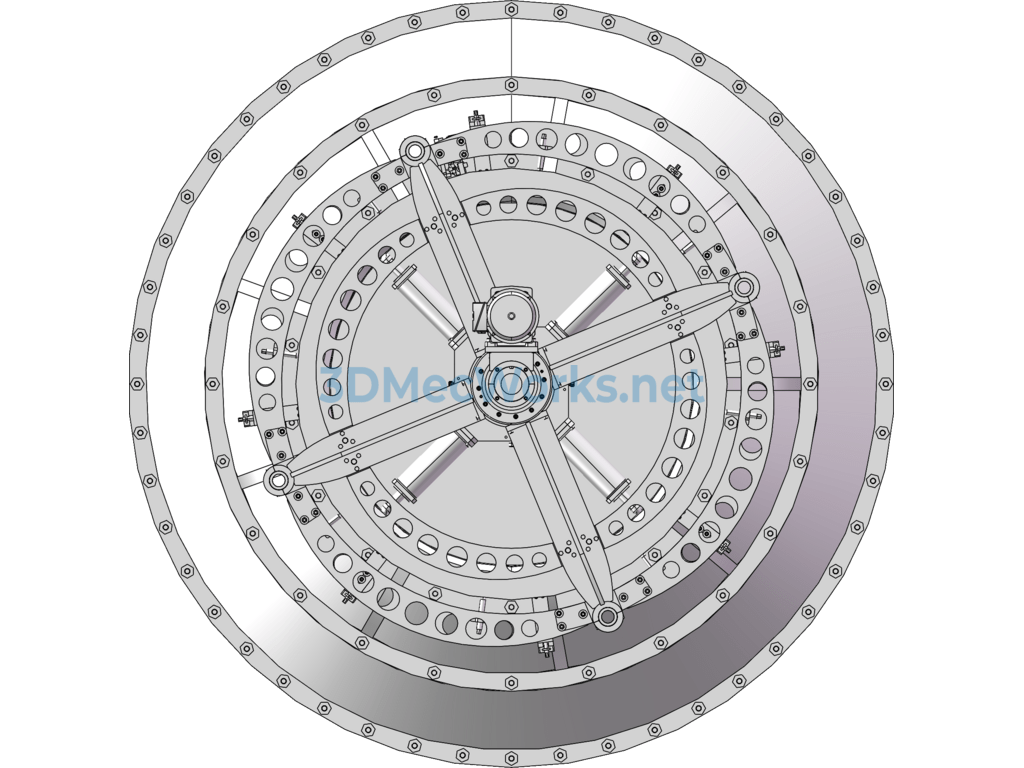

A 3D model of a ball mill lathe is shared, along with the SolidWorks design Sldprt source file. Feel free to download.

The ball mill is a critical piece of equipment for grinding materials after they have been crushed. The lathe has high precision, with a minimum system setting unit of 0.001mm. The X-axis repeated positioning accuracy is 0.012mm, and the Y-axis repeated positioning accuracy is 0.016mm. The main bearings use imported precision bearings from NSK, Japan. All gearbox gears are high-frequency quenched and ground, resulting in low noise. The main motion uses electronic braking, ensuring sensitive braking.
