Baghouse Dust Collector

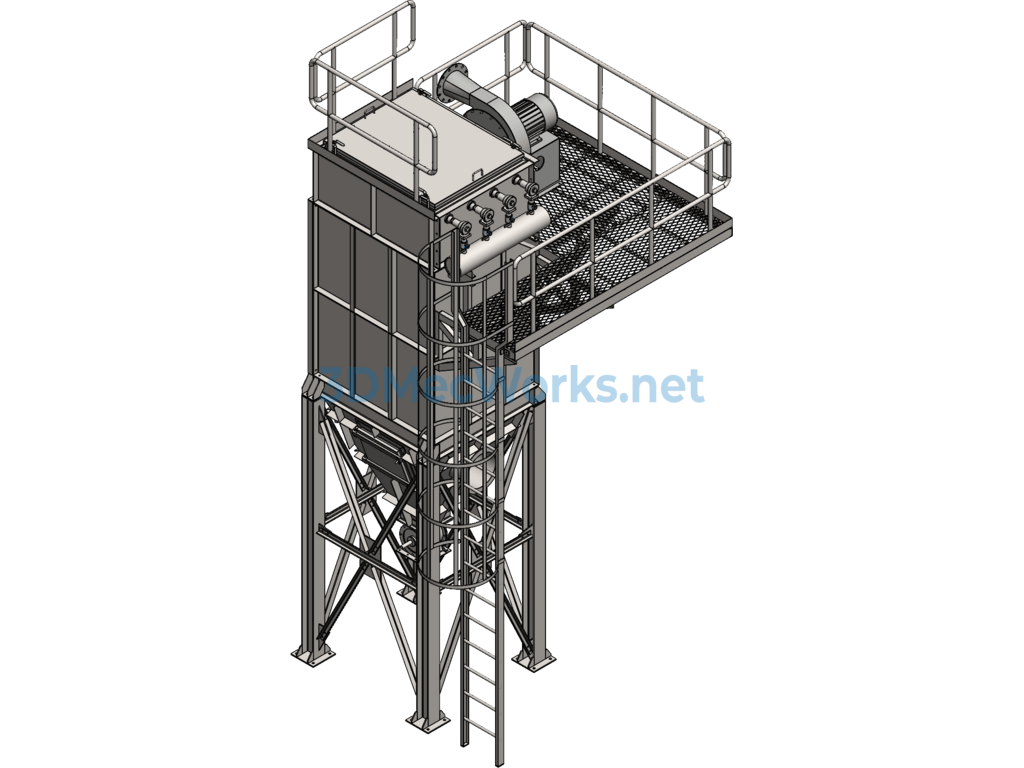

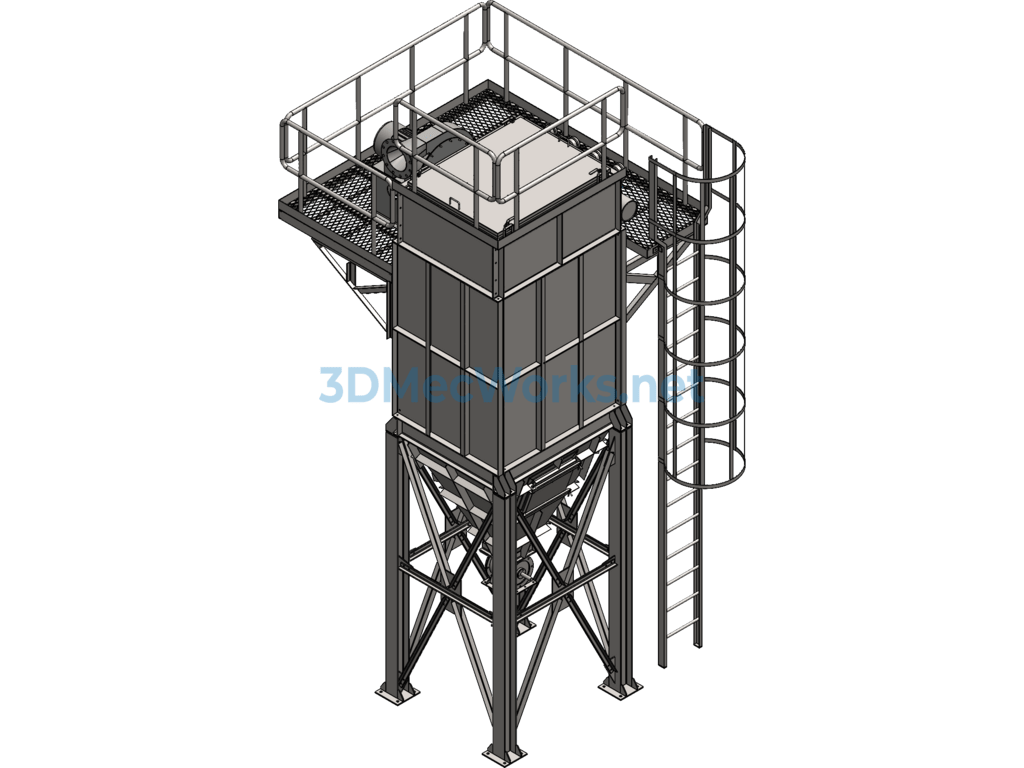

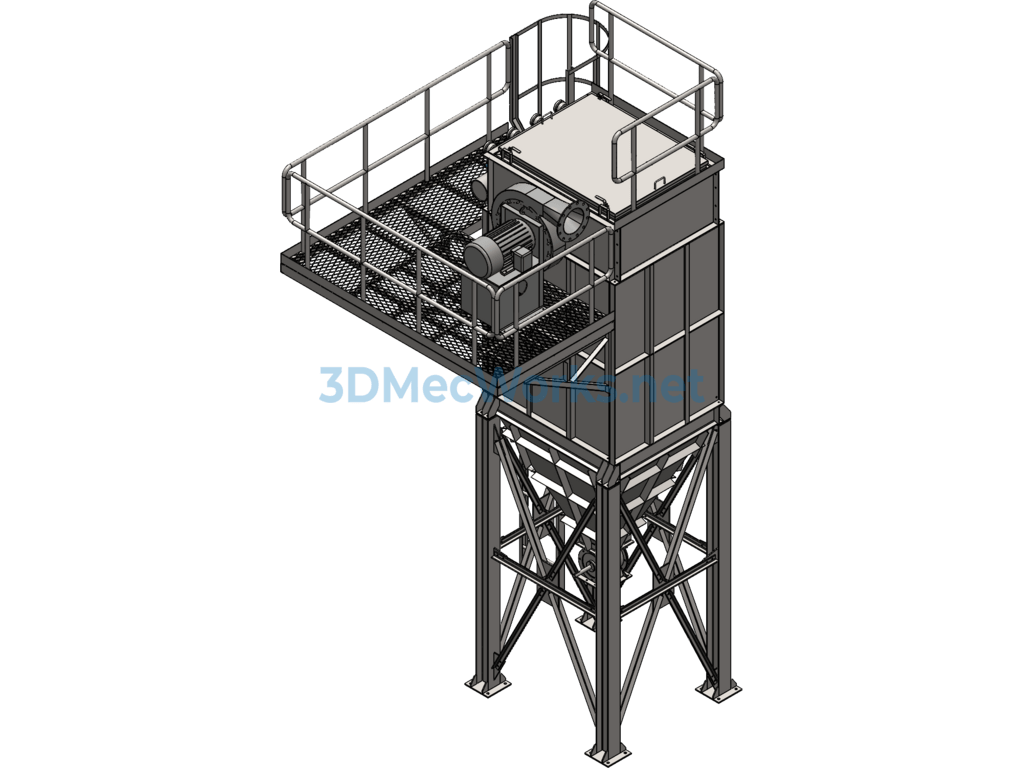

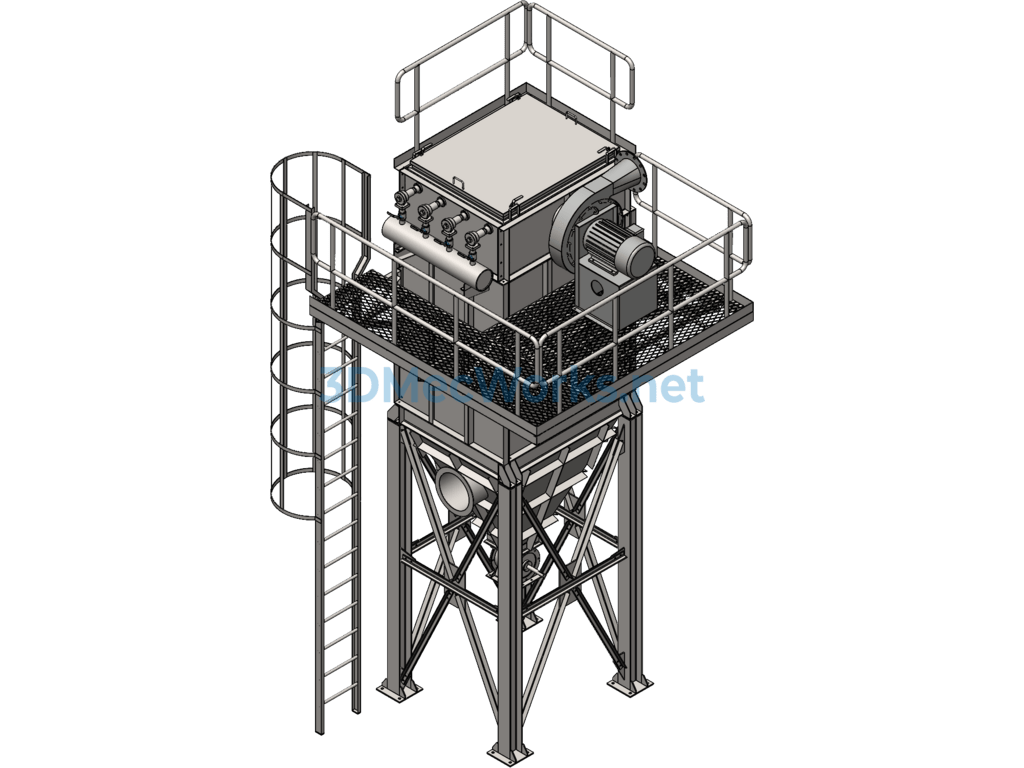

Bag Filter Dust Collector SW2014 Design sldasm, sldprt Source Files

The bag filter dust collector is a type of dry dust filtering device. It is suitable for capturing fine, dry, non-fibrous dust. The filter bags are made from woven fabric or non-woven felt and filter the dust-laden air using the filtering action of the fibrous material. When dust-laden air enters the bag filter, large and heavy dust particles settle down due to the effect of gravity and fall into the dust hopper. The air containing finer dust particles passes through the filter material, where the dust is trapped, resulting in purified air. The dust collection efficiency of general filter materials is not high enough.

The overall structural design is very well done, and you can download it to learn about the design approach applied. It is a very good model, and you are welcome to download and study it.
