B650 Three-Axis Servo Robot, Injection Molding Robot Including Complete Set of Engineering Drawings

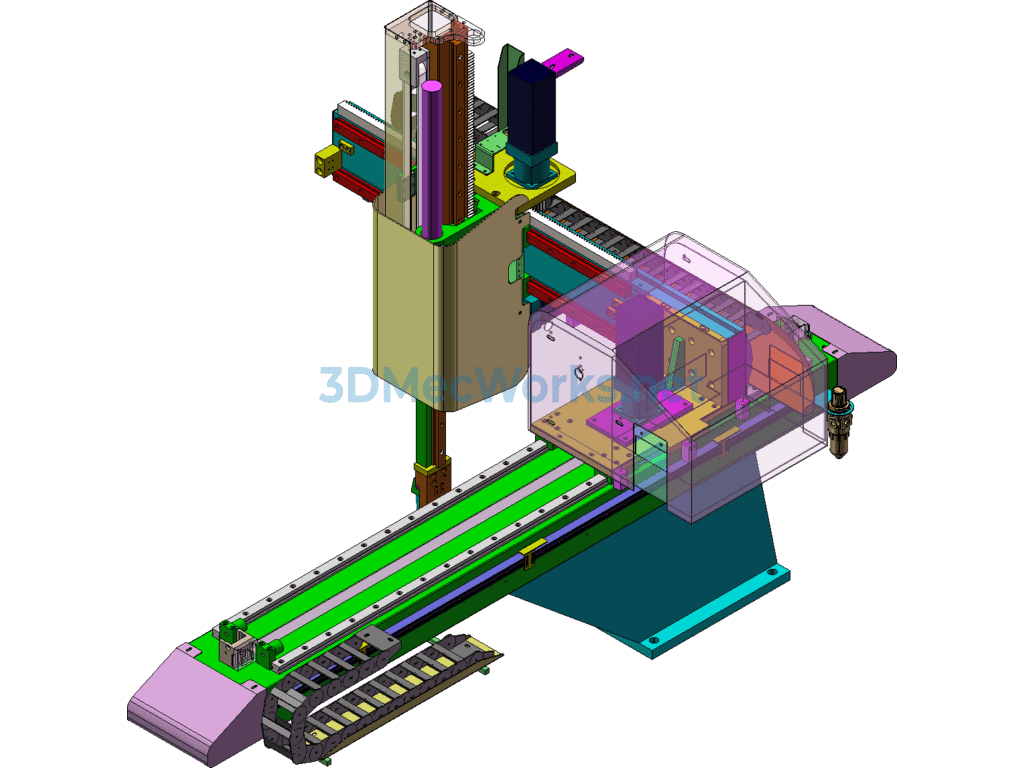

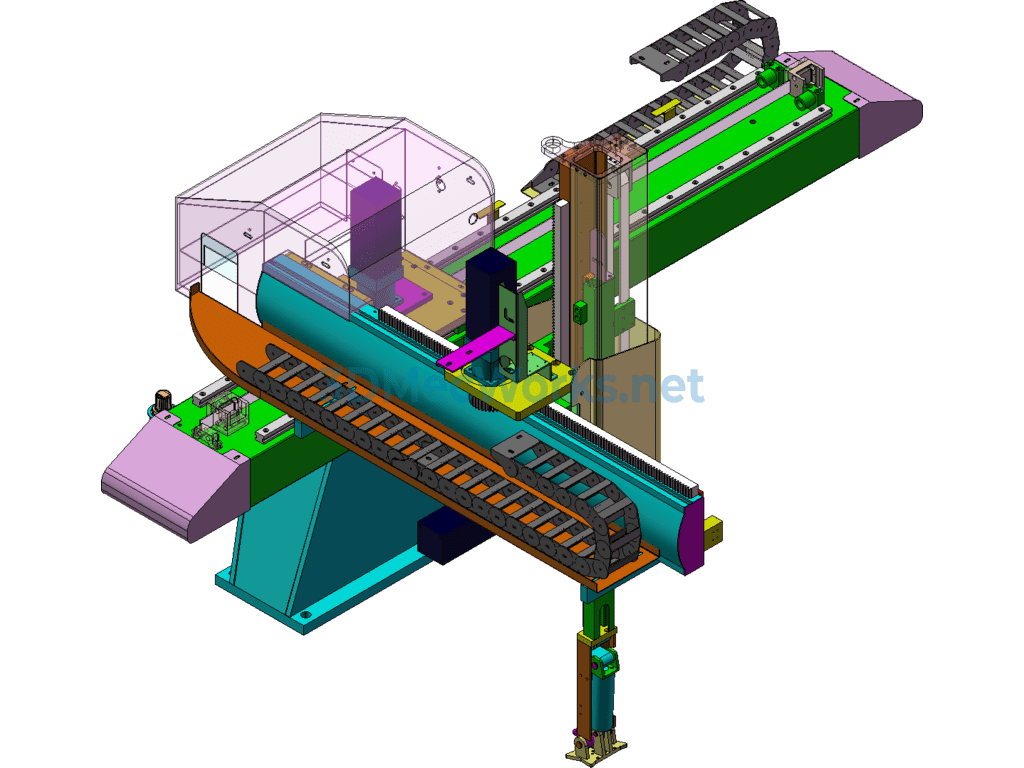

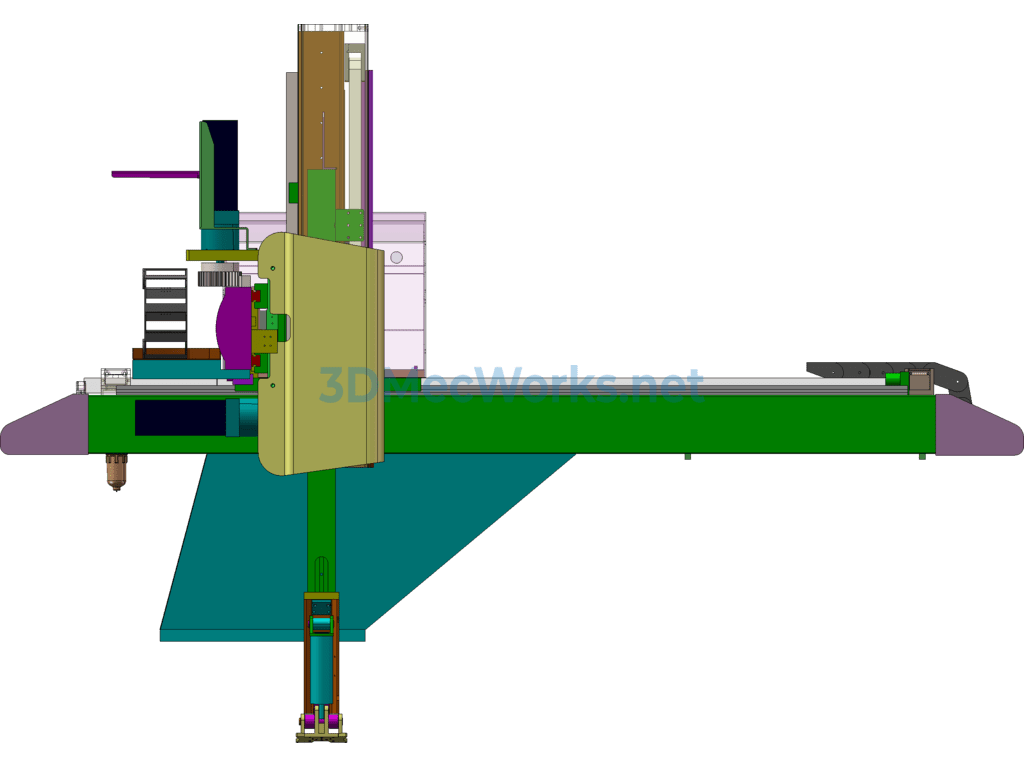

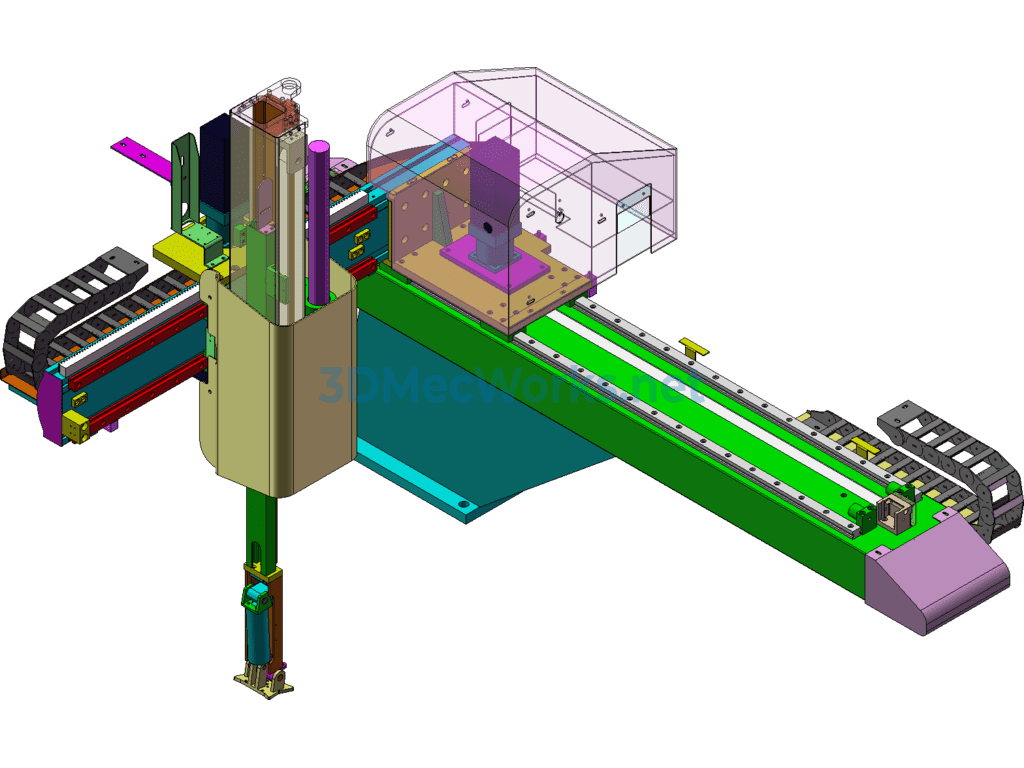

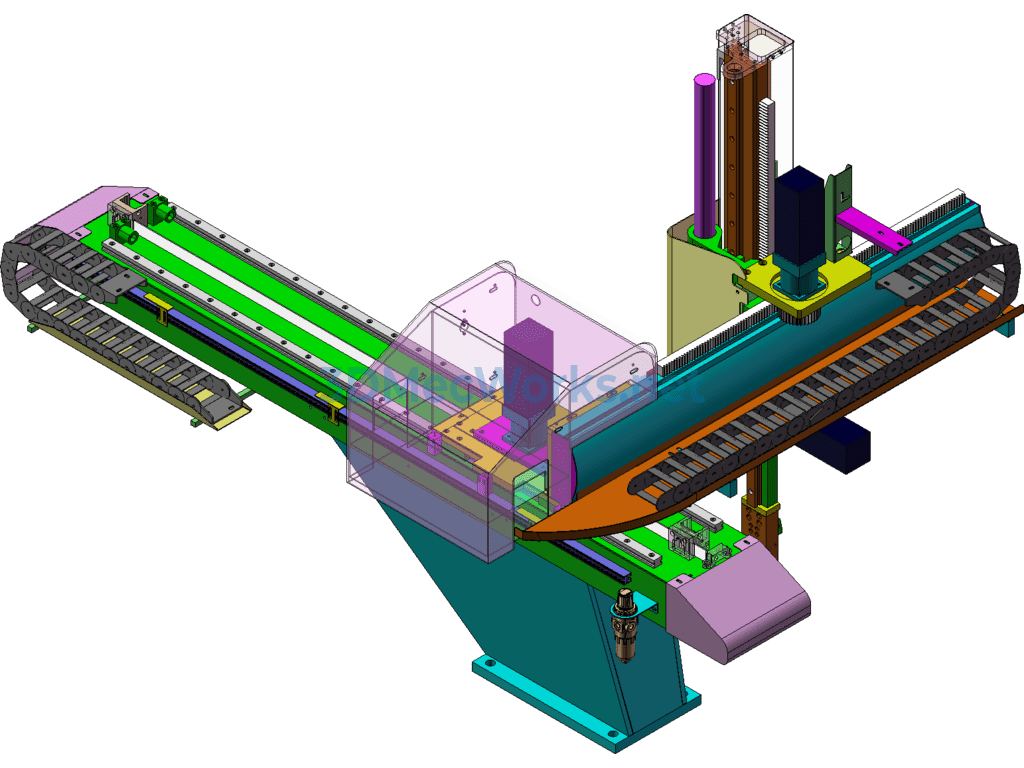

This three-axis servo robot arm is designed for mold picking operations. This blueprint includes a complete set along with all engineering drawings. Compared to traditional robot arms, this type boasts higher precision, making it highly accurate for tasks such as product extraction and in-mold embedding. The robot arm operates with three-axis simultaneous linkage, swiftly removing products from molds. The transmission method for this robot arm is gear and rack. The robot fixture is fixed on the fixed plate below the Z-axis. The X-axis of this robot arm has a travel of 1.5 meters, the Y-axis is 1 meter, and the Z-axis is 800 mm. Such travel allows for various in-mold forming extractions in injection molding machines. This robot arm was initially developed in Taiwan by Tianxing and has a history of more than ten years. Therefore, the mechanical structure in this blueprint is highly stable and can be applied in various industries’ mechanical structures. We welcome interested parties to download the B650 three-axis servo robot arm, which includes a complete set of engineering drawings for injection molding robot arms.
