Automobile Sunroof Gpa Trimming and Polishing Workstation 3d + Engineering Drawings + Bom + Manual

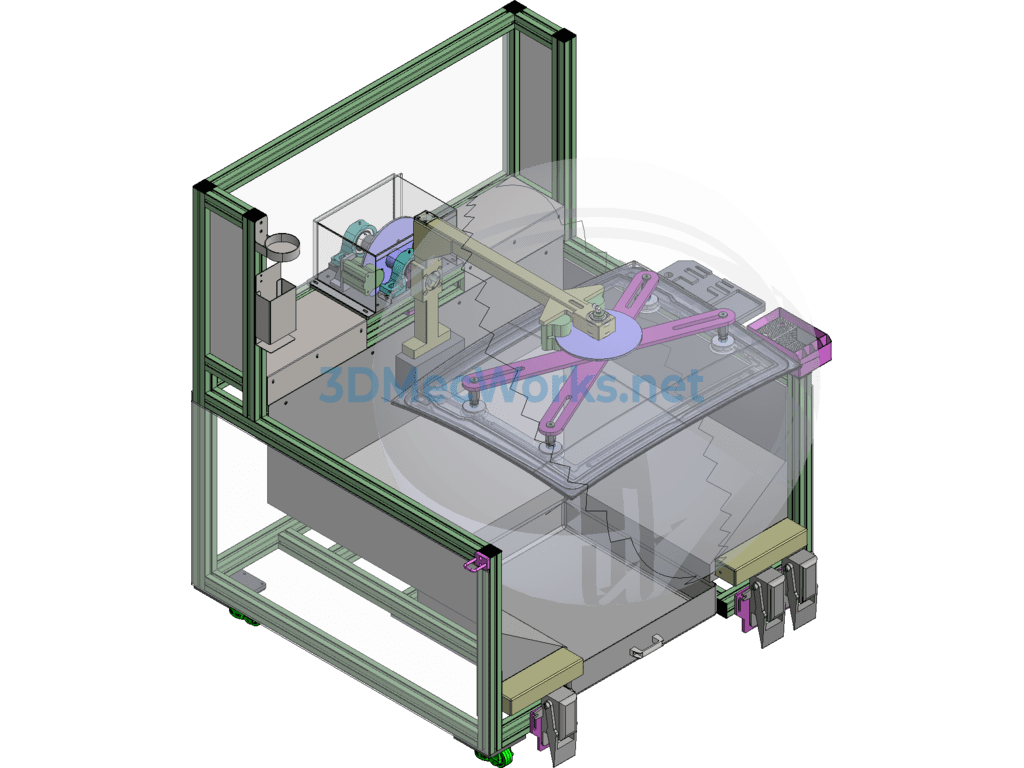

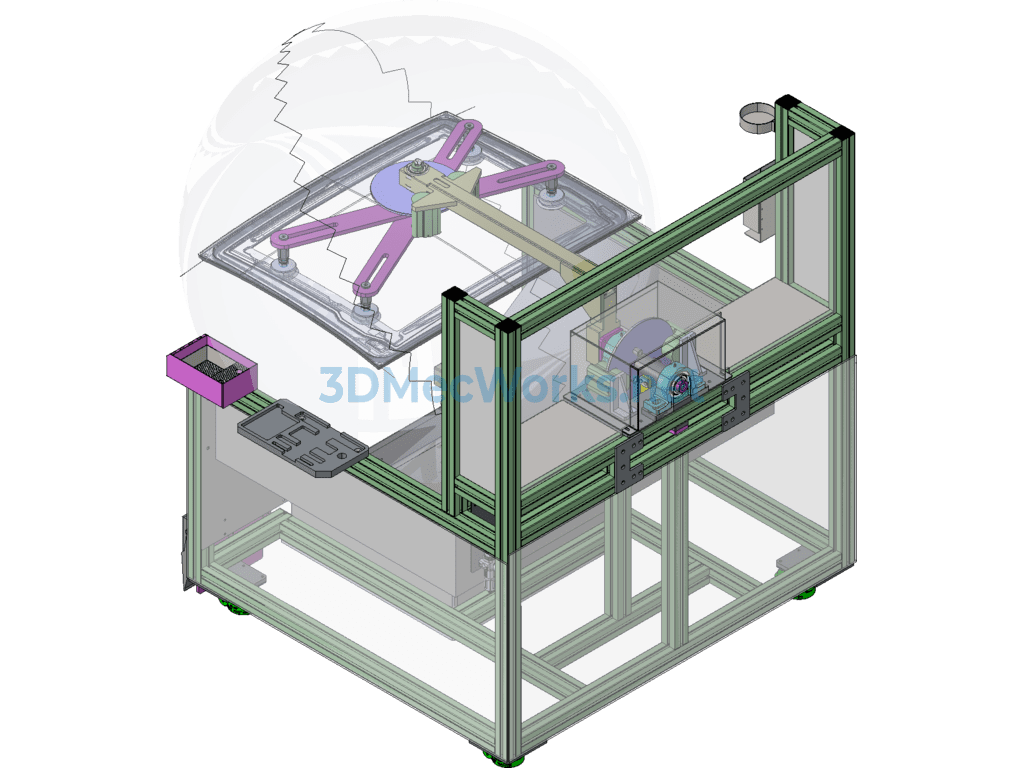

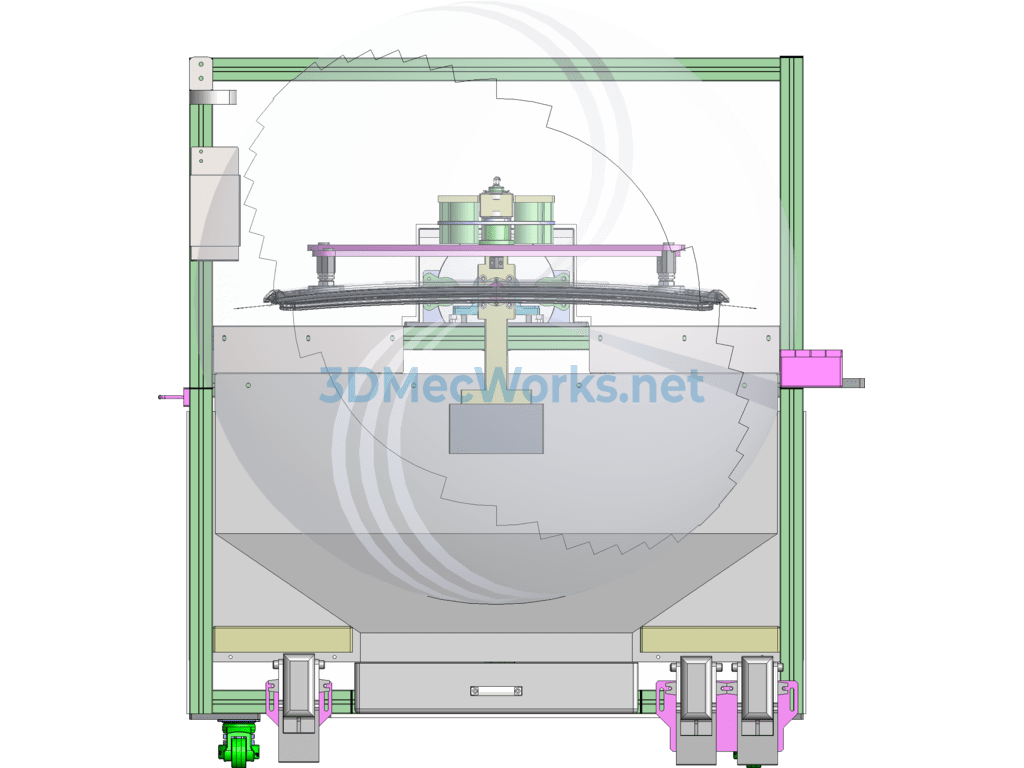

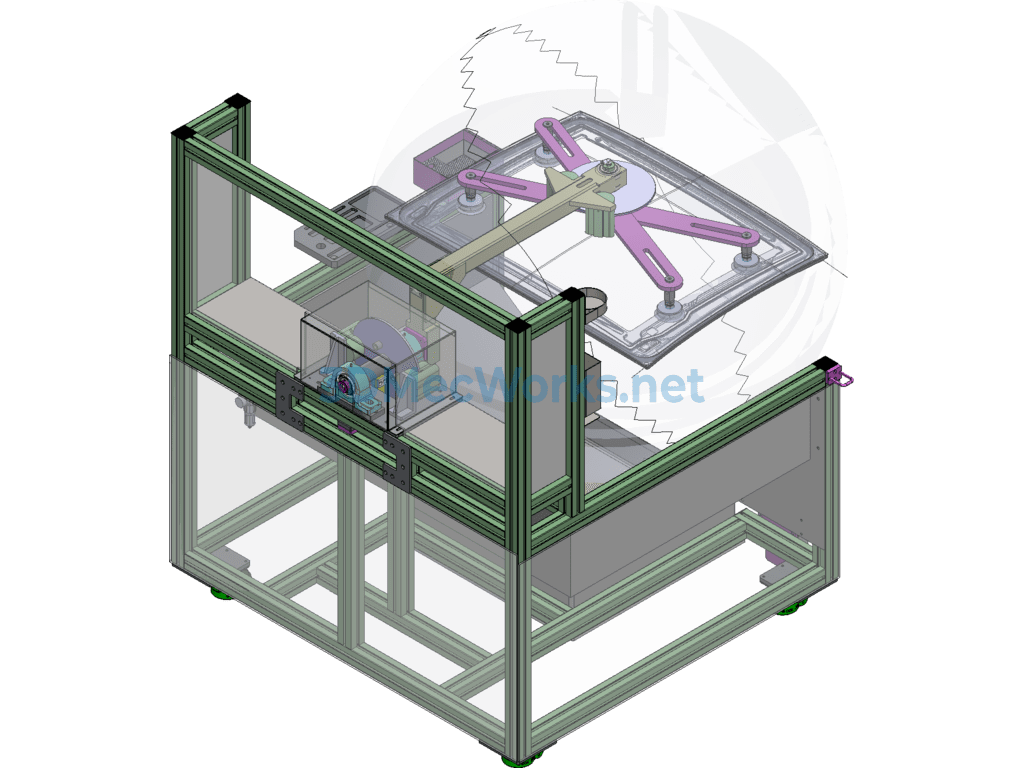

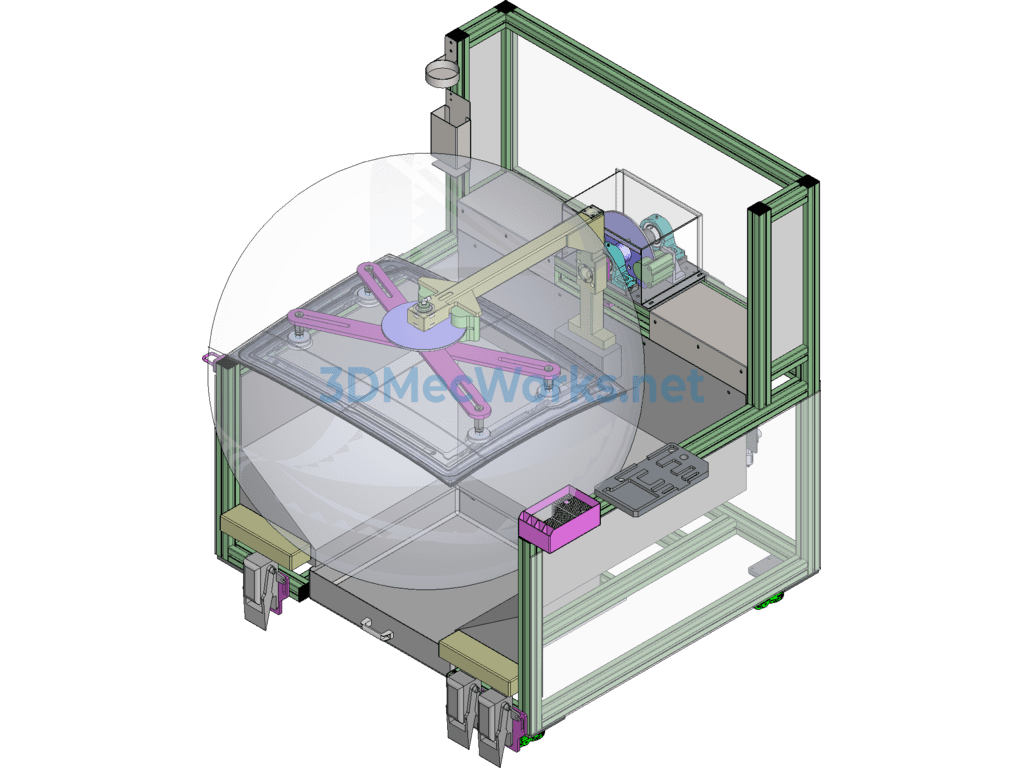

Automotive Sunroof GPA Trimming and Polishing Workstation
I. Basic Functions:
Place the automotive sunroof GPA for trimming, polishing, cleaning inspections, seal installation, with the glass free to rotate horizontally, flip (axis 180 degrees), all with braking functionality.
II. Error Prevention Features: None
III. Operators
1. Number of Operators: 1 person
2. Working Posture: Standing
IV. Durability
1. Continuous Usage Time: 24 hours/day
2. Durability Years: More than 10 years
V. Capabilities
1. Total Cycle Time: NA
2. Manual Operation Time: <60 seconds
3. Product Changeover Tool Adjustment Time: <1 minute (only suction cup position adjustment)
VI. Working Environment
1. Noise Level: 70dB or below at 1 meter from the noise source
2. Stimulating Gases: Chemical gases like MEK are discharged through ducts
VII. Power Specifications
1. Power Specifications: 3-phase 380V 50Hz or single-phase 220V 50Hz
2. Air Supply Specifications: 6±1Kg/cm²
VIII. Quality
1. Failure Rate: No defects due to unknown equipment issues.
2. Precision Requirements: Outline dimension requirements ≤±10mm
Specification: Automobile Sunroof Gpa Trimming and Polishing Workstation 3d + Engineering Drawings + Bom + Manual
|
