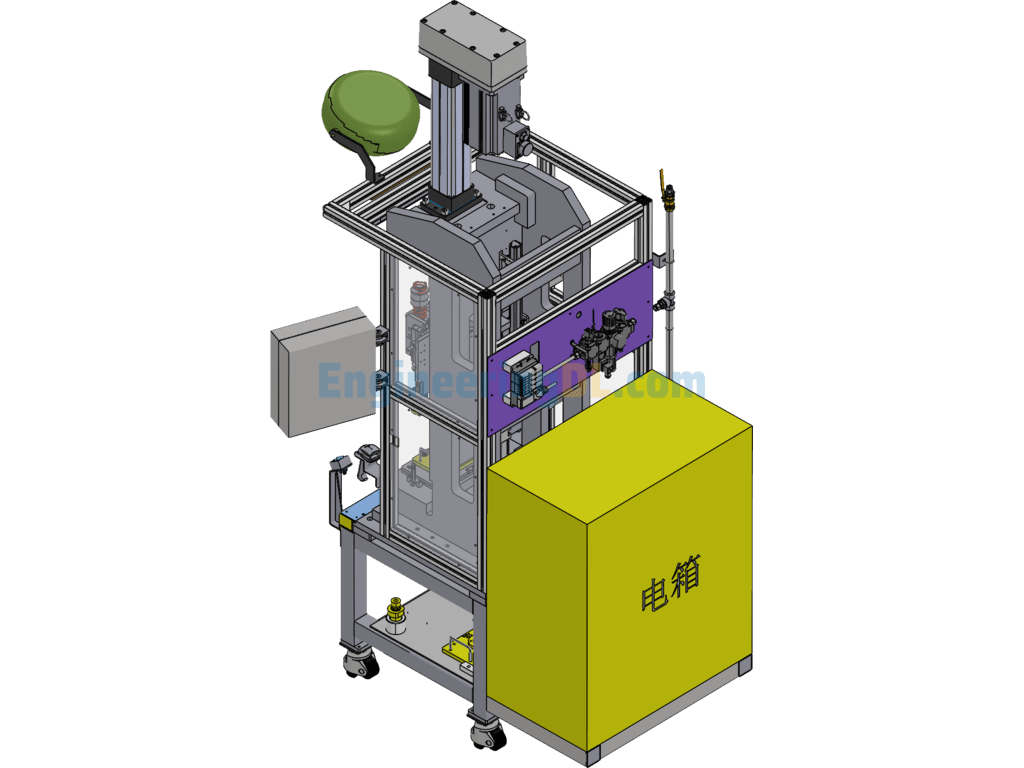

1. Purpose: To press the torsion rod into the worm gear shaft assembly_x000D_
2. Equipment specifications: 1000mm(W) x 1500mm(L) x 2000mm (Aluminum profile H)._x000D_
3. Equipment technical parameters_x000D_
3.1 Equipment power: 10kw;_x000D_
3.2 Air source: ≥ 0.5Mpa clean compressed air source without oil and water._x000D_
3.3 Operating method: Product loading/unloading executed by equipment (automatic), pressing operation completed by equipment (automatic)_x000D_
3.4 Pressing force monitoring: Servo press range is 50KN_x000D_
3.5 Insertion displacement monitoring: Accuracy ±0.02mm, full stroke monitoring._x000D_
3.6 Quality assessment: Check if pressure and displacement are within acceptable ranges._x000D_
3.7 Positional accuracy: The coaxiality between the press head positioning center hole and the tooling positioning mounting hole is less than 0.05mm, verticality of the press head to the worktable surface is 0.05mm._x000D_
3.8 Equipment requirements: The press head adopts a floating mechanism while ensuring rigidity; press head and fixtures are equipped with identifiable sensors, enabling automatic detection by the equipment._x000D_
3.9 Model change: Replaceable tooling fixtures are placed under the equipment on a specially manufactured placement tray.
