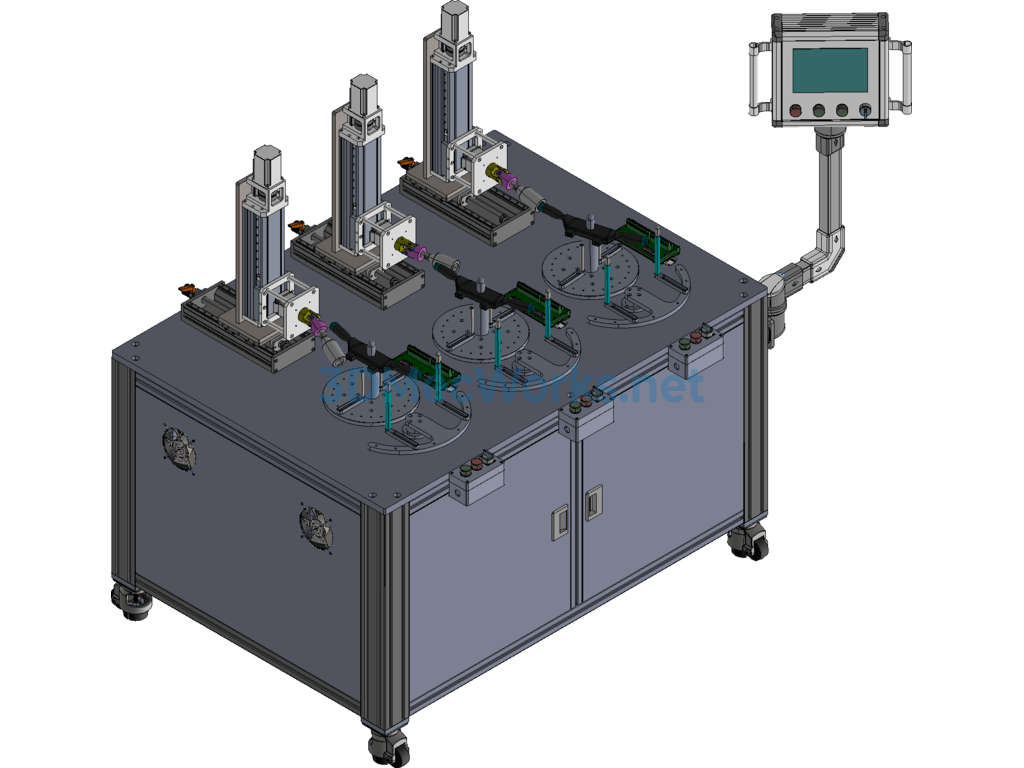

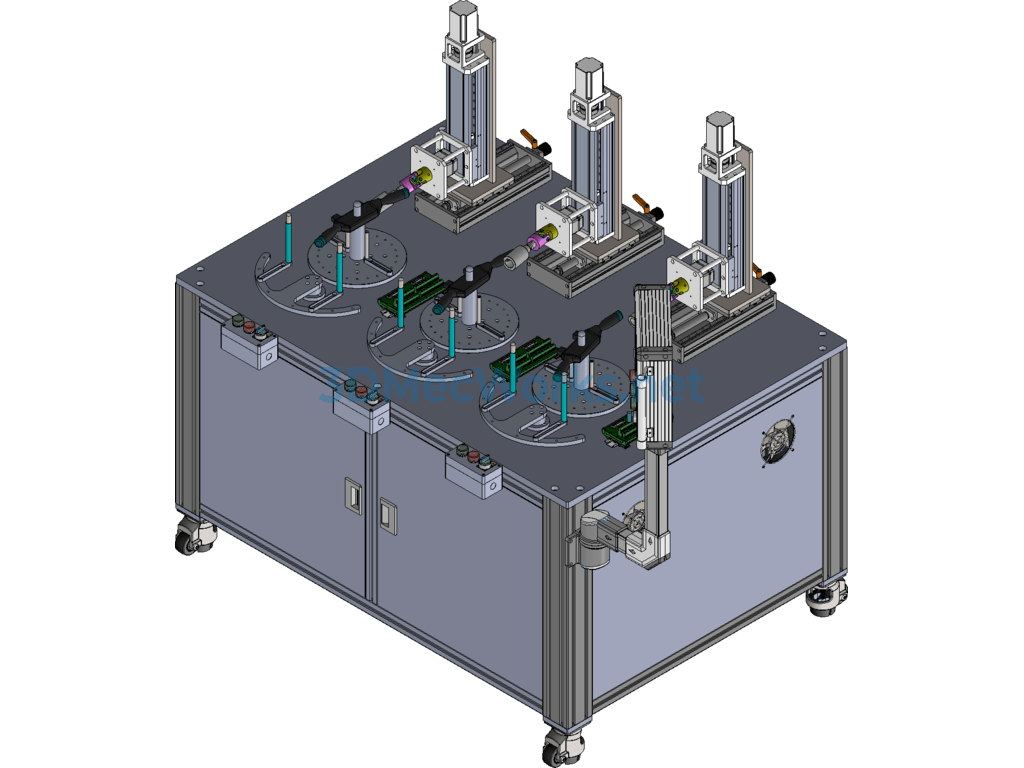

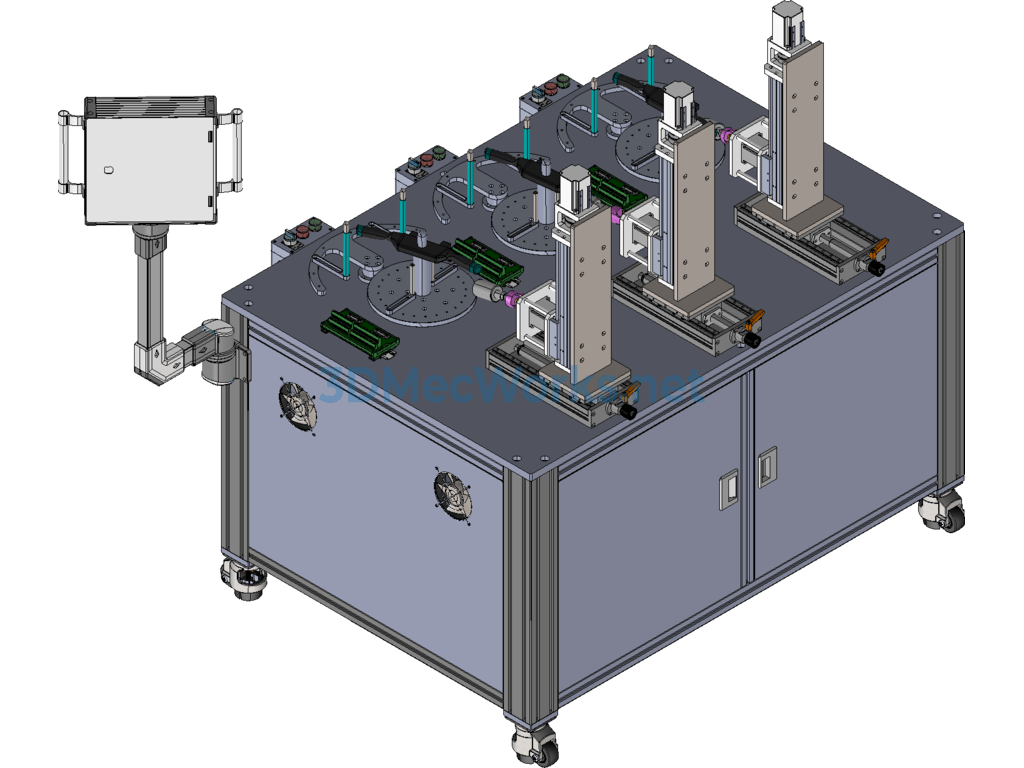

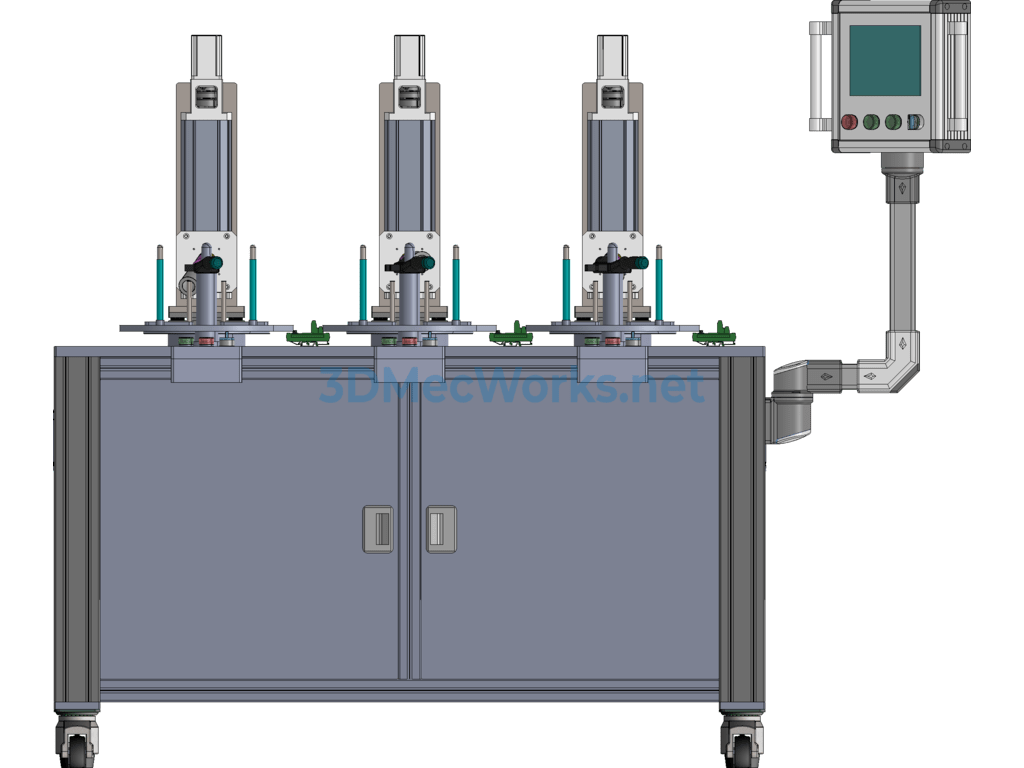

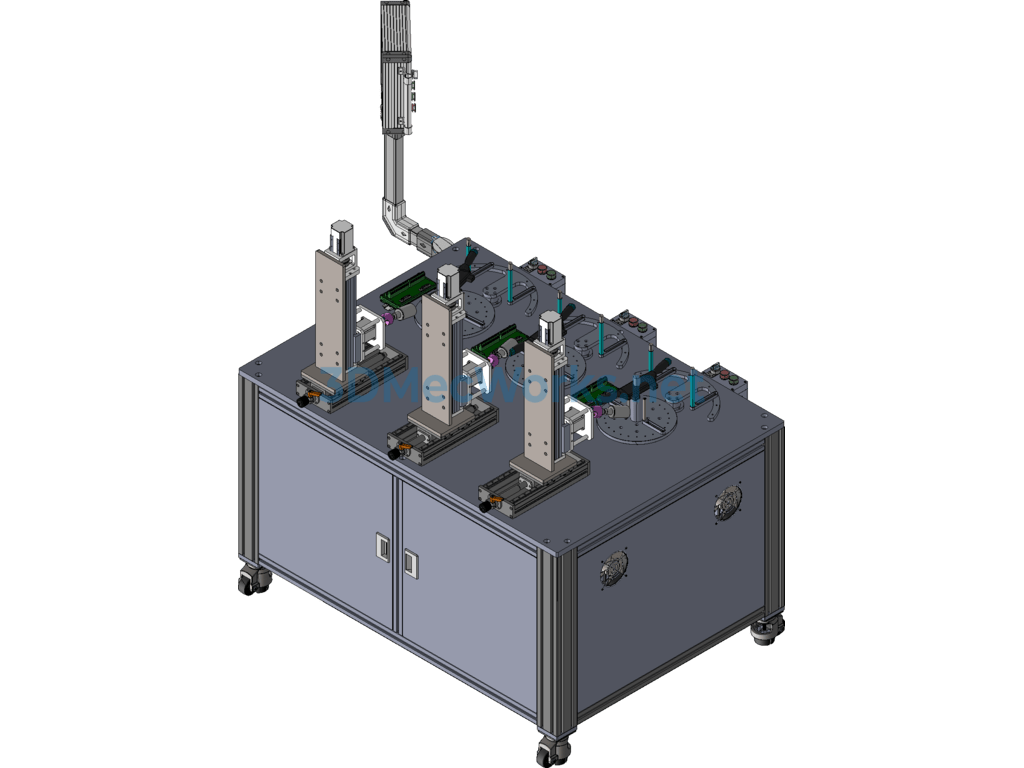

Automobile Combination Switch Testing Bench

The test bench is a specialized device for performing durability testing of combination switches in high and low temperature environments (-40 to 80°C). It can achieve durability testing of both the mechanical performance parameters and electrical performance parameters of switches, and determine the product’s compliance and quality based on test results.
The test bench must be equipped with specialized (universal, general-purpose) tooling fixtures and dedicated fixtures to meet the installation and testing requirements of test specimens of different models.
Main test items of the test bench
1. Contact voltage drop testing
2. On/off and load-bearing performance testing of contacts in each position
3. Durability test of combination switch
4. Auto reset function of the directional switch
5. Gear, speed characteristics, and anti-vibration characteristics testing
6. User-defined tests (test steps set freely by the user)
