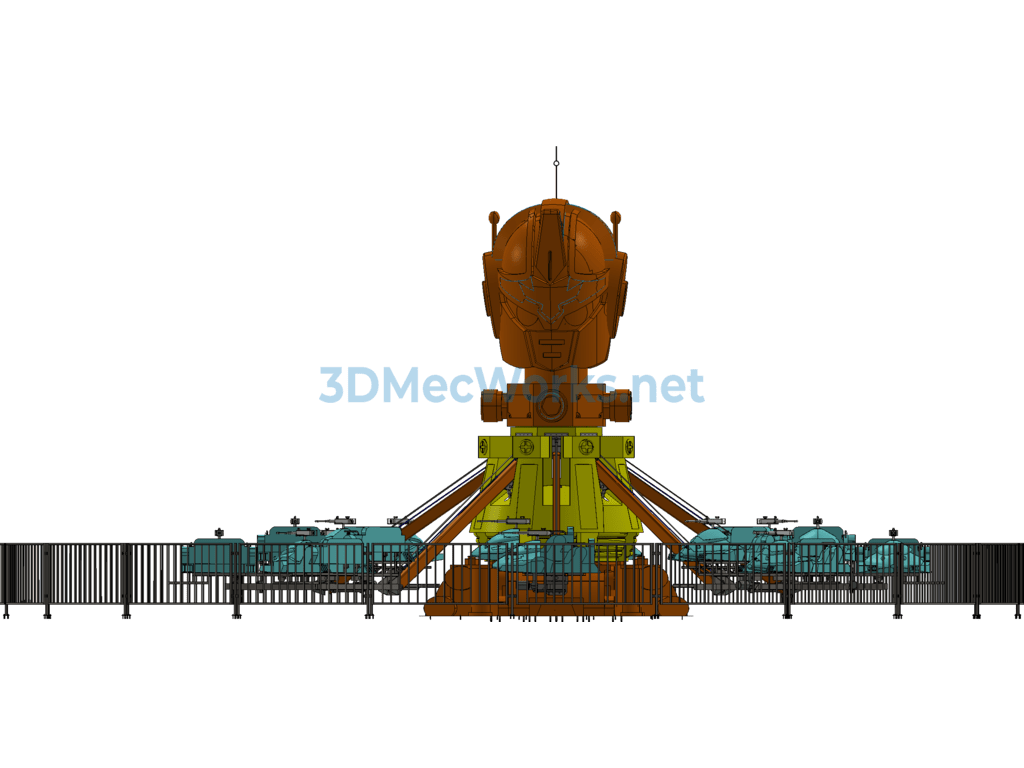

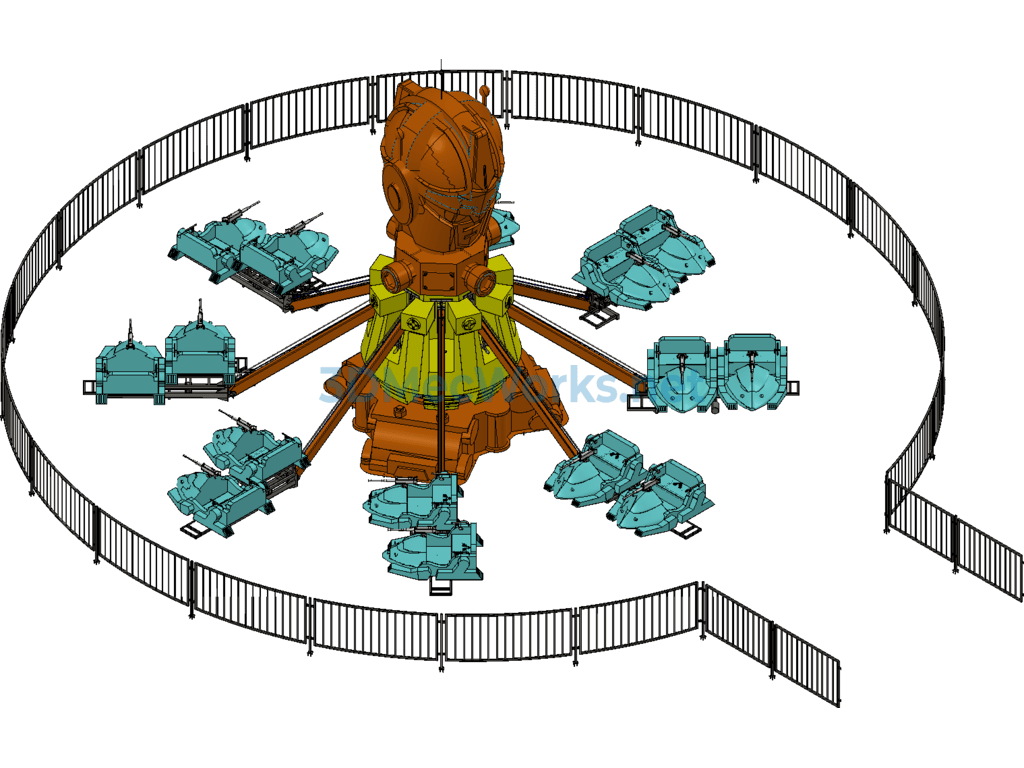

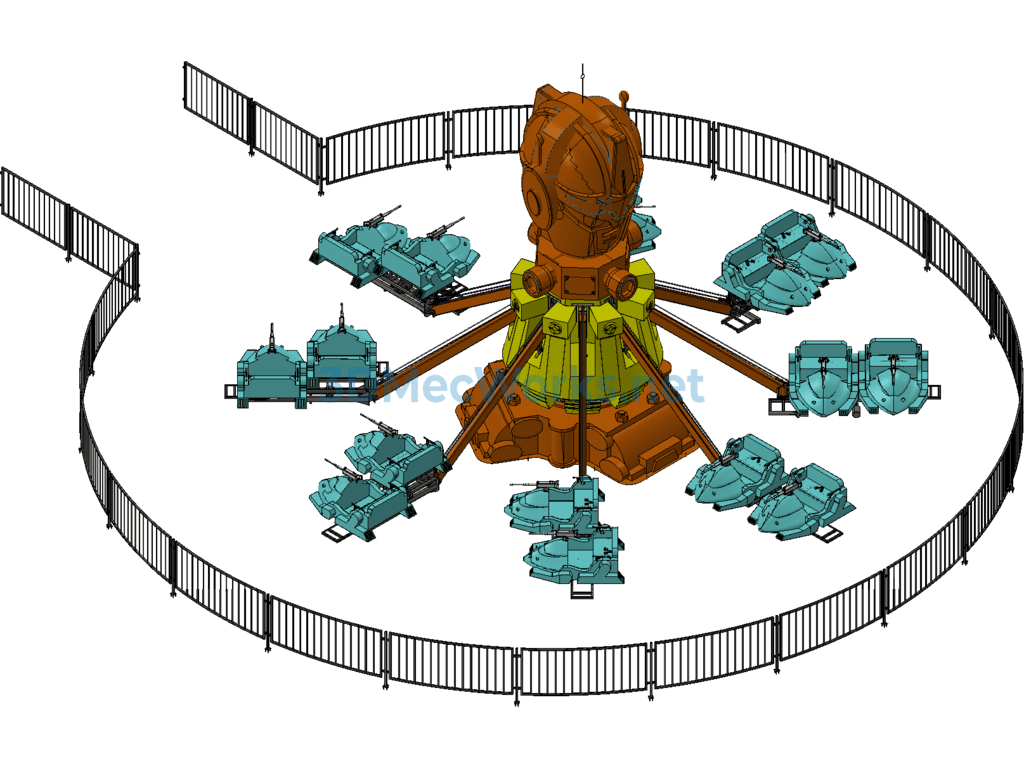

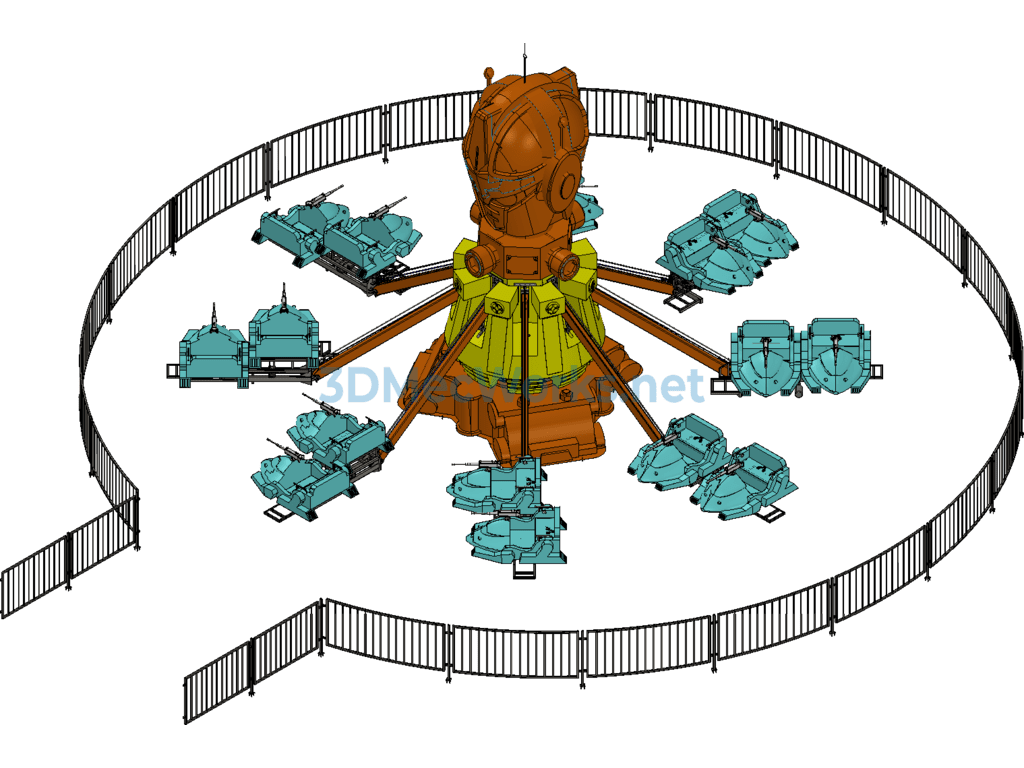

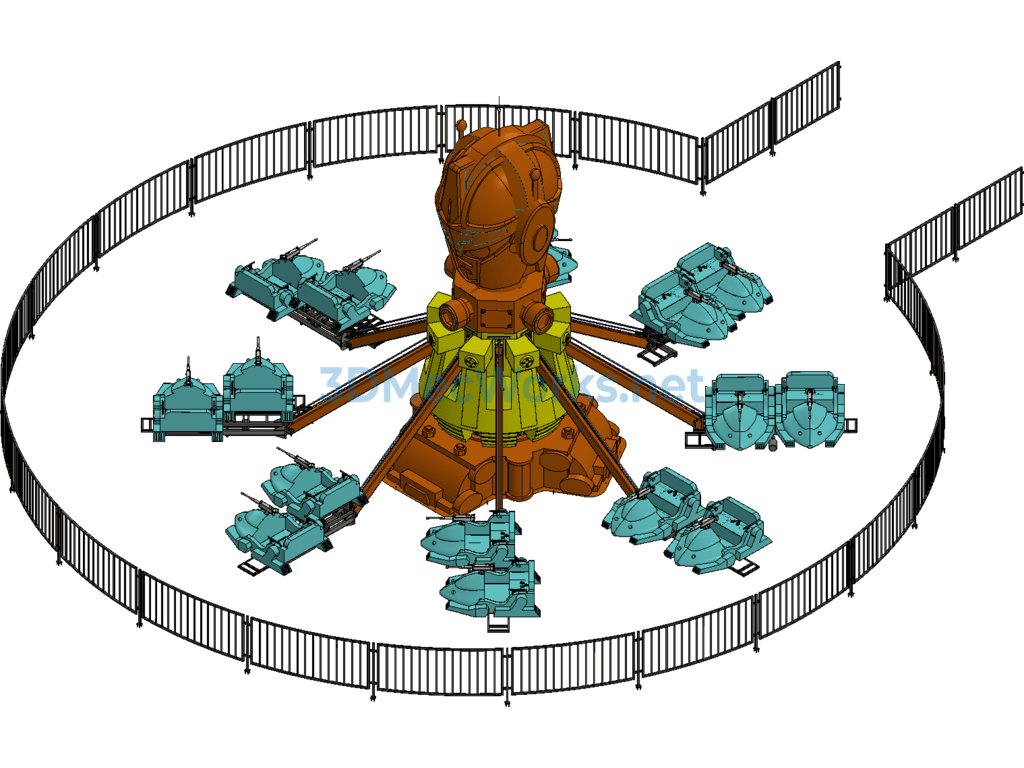

The structure of the automatic control aircraft rotating frame is a truss structure. The transmission methods are divided into central shaft transmission, gear transmission, and peripheral friction transmission. The motion characteristic of the automatic control aircraft is horizontal rotation around the central axis. As this automatic control aircraft is designed to operate at a height of 4.2 meters, it is considered a medium-sized automatic control aircraft. In accordance with design requirements and actual circumstances, a single-arm structural feature is adopted, with the transmission method being mechanical gear transmission.
Includes automatic control aircraft design manual
This design belongs to Class B automatic control aircraft type large amusement equipment. The rotating frame and base frame of this machine are truss structures, assembled and welded from rectangular pipes. The machine’s transmission system adopts a motor coupled with a speed reducer for gear transmission. Two power units are installed on the base frame, which drive the slewing bearing through gears to propel the rotating frame, providing entertainment for visitors.
