Automatic Workpiece Grinding Machine

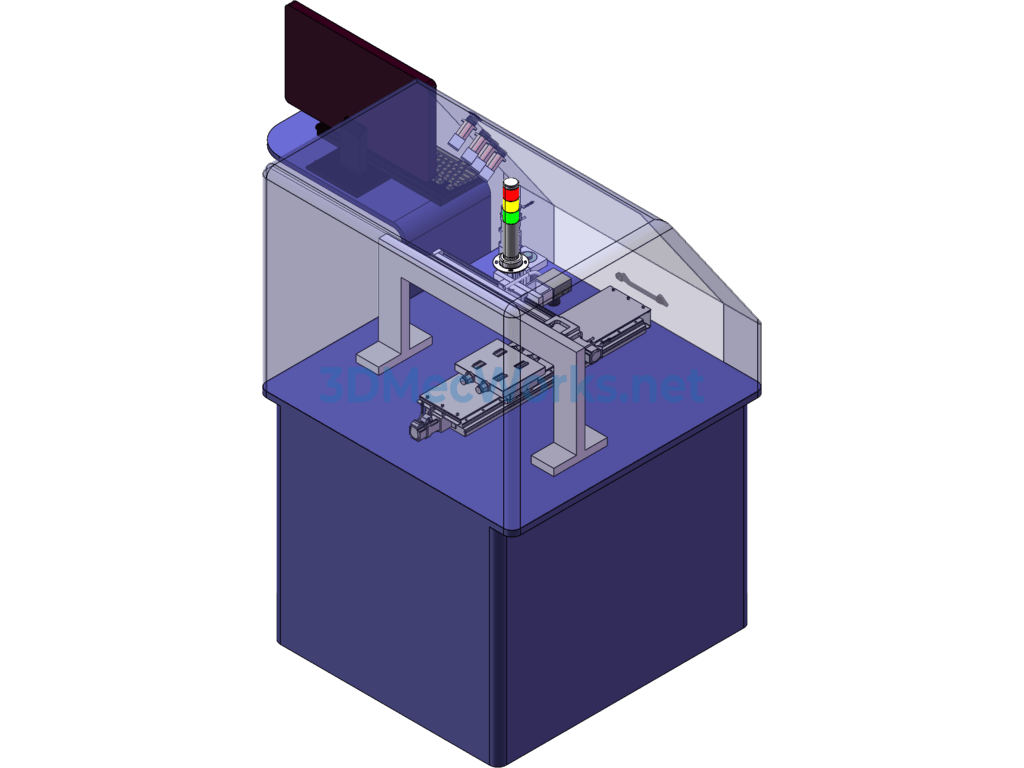

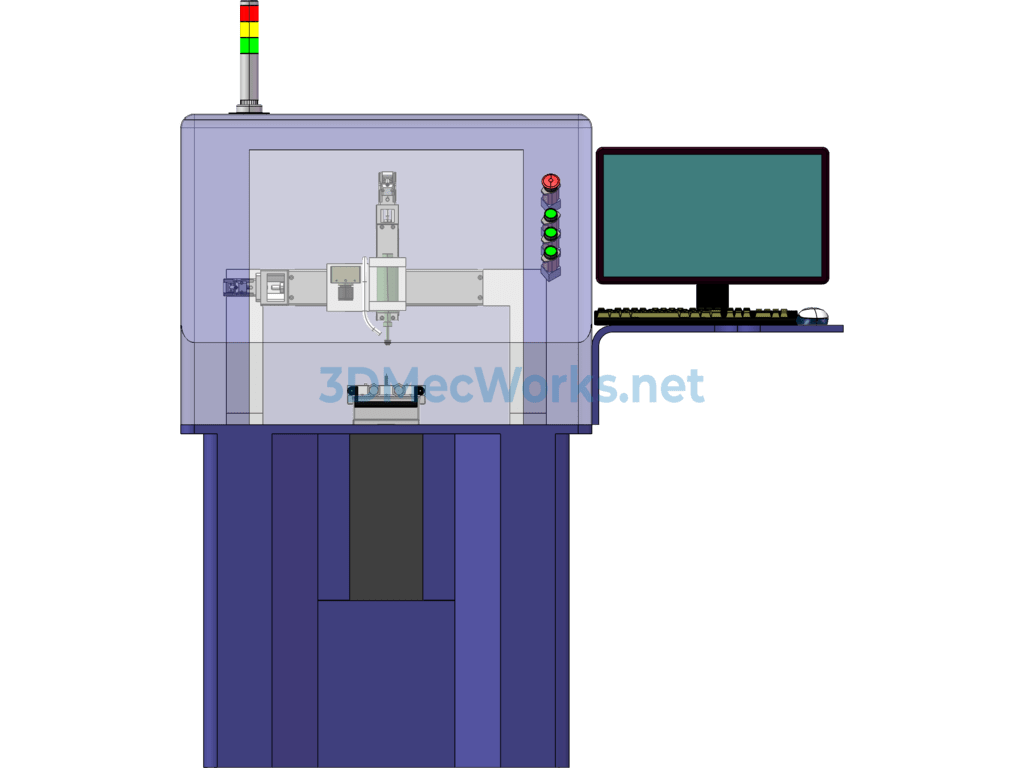

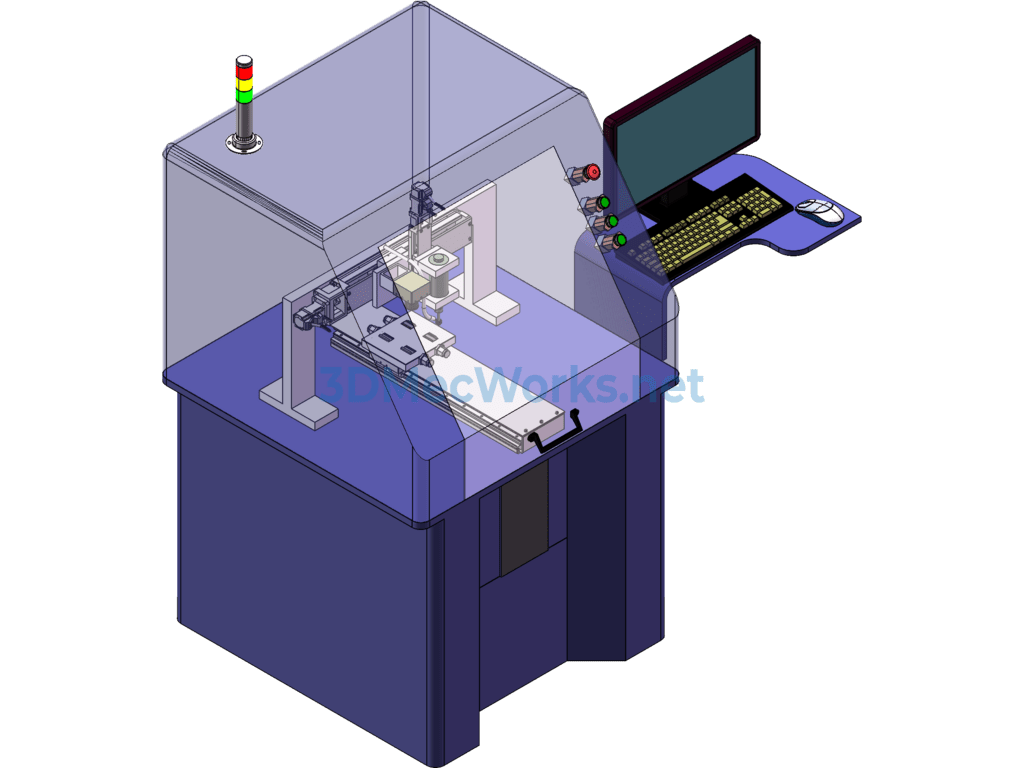

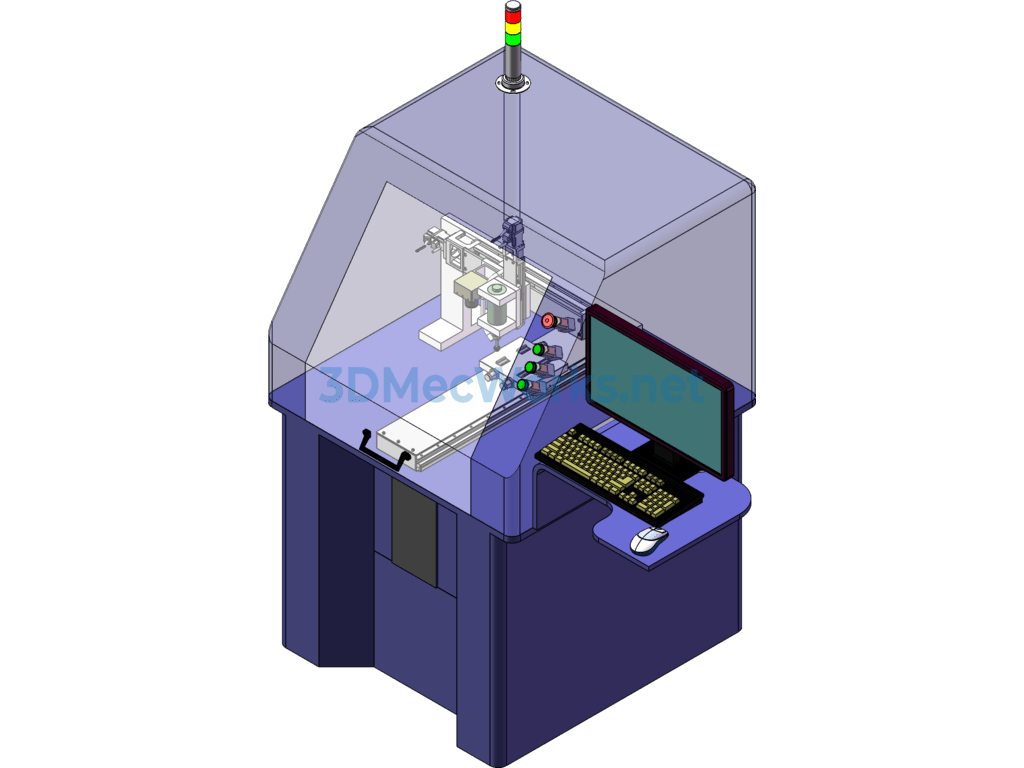

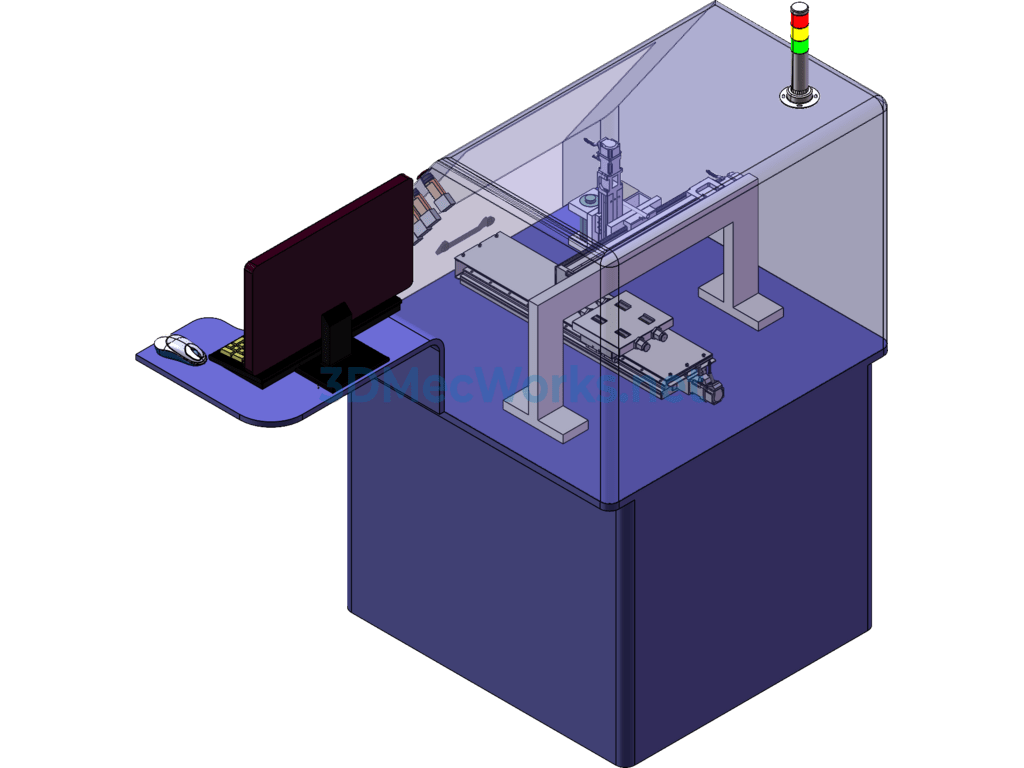

3D Model of Automatic Grinding Machine for Parts
SolidWorks 2012 Design Source File Sharing, Versatile for Various Applications!
The plastic strip is processed in two steps:
1. Clamp the non-machining surface facing down, position with CCD, and use the cylindrical grinding head to symmetrically process all four sides.
2. Clamp the non-machining surface facing up, position with CCD, and use the angled grinding head to grind the corners on both sides along the length of the plastic strip.
Specification: Automatic Workpiece Grinding Machine
|
