Automatic Wire Soldering Machine (Wire Welder) for Hardware Filaments

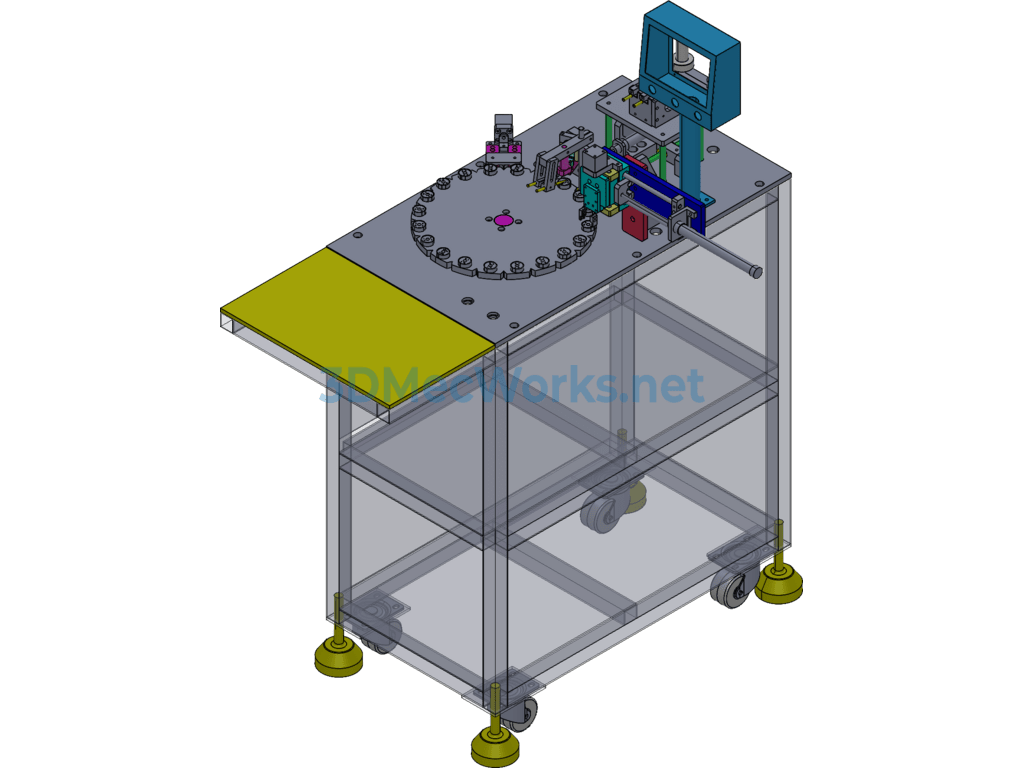

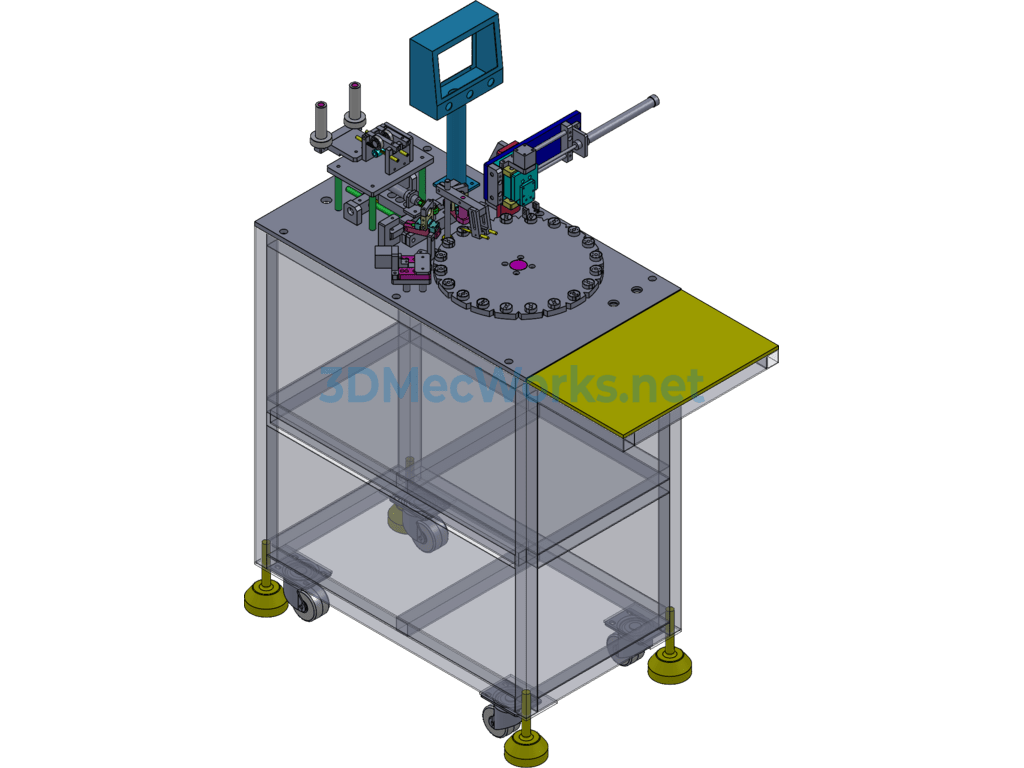

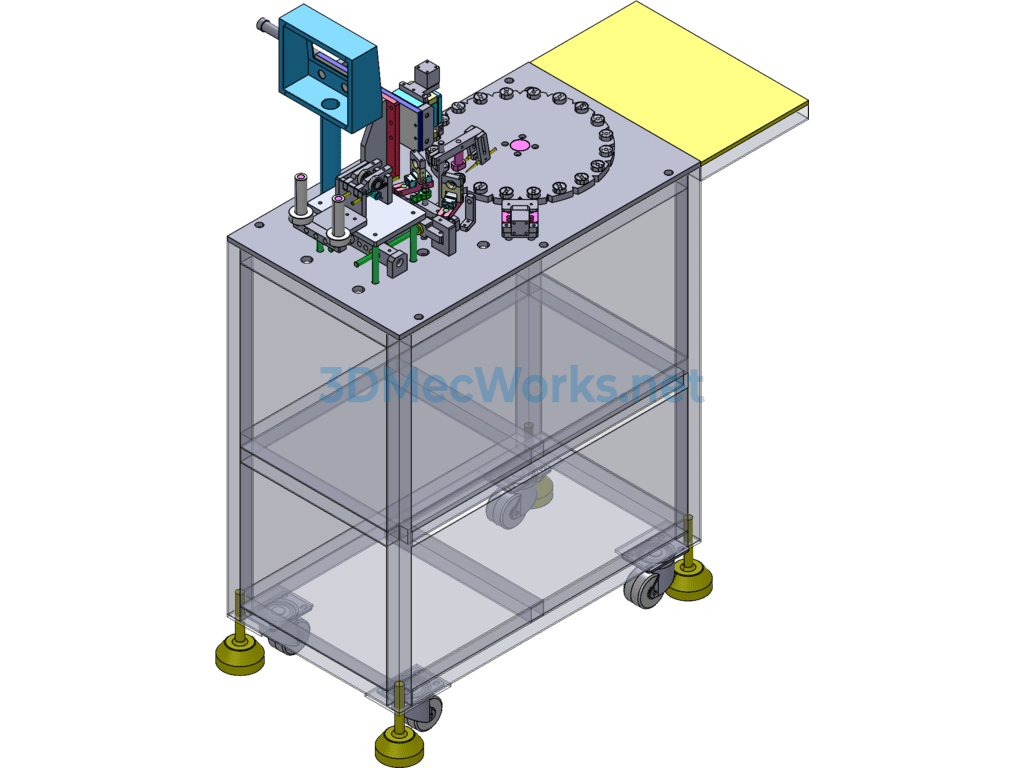

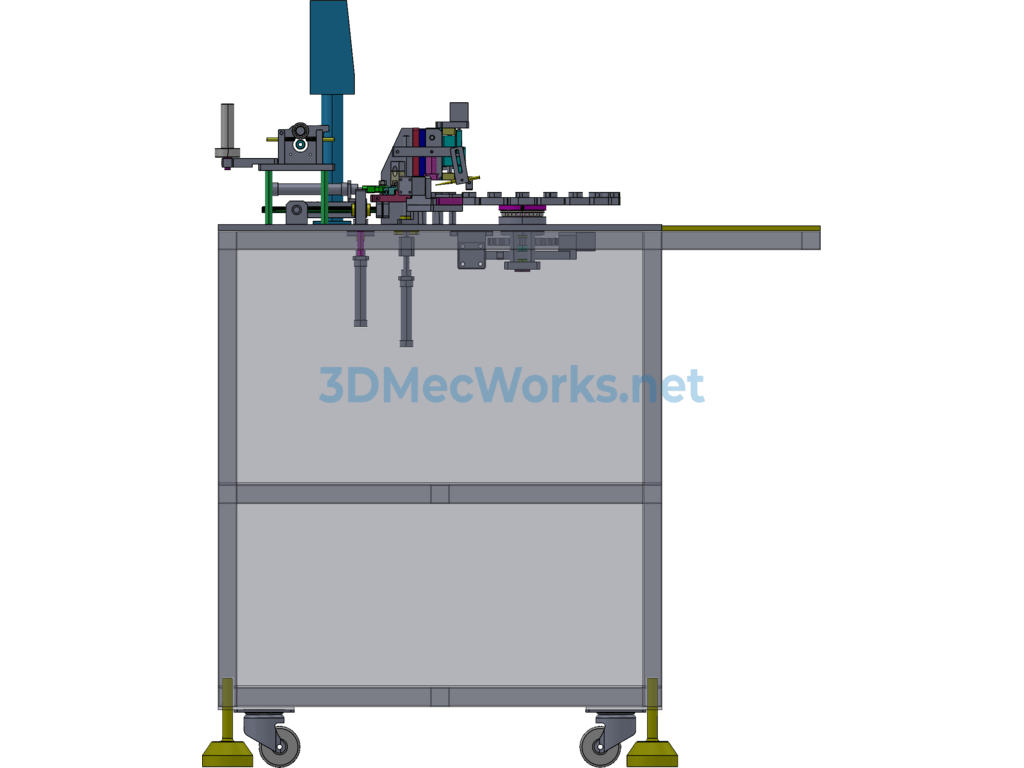

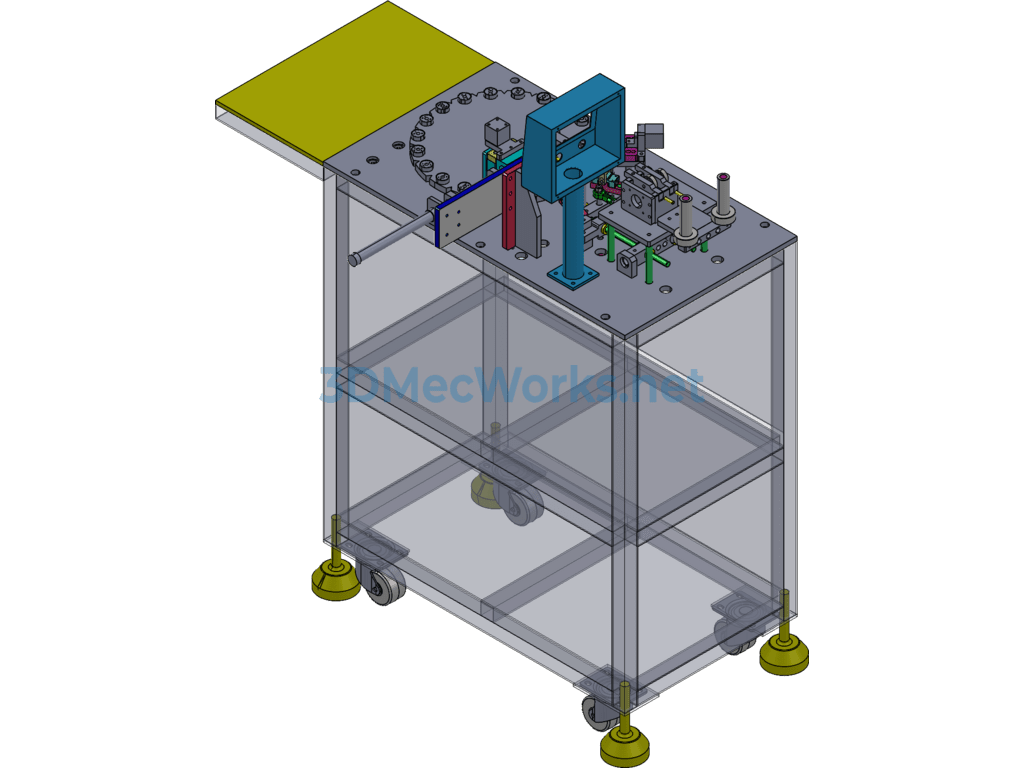

Diagram of Automatic Soldering Machine Structure

A complete 3D model of a hardware wire automatic soldering machine. The turntable can hold many materials that need soldering at once. As the turntable rotates through each station, the soldering is completed one by one. This structure is not very complex, but it is designed to be cost-effective while achieving its functionality. Therefore, many manufacturers of soldering machines have not considered such a structure. This is shared in the hope that more people will download and learn from it.
