Automatic Vulcanization Line - SolidWorks - Free Download

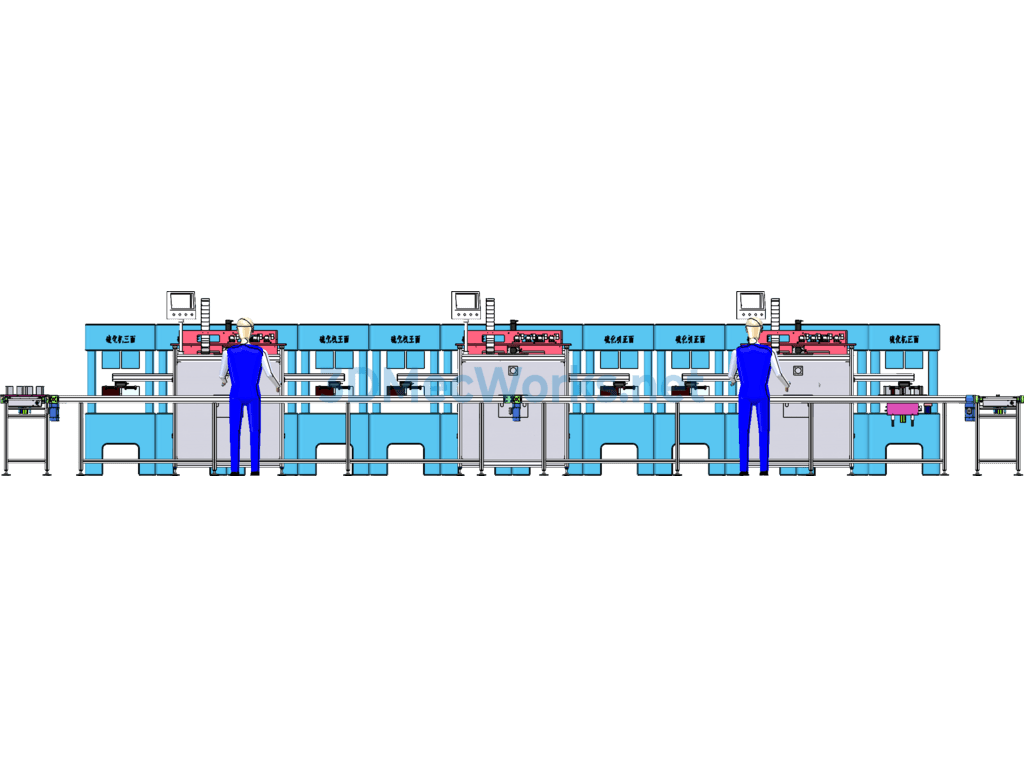

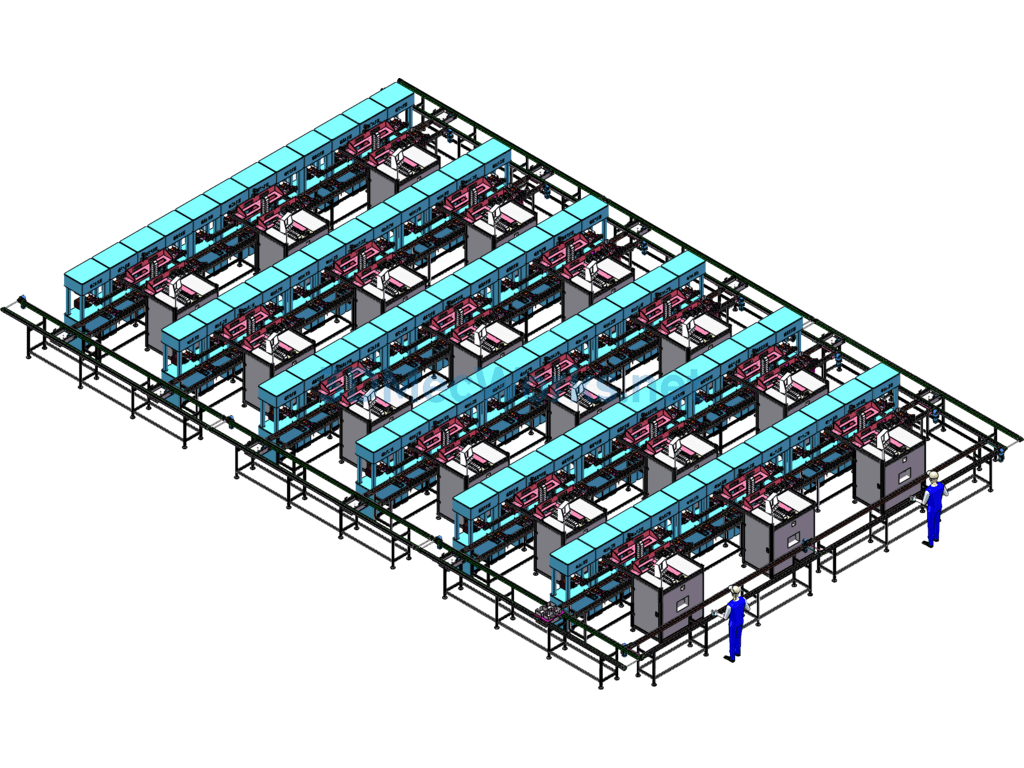

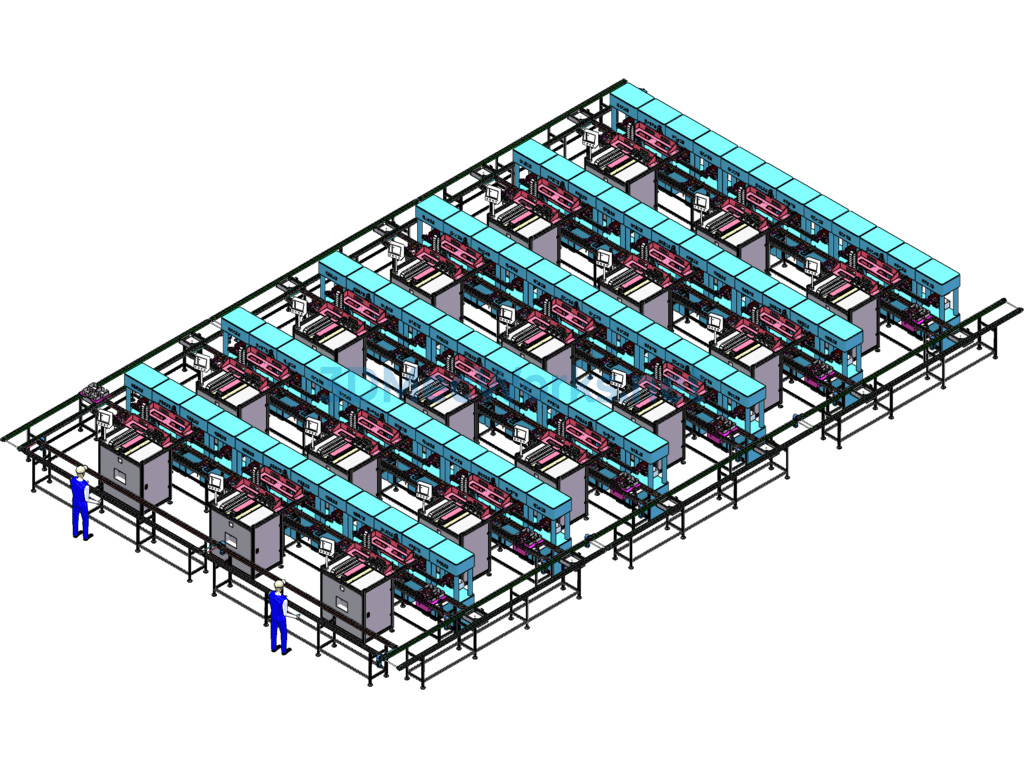

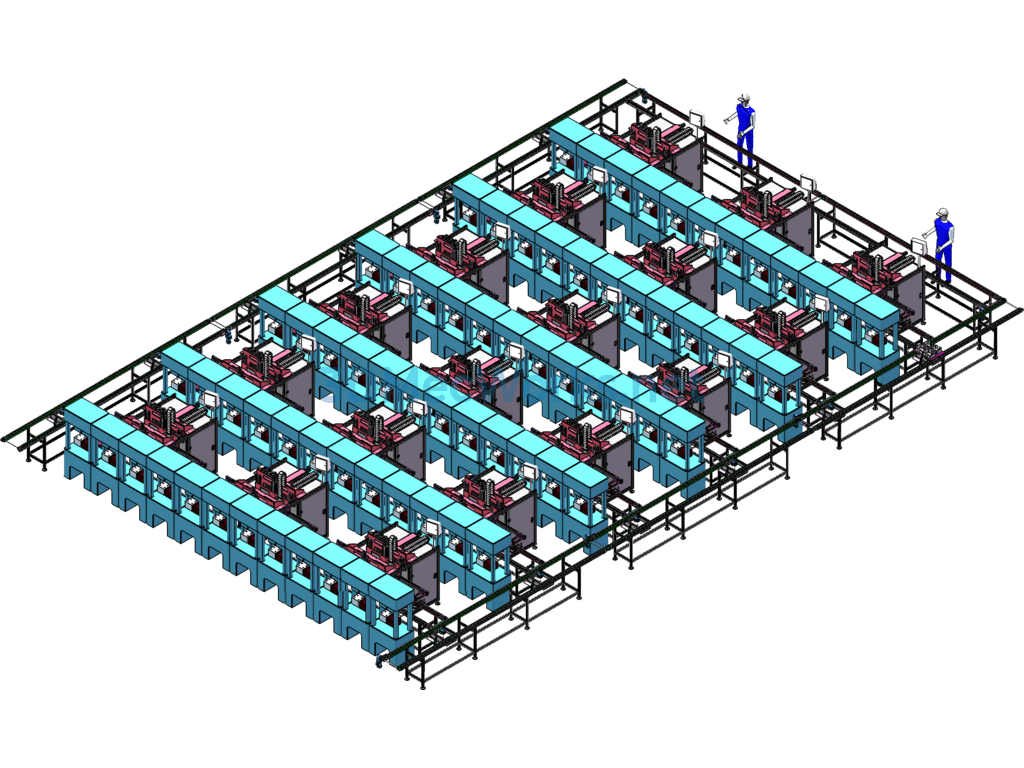

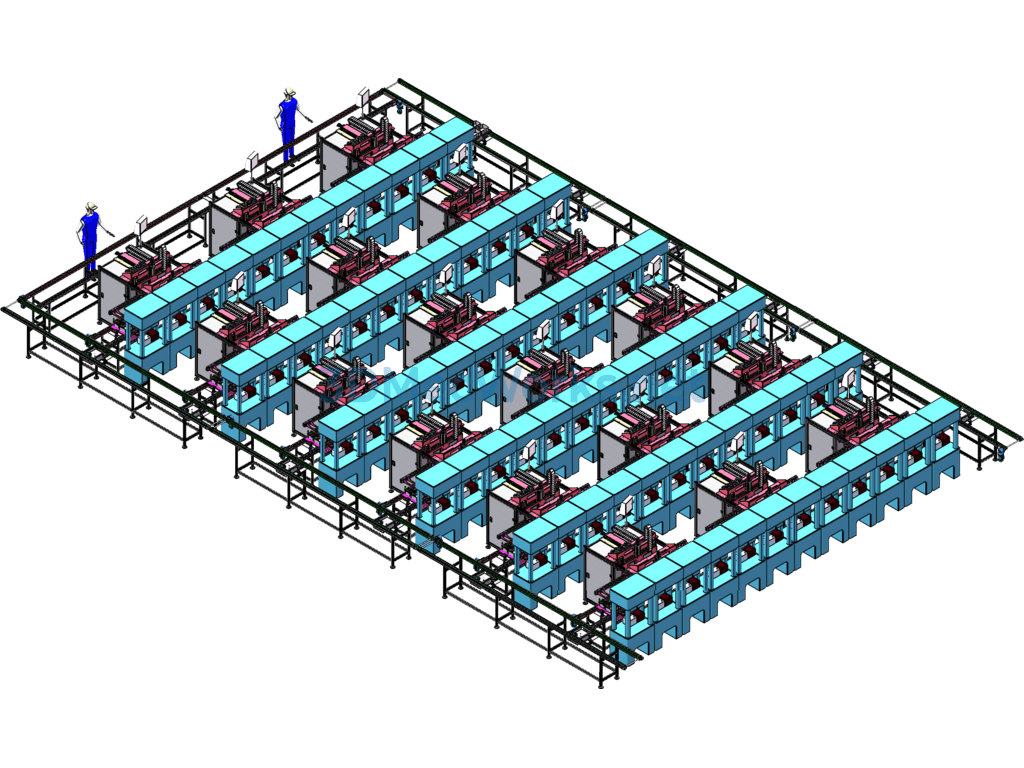

This drawing is of a vulcanization workshop production line with a relatively large product batch. The number of vulcanization lines can be set according to production needs. Work fixtures have raw material and finished product holders. The suction cups respectively pick up raw materials and finished products, rotate 180°, and place them in designated positions to increase loading efficiency. SW2018 version, with parameters, editable.
Specification: Automatic Vulcanization Line - SolidWorks - Free Download
|
