Automatic Valve Body Retaining Ring Assembly Fixture, Mass Production - SolidWorks - Free Download

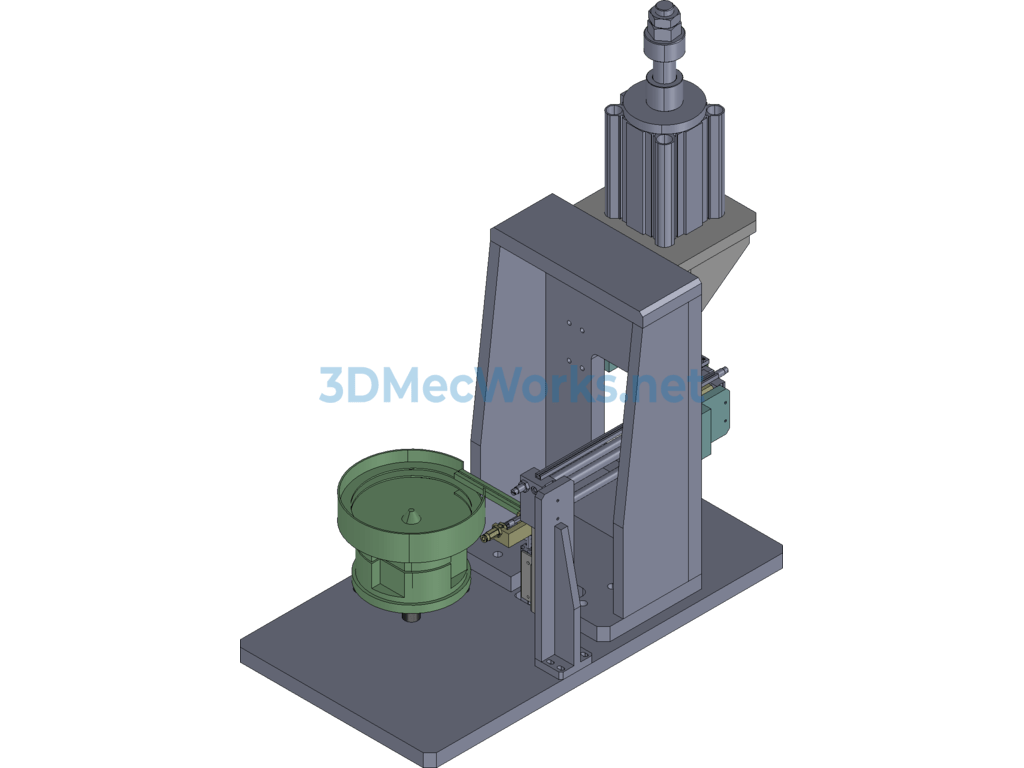

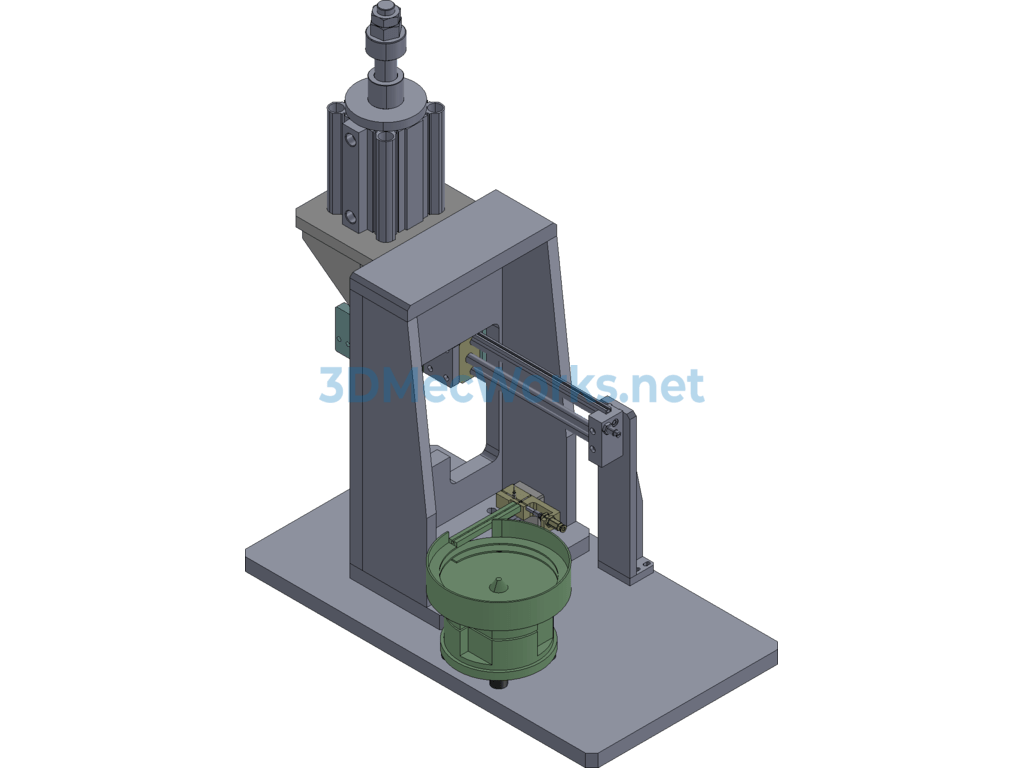

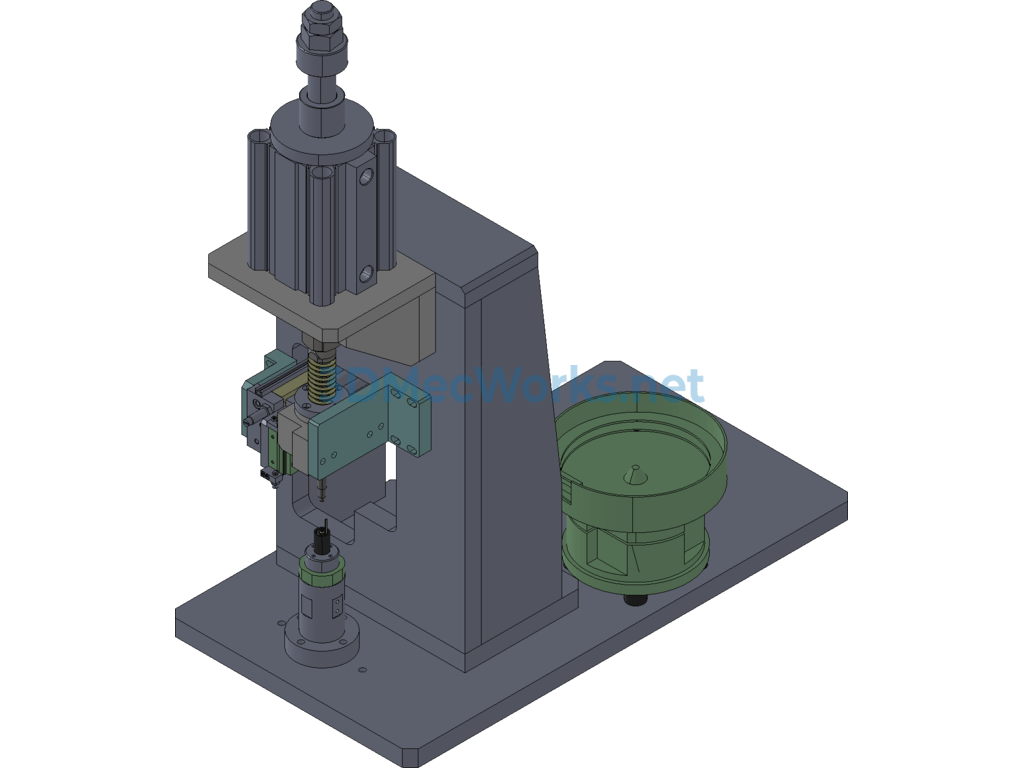

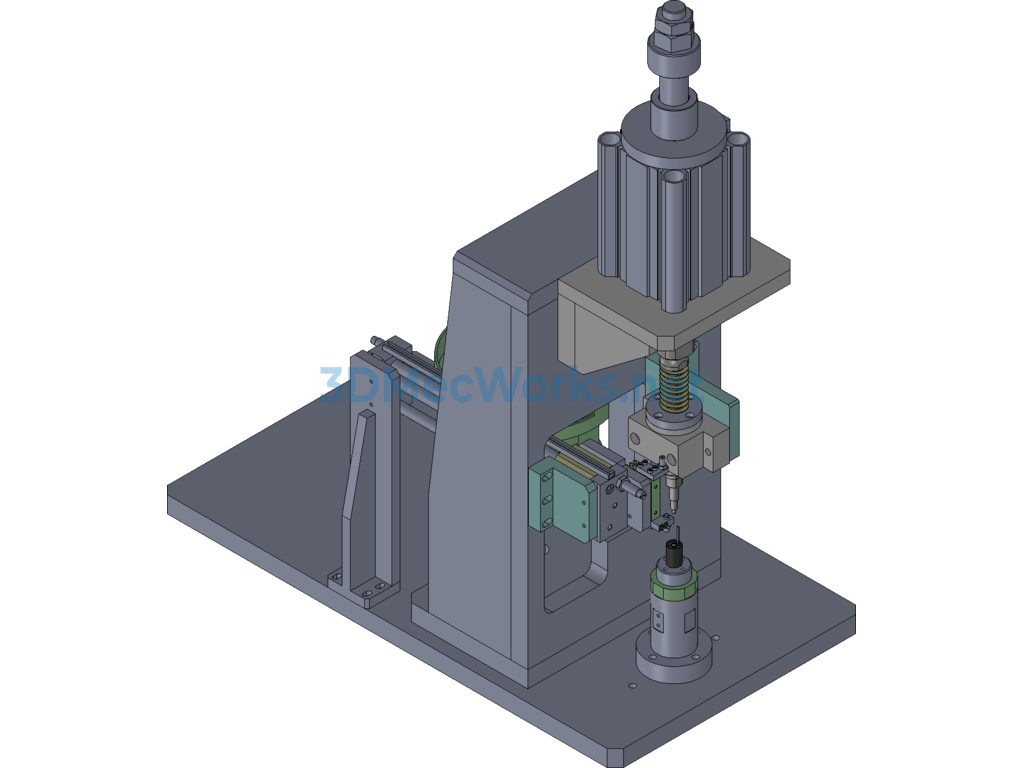

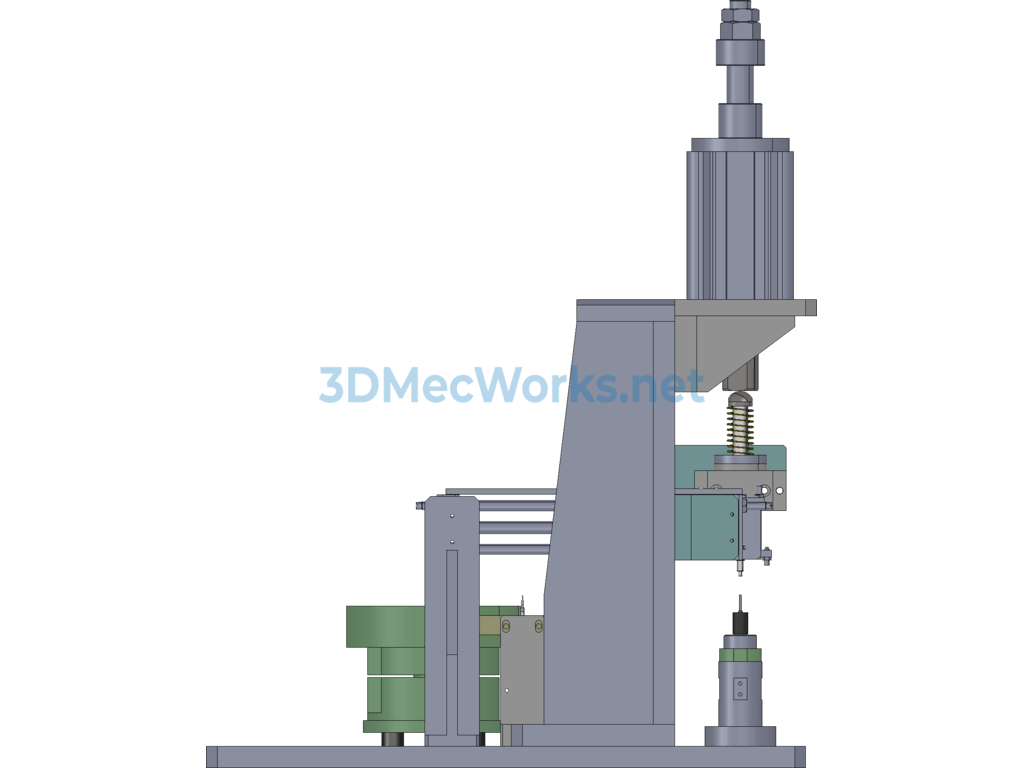

Valve Body Retaining Ring Automatic Assembly Tooling, mass production, detailed 3D. SolidWorks, STEP, this equipment is used for the pressing operation of retaining rings in products. The retaining rings are automatically fed by a vibrating bowl + linear vibrator, a rodless cylinder + gripper cylinder grabs the retaining ring and places it above the product, then the cylinder drives the pressing of the retaining ring. The structure is compact and practical, includes parametric modeling, welcome to download.
