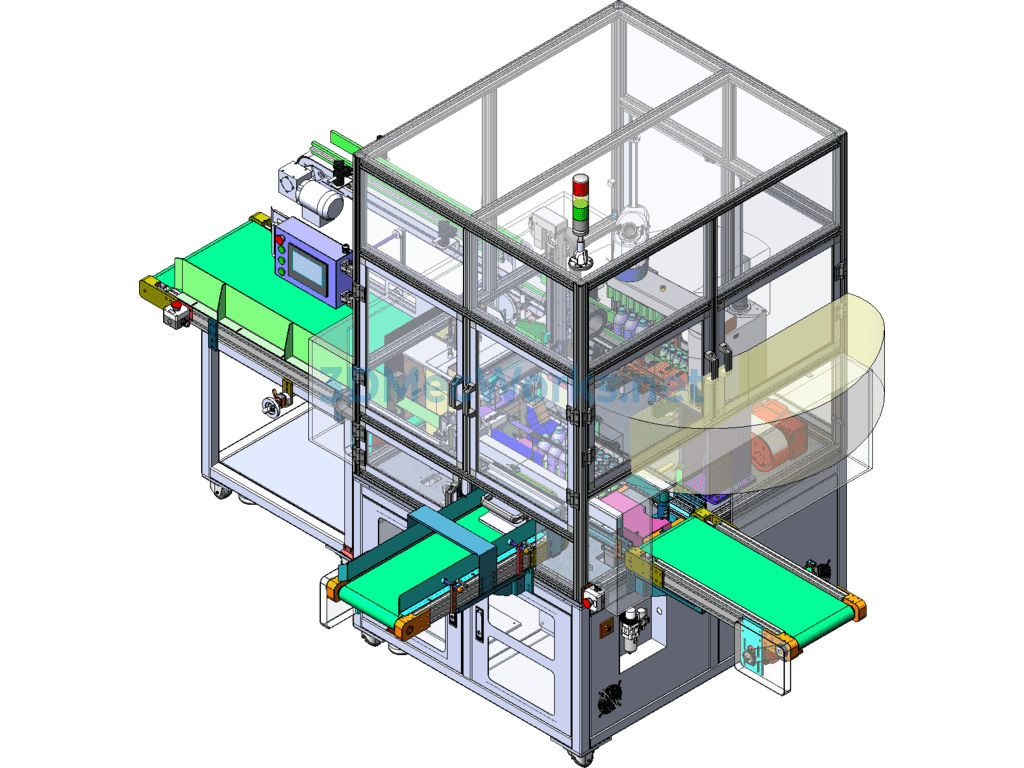

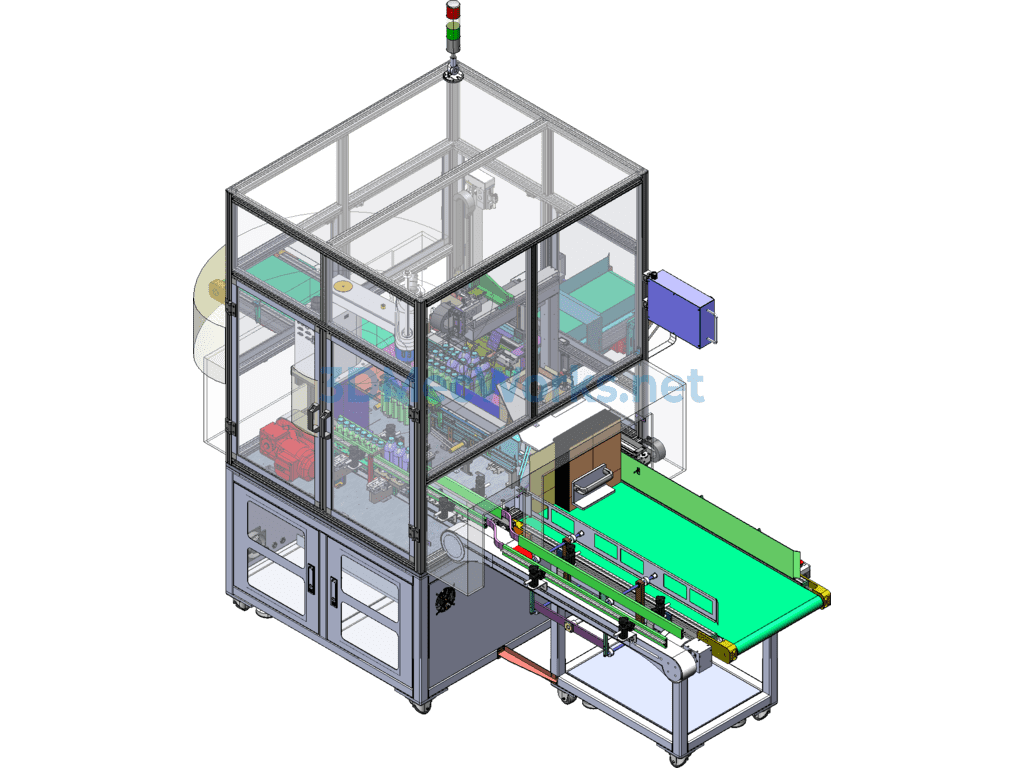

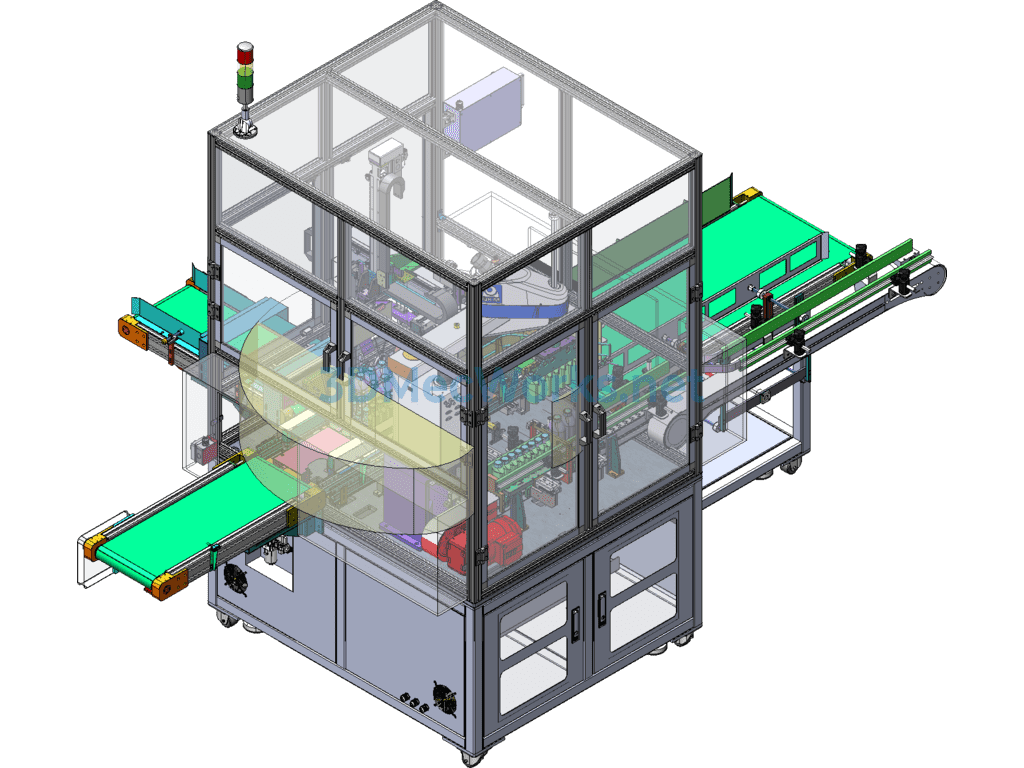

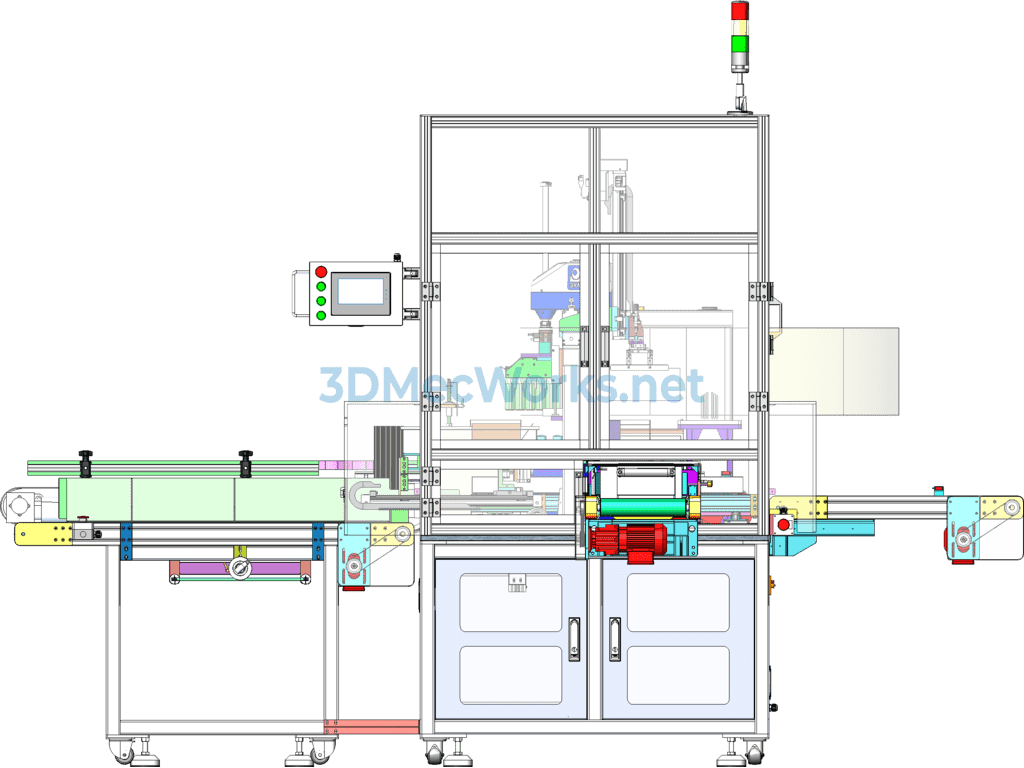

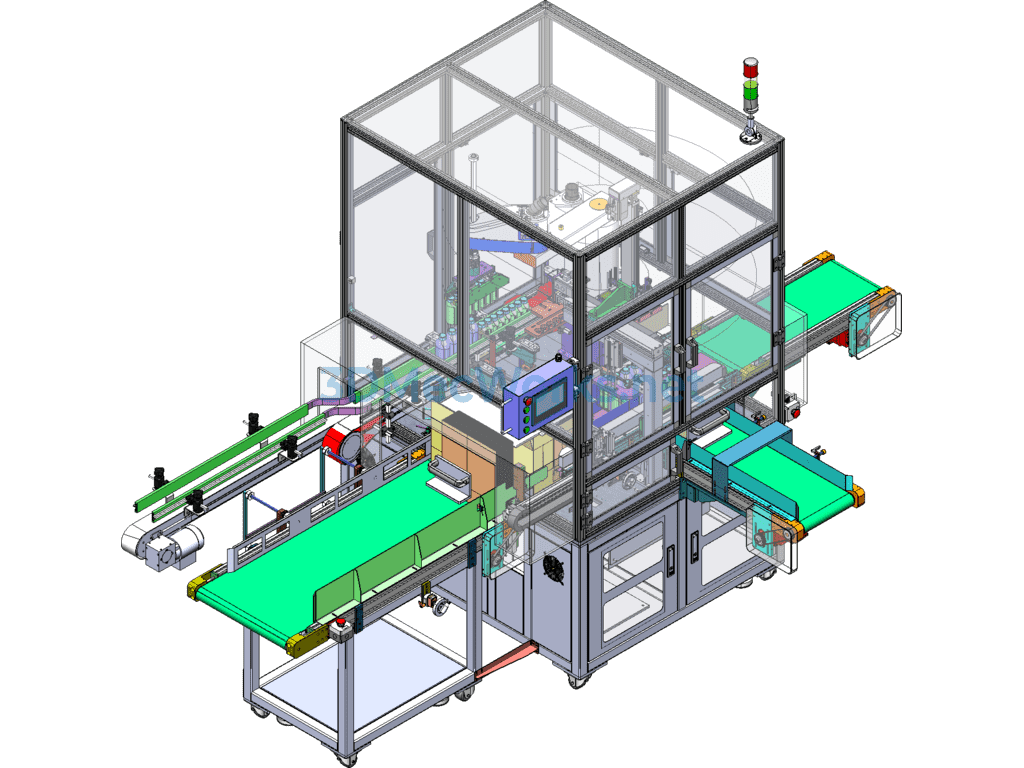

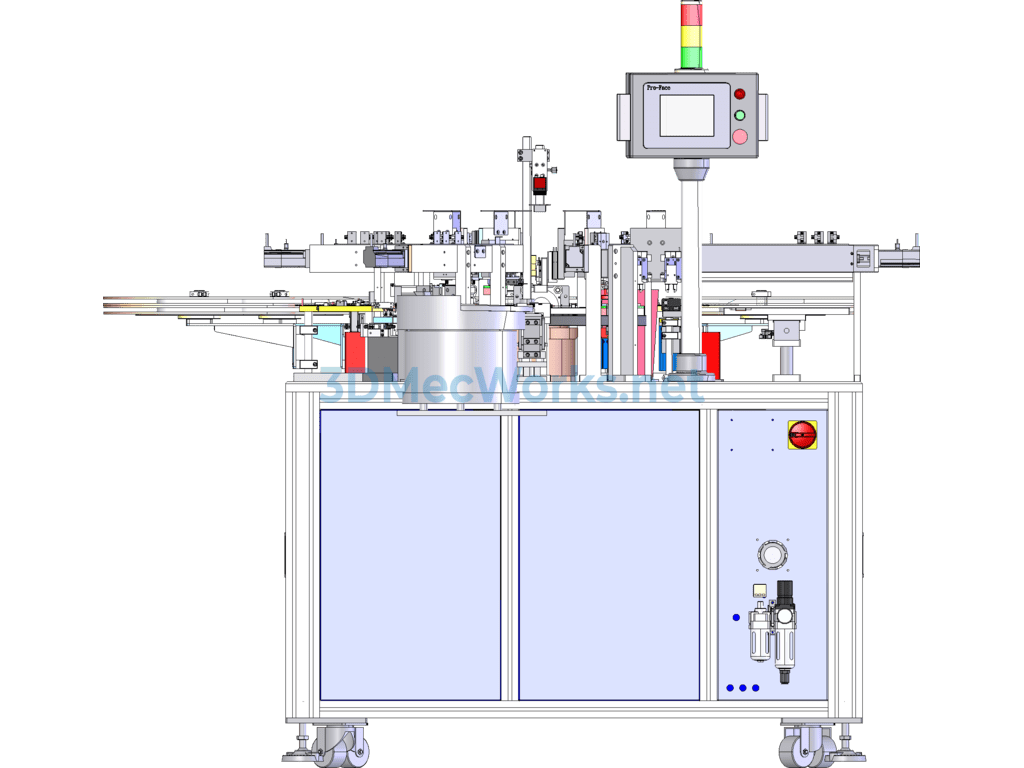

Automatic Unpacking And Packing Equipment For Potion Bottles (DFM And BOM Included) - SolidWorks - Free Download

Introduction to the operation of the automatic unboxing and boxing machine for potion bottles:_x000D_
1. Load the first row into the box on the left side and insert the first partition board, keeping the partition module stationary;_x000D_
2. The manipulator grabs the second row for boxing, and the partition module moves out;_x000D_
3. After the partition module moves out, the manipulator shifts to the left to ensure it is completely flush with the partition board;_x000D_
4. The partition module grabs the second board, rotates, and moves it into the box below the shoulder of the second row of bottles;_x000D_
5. The manipulator grabs the third row along the right edge of the box wall and loads it into the box;_x000D_
6. The bottom of the third row of bottles forms a tangent angle with the shoulder of the second row of bottles to ensure the relative position of the partition. The partition module releases and moves out, the manipulator moves down to make the partition vertical, assisting in pressing down the partition and loading the bottles into the box simultaneously (or the partition module presses down the partition to its position a second time).
