Automatic Umbilical Tape Dosing and Winding Machine

Automatic Medication and Rolling Machine for Umbilical Tape SW Design. This equipment is suitable for various types of fabrics. The machine features infrared photoelectric hydraulic automatic edge aligning and ensures neat fabric rolling. It includes a fabric tension adjustment device, accommodating different tension requirements for rolling.

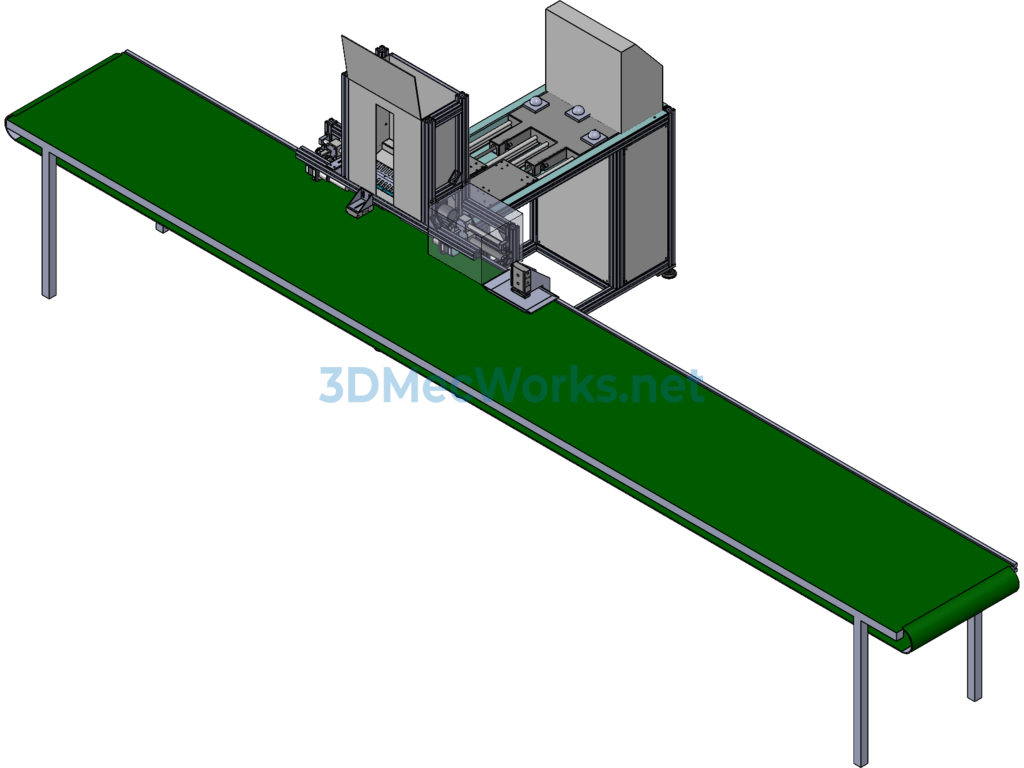

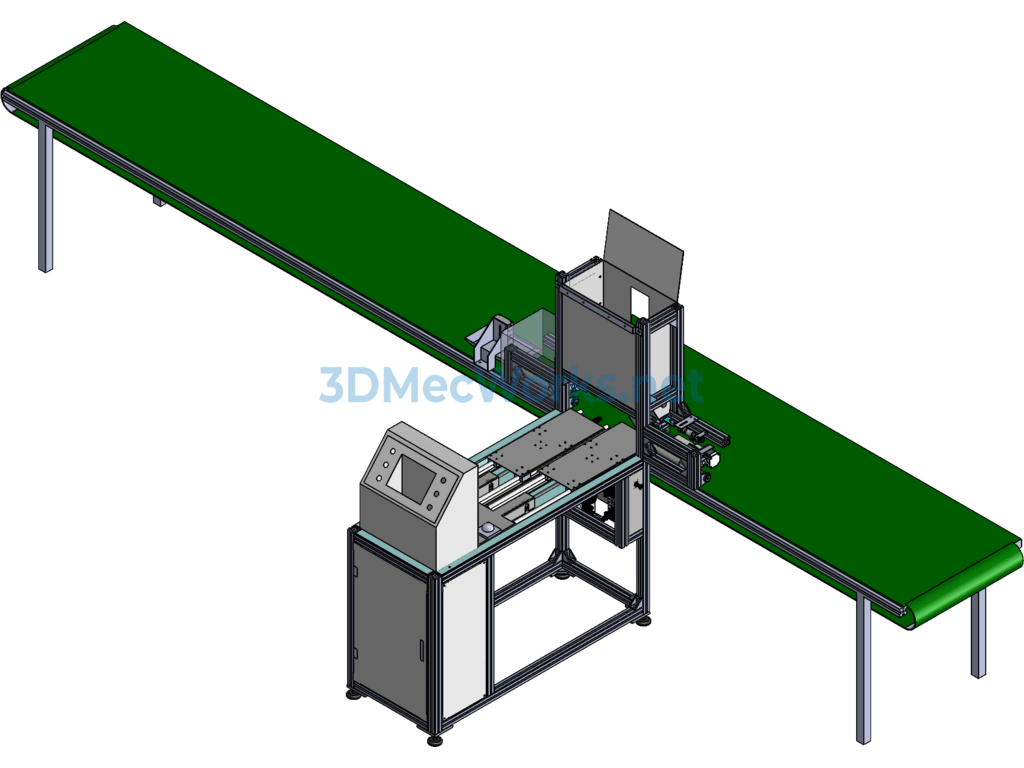

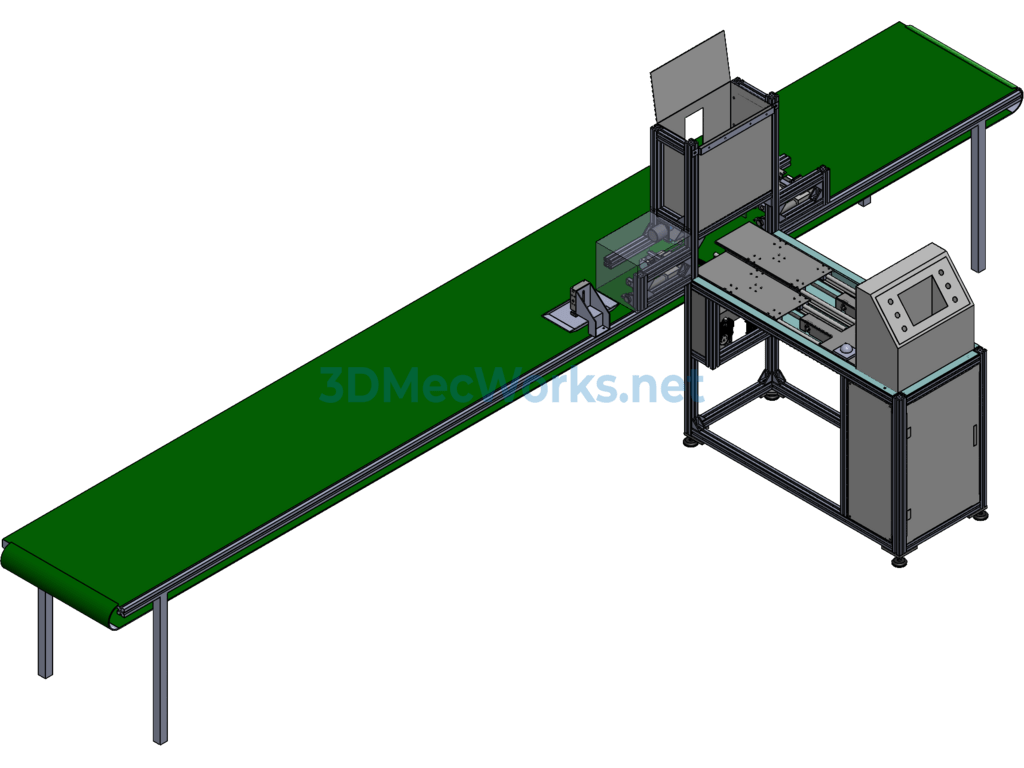

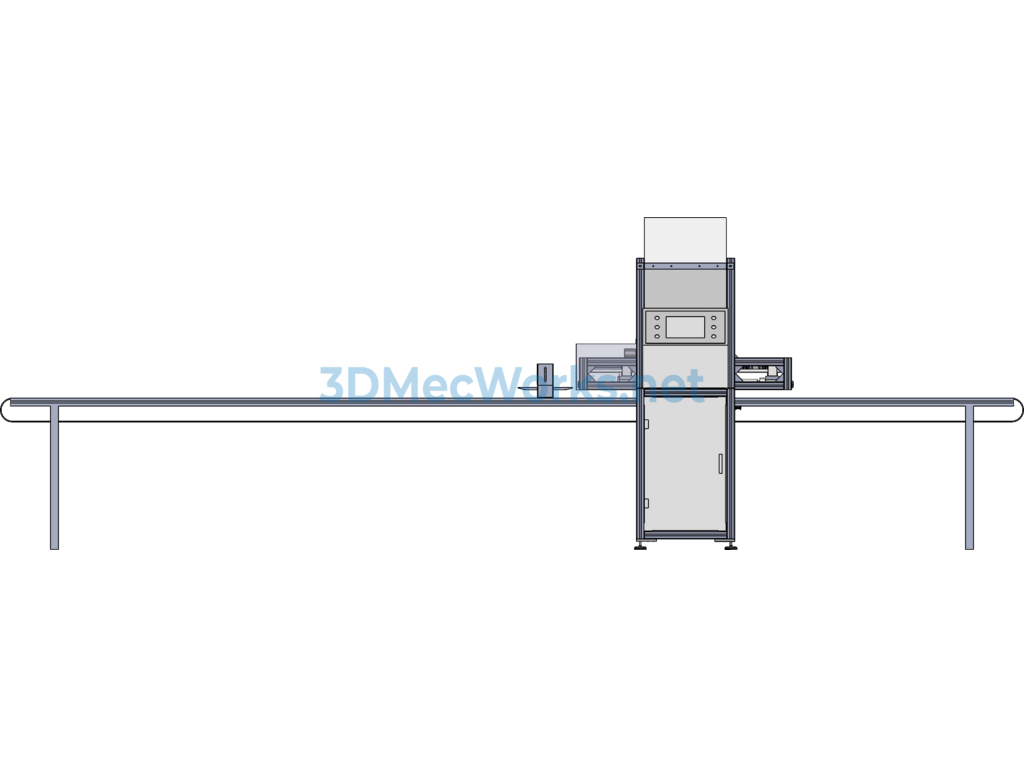

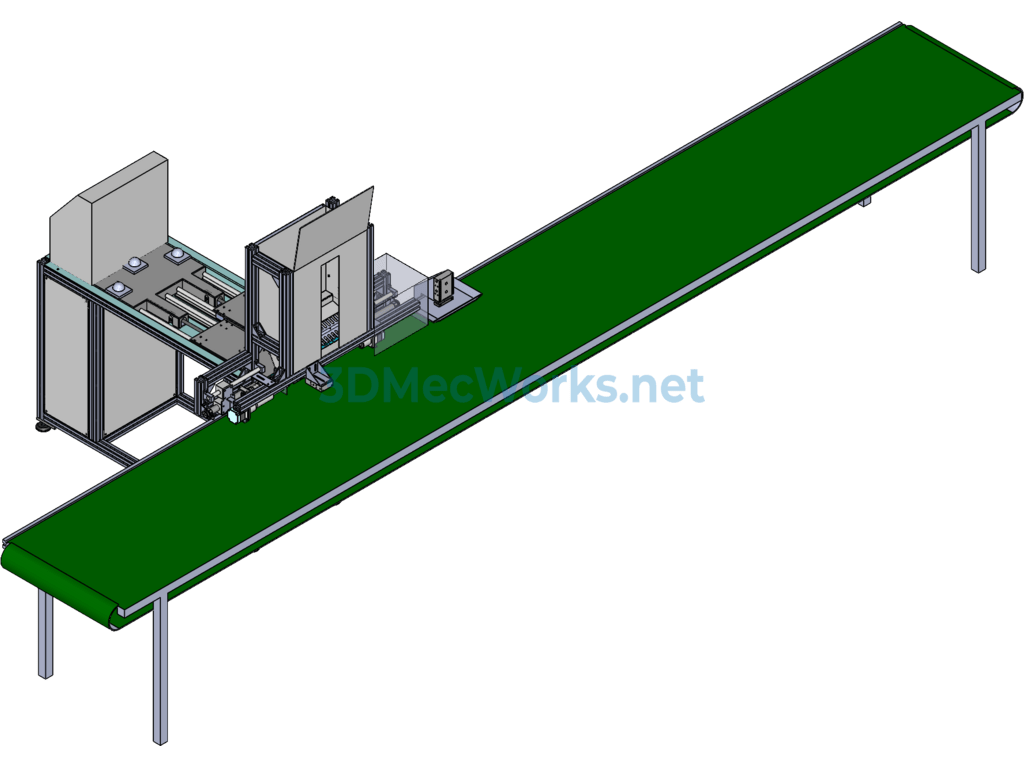

The automatic medication and rolling machine for umbilical tape is composed of the umbilical tape feeding section, automatic medication section, automatic rolling section, and conveying section. This equipment has been patented, with the patent number 201220268009.7. The operational workflow of the equipment is as follows: manually place the umbilical tape on the worktable, then the feeding component delivers the umbilical tape to the automatic medication component below, where it applies the powder to the umbilical tape. The automatic rolling component then rolls up the umbilical tape and places it onto the automatic conveyor belt. Feel free to download it.
