Automatic Transmission Housing Assembly Equipment for Automobiles

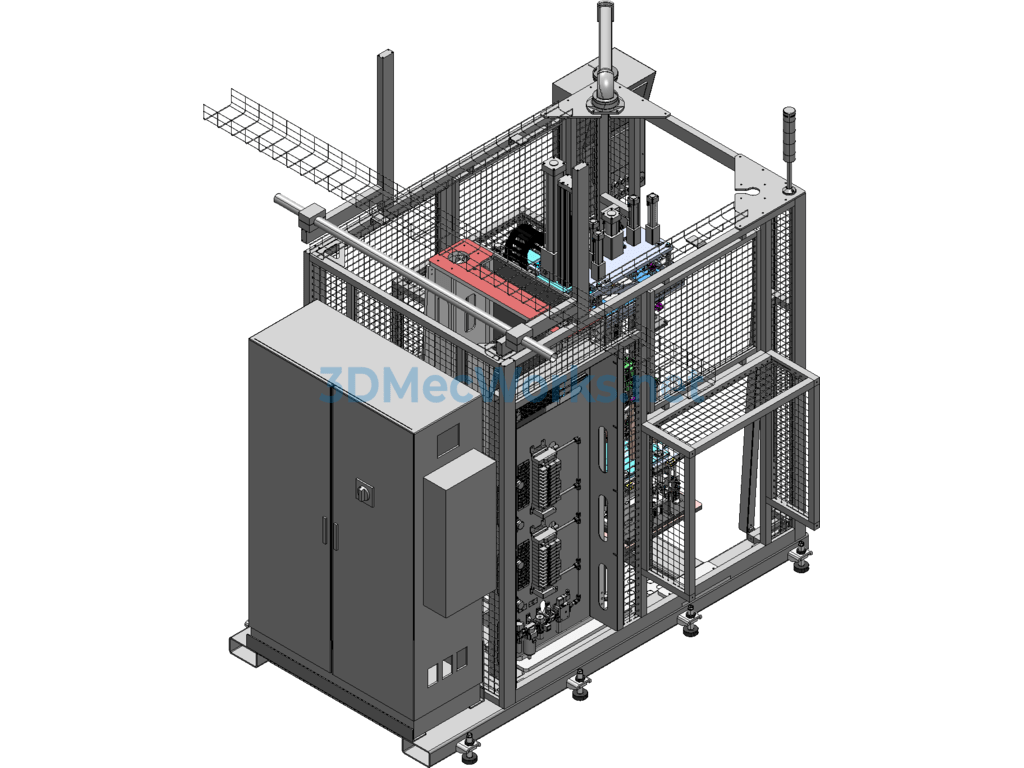

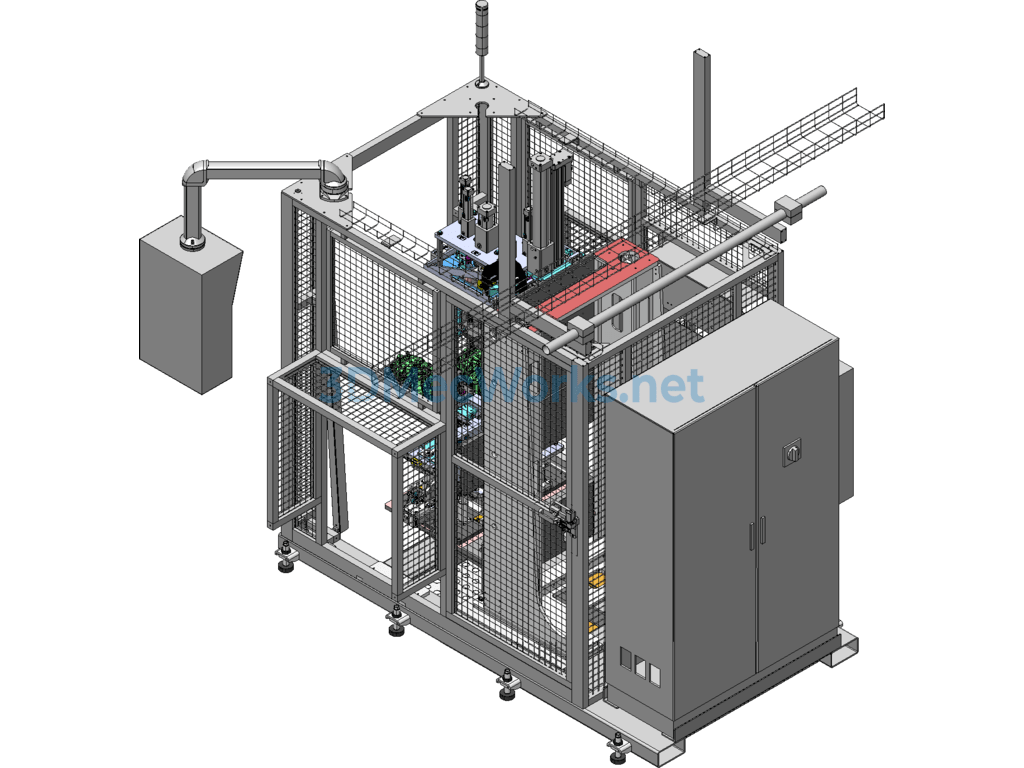

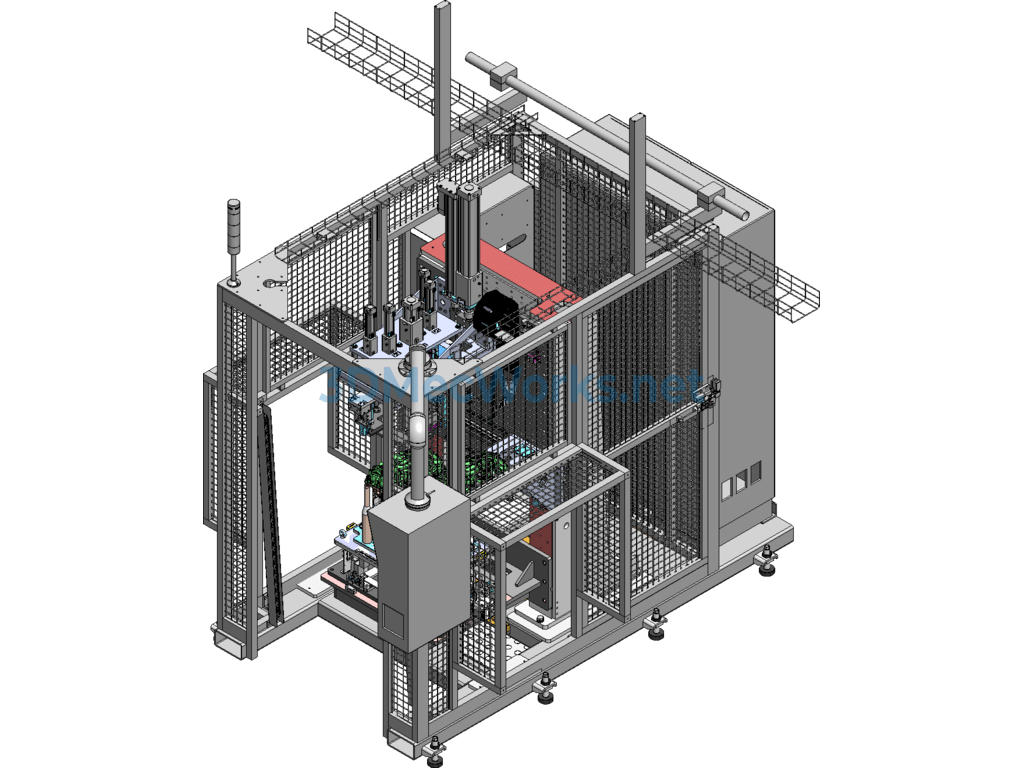

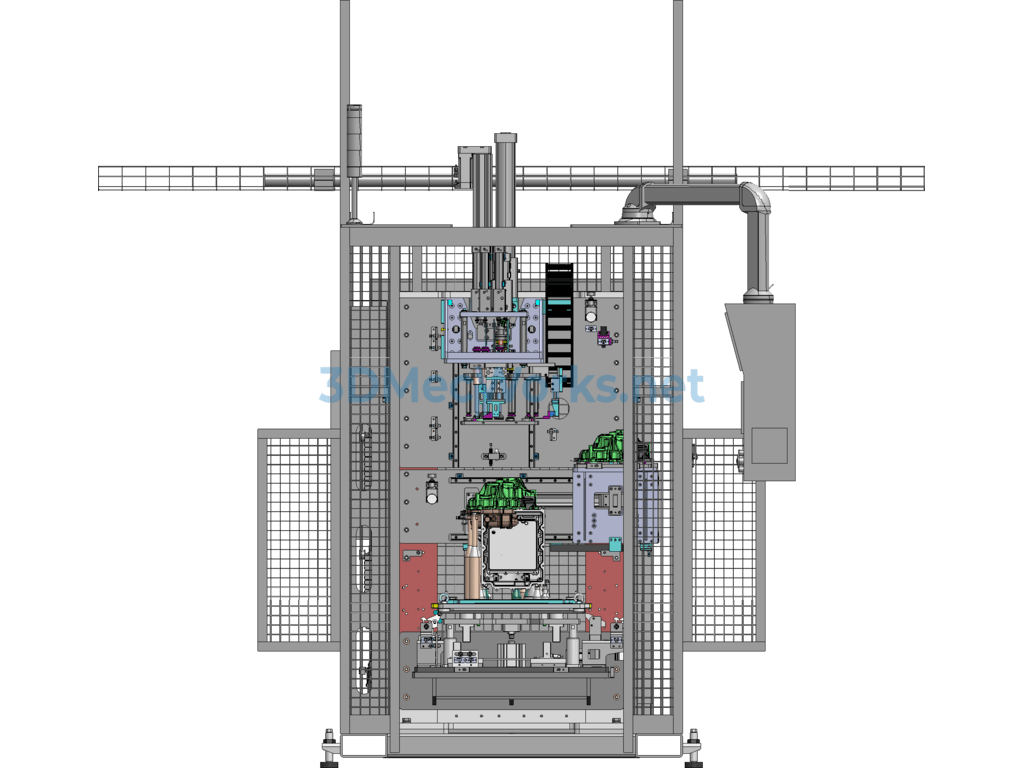

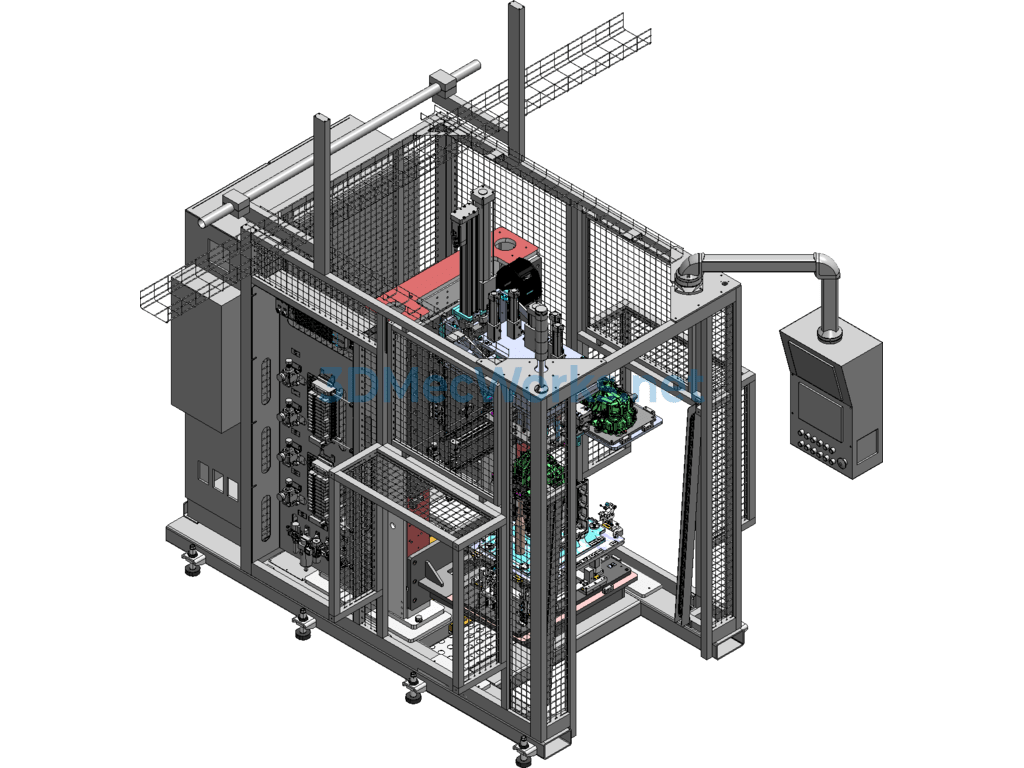

This drawing is for an actual production project, an automatic gearbox housing assembly equipment for cars. The upper part is a pressing assembly driven by a servo motor and screw rod, which presses the upper press structure onto the lower housing. The pressing mechanism uses multiple sets of lock cylinders and pressure sensors. The lower part is a housing positioning tray assembly, with corresponding positioning mechanisms installed based on the specific housing. SolidWorks2018
