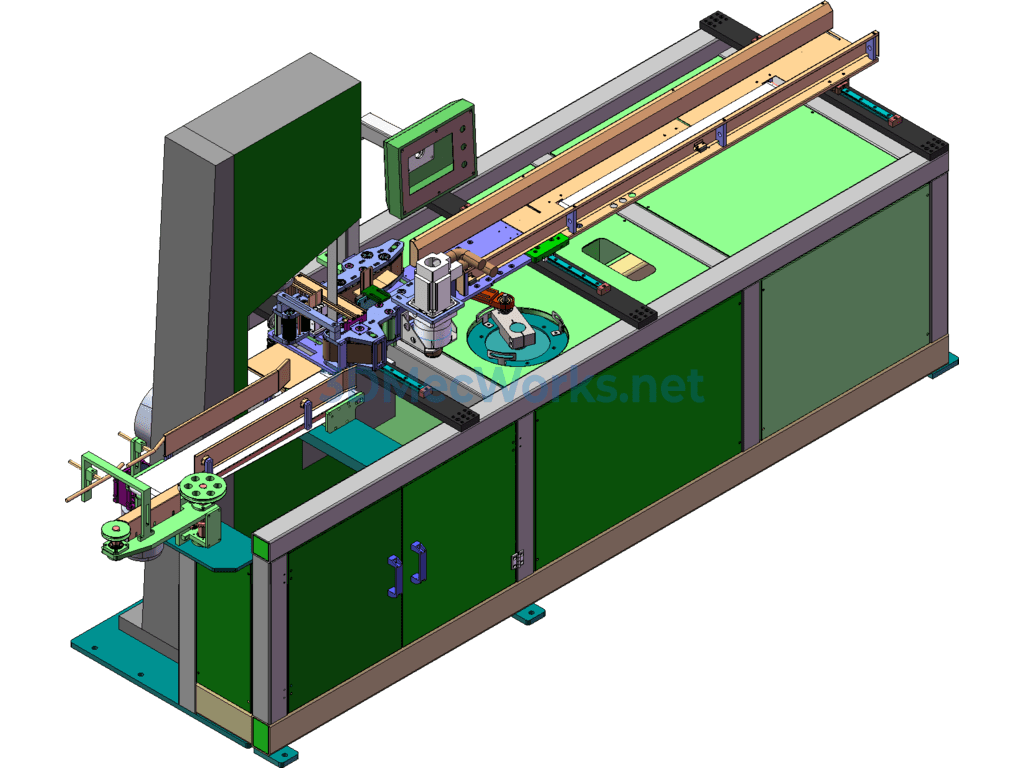

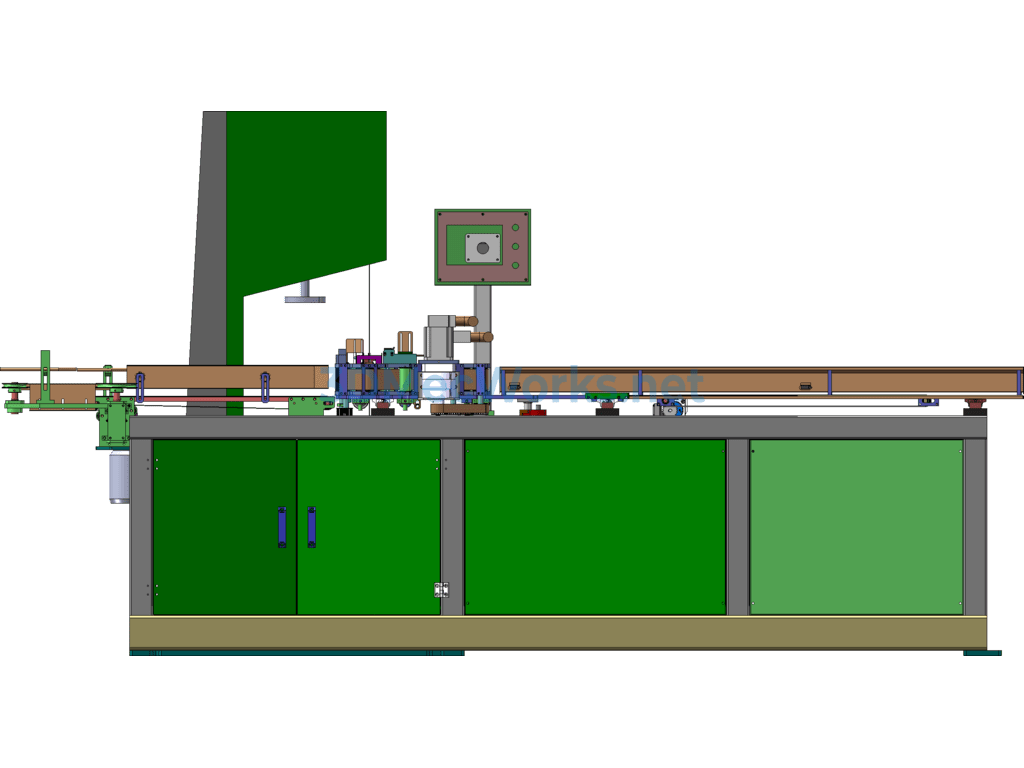

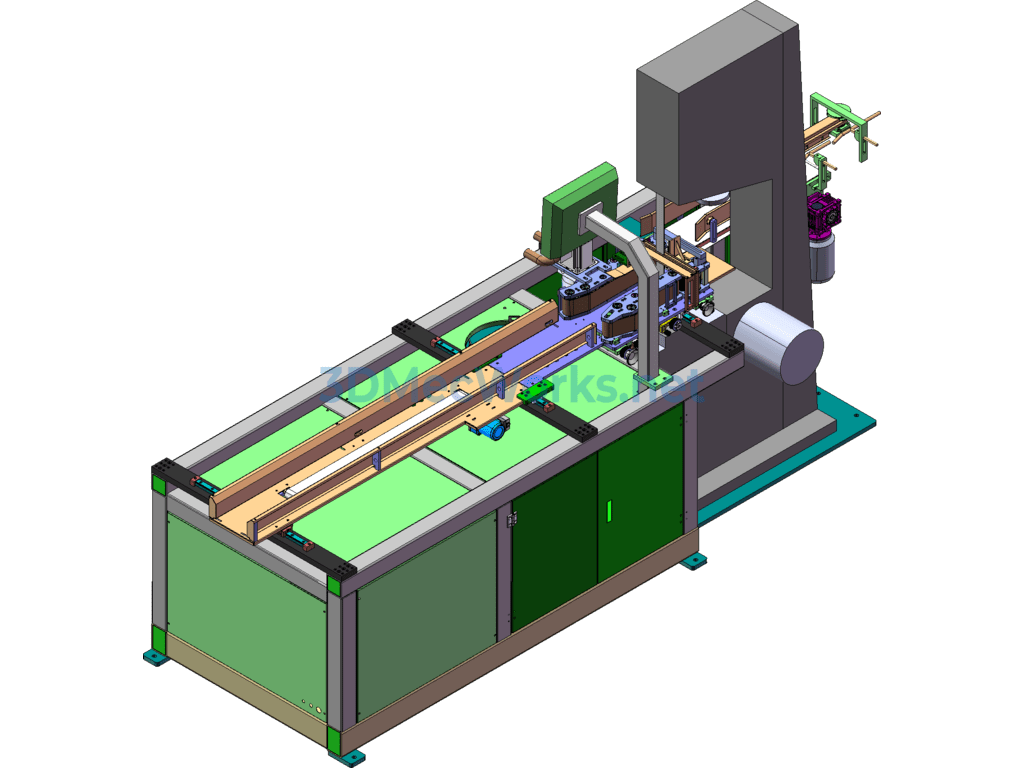

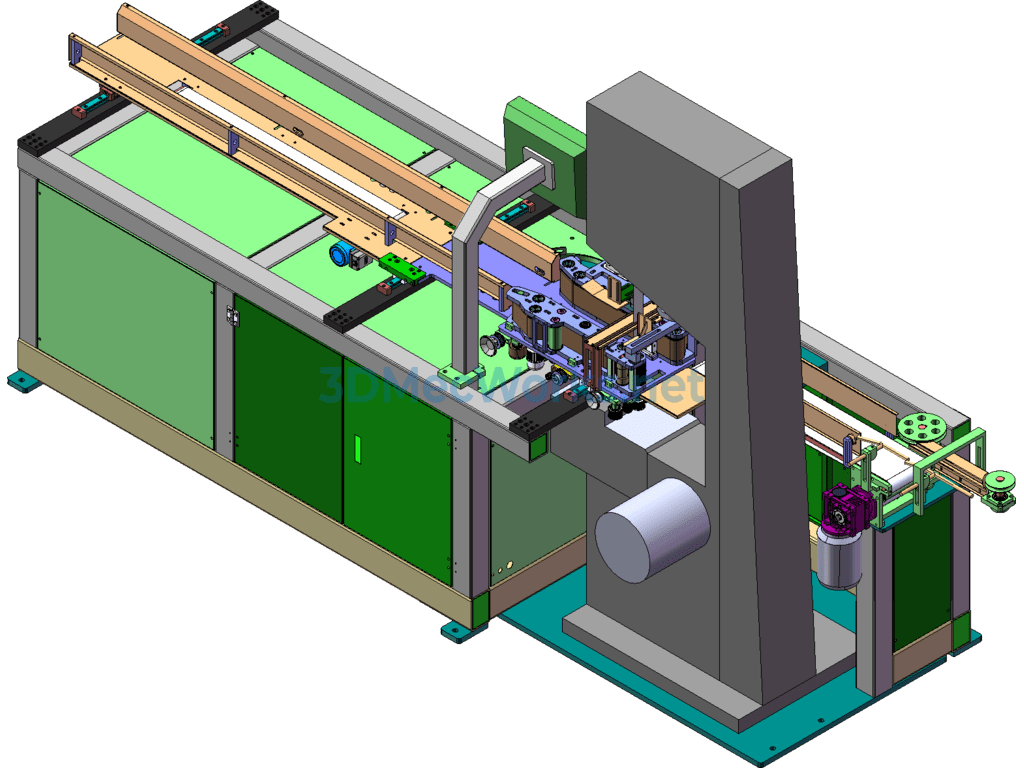

Automatic Roll Paper Cutting Machine with Blade
1. Main Technical Advantages of the Product
(1) The device is easy to operate, low noise, stable operation, and high production efficiency
(2) The whole machine adopts PLC program control, frequency conversion speed regulation, and touch screen operation (Siemens brand)
(3) Servo motor drive
(4) Servo motor controls feeding to provide correct cutting length
(5) Single-channel conveyor belt
(6) Equipped with advanced photoelectric detection system
(7) Automatic shutdown device when material is absent
(8) Automatic edge material cleaning device
(9) Low blade consumption, low power consumption
(10) Cutting speed and length are set via touch screen, making advancing and cutting smoother and more continuous
(11) Flat cut, high accuracy
(12) Automatic blade sharpening feeding system, angle adjustment via human-machine interface.
2. Machine Technical Parameters
Overall dimensions L3750mm*W2200mm*H1850mm L4560mm*W2200mm*H1850mm
Total weight 1200kg 1300kg
Channel specifications L2200mmФ65-125mm H1900mm L4560mmФ65-125mm H1900mm
Air source pressure 0.5mpa～0.8mpa
Power supply 3 phase 4 wire, 380V, 50HZ, 4.5KW (other voltages can be customized)
Production speed 75-105 cuts/minute
Cutting length 90mm～180mm error ±1mm
Blade specifications 3880mm×52mm×0.6mm
Feeding control PLC, servo motor control
Blade sharpening control Automatic sharpening feed, angle adjustment via human-machine interface
