Automatic Taping Machine Inspection Machine

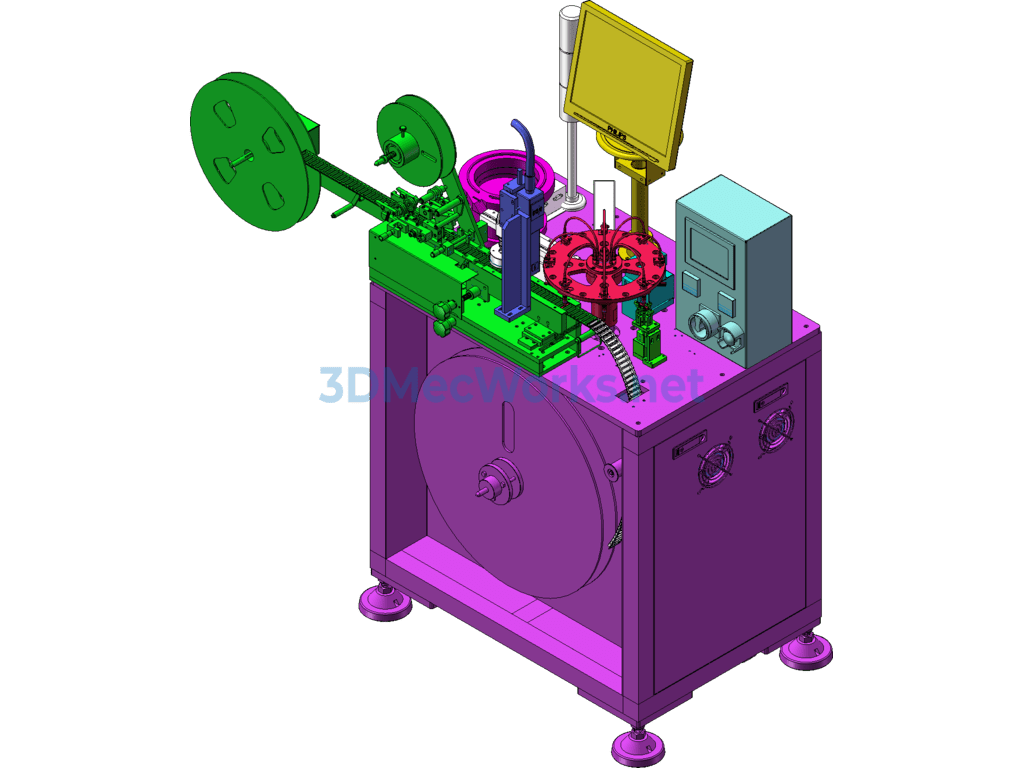

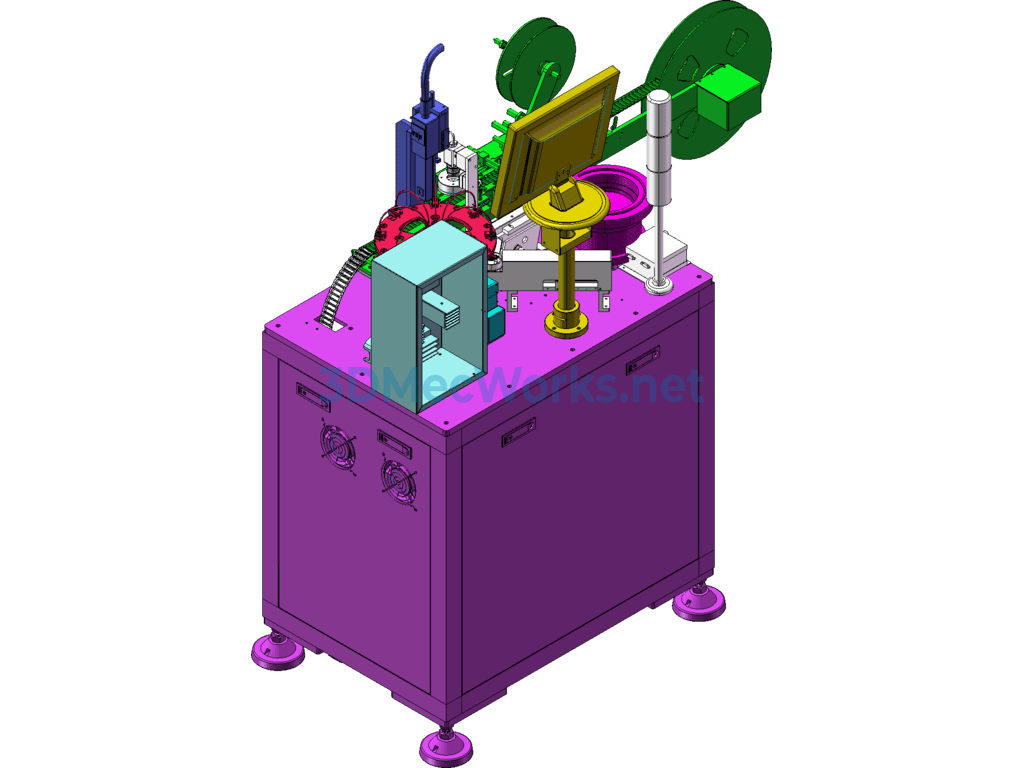

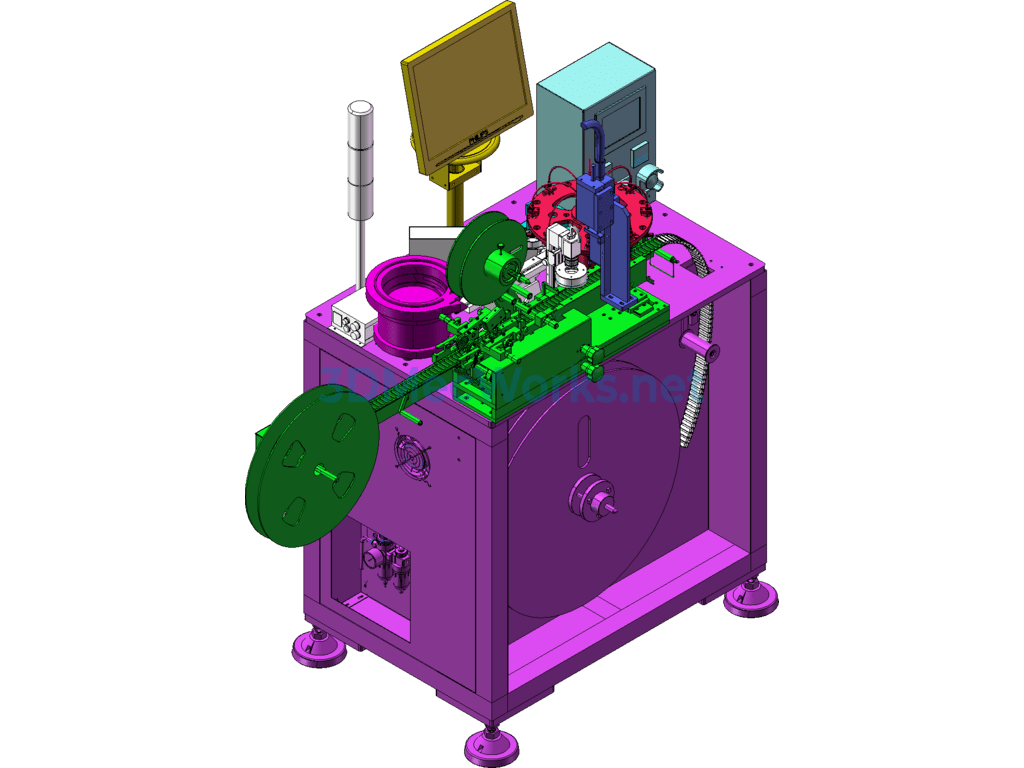

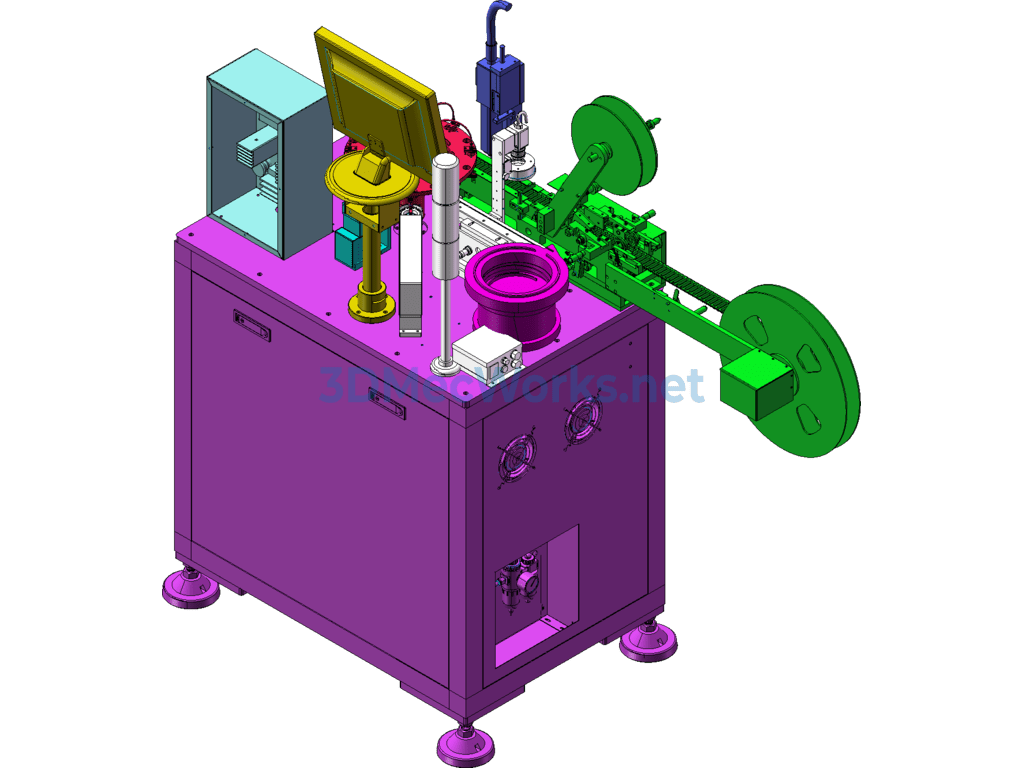

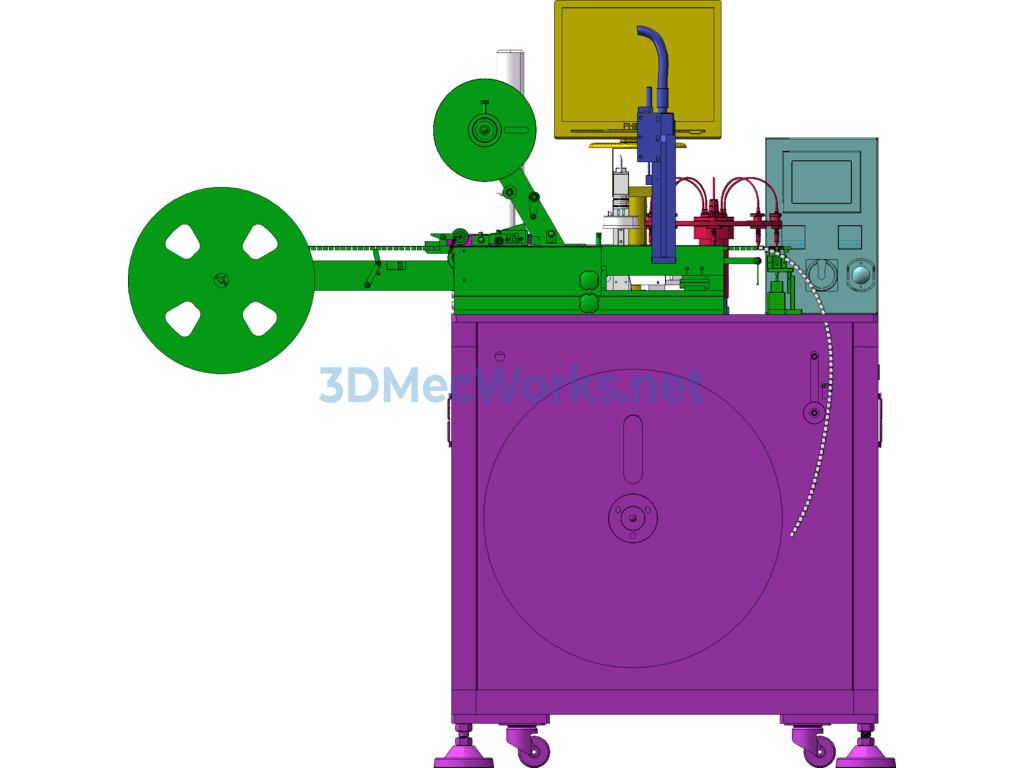

This equipment is specifically designed for taping electronic components such as inductors, ICs, LEDs, and SMD components. It can perform both hot and cold sealing. This diagram is modified according to customer requirements for taping connectors, primarily using a turntable for rapid rotation. The central air pipe is used for vacuum suction. It can be made into 4-16 stations, making it an excellent platform, equipped with a CCD camera for detecting defective products. It can automatically sort out defective products. The precision of the detection is quite high, and an STP file is provided for download and learning.
3D drawings, mechanical professional design of non-standard automation equipment V140 – Fully automatic taping machine detection machine, the mechanism includes parts, can support the output of 2D drawings. The information is for reference and learning purposes only!
