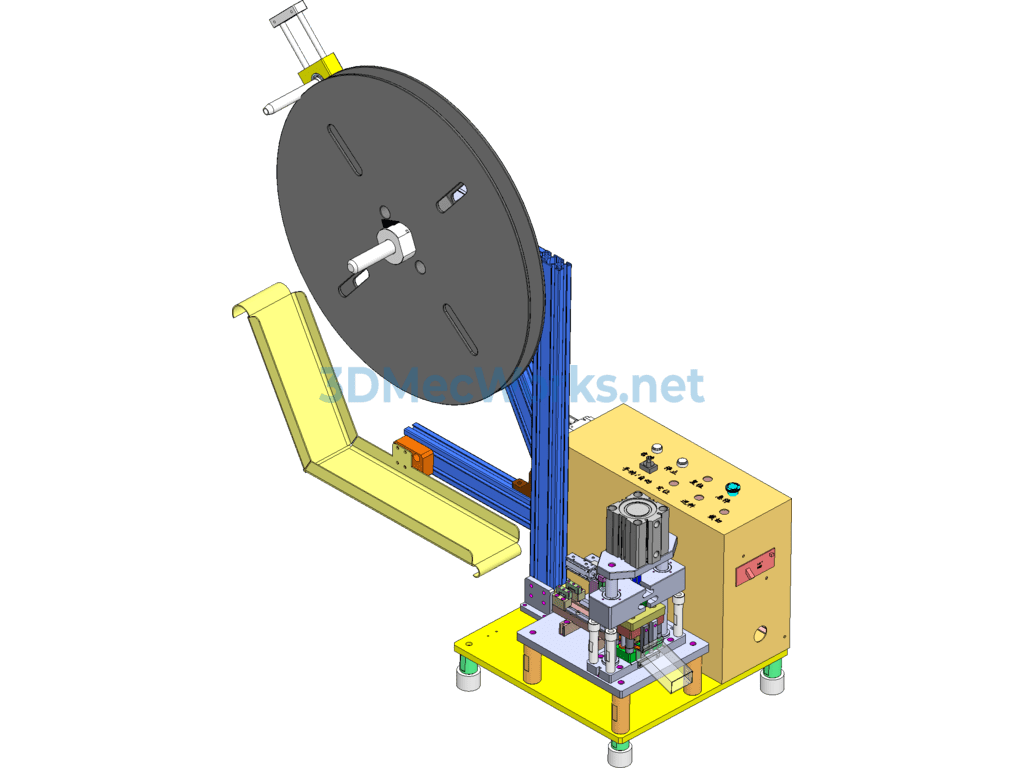

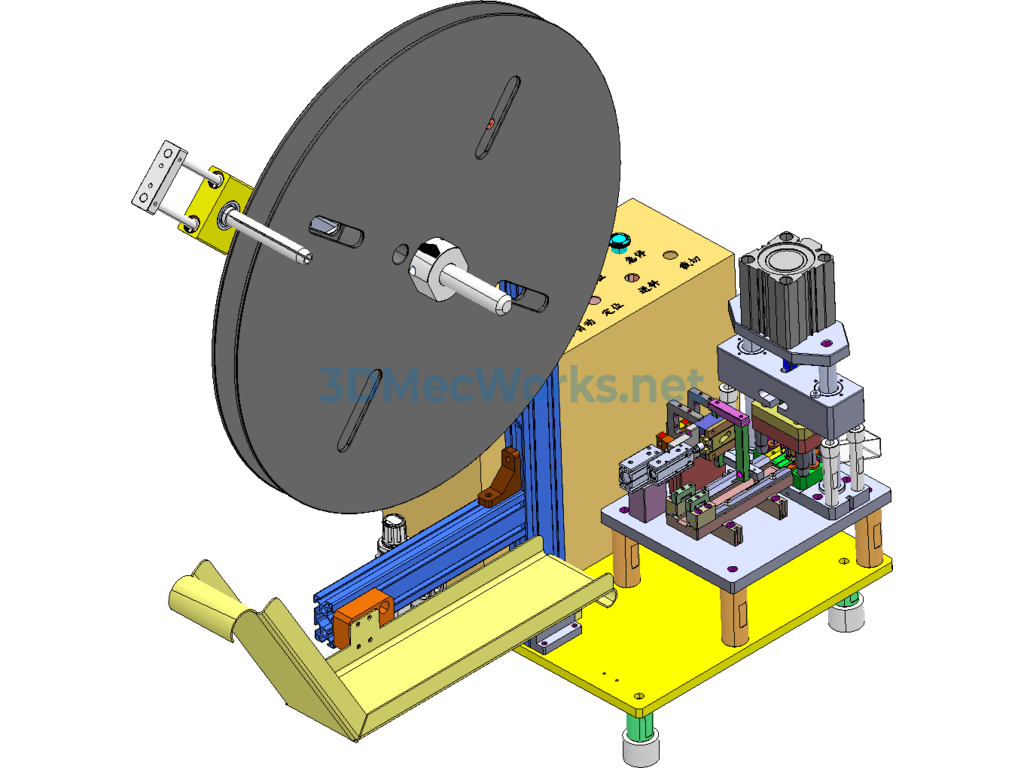

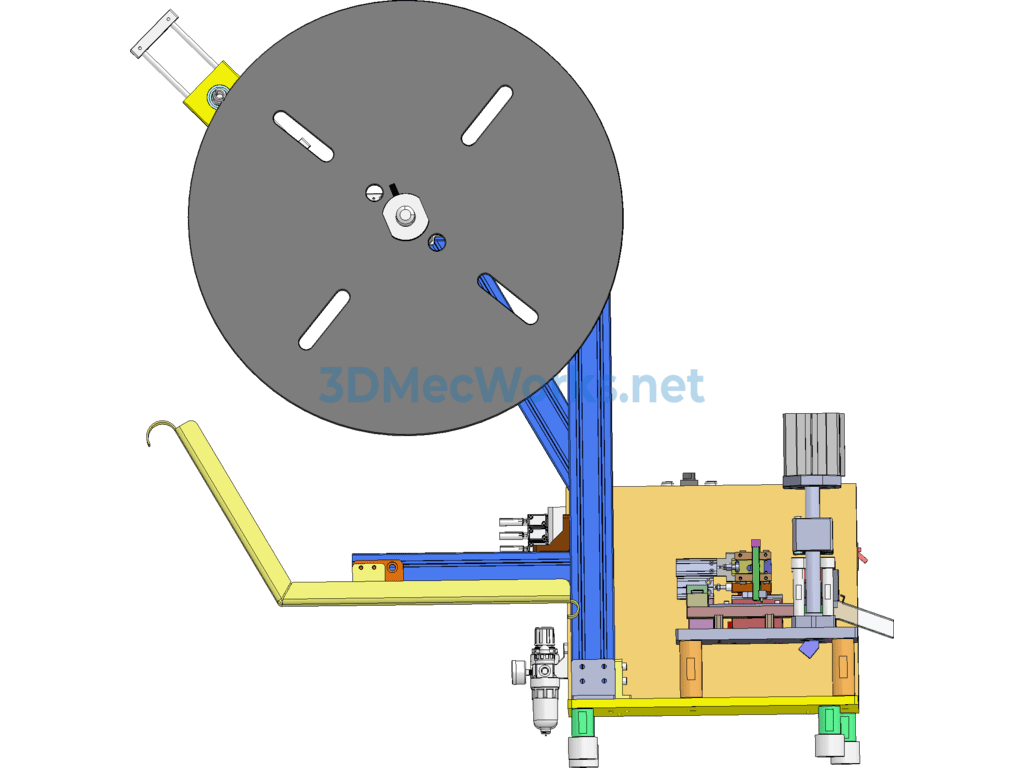

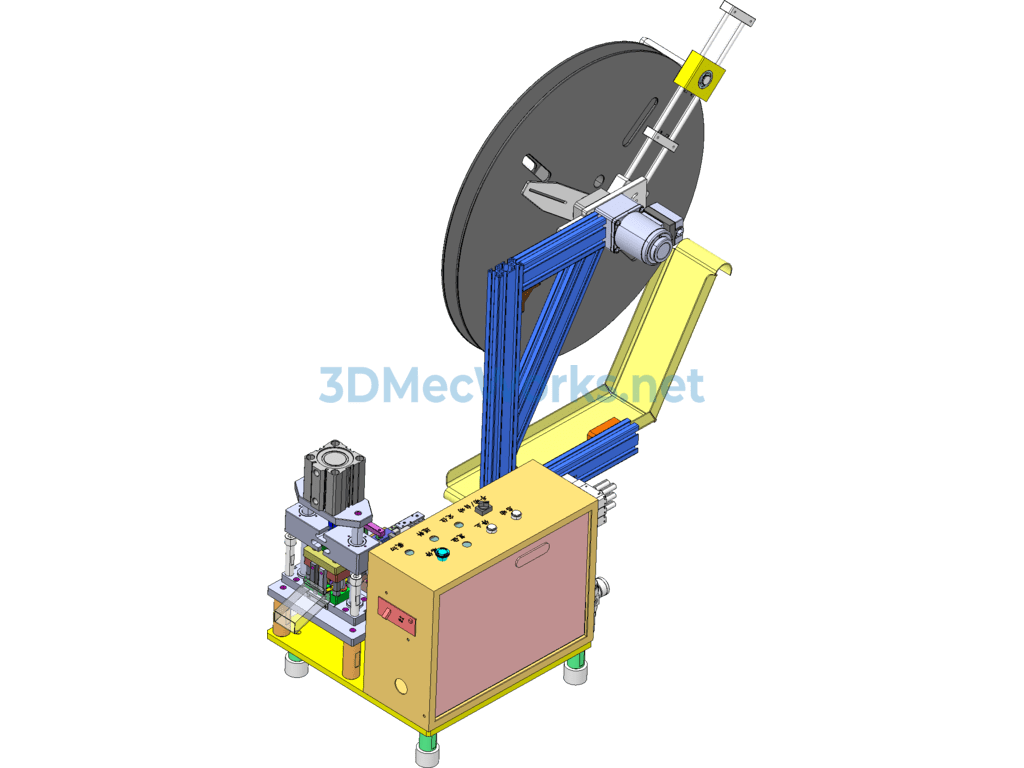

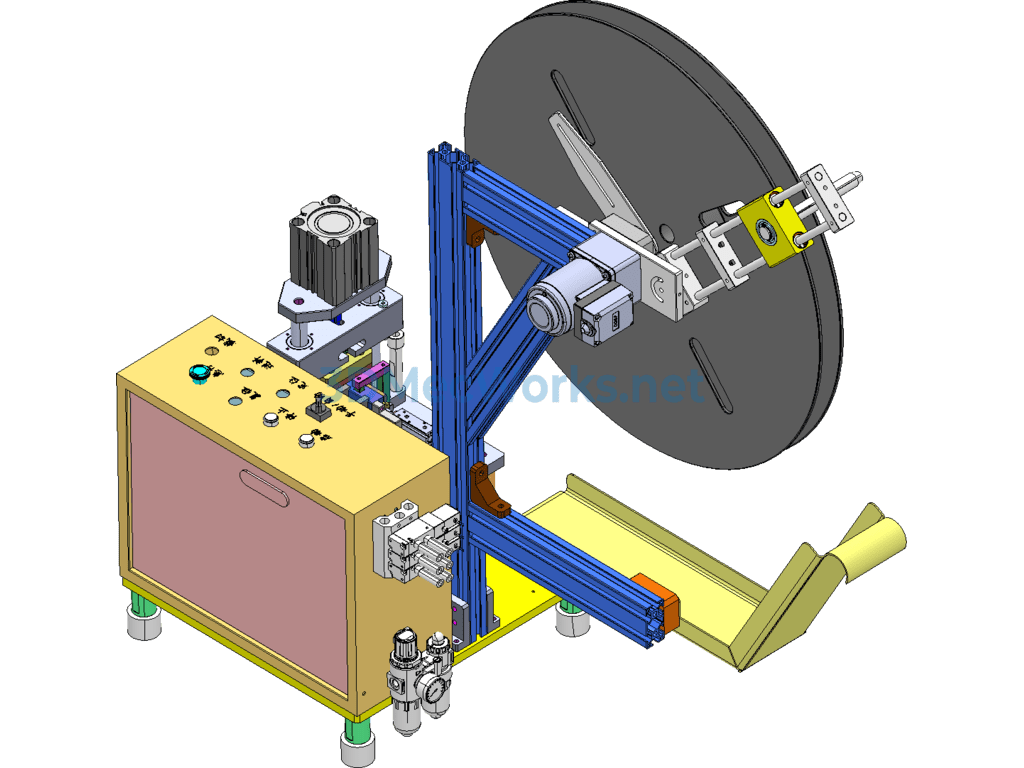

Automatic Strip Cutting Machine - SolidWorks - Free Download

Introduction to Equipment Operation Process:
1. The material strip is manually placed inside the equipment to be clamped and fixed in position, and manually inserted into the material entry guide;
2. A positioning cylinder is used to insert the pin into the positioning hole of the material strip. This cylinder, with an inclined slider, can withstand force and improve service life.
3. The feeding cylinder moves the material into the cutting module, the cutting cylinder moves to complete the cutting, and the material falls into the material box for manual removal.
Mass Production Equipment Material Strip Cutting (including DFM, BOM)
