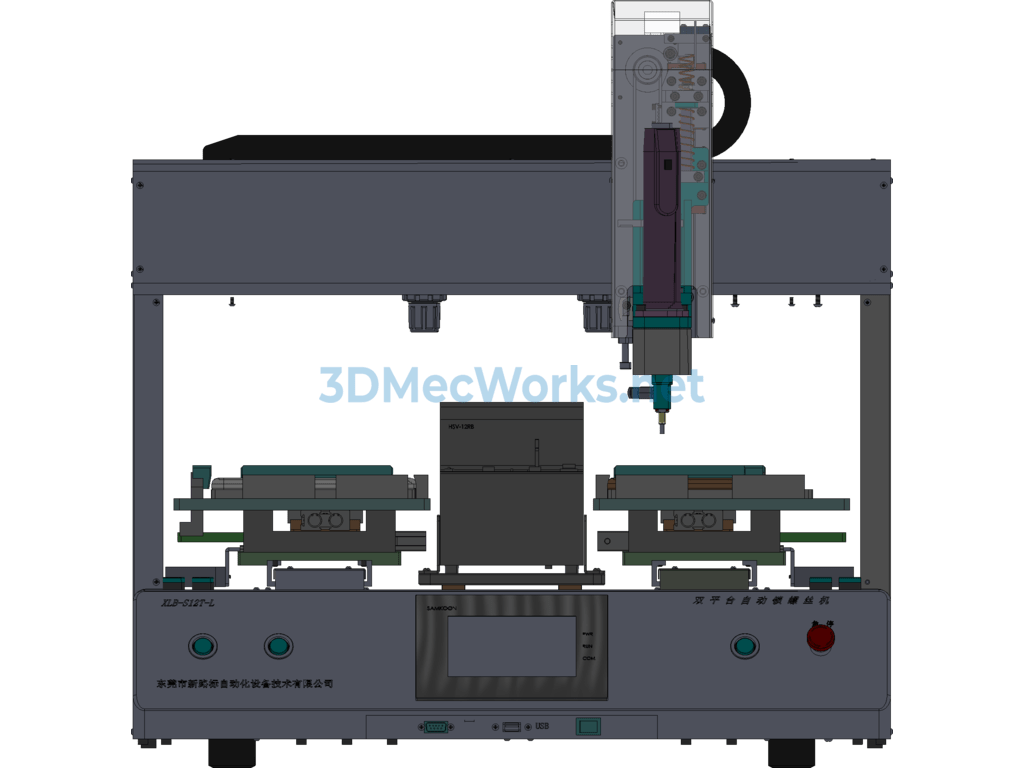

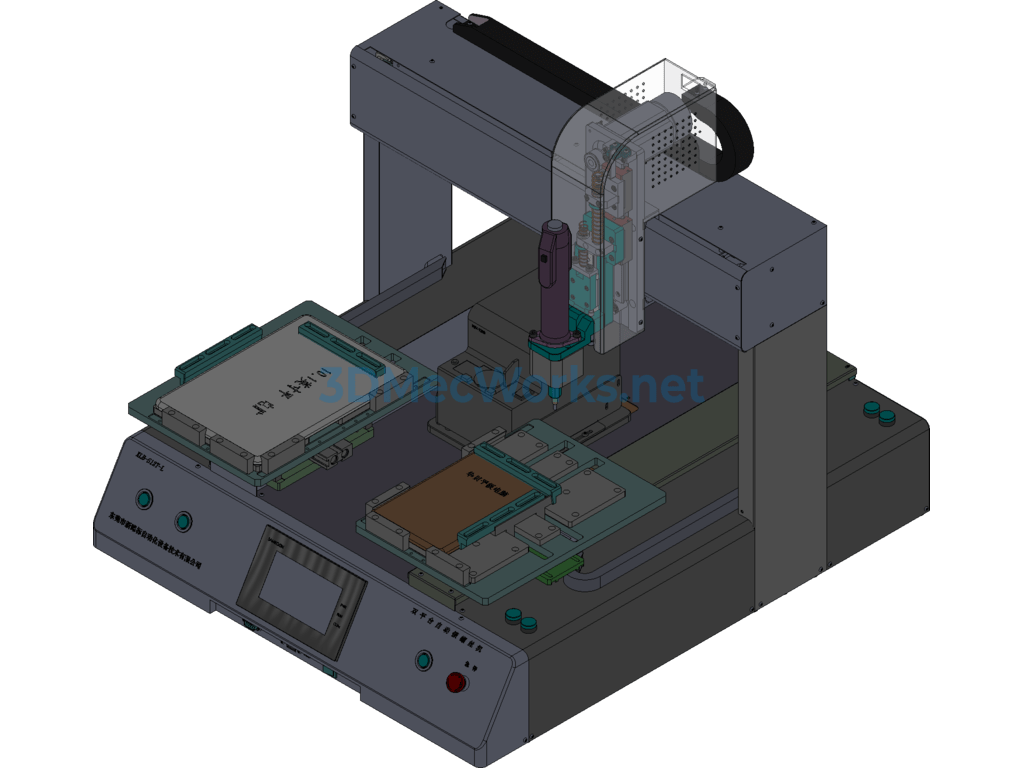

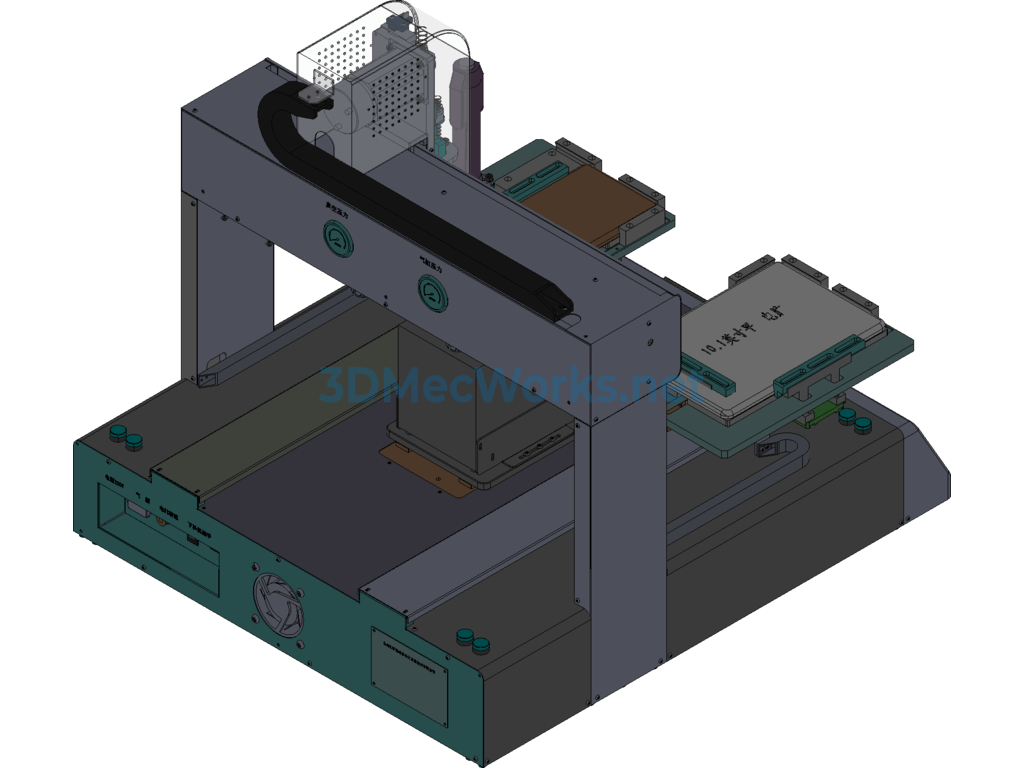

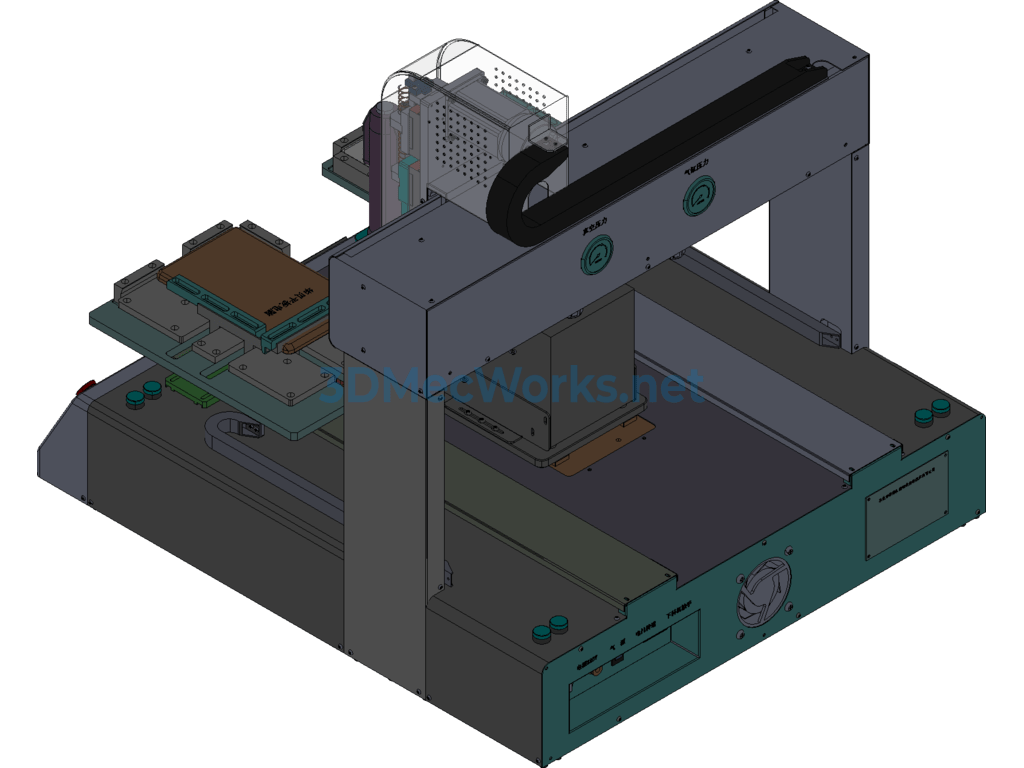

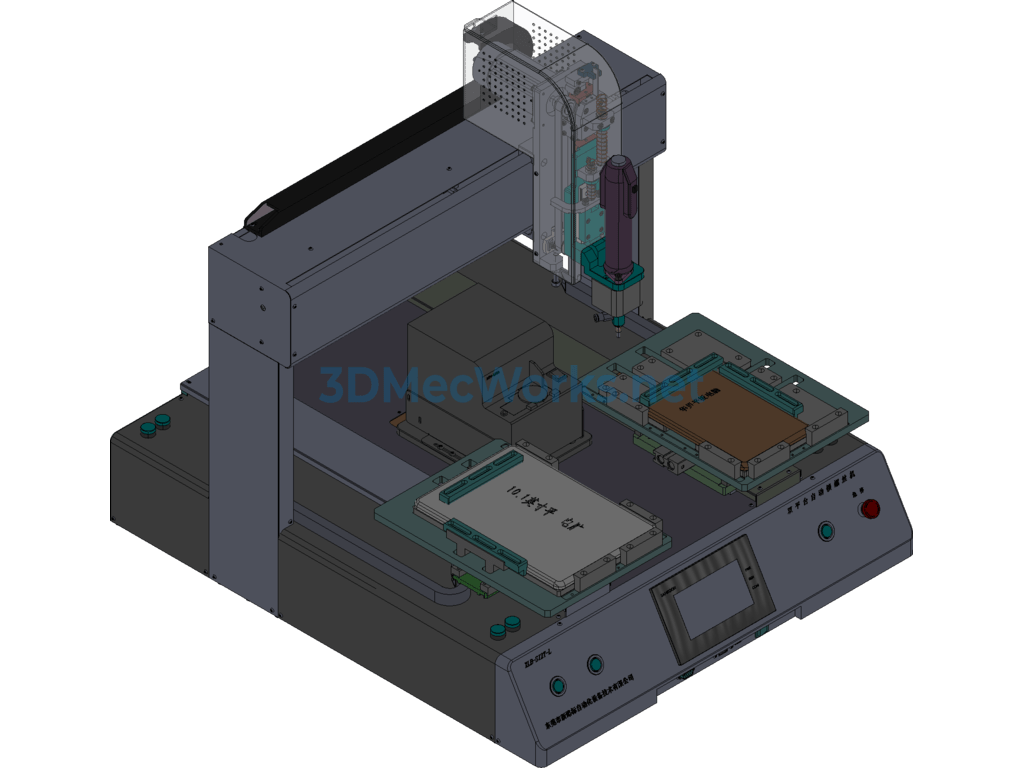

Automatic Screw Locking Machine For Electronic Products - SolidWorks - Free Download

XLB-S12T Desktop Screw Locking Machine Equipment Usage:
Suitable for screw locking of various consumer electronic products, such as mobile phones, cordless phones, calculators, navigators, audio equipment, cameras, laptops, tablet computers, learning machines, smart home appliances, toys, etc.
Machine Features:
Single electric screwdriver, dual-platform structure
Product retrieval time and locking time run concurrently, leading to higher efficiency
Two modes of operation: front placing-front retrieval and front placing-back retrieval, freely adjustable
Technical Parameters:

Equipment Size: 650*550*650mm (L*W*H)

Working Size: 130(X)*200(Y)*60(Z)

Locking Speed: Average <1.8s/piece Screw Retrieval Method: Suction type Positioning Accuracy: ±0.05mm Drive Method: Stepper motor + Synchronous belt Control Method: PLC + Touch screen Features automatic detection of missing lock, thread slip, and floating height (optional) Electrical Requirements: Power supply 220VAC, Air supply 0.4-0.8MPa Screw Range: M1.4-M4.
