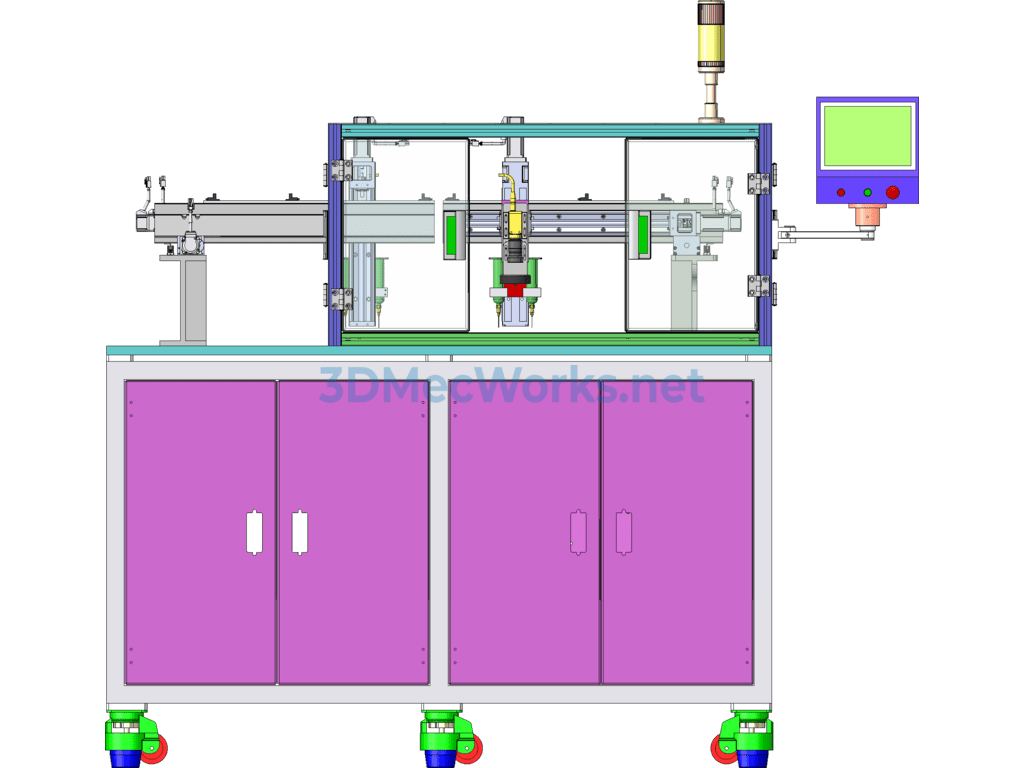

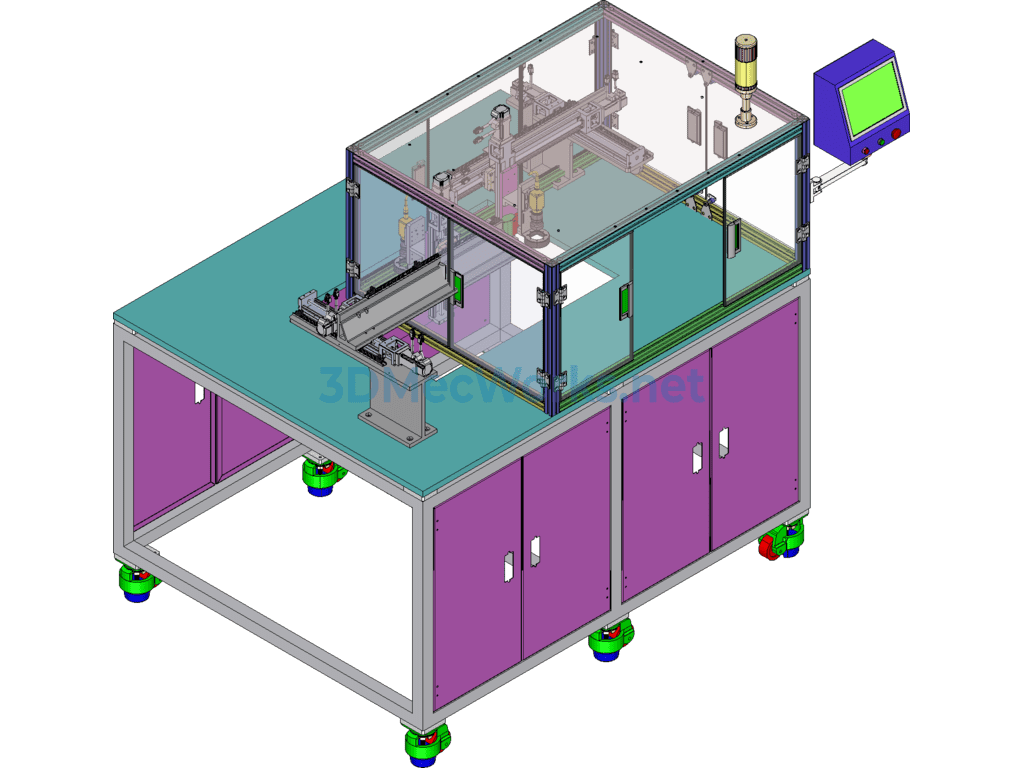

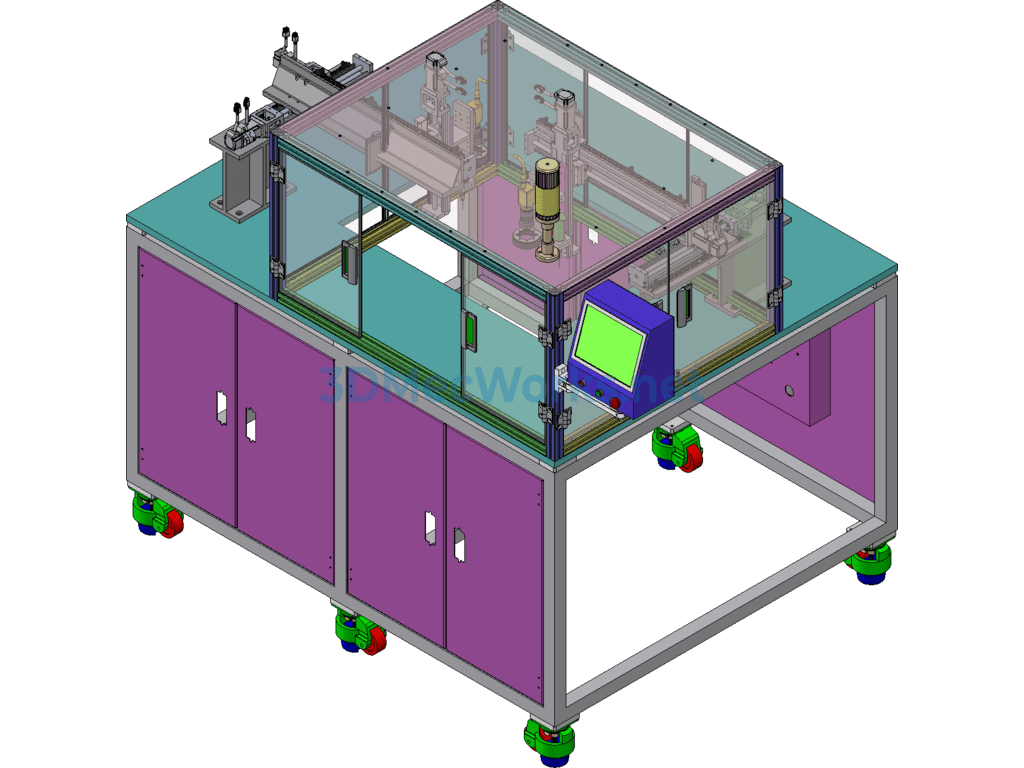

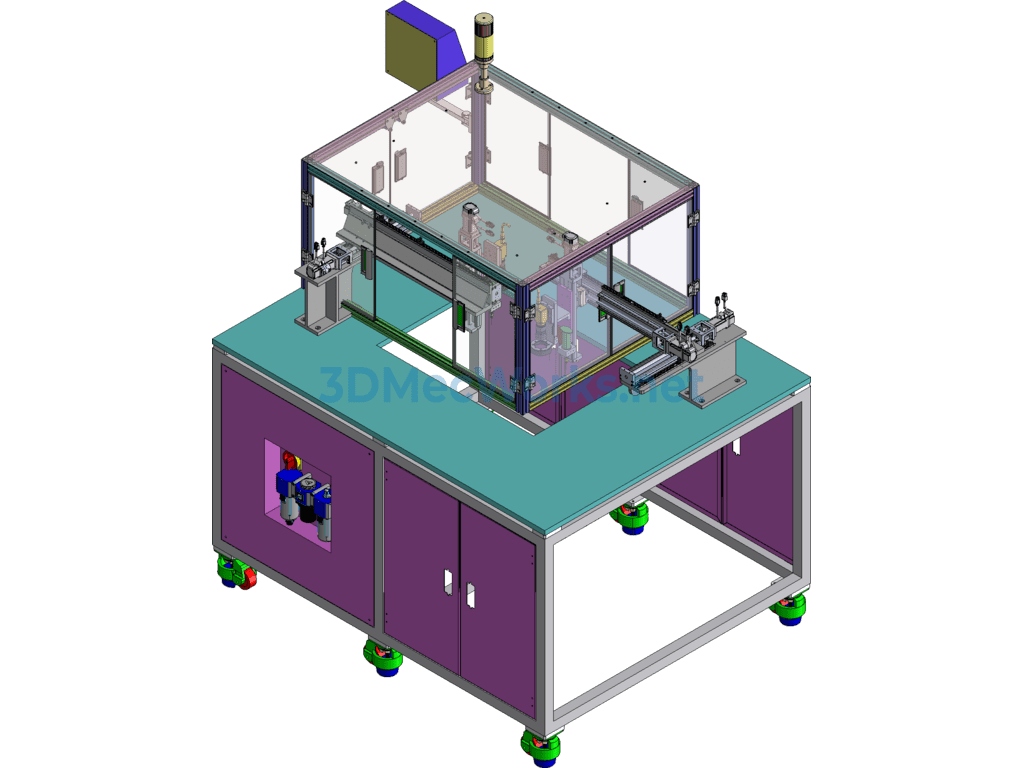

Automatic Pump Body Lubrication Equipment

This equipment is designed with SW2015, including the technical bidding document. The original document is editable. The equipment has the function of automatically positioning the assembly line tooling board, the function of automatically adding lubricating oil to the pump body parts, and the function of identifying and handling production defective products.
Action Description: After the tooling board is blocked and positioned, the CCD will inspect the products on the tooling board to check if they are qualified products or if there are any products at all. When the product is qualified, the two oil injection mechanisms will inject oil into the product. If it is unqualified, it will not be processed and will continue to flow to the next workstation. Oil Injection 1 and Oil Injection 2 inject different types of oil respectively.

[Comments from the reviewer: During the review, the SW source file was found to be missing “tooling board assembly,” but the STEP file was complete, so the review was approved.]
