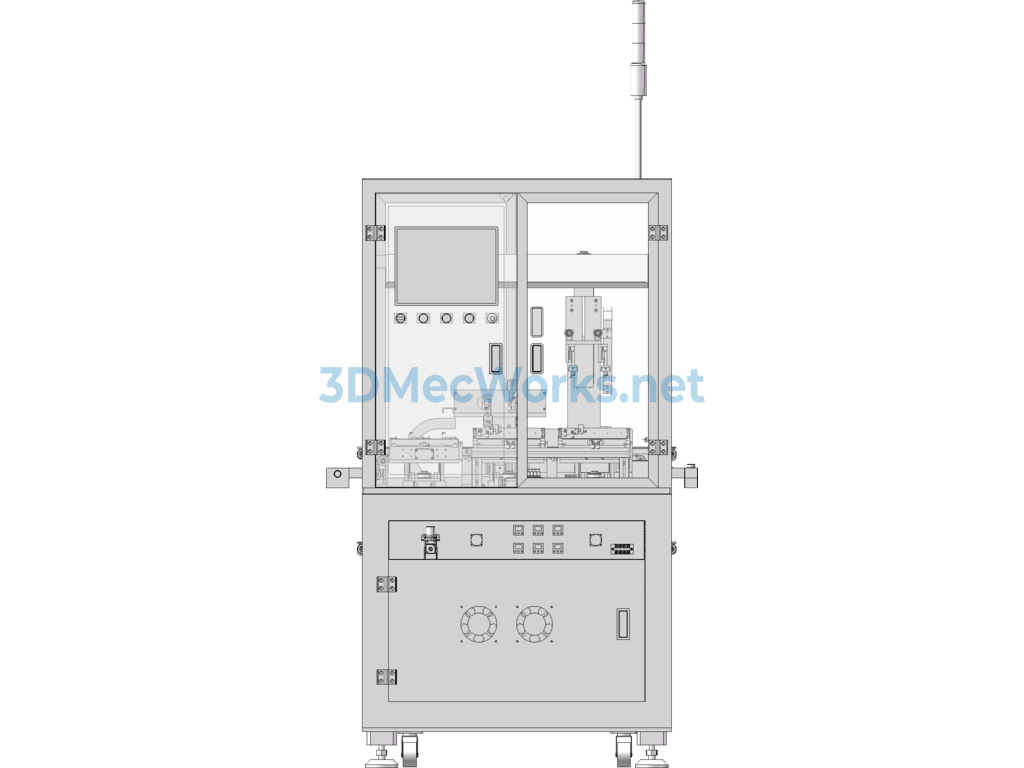

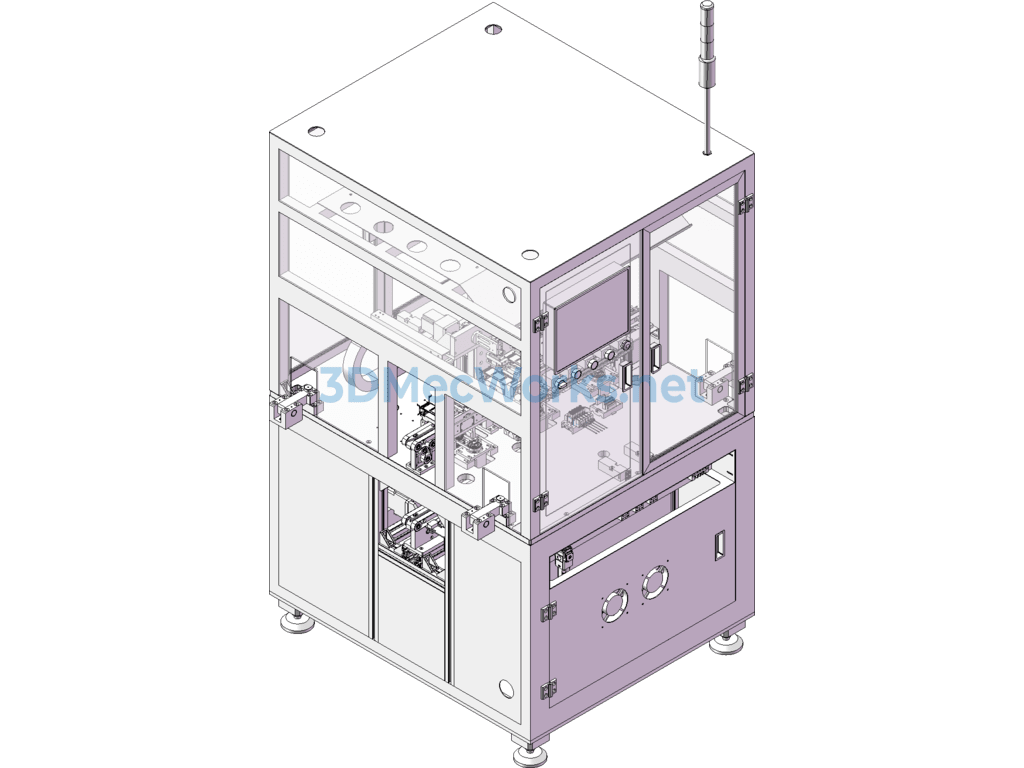

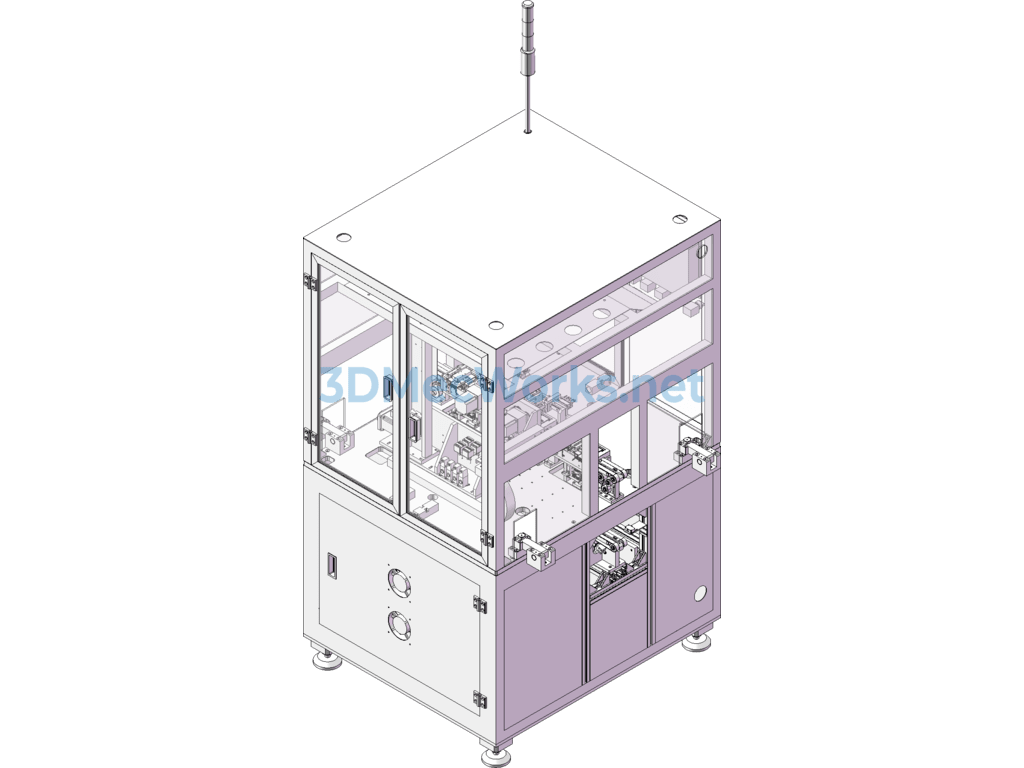

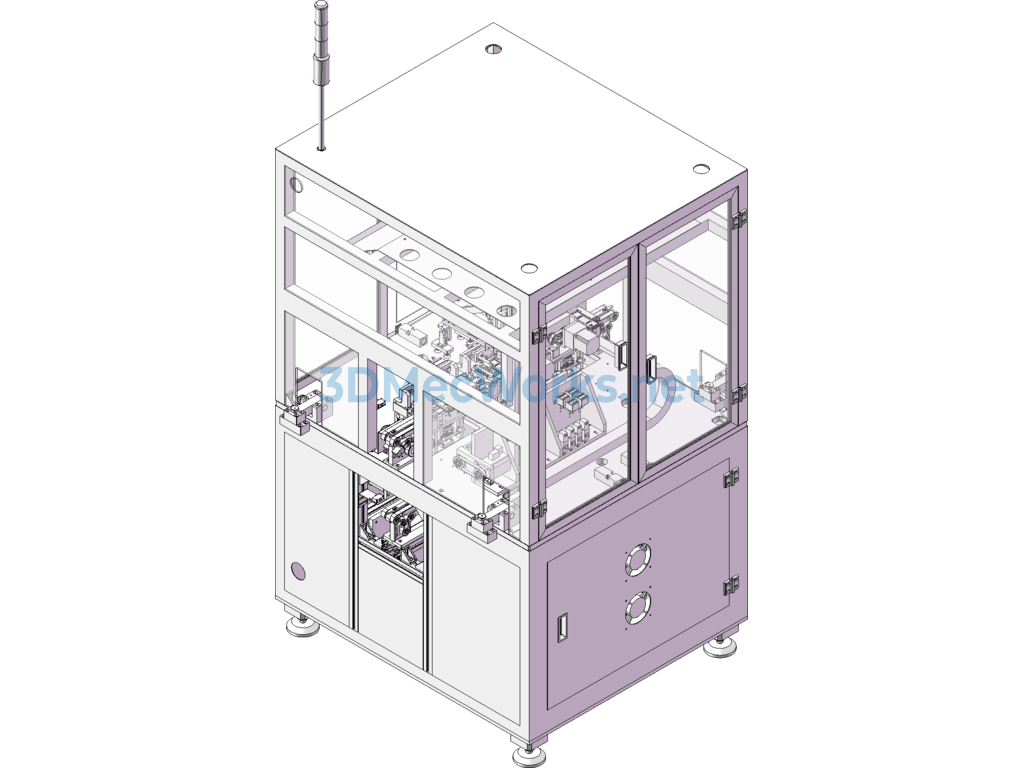

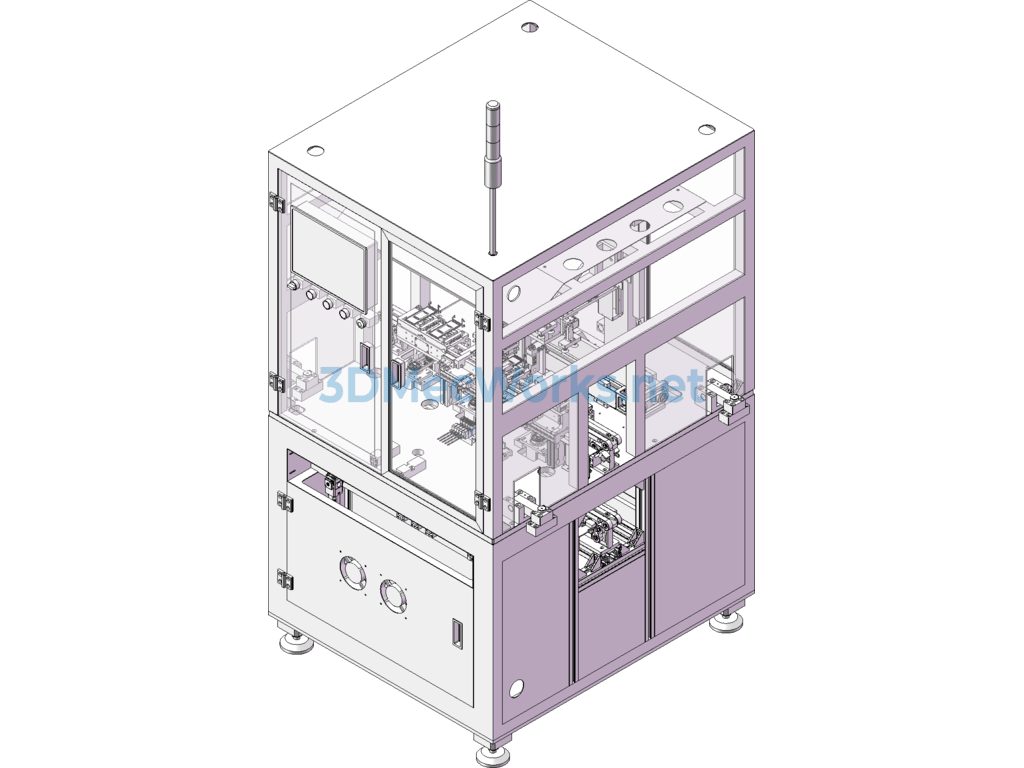

3D Model of Automatic Battery Flipping Machine
A nice set of drawings.
A battery string flipping mechanism, including a battery string conveying mechanism and a battery string flipping mechanism, characterized in that: above the battery string flipping mechanism, a nozzle bracket is rotatably installed. The two ends of the nozzle bracket are respectively slidably installed on the front fixed frame and the rear fixed frame. Several upper row nozzles used to adsorb the battery strings are fixed horizontally and parallel on the nozzle bracket, and one side of the nozzle bracket is equipped with a rotary cylinder for driving the nozzle bracket to index rotate by 180°.
After the battery cells are welded into battery strings, the battery strings need to be flipped and then conveyed according to a certain pattern to be placed on the module glass for subsequent module processing. Therefore, the method of quickly and simply flipping the battery strings is a key factor that restricts the capacity improvement of the entire string welding machine.
