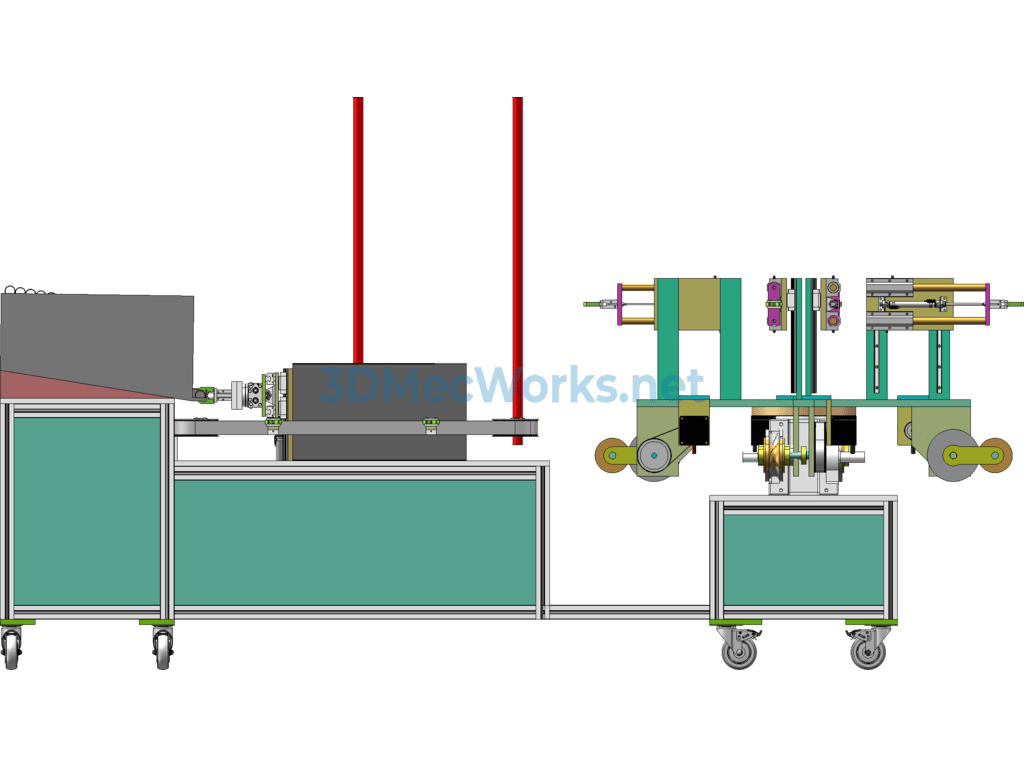

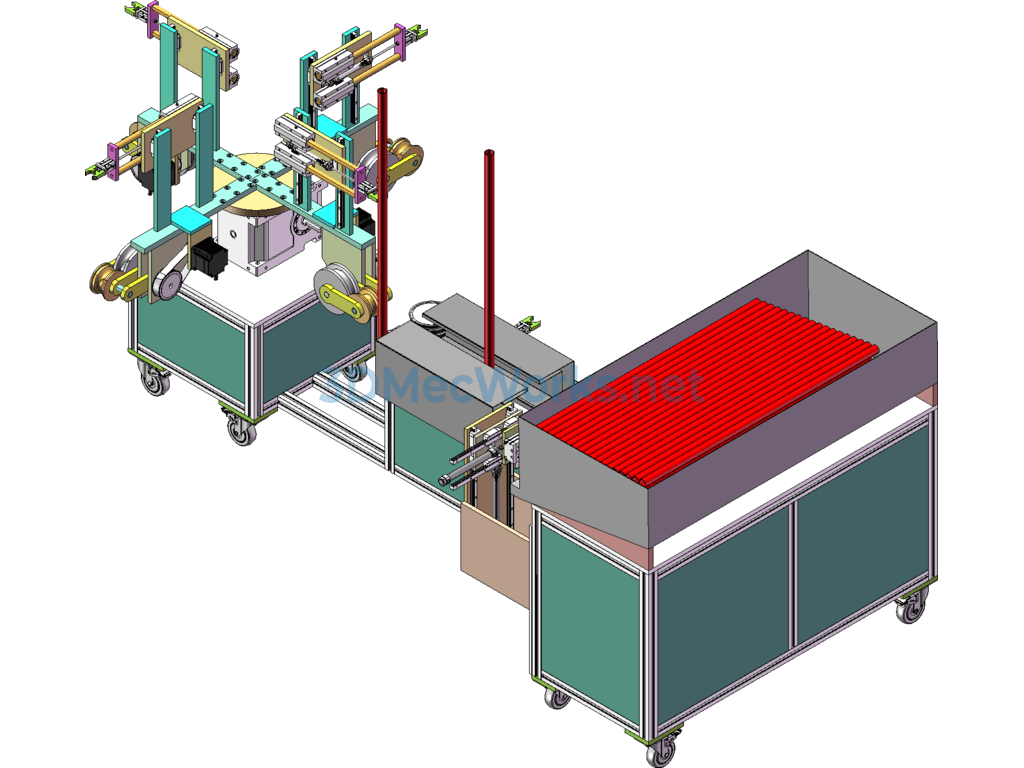

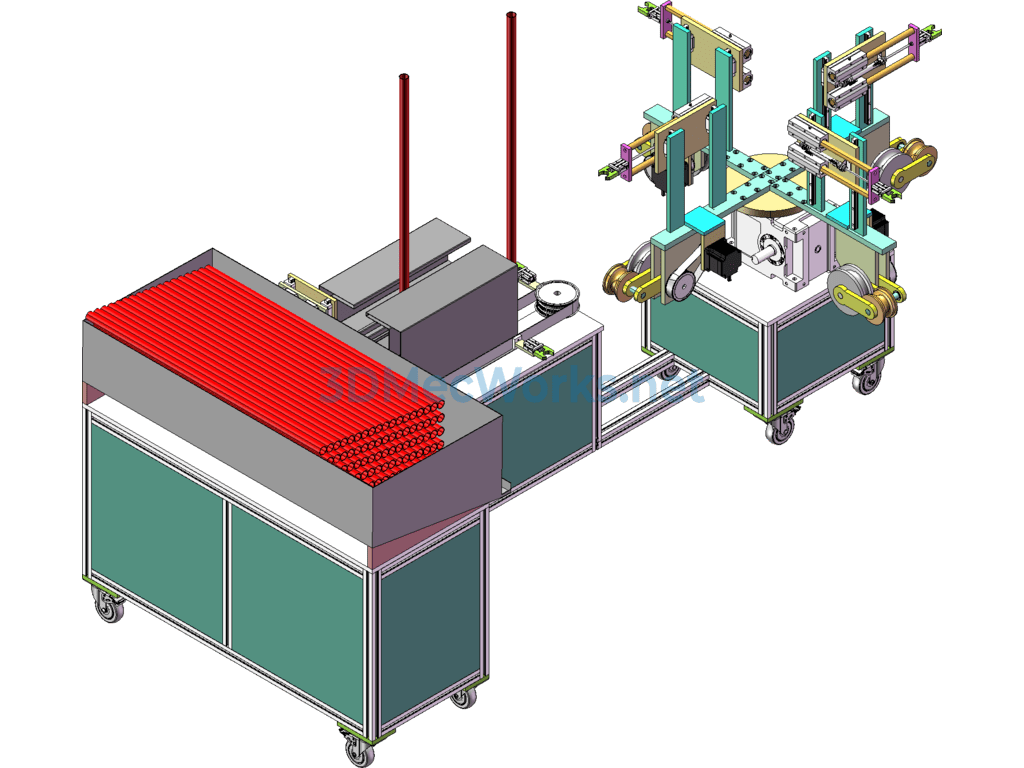

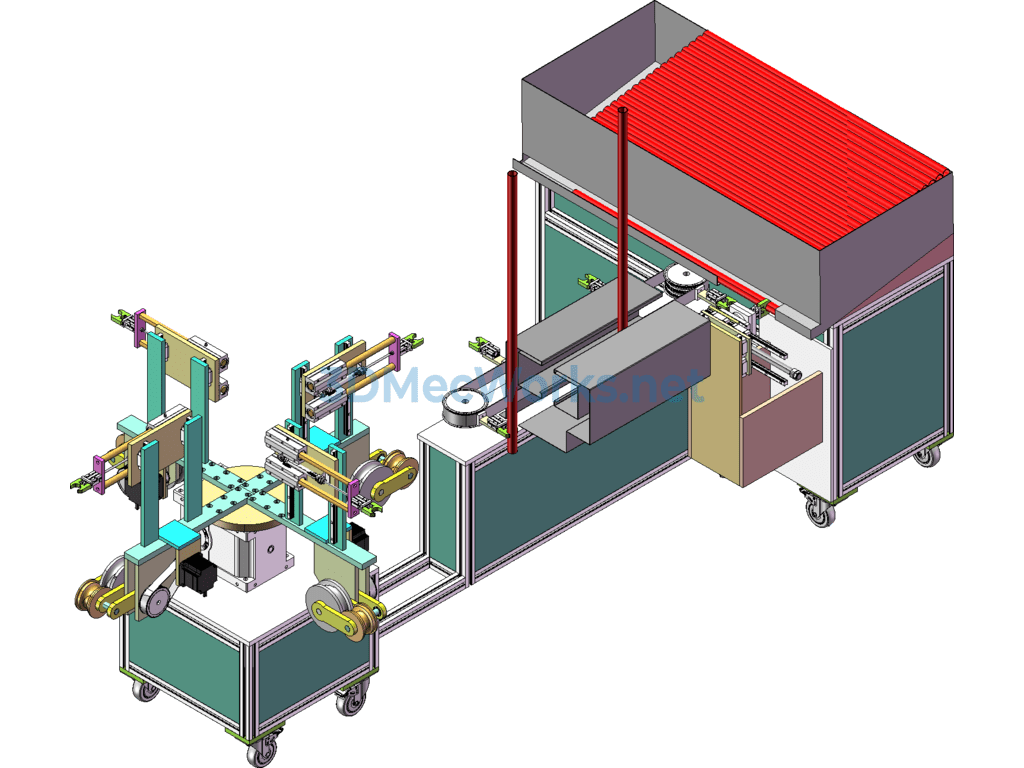

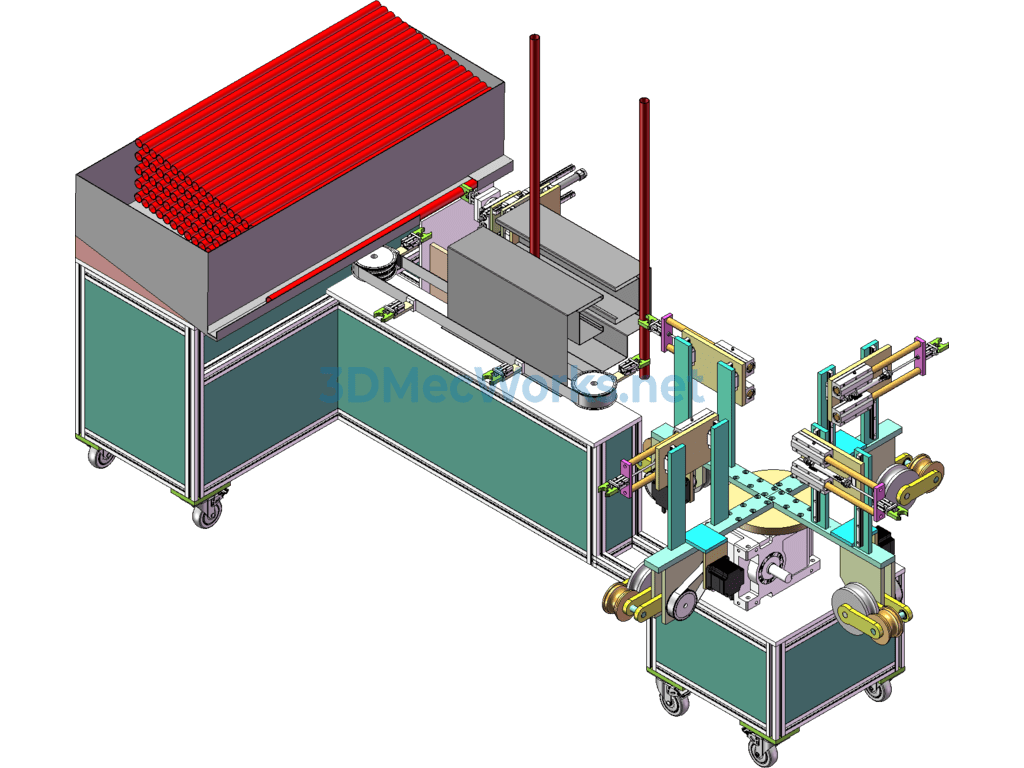

This mechanism is a specialized solution for bending rubber hoses.
A bundle of round tubes is placed in the storage mechanism;
a mechanical arm extracts and heats them,
and then they are conveyed to the bending machine.
It uses a pressing wheel and a circular arc pressing wheel
to create the corresponding curvature,
ensuring the round tube does not deform.
Designed with SOLIDWORKS 2018.
Specification: Automatic Pipe Bending Machine
|
