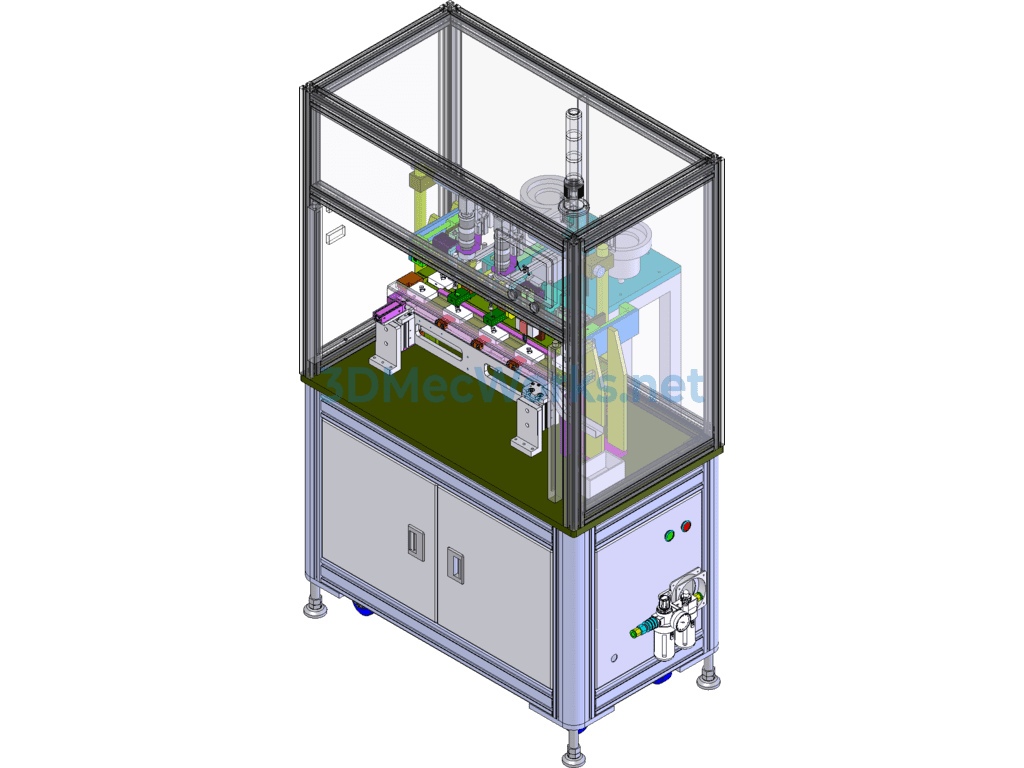

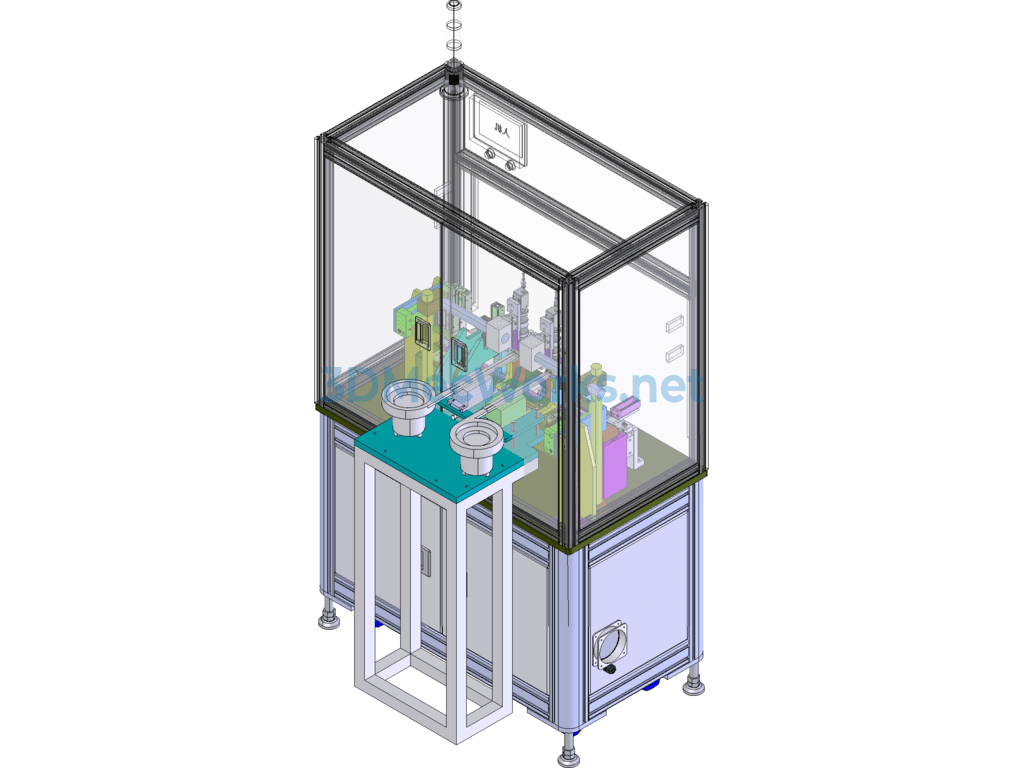

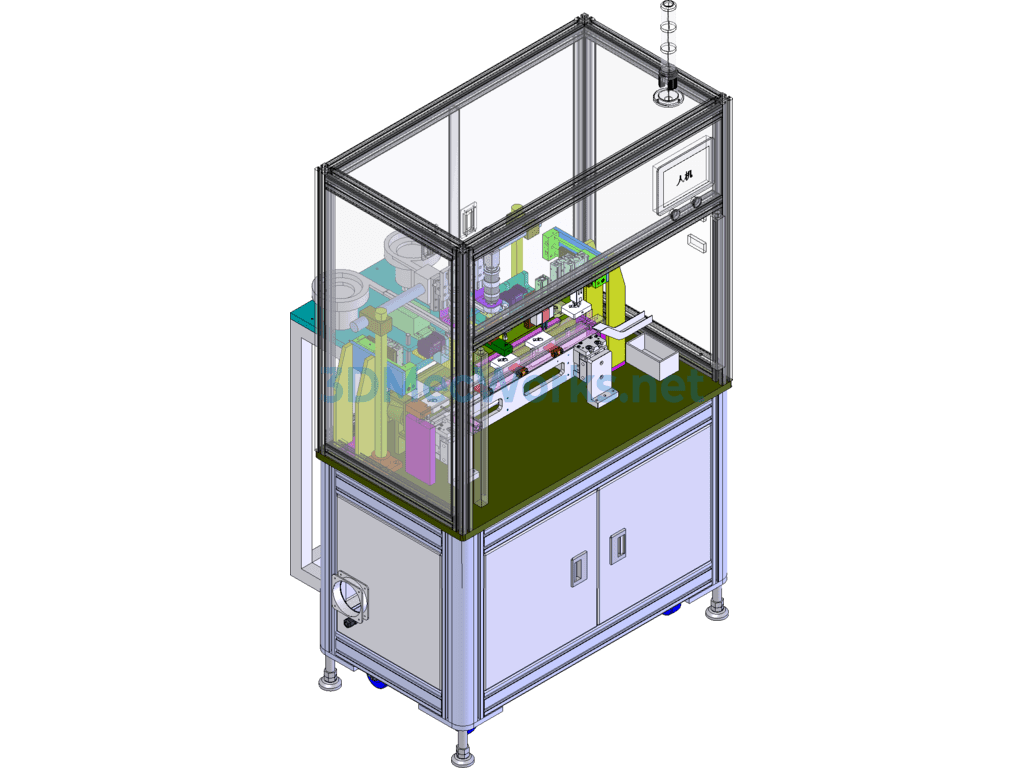

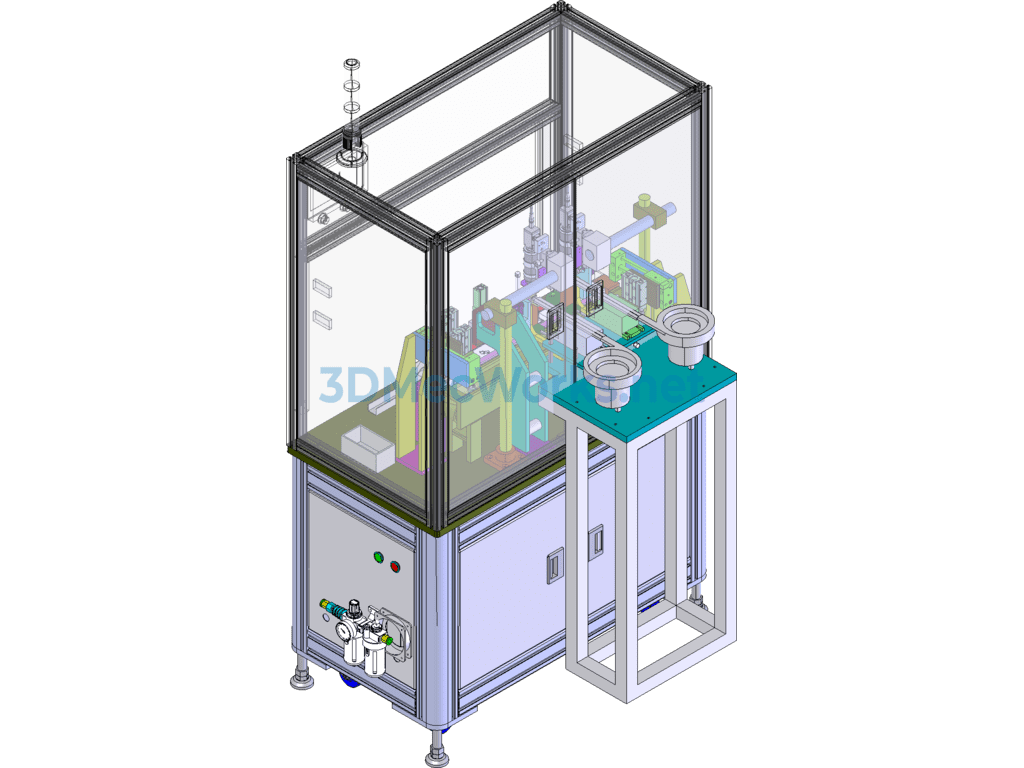

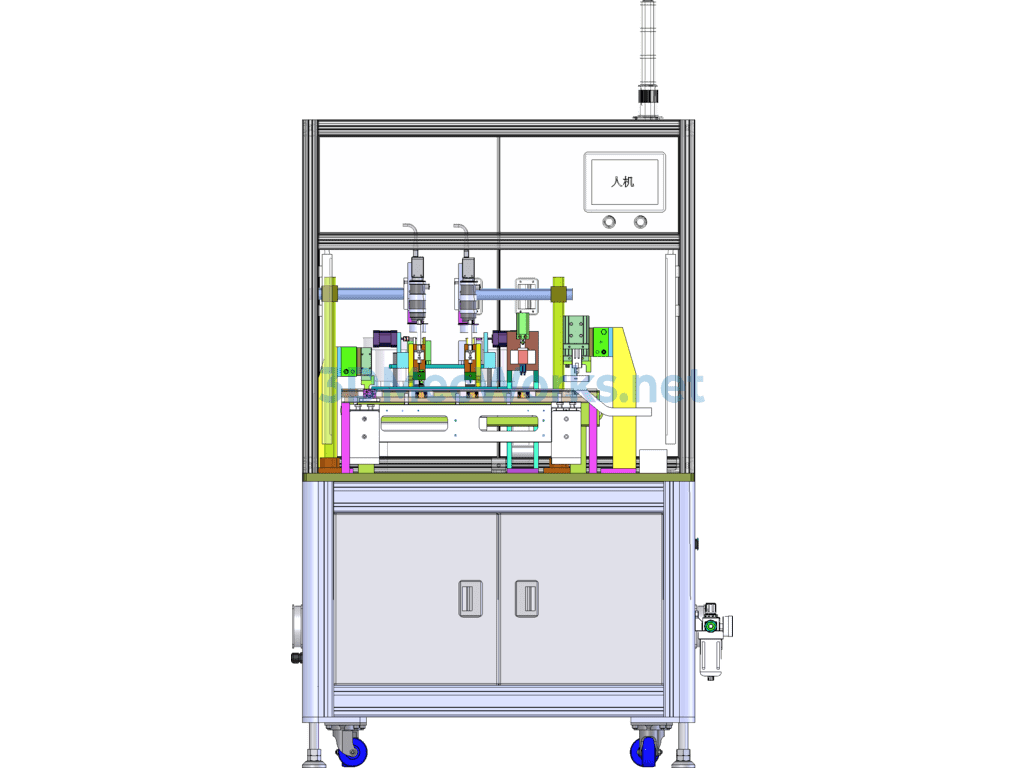

Automatic PIN Assembly Press-Fit Inspection Machine (Including DFM, Timing Diagram) - SolidWorks - Free Download

Automatic PIN Assembly Pressing Inspection Equipment Action Description:_x000D_
Step 1: Manually place the materials into the carrier;_x000D_
Step 2: Vibrating bowl feeding;_x000D_
Step 3: CCD alignment of materials;_x000D_
Step 4: Cylinder feeding;_x000D_
Step 5: Carrier positioning;_x000D_
Step 6: Simultaneous positioning and pressing of short pins & long pins;_x000D_
Step 7: Carrier movement;_x000D_
Step 8: Gripper picks up objects;_x000D_
Step 9: Manually retrieve the finished product.
