Automatic Oil Pipe Fitting Assembly Machine

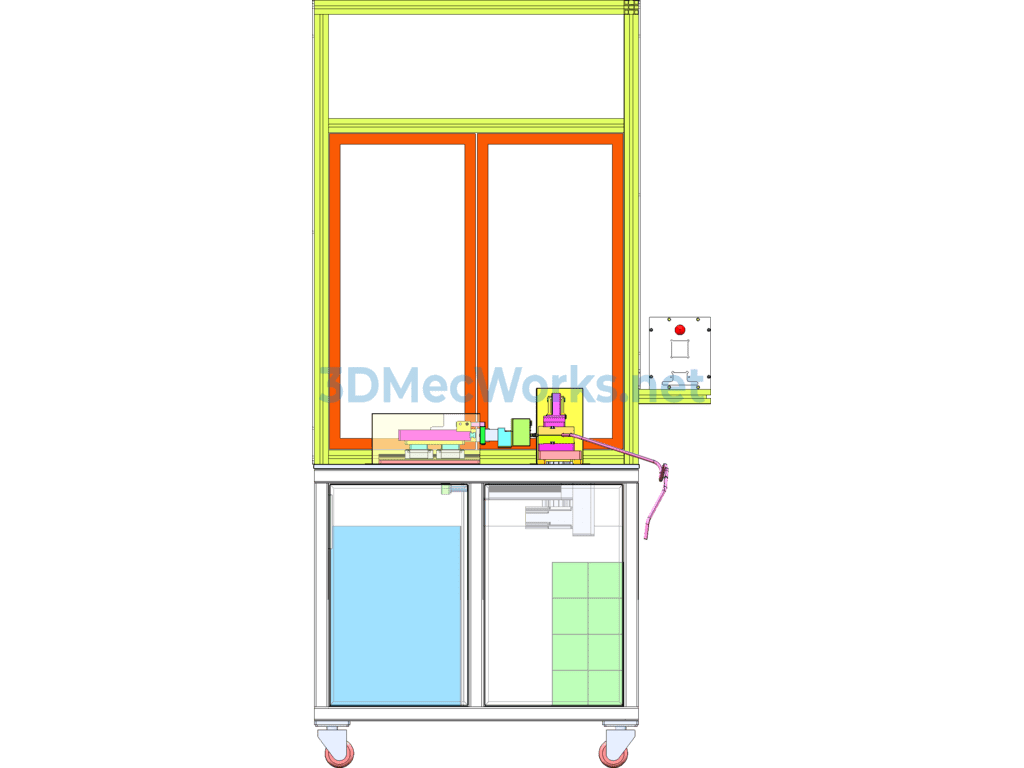

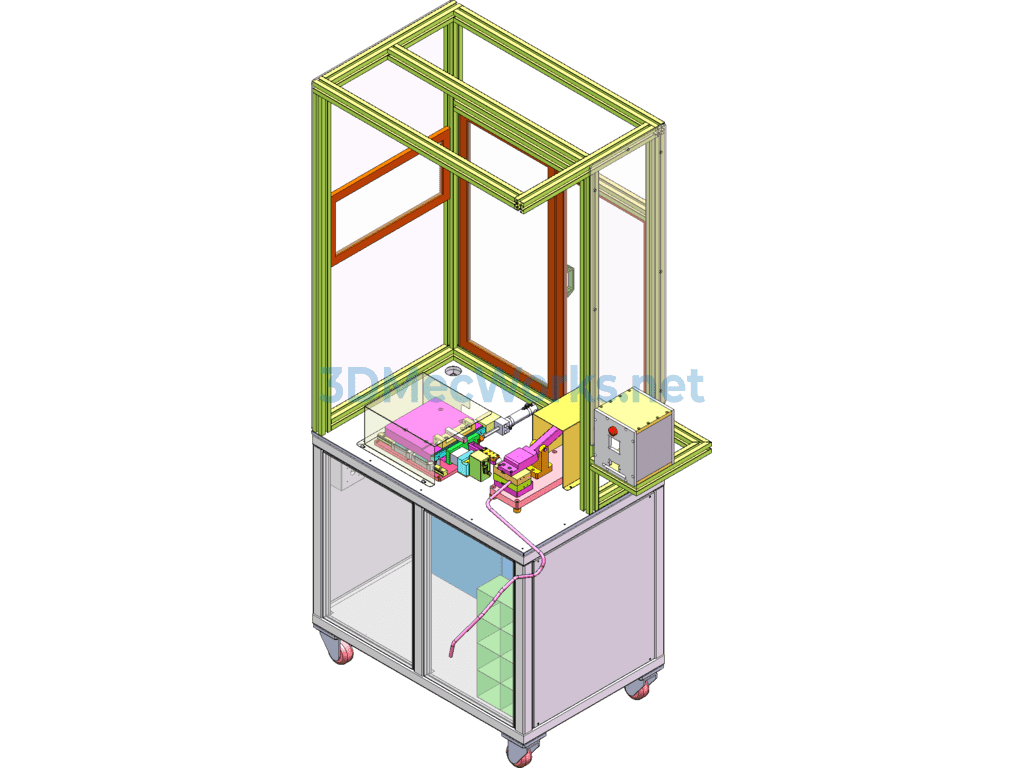

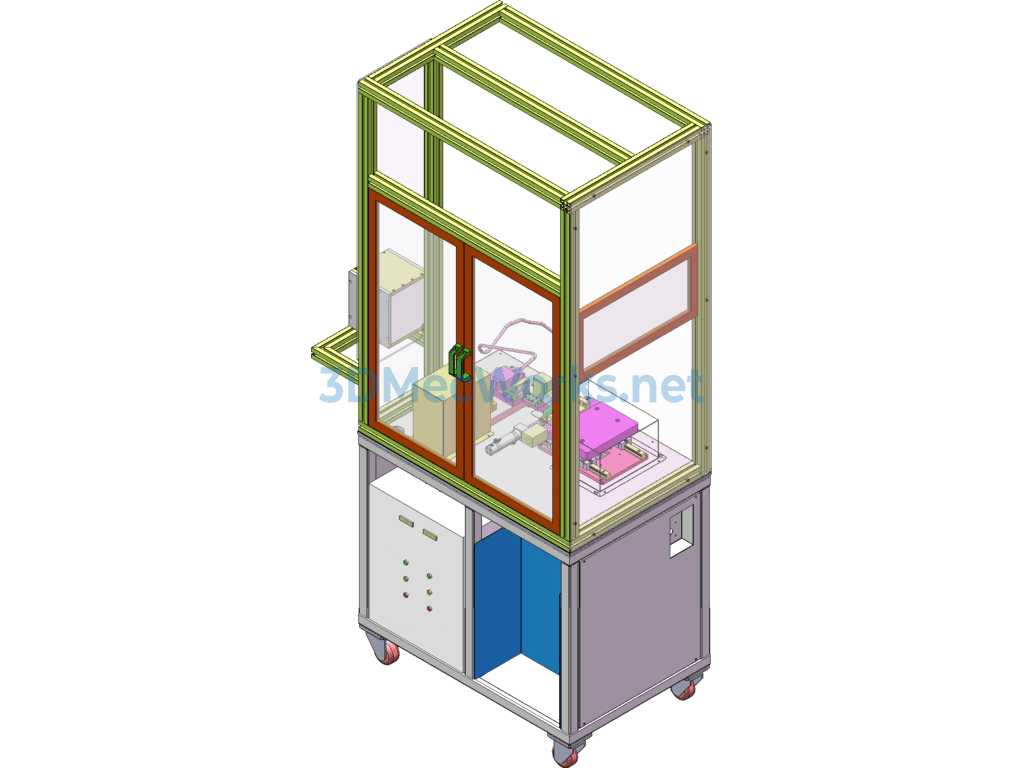

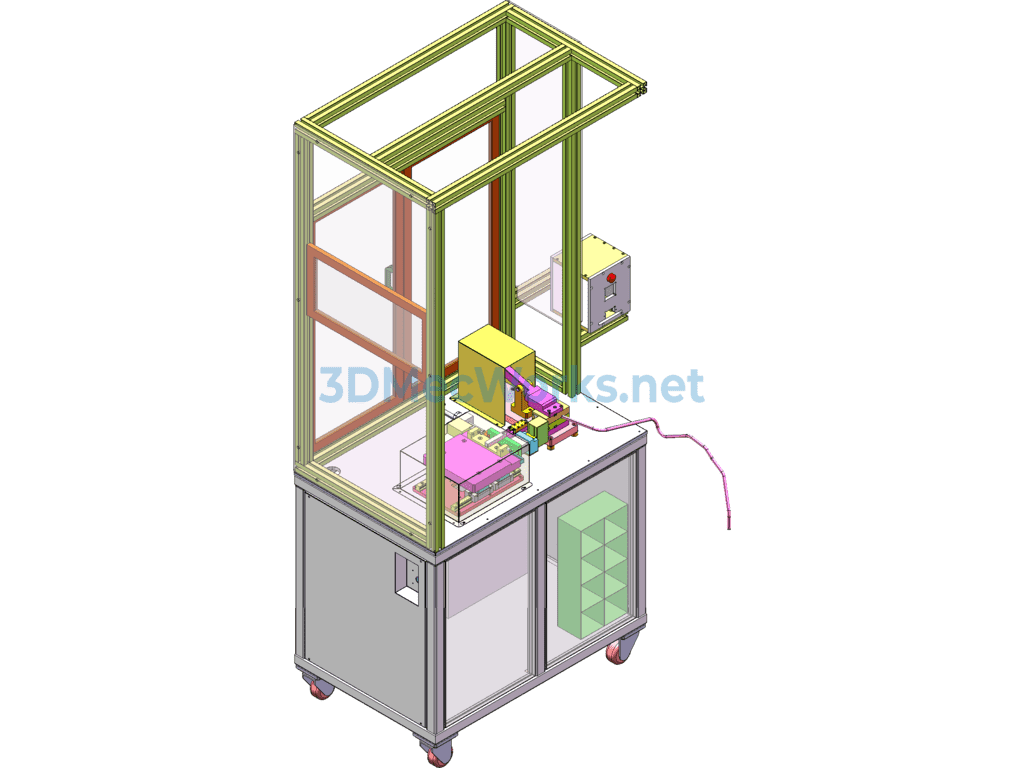

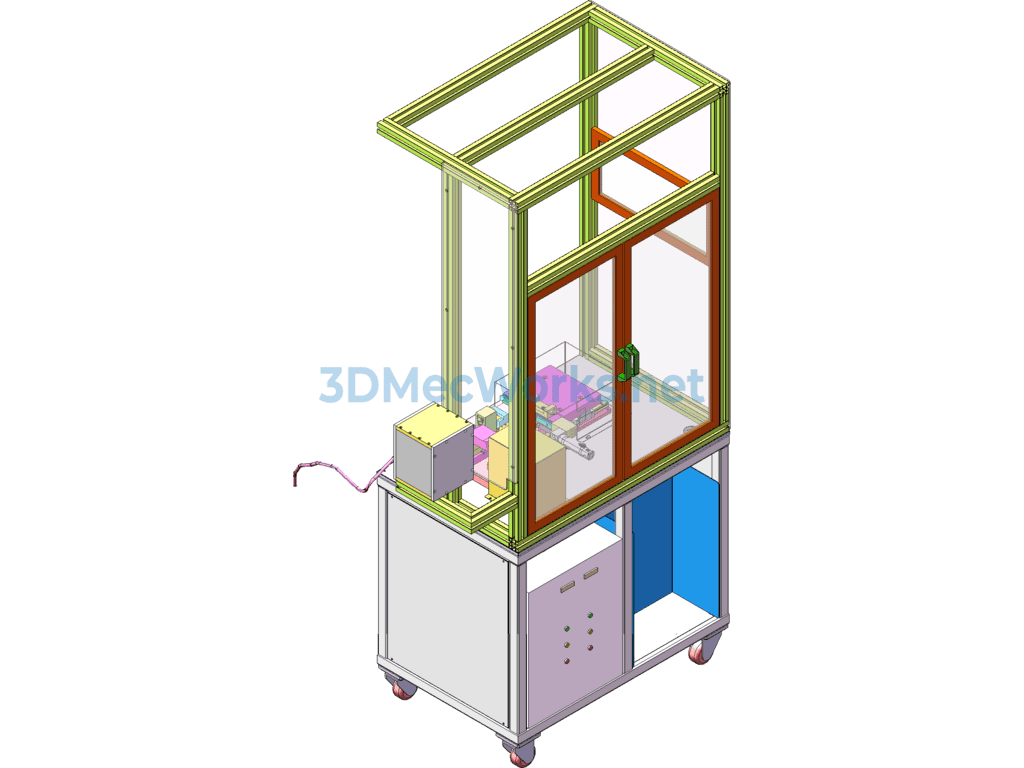

This is an automotive fuel pipe joint assembly device. Specifically, this fuel pipe is part of the pipeline supplying fuel to the engine, and the joint installation must not leak. The drawing’s structure is very detailed and includes engineering drawings. This manually operated simple tooling is applicable to different fuel pipes and joints, and it has the function of heating and preheating the fuel pipe and displaying the temperature. Equipment operation instructions: After the equipment is turned on, open the preheating box for heating, then install the corresponding fuel pipe joint according to the product, put the end of the fuel pipe that needs the joint into the preheating box for preheating, and then place the preheated fuel pipe into the fixture. Operate the handle manually to complete the assembly of the fuel pipe and joint. The drawing format is SolidWorks 2018, and everyone is welcome to download.
