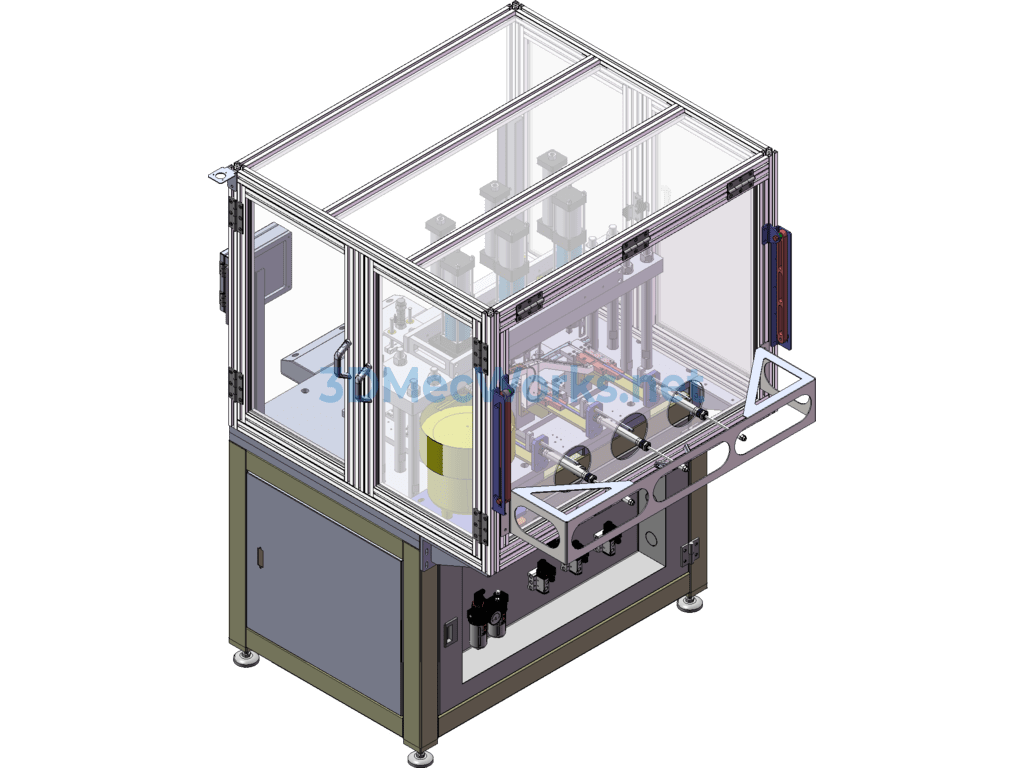

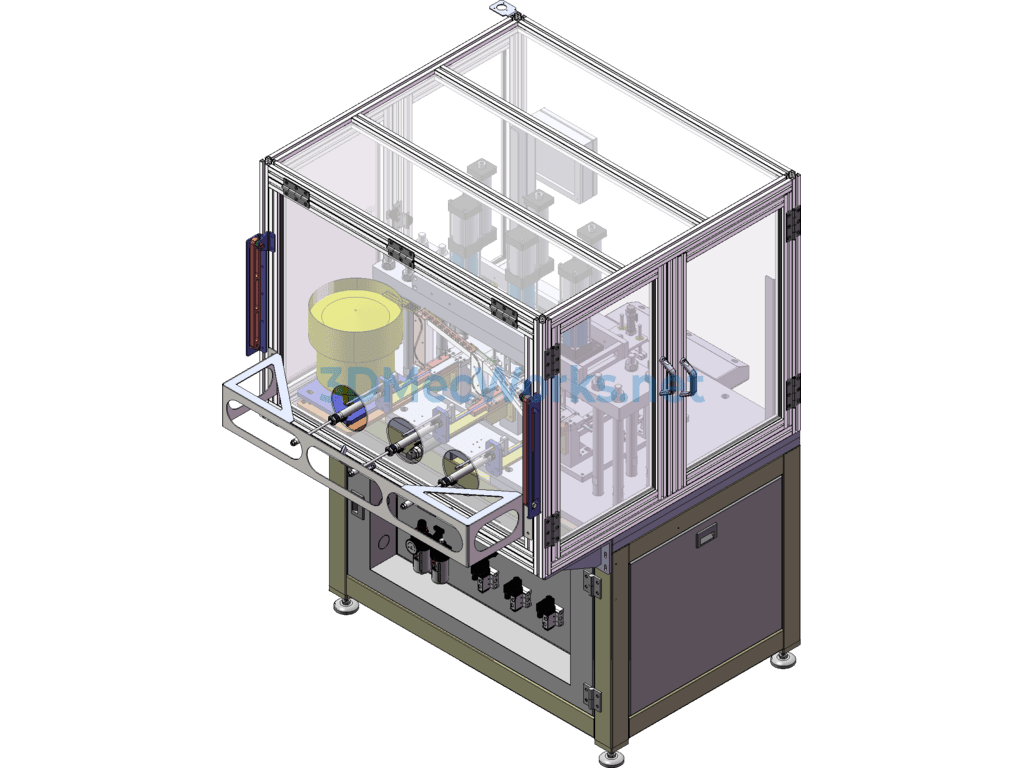

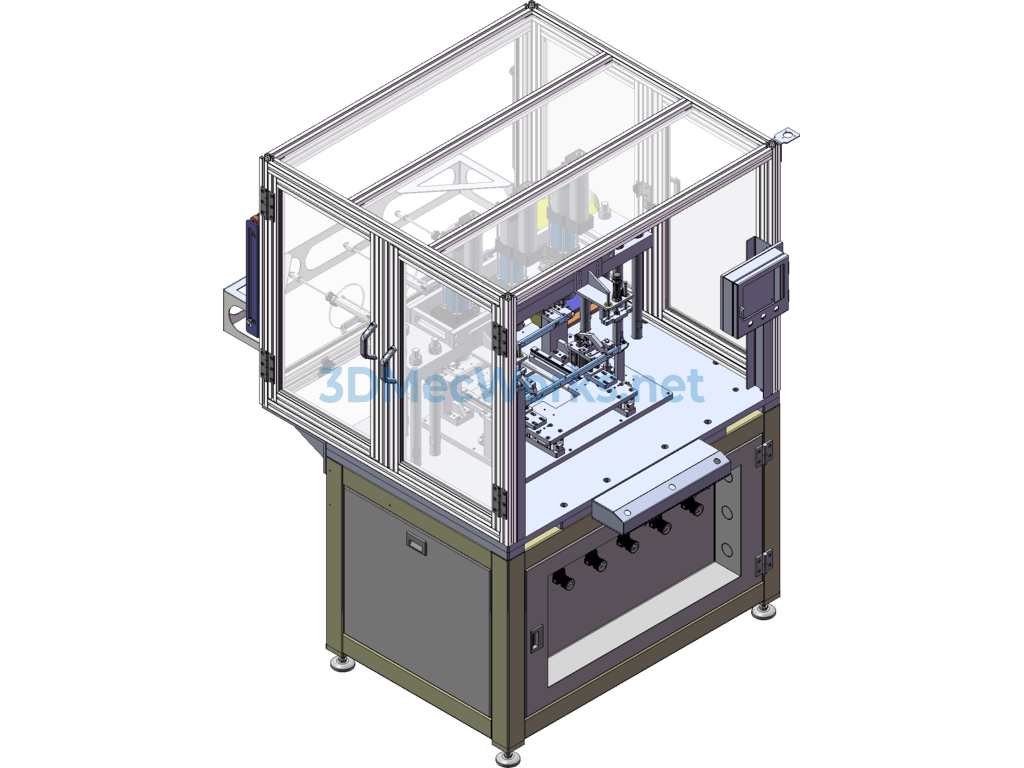

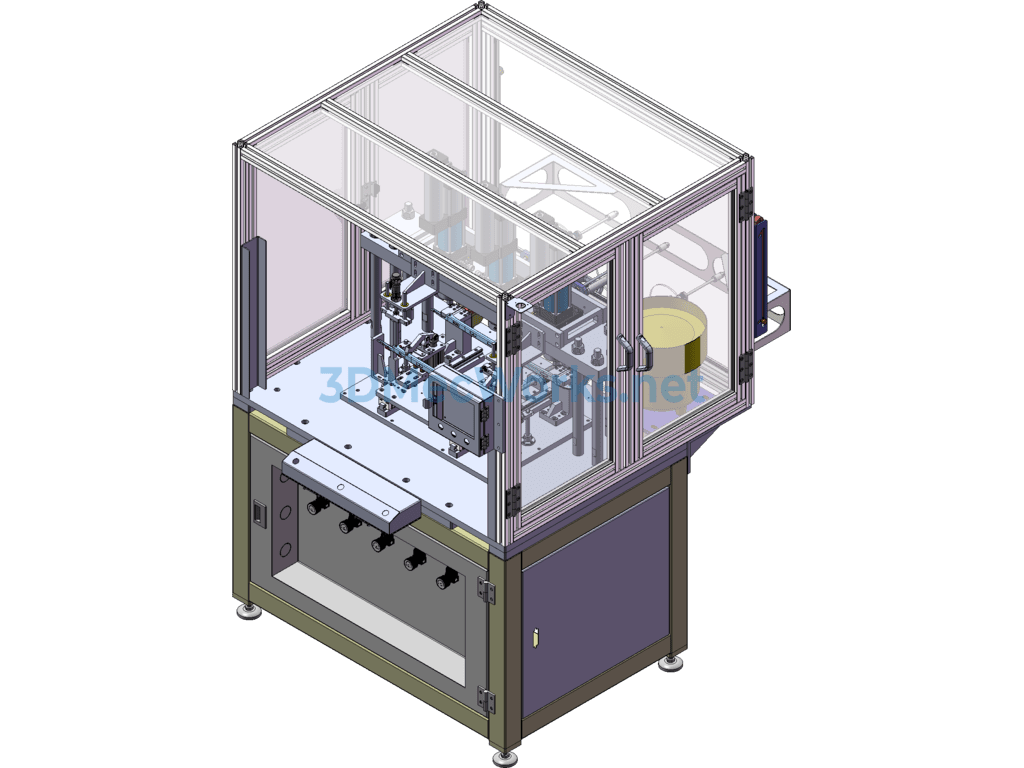

Automatic Nut Riveting Machine (sw Design)

Automatic Nut Riveting Machine 3D Model Sharing, 300 Source File Component Models Provided!
The nut riveting machine belongs to the field of automotive parts production. The bracket is fixedly connected with the automatic control platform, and the pneumatic and hydraulic power devices are fixedly connected above the bracket. The lower end of the pneumatic and hydraulic power devices are fixedly connected with the nut conveyor mechanism. The nut mold riveting mechanism is fixedly connected to the lower end of the bracket. The nut conveyor is fixedly connected to the piston rod of the conveyor cylinder. The nut conveyor is fixedly connected to the frame. The nut limiter is slidably connected to the frame. The pre-press is fixedly connected to the upper part of the mold frame. The workpiece positioning mechanism is fixedly connected to the lower part of the mold frame. The lower flat mold is fixedly connected to the workpiece positioning mechanism. The upper mold is fixedly connected to the lower end of the pre-press. The lower convex-concave mold is fixedly connected above the lower flat mold. The advantages of this utility model are: novel structure, low cost, high efficiency, good safety, high quality, and good stability.
