Automatic Non-Standard Calibration Machine

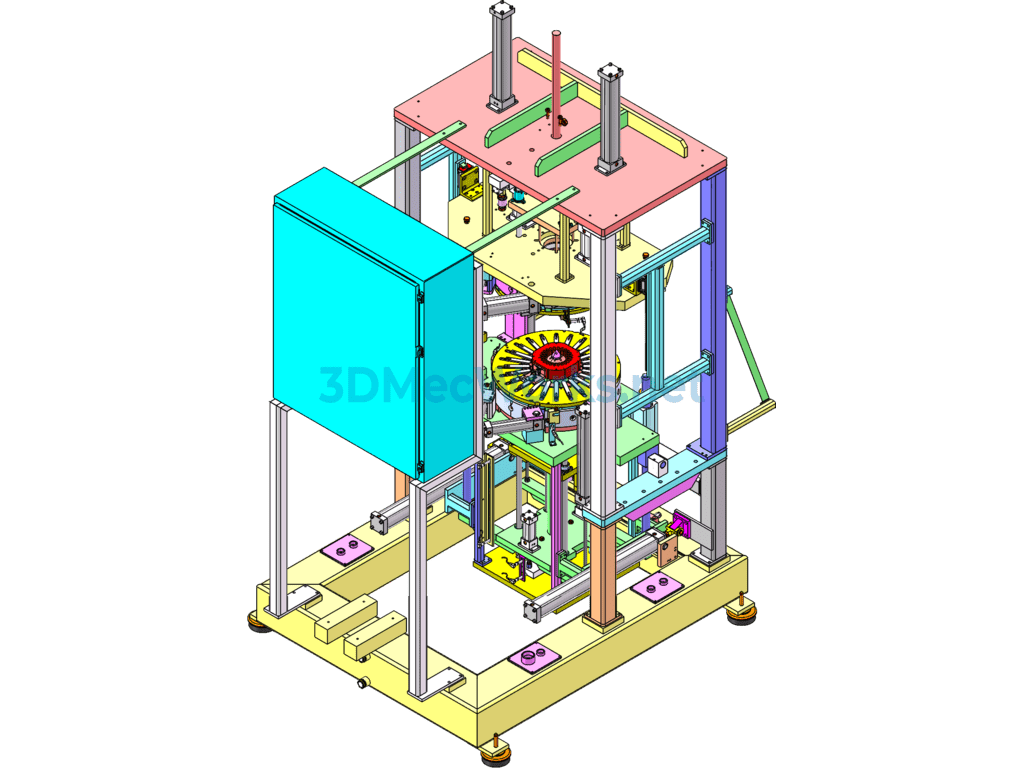

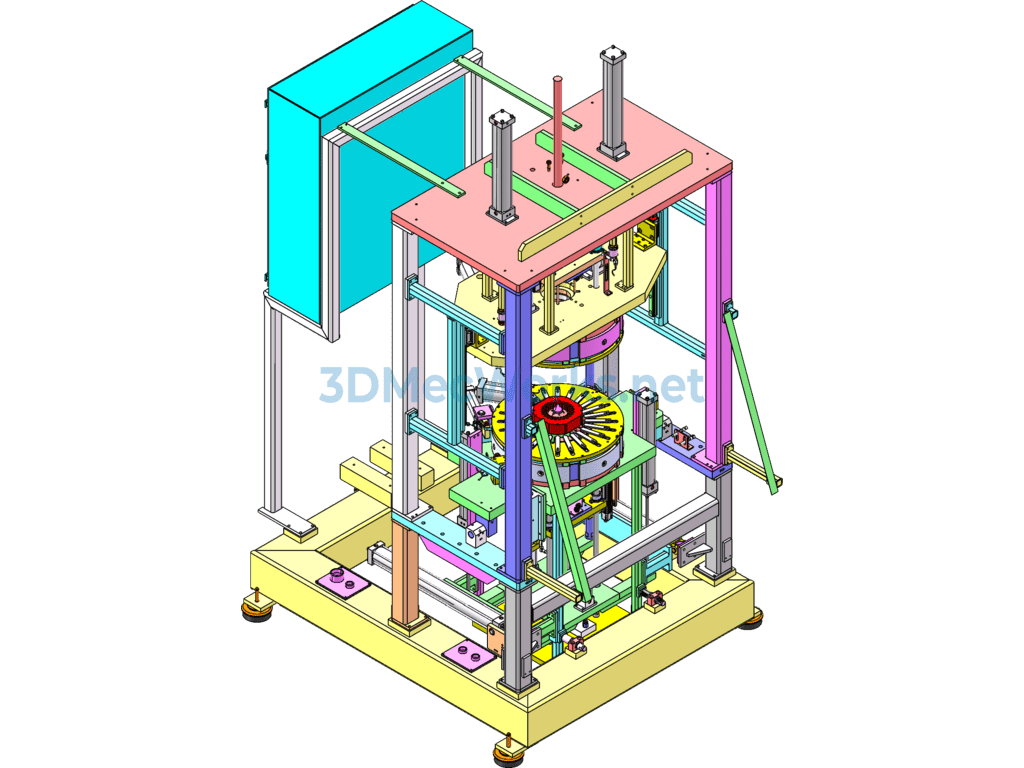

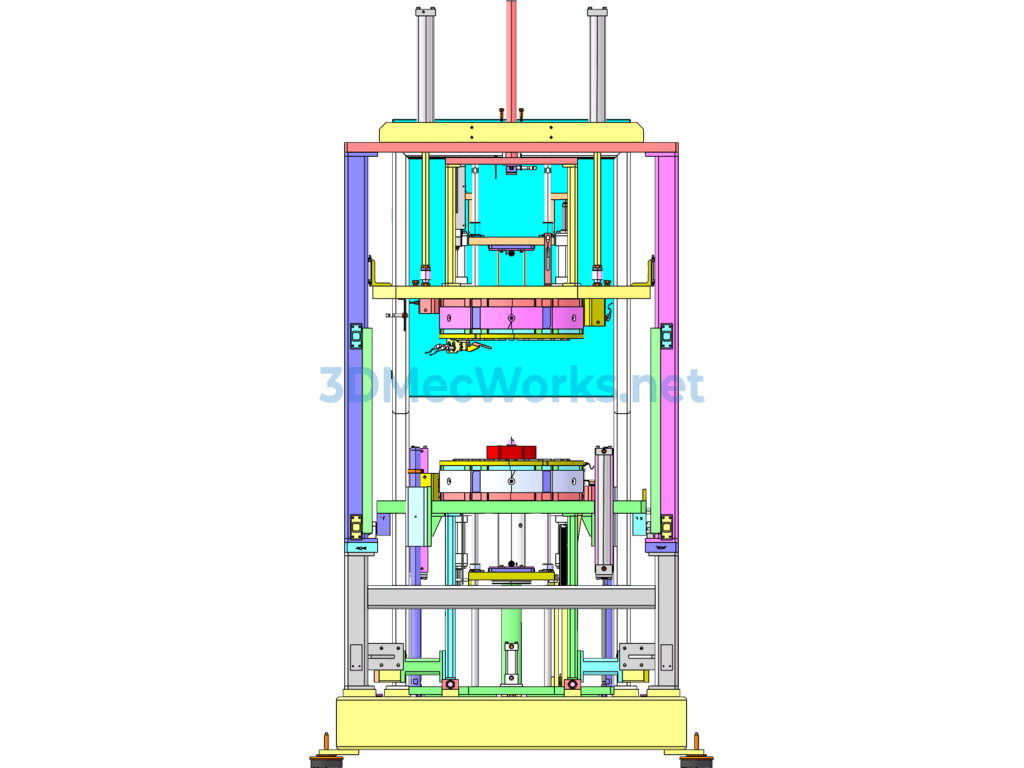

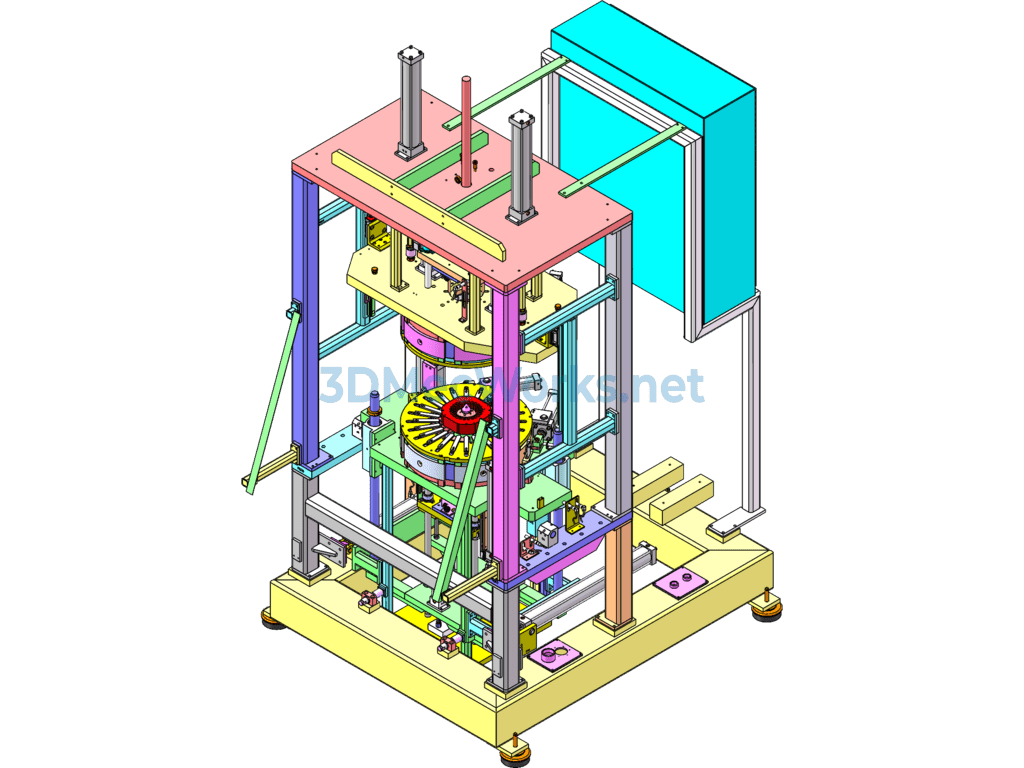

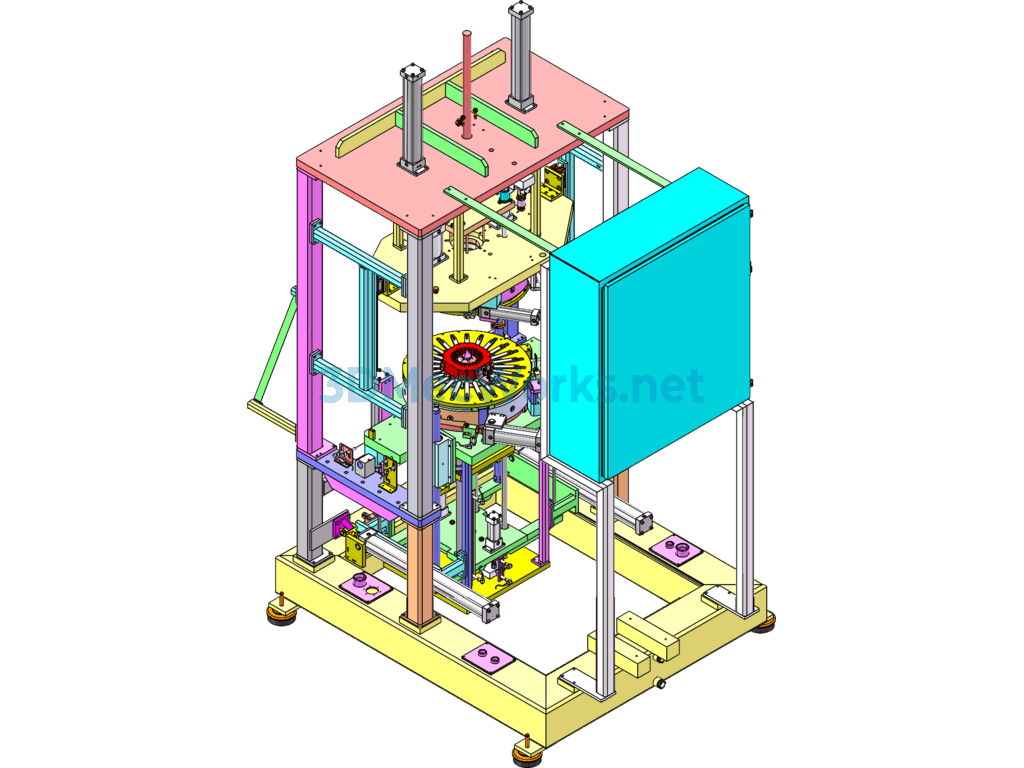

The equipment structure is very complex and comes from classic designs, making it highly valuable for friends engaged in non-standard design! The equipment structure comprises a total of 300 parts and comes with STP format files, which can be opened by any 3D software. This equipment was designed using SW2011, and it can be opened with later versions. The equipment adopts a vertical structure layout, which is aesthetically pleasing and very compact in structure! This equipment is an automated machine for the motor industry from the rotor network materials. After assembly, the rotor copper pieces require automatic calibration and positioning to ensure reliable motor operation. The equipment uses a classic positioning and correction structure, with a complex internal structure resembling a rotary table. Those interested can download it for further understanding.
