Automatic Metal Rod Inspection and Sorting Machine Equipment

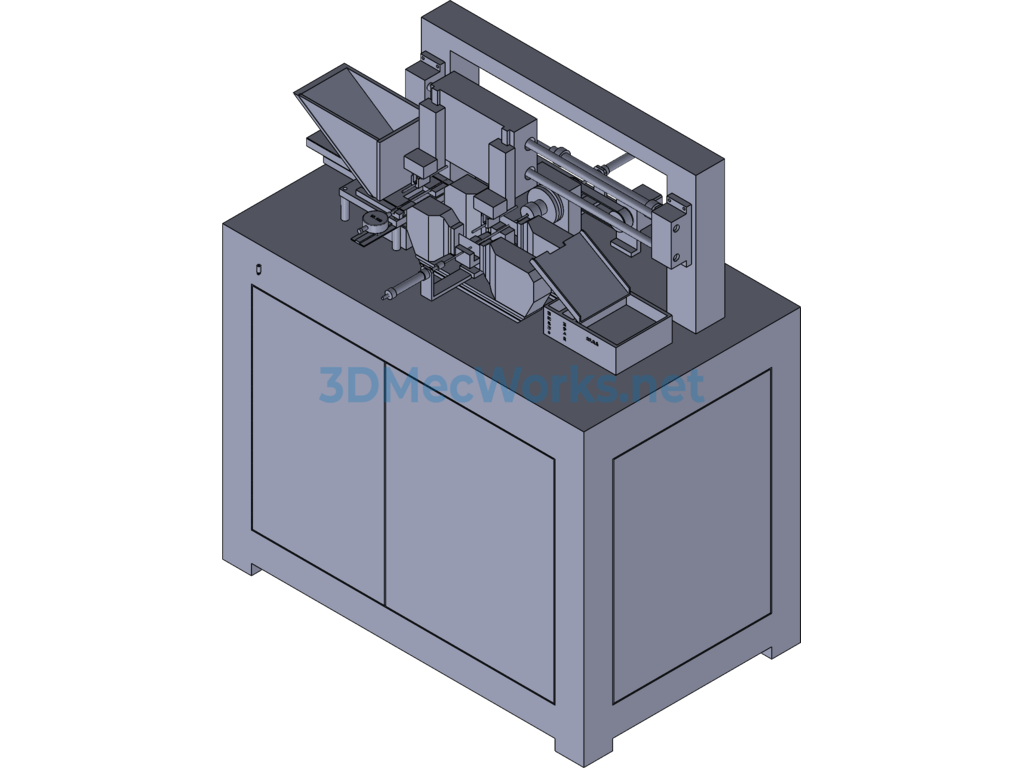

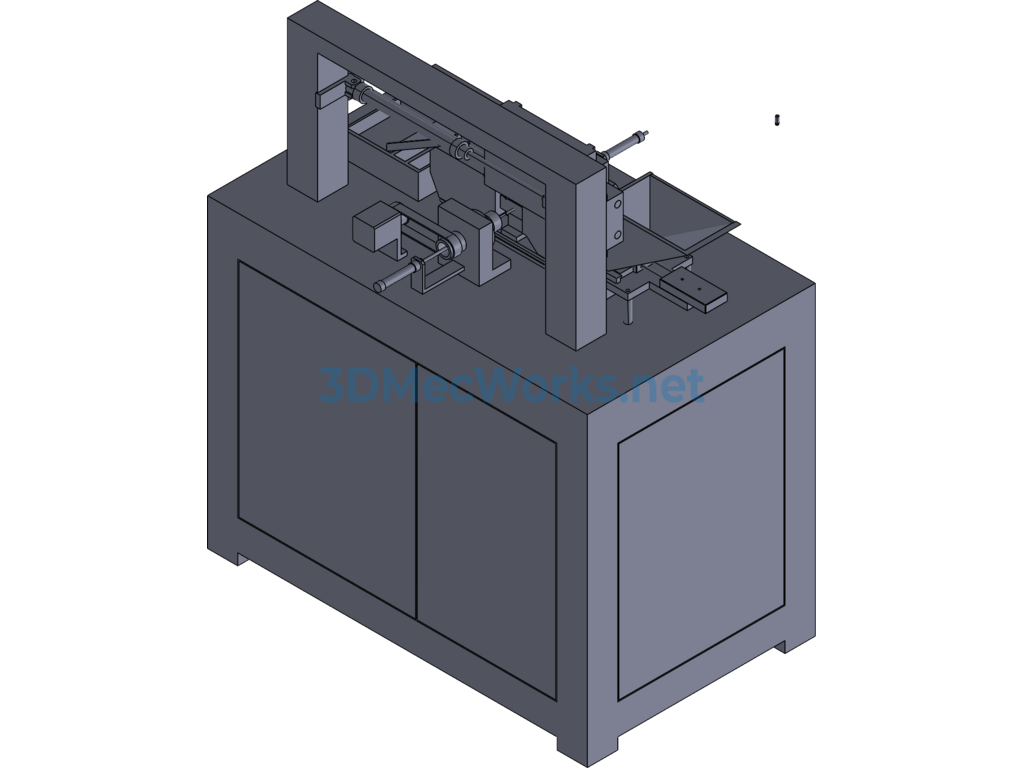

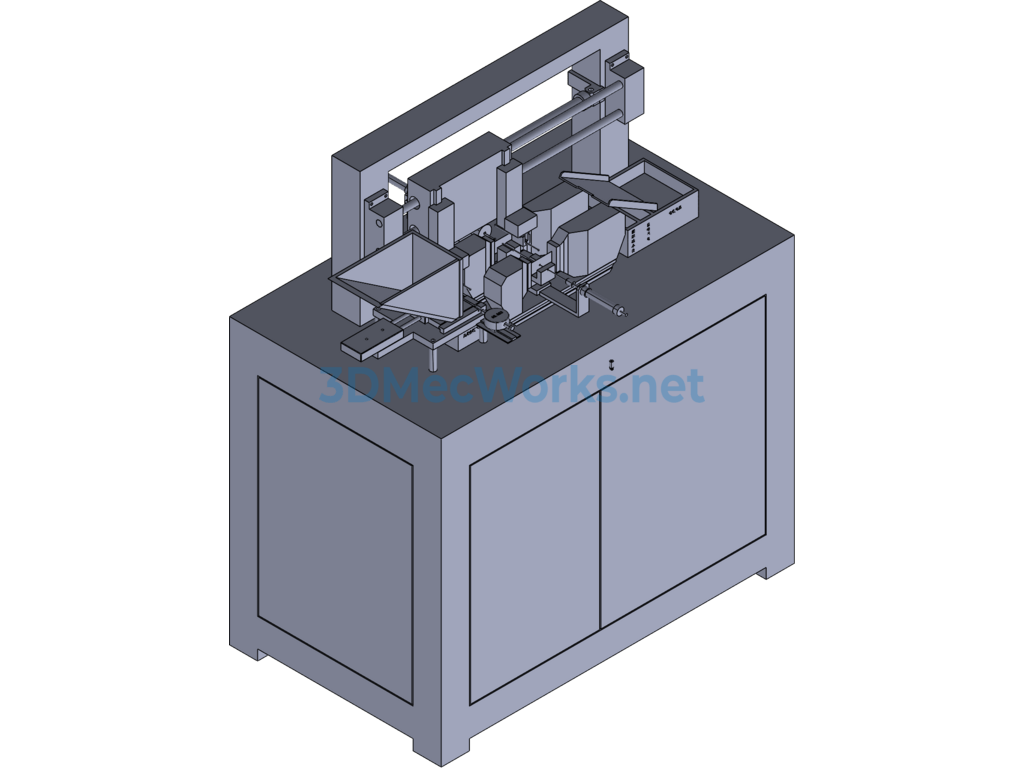

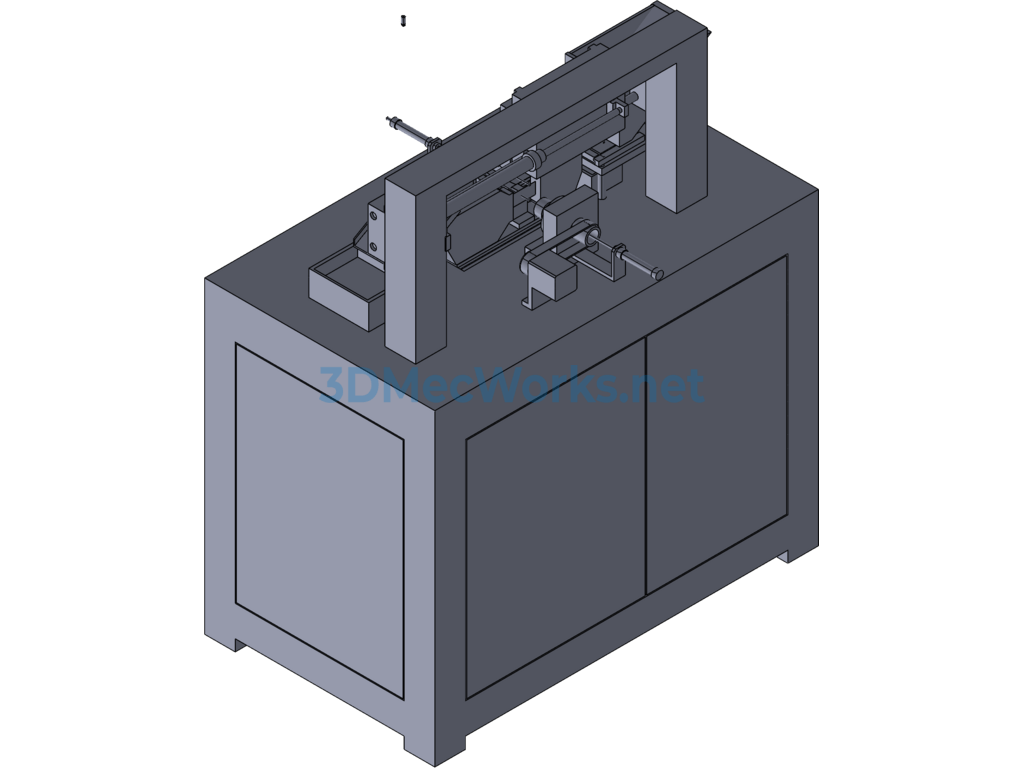

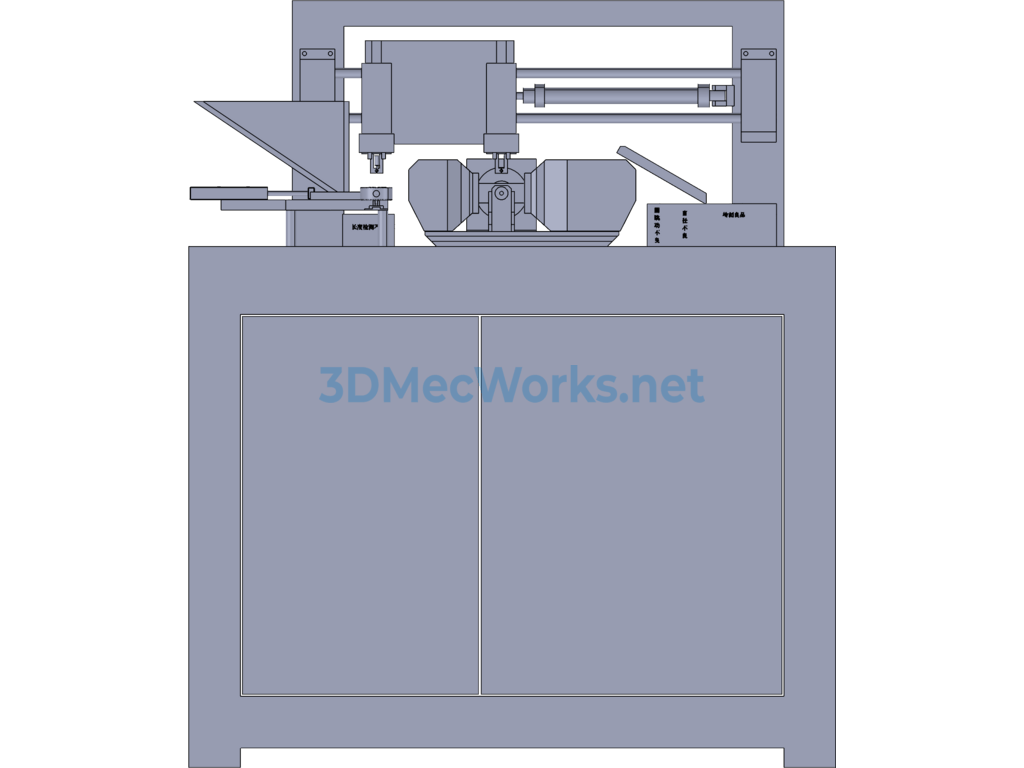

This drawing is a 3D model design of an automatic metal rod inspection and sorting machine. Main functions: The equipment automatically detects the length, outer diameter at both ends, and the mid-section roundness variation parameters of metal rods and sorts them into qualified and unqualified categories, reducing operator errors and misjudgments. Testing instruments: 1. One dial gauge for length measurement 2. Two laser measuring instruments (Note: Two are used for outer diameter measurement, and one of them for outer roundness variation.) Dimensions: Length: 1000mm, Width: 600mm, Height: 1200mm Work efficiency: 6S/PCS. The drawing has a reasonable structural design and includes a step format, which can be opened with various 3D software. Welcome to download and reference.
