Automatic Membrane Steel Sheet Rolling Machine, Automatic Unwinding and Winding Rolling Machine

Automatic Film Steel Strip Rolling Machine, Automatic Unwinding and Winding Machine 3D Model Solidworks 2013 Design Source File Sharing

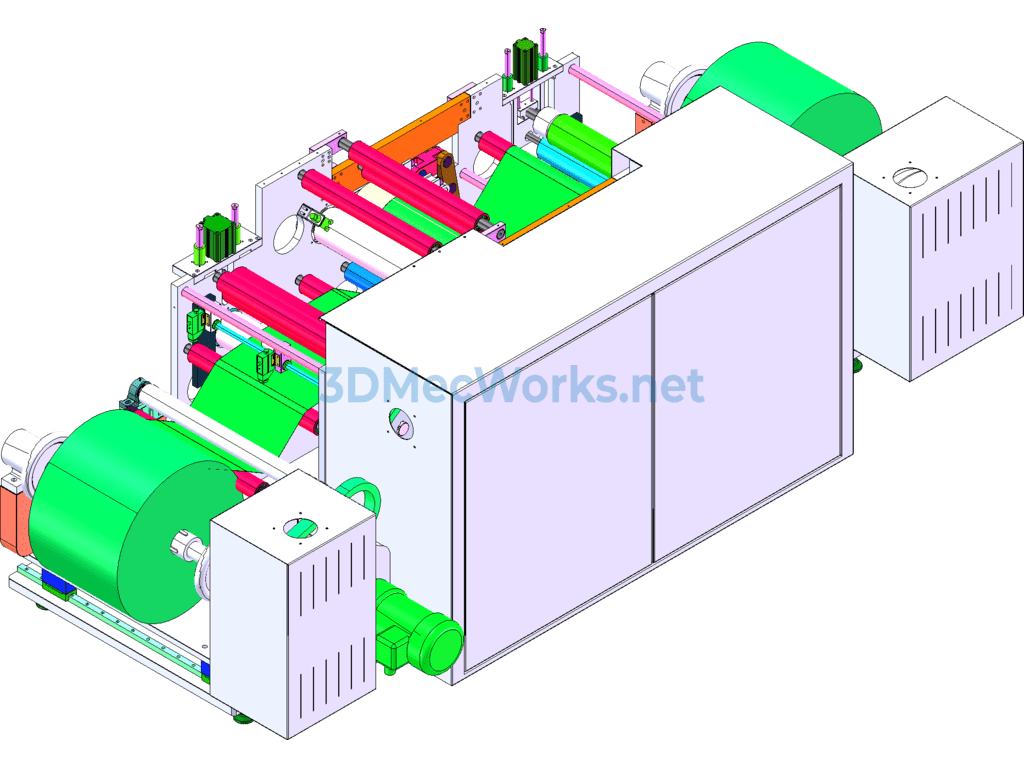

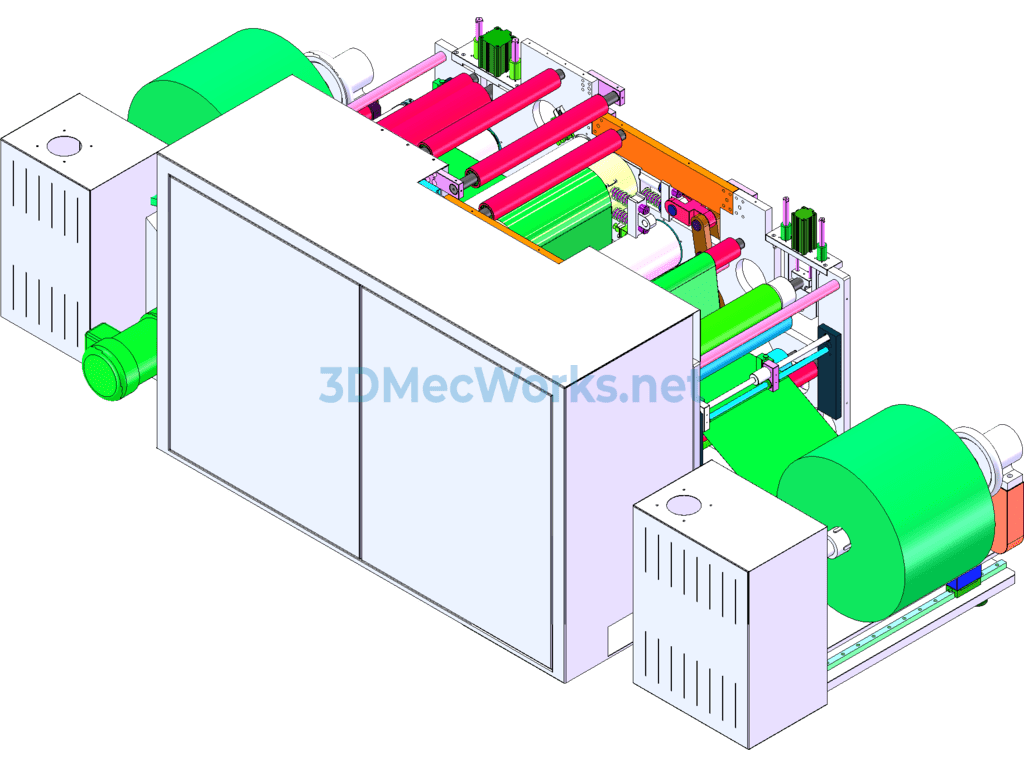

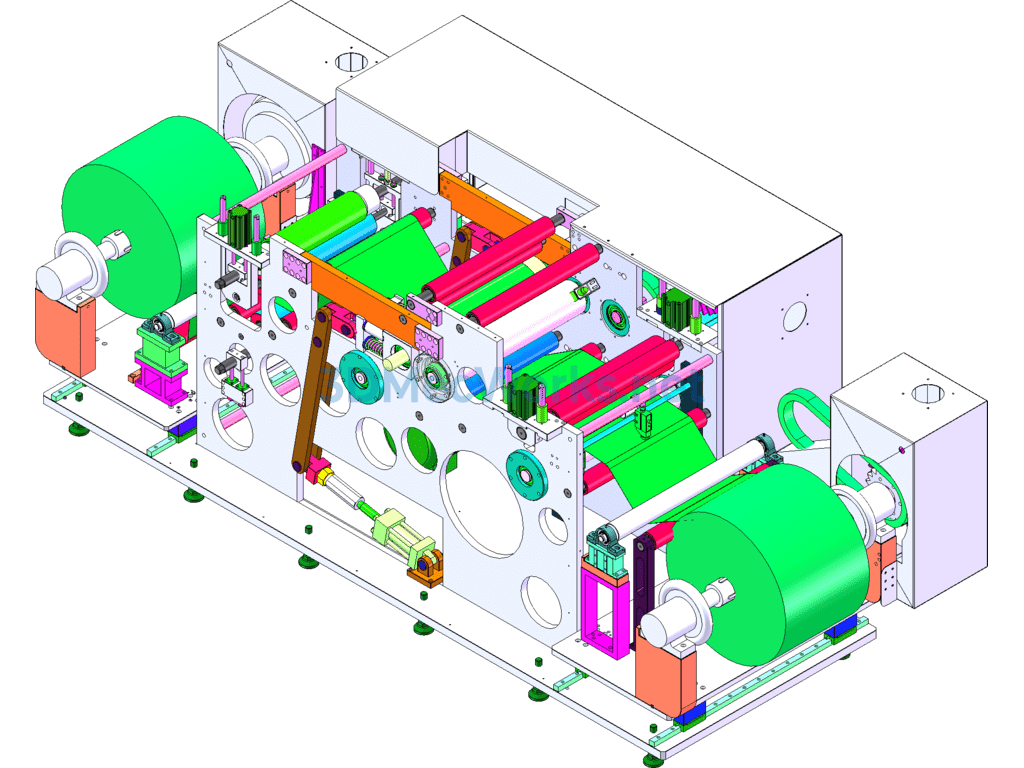

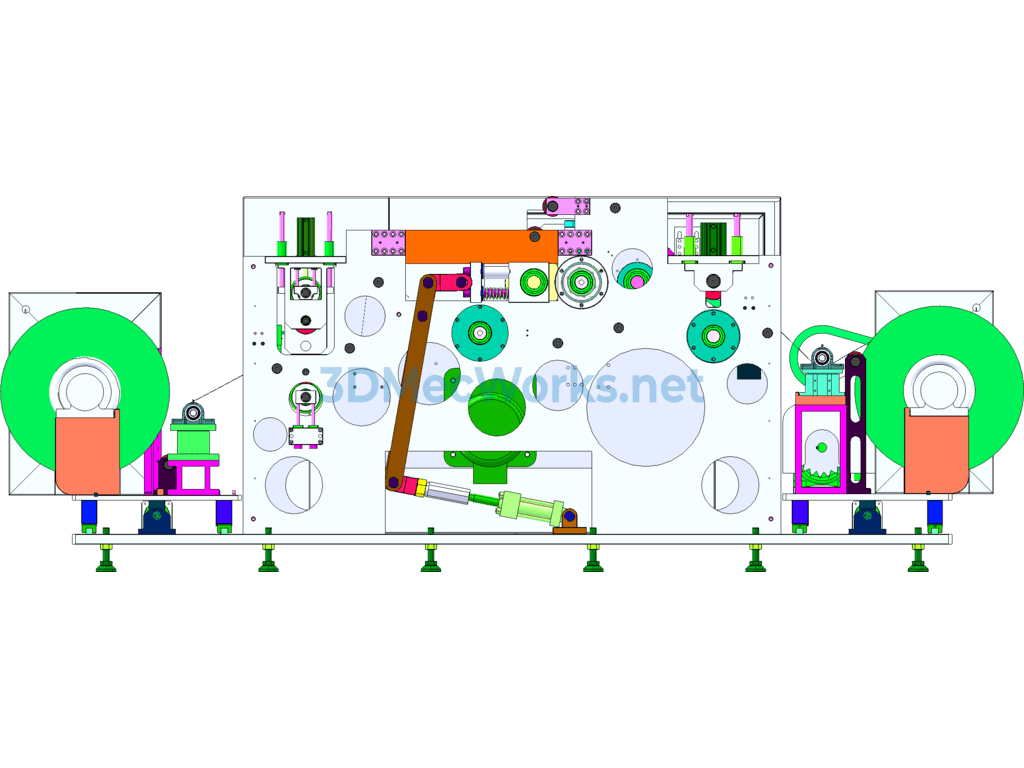

This is a very complex automatic film steel strip rolling machine, featuring automatic material unwinding and feeding, passing through the hot pressing section, composite section, and then automatic material collection. The equipment includes an automatic tension control system (application of magnetic powder brake, magnetic powder clutch), hydraulic, pneumatic, and a complicated mechanism. The drawings are very detailed. The equipment has successfully passed customer acceptance. It is highly valuable for reference!
