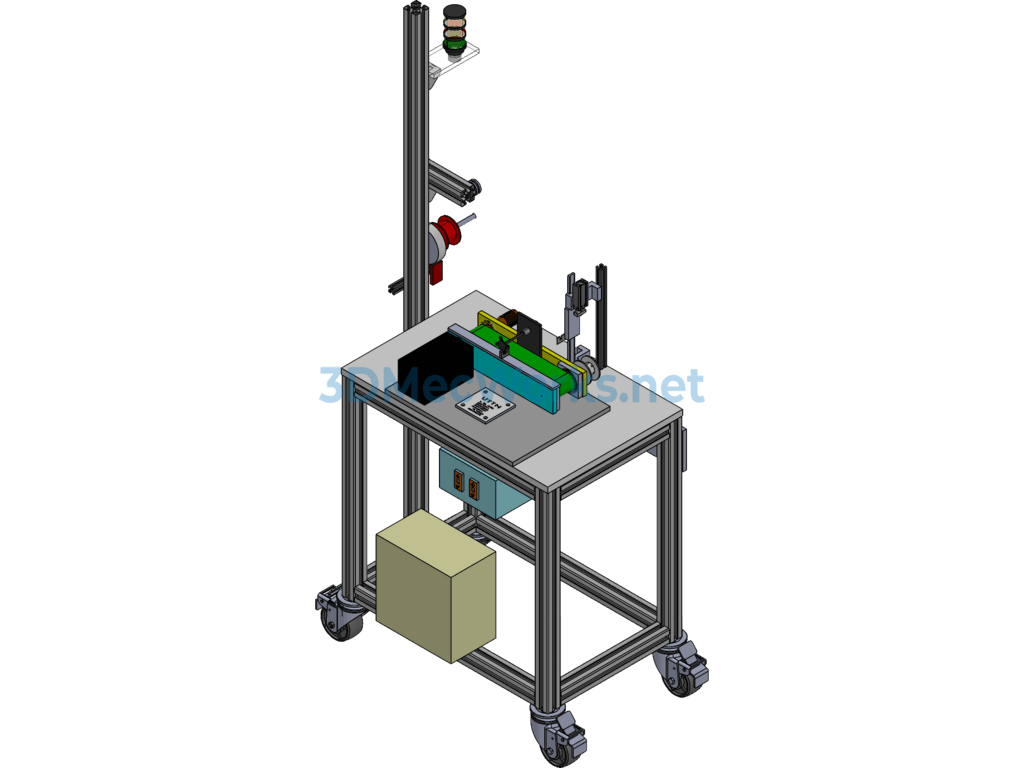

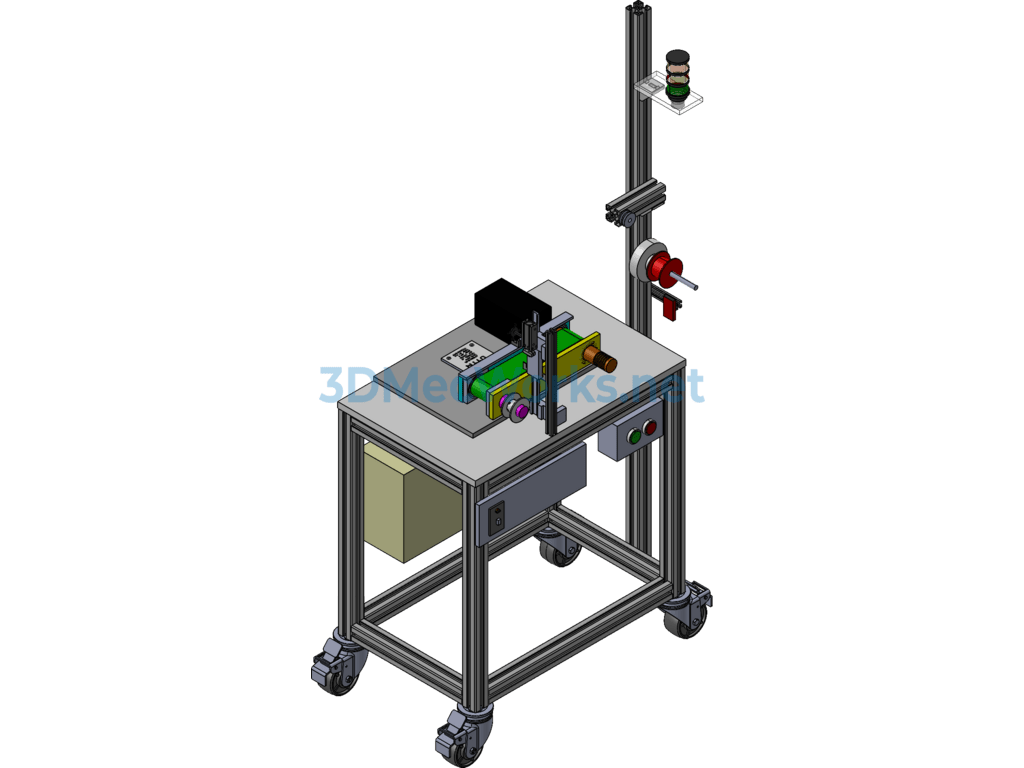

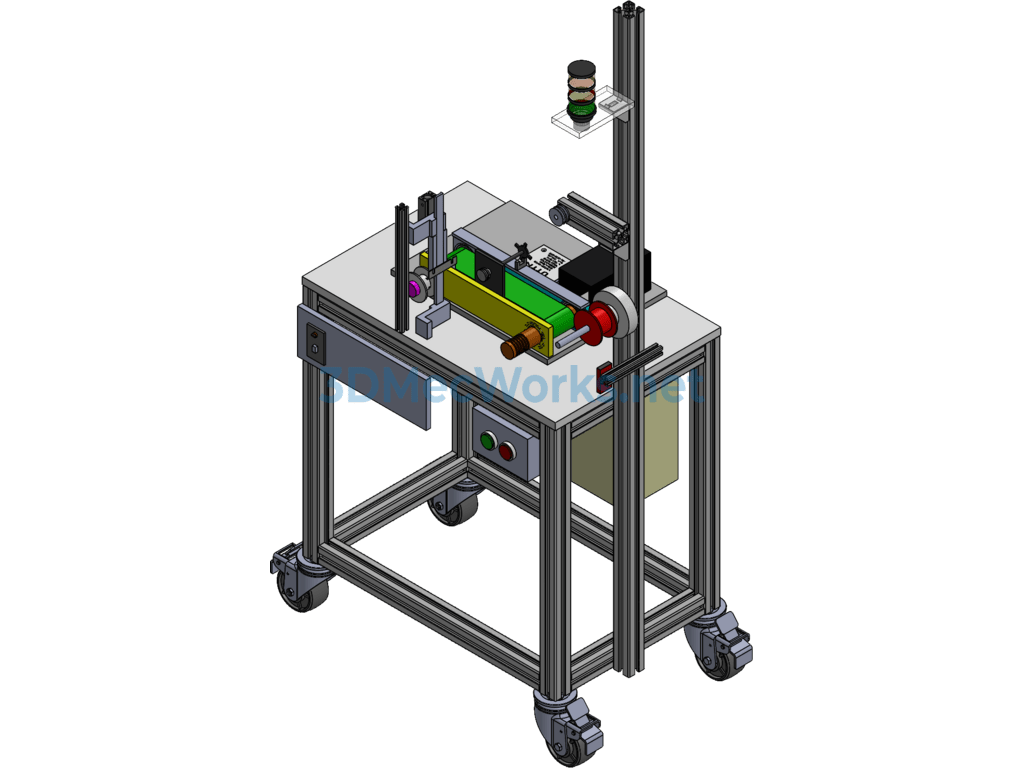

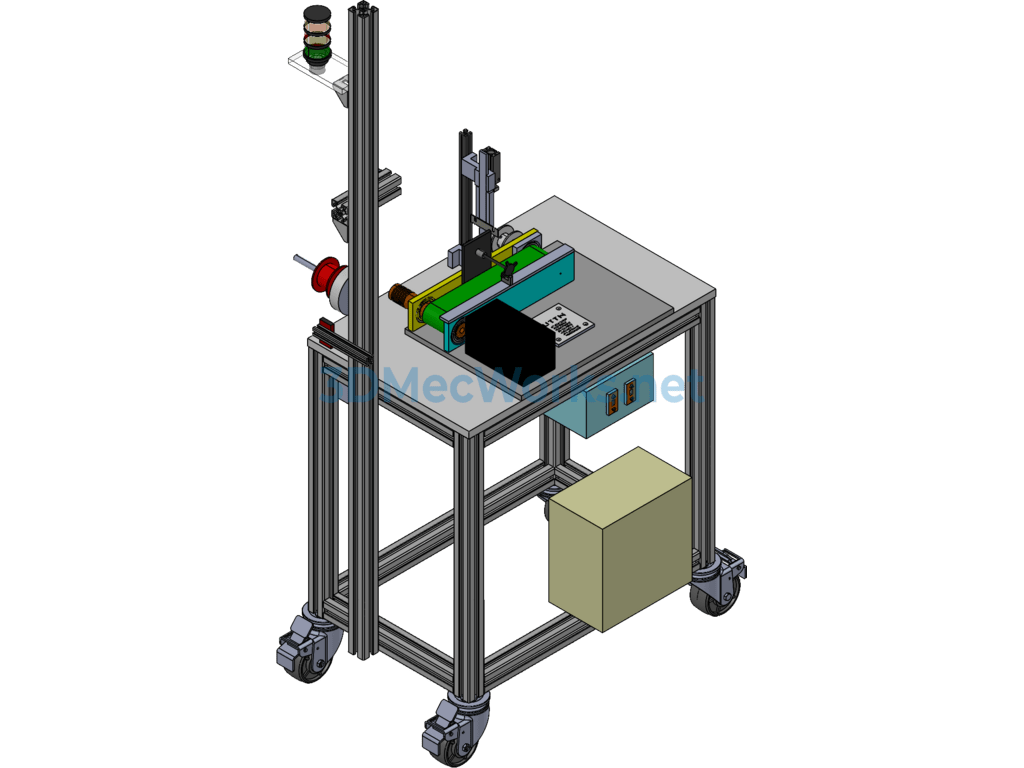

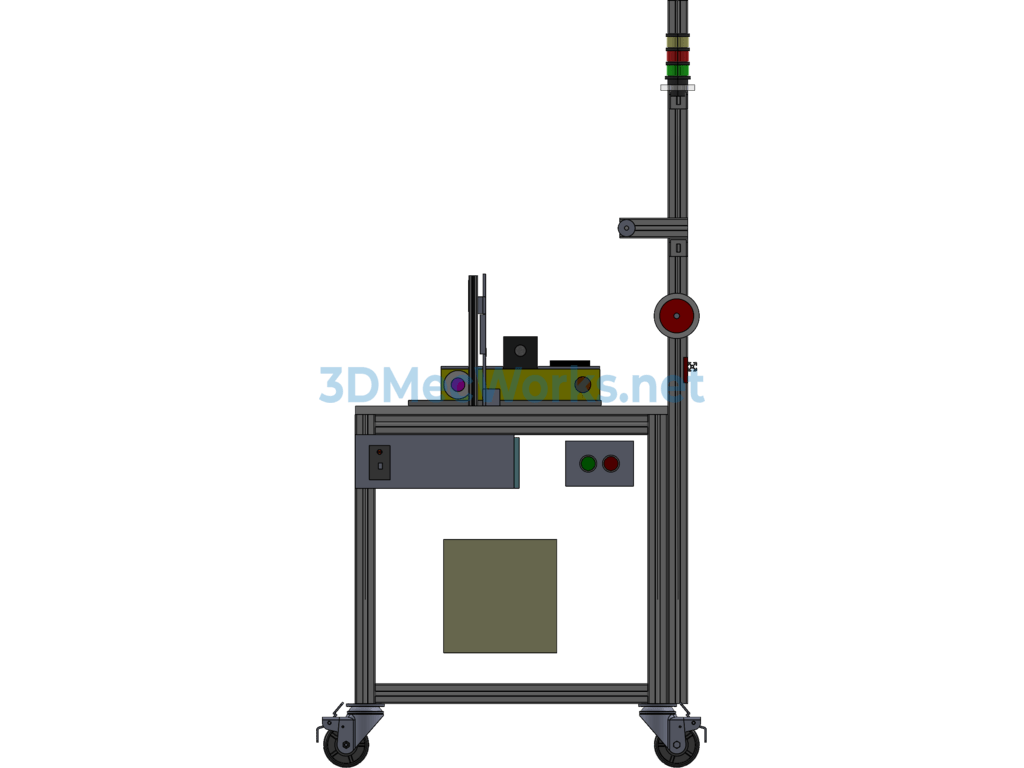

Automatic Measuring Machine (non-Standard Equipment)

Automatic measuring machines (non-standard equipment) are widely used in industries such as machinery, electronics, instrumentation, and plastics. Coordinate measuring machines are one of the most effective methods for measuring and obtaining dimensional data. They can replace various surface measurement tools and expensive combination gauges, reducing the time required for complex measurement tasks from hours to minutes, a feat that other instruments cannot achieve. The overall structural design is very well executed. You can download and study the design approach, which is an excellent model drawn in SW2014, includes parameters for editing, and also provides a 3D universal format in STP format.
