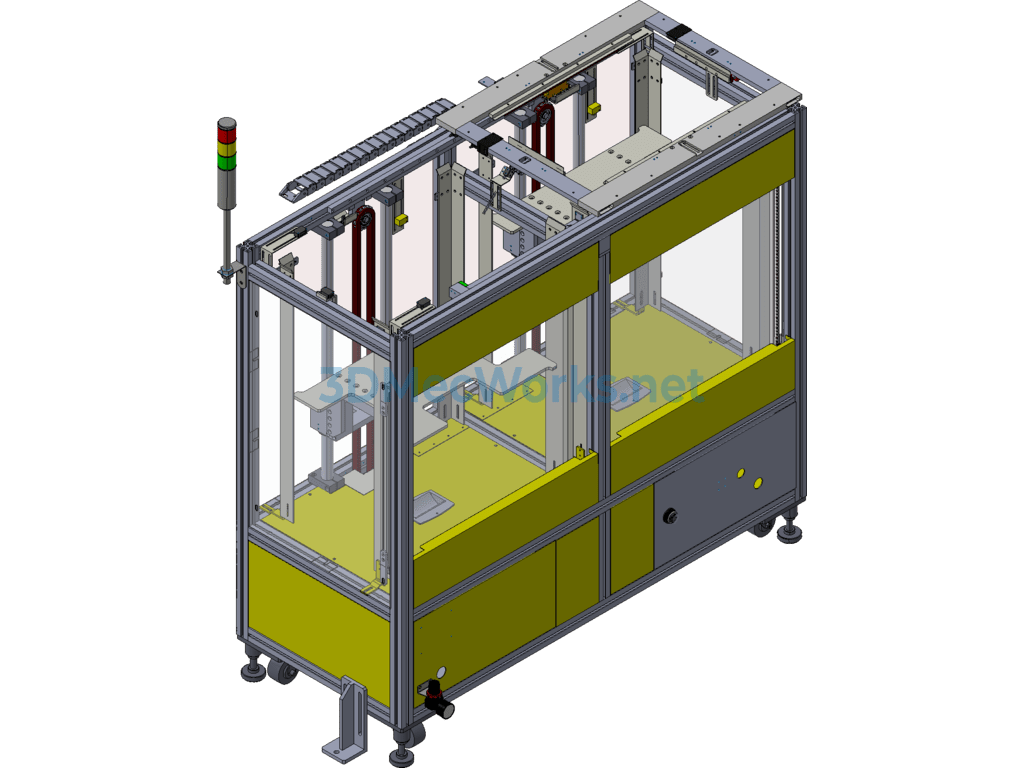

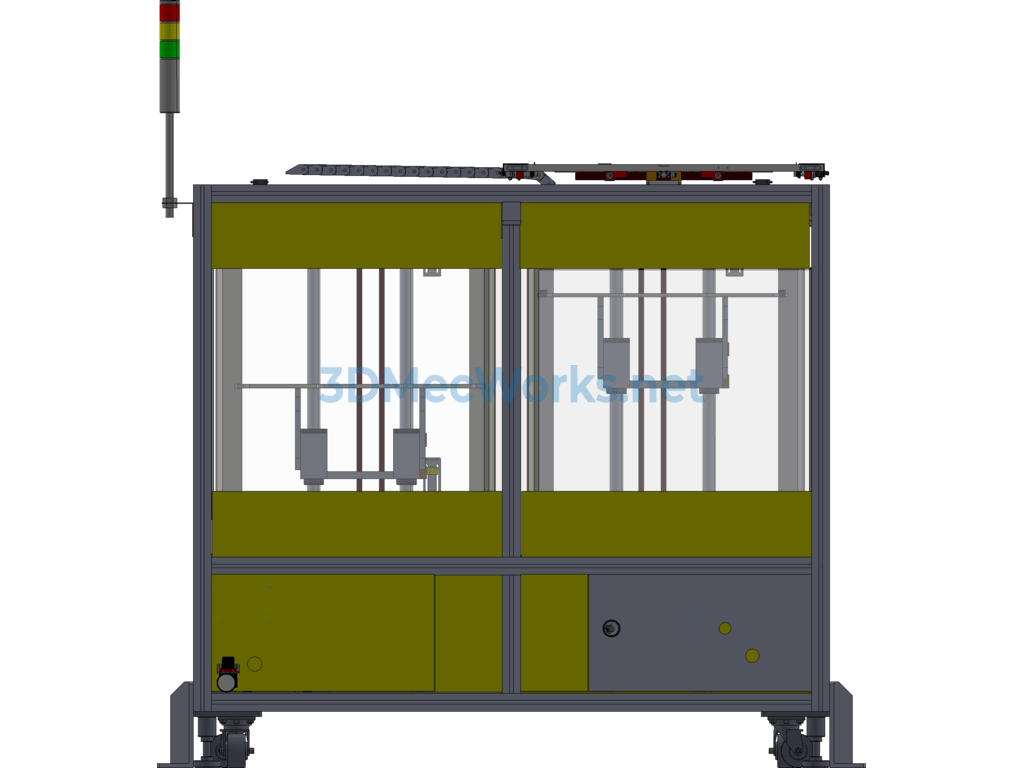

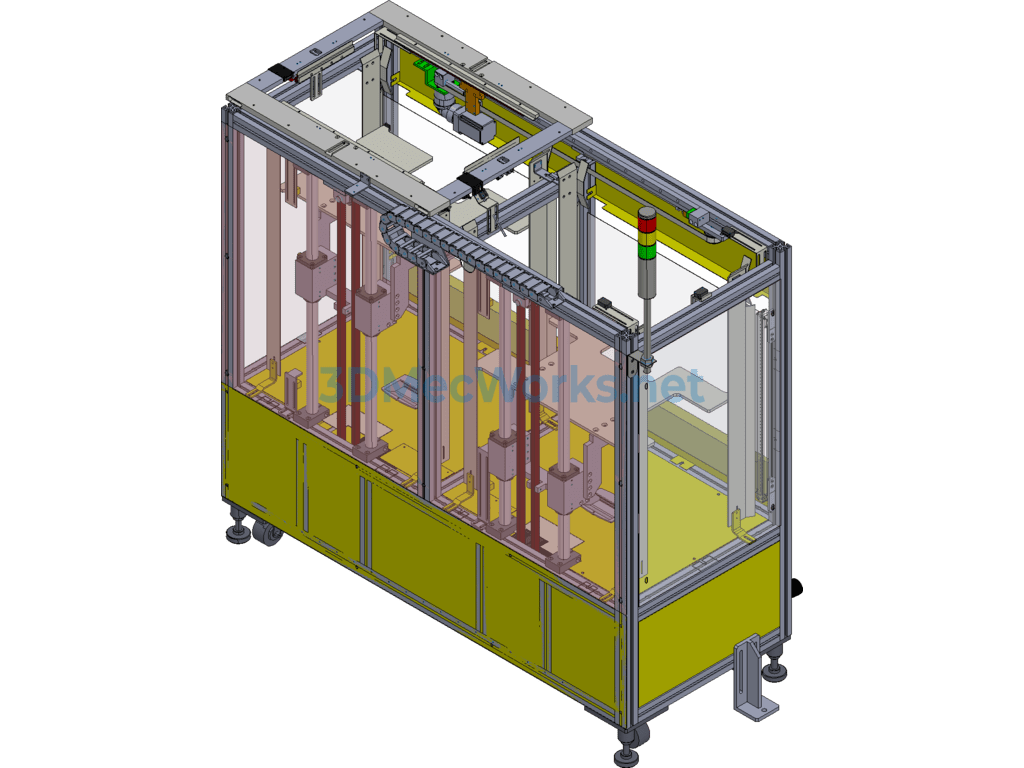

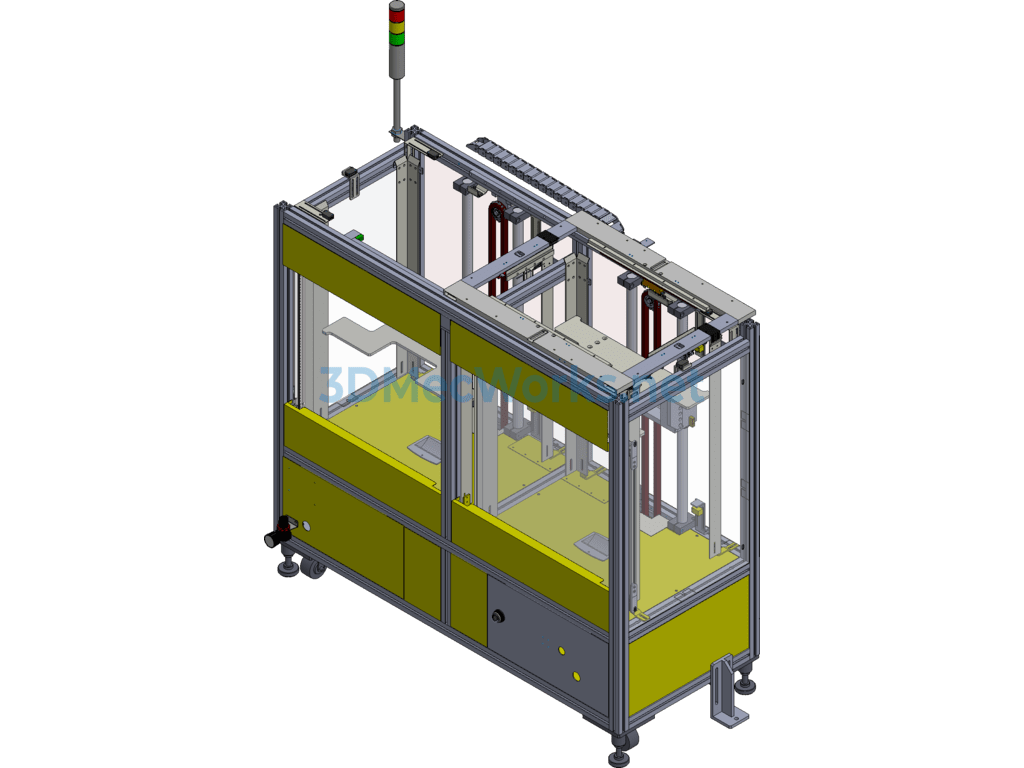

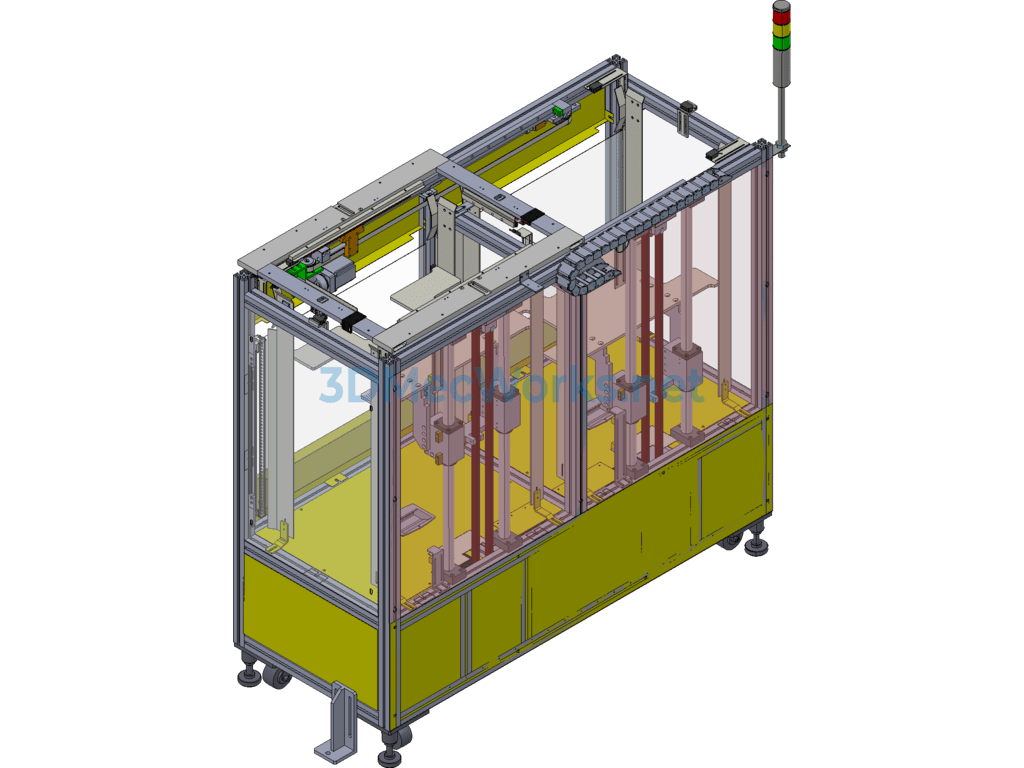

Automatic Lifting and Transplanting Loading and Unloading Mechanism for Tray

Process:
Manual placement of the tray;
Start lifting in position and pick up material;
After completion, the upper left clamping mechanism clamps and transfers the empty tray to the right;
Cycle in sequence;
When the trays on the right are full, manually remove the trays.
Note: There is a safety light curtain protection in the loading and unloading area.
The above describes some functions and principles of this equipment, with many more. More details will not be introduced here. Interested parties can download and study them directly. There are many more ingenious design structures that you can learn and study in detail when you have time after downloading. This is an excellent set of tray loading and unloading equipment drawings. Welcome to learn and study. Thank you.
