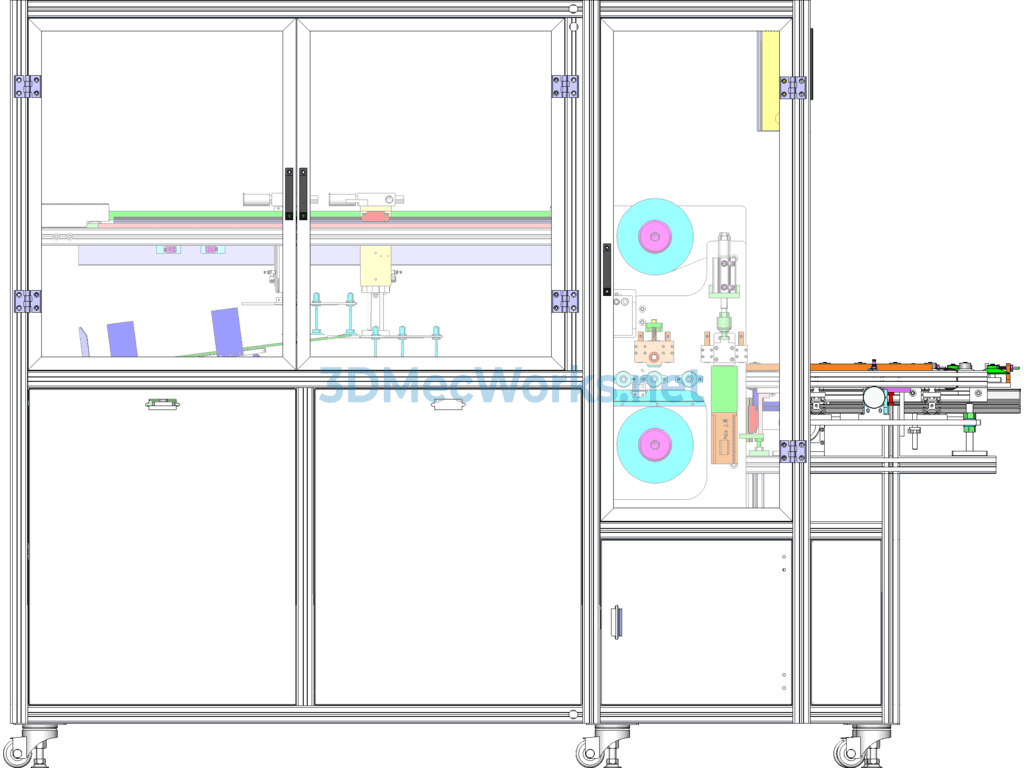

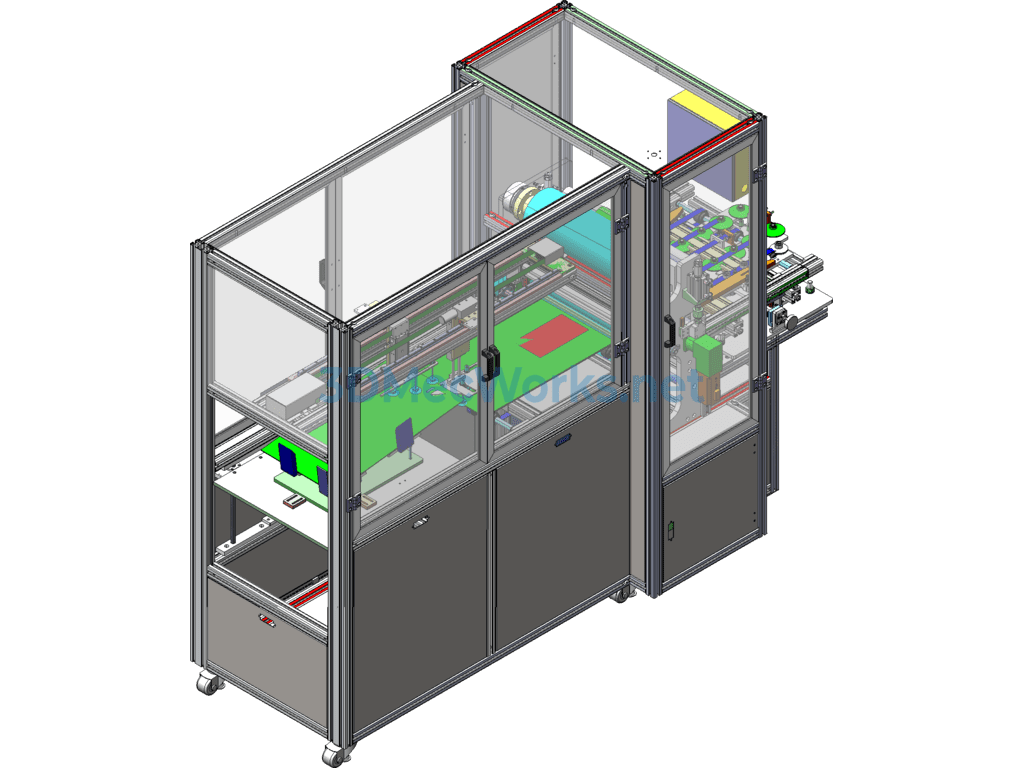

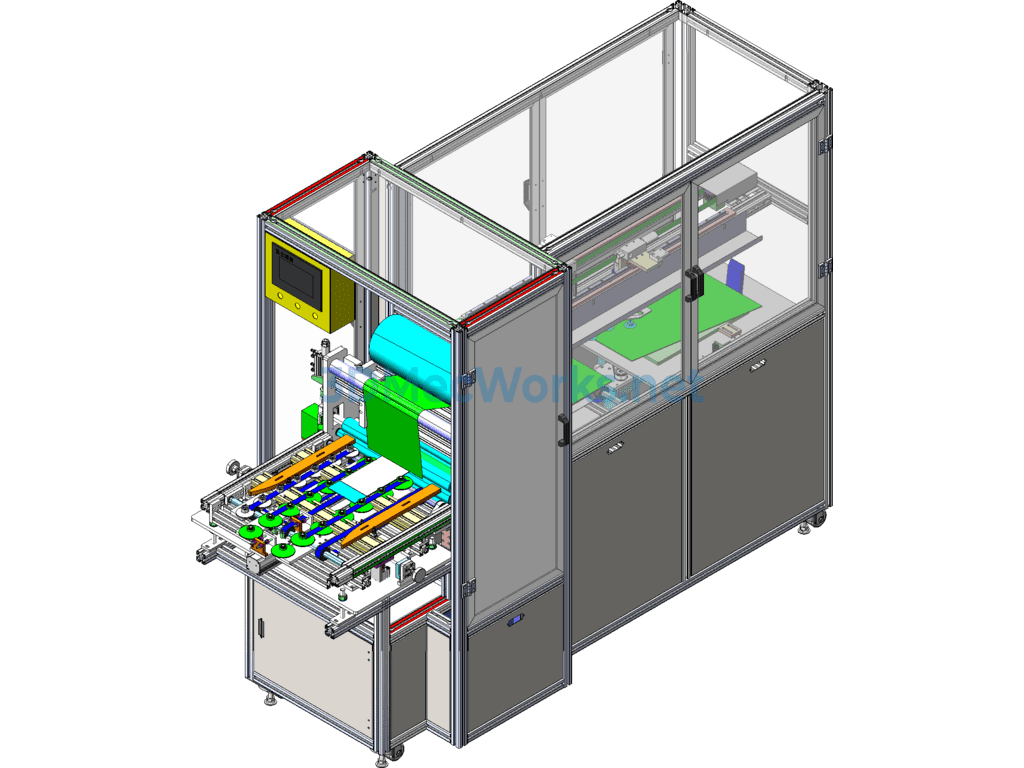

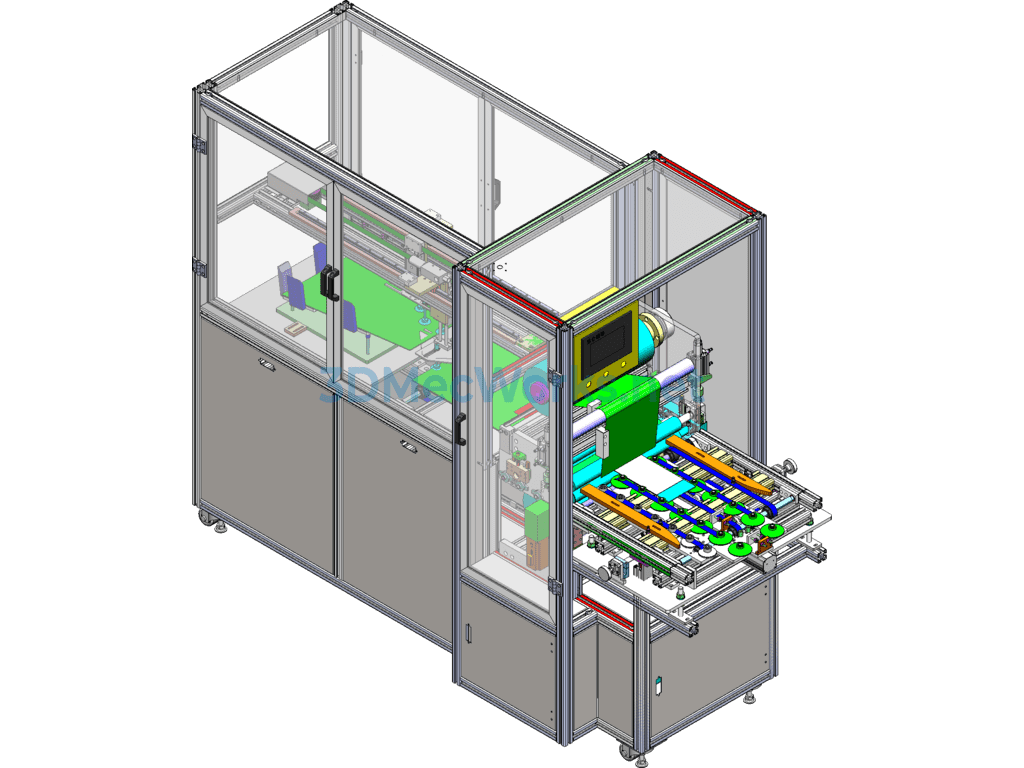

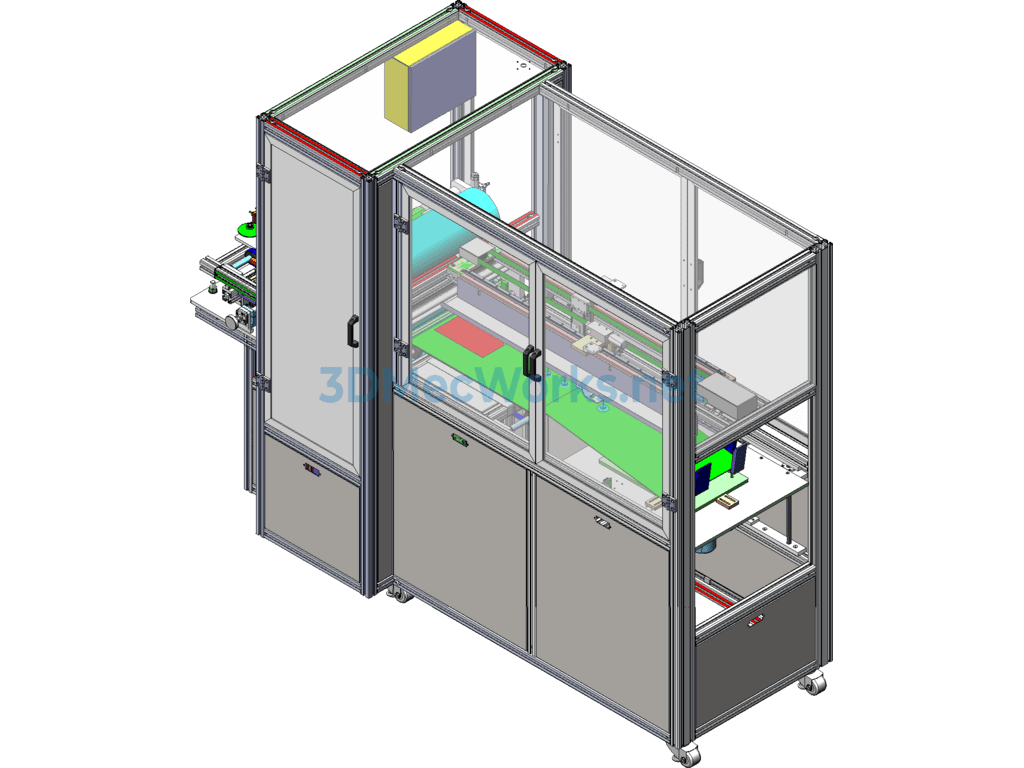

Automatic Lamination Equipment (Including DFM, BOM) - SolidWorks - Free Download

Automatic Laminating Machine Operation Instructions:
1. Manually load materials into the bin for alignment and positioning;
2. The material pick-up module grabs the materials from the bin and feeds them to the feed positioning area;
3. The laminating roller is controlled by an air-expansion shaft and a magnetic powder clutch;
4. Automatic lamination is completed through the wrapping roller and rolling shaft;
5. After lamination is complete, the materials are conveyed out by the line body.
