Automatic Internal Angle Reversal Equipment

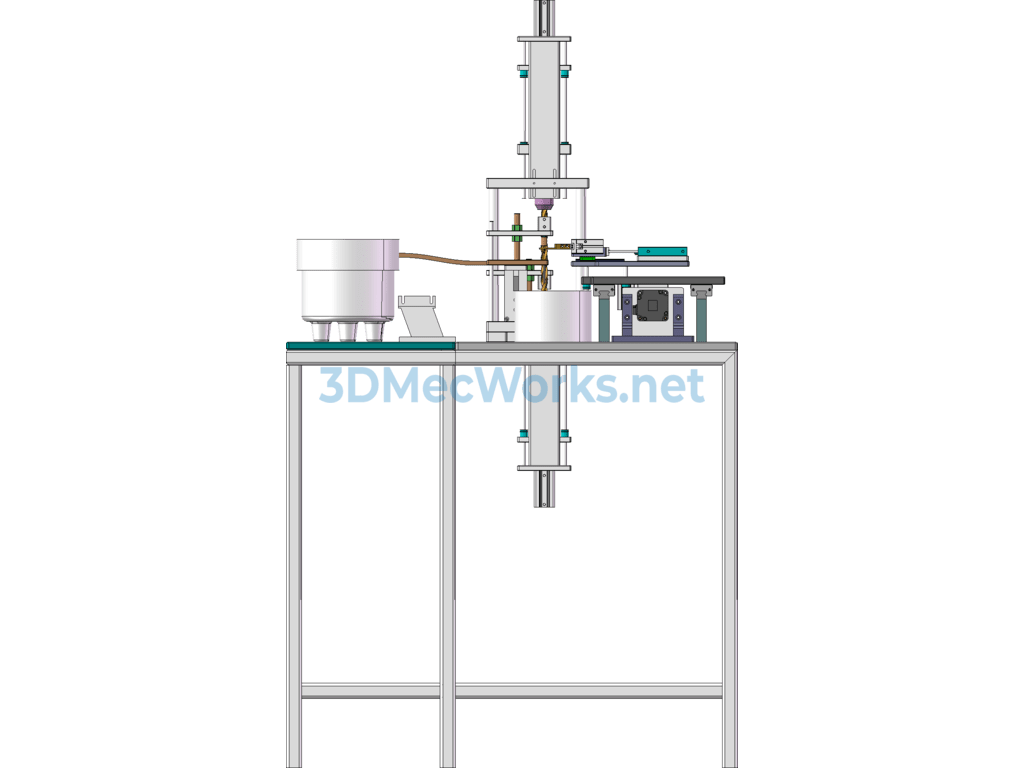

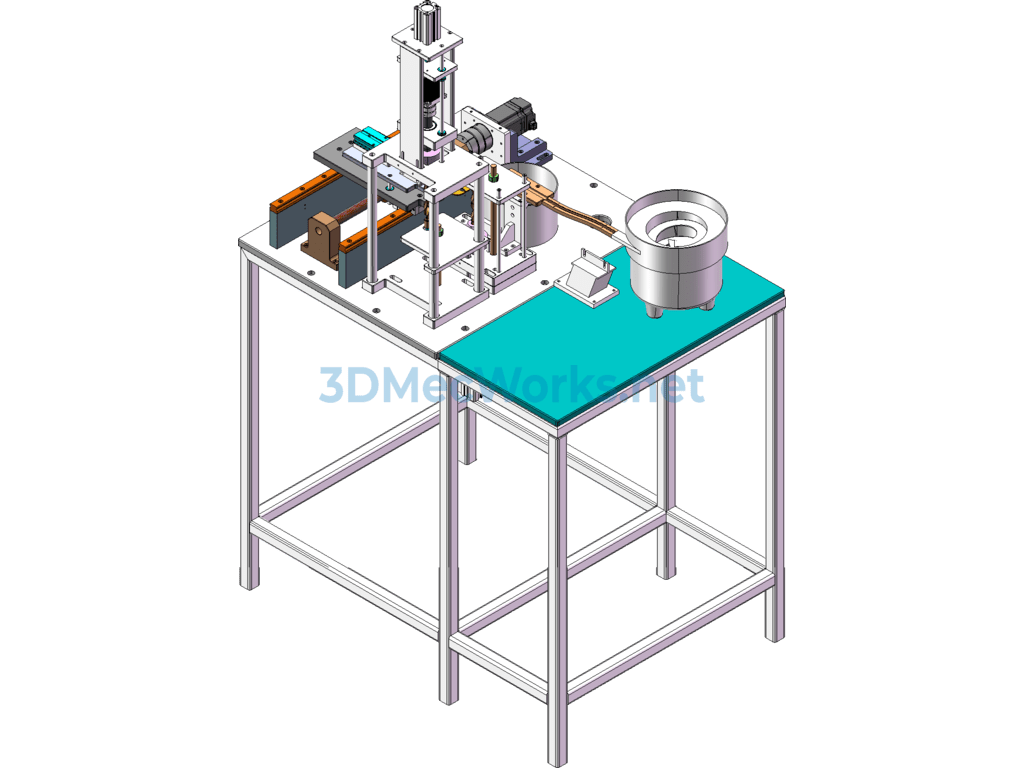

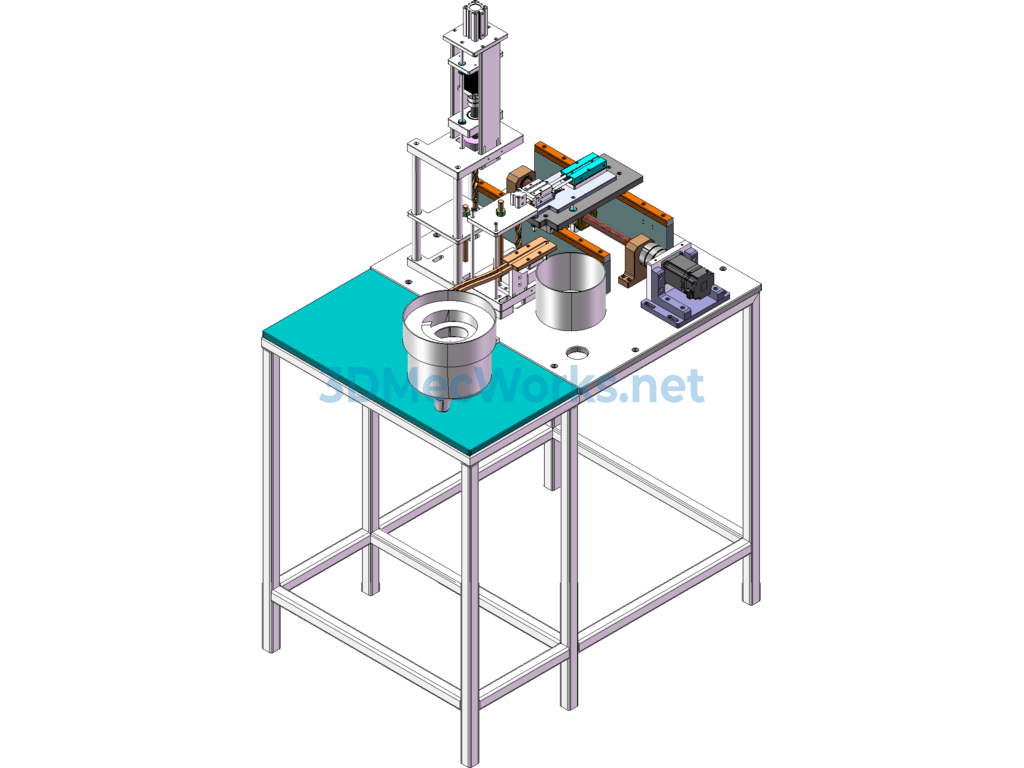

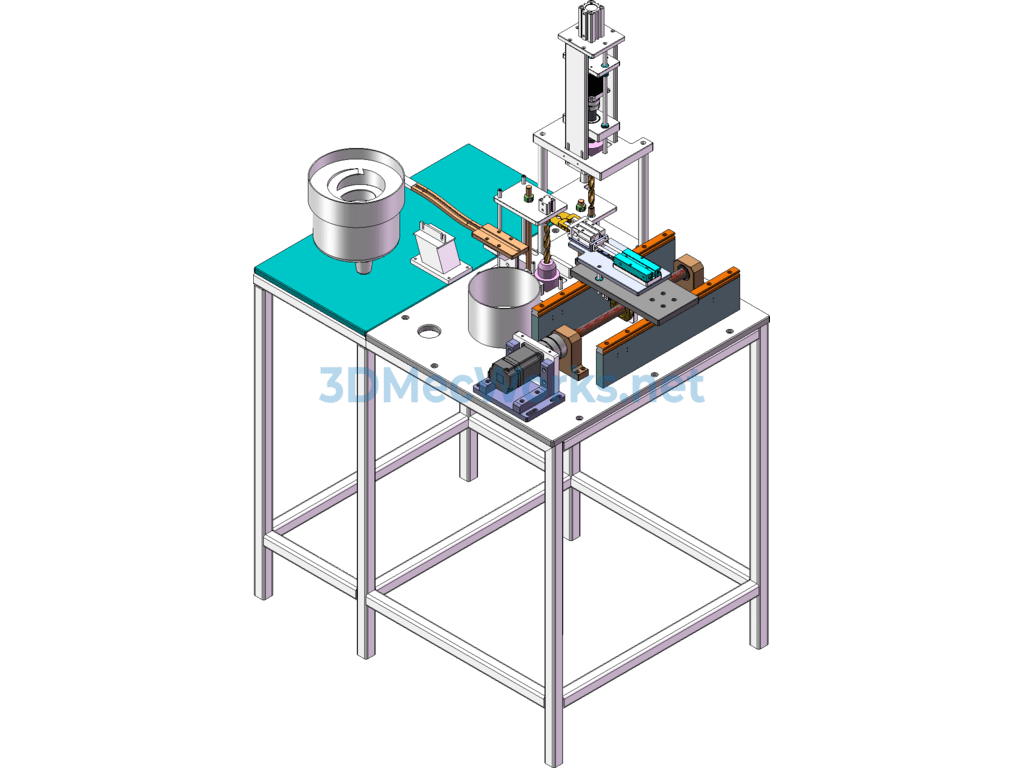

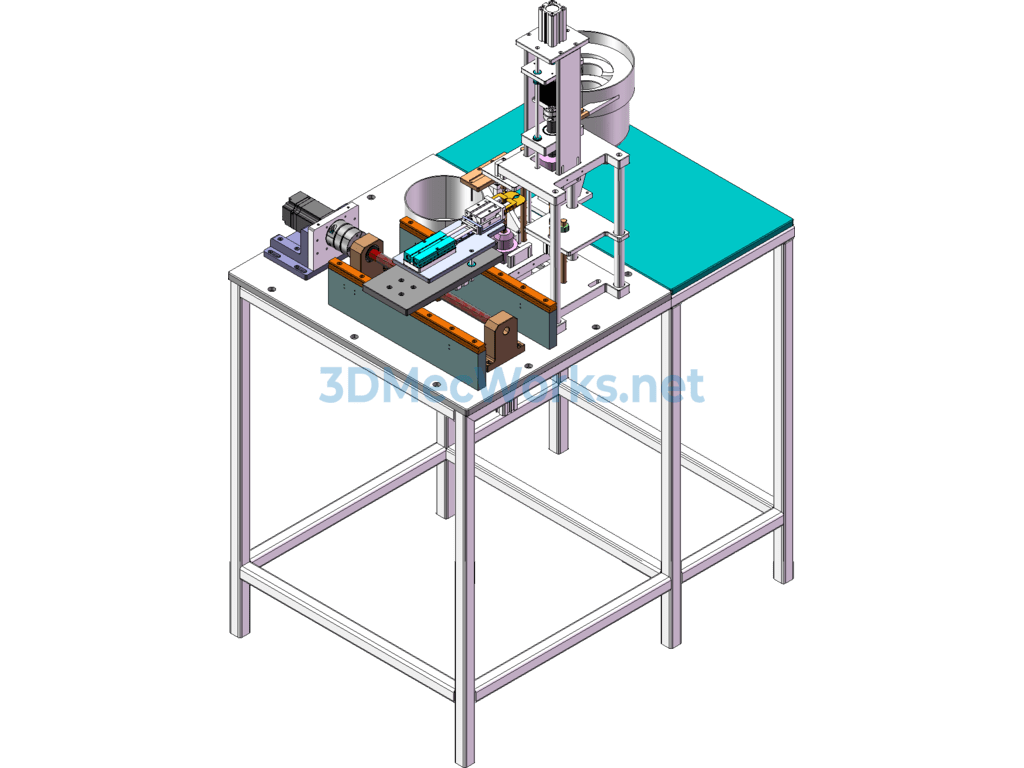

The automatic inner corner chamfering equipment is a non-standard automated chamfering machine. The design of its structural details is quite good, and the equipment is very practical. SolidWorks2013 source files are provided, along with STEP files.
1. The entire device is controlled by PLC, achieving full automation functionality;
2. The manipulator is controlled by a combination of servo motor and cylinder, featuring high precision and efficiency of the servo motor;
3. The vibration plate automatically feeds, orderly and reduces the workload of operators, while being highly efficient;
4. The size and type of the tool can be replaced, using a drill chuck, which is convenient and simple;
5. The automatic inner corner chamfering module is completely adjustable, exquisite, and flexible;
6. Specifically solves the inner corner chamfering issue for small, large-batch lathe-type products, solved with ease!
