Automatic Insertion Device for Power Supply Case

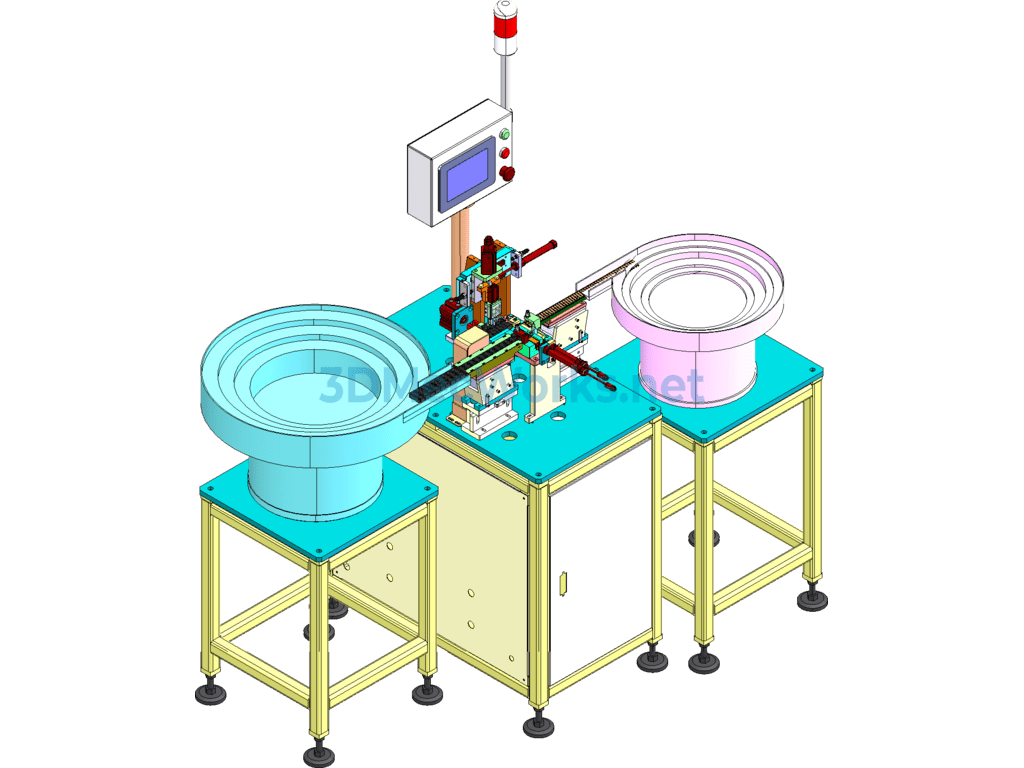

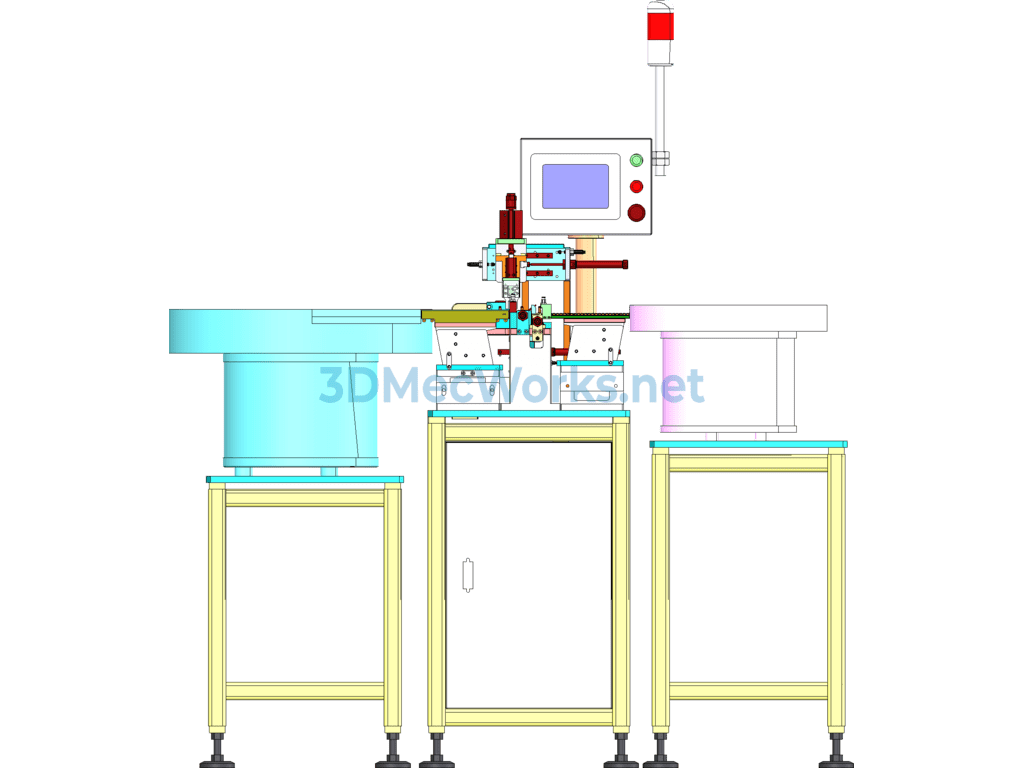

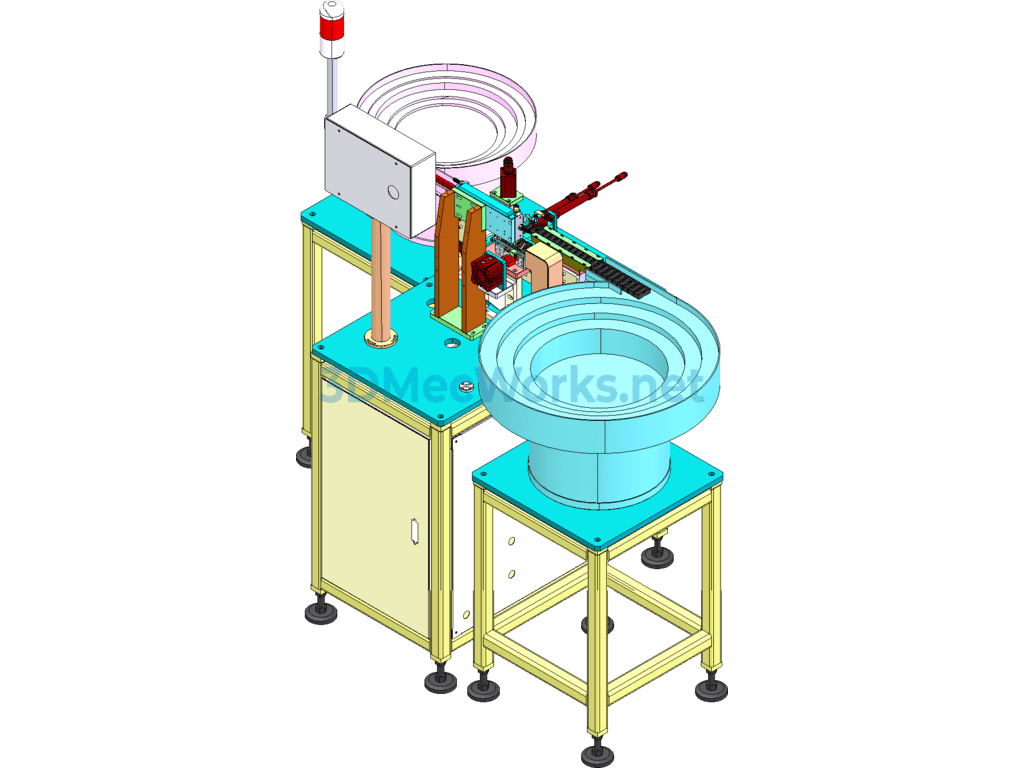

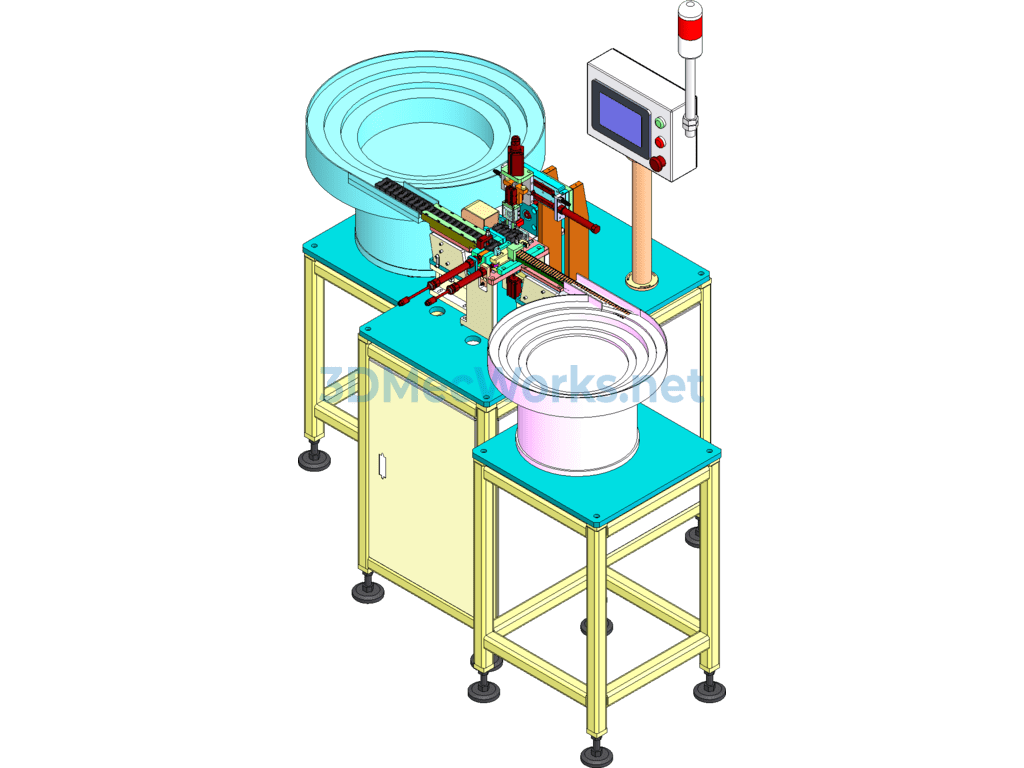

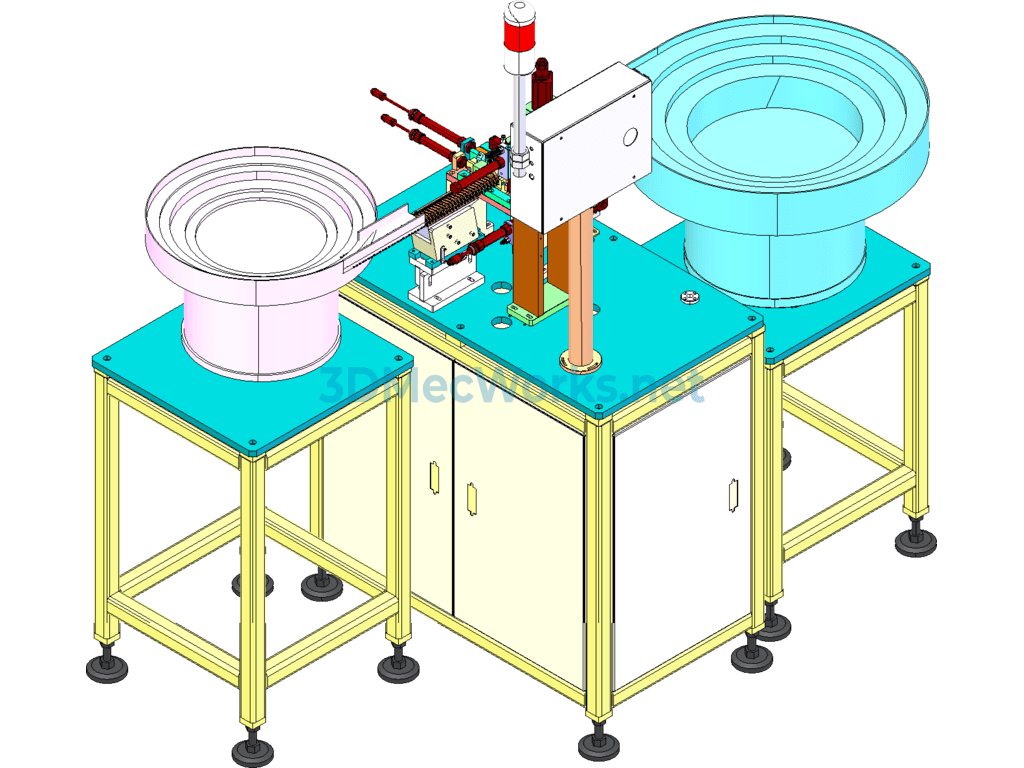

One set of automatic pin inserting machine for power shell The drawing of the automatic pin inserting machine for power shell is non-standard automation equipment. The working principle and functions of the equipment mainly include: automatic feeding. The feeding method is via a vibrating plate feeder. The PIN pins are sent out from the vibrating plate and into the assembly area by a linear feeder. A material-taking cylinder picks the PIN and places it into the power shell, which is also fed by the vibrating plate. The noteworthy point is that the structure of this feeding method is very good and worth learning. From material supply to feeding, it is all handled by cylinders and some ingenious structures, including a dual-cylinder distribution mechanism. After assembly, the pushing cylinder automatically performs the discharge work. The main highlight of this equipment is its low cost and multiple functionalities. It is a very good pin inserting machine, and those interested are welcome to download and learn.
