Automatic Glue Application Inspection Machine , Inline Equipment (Equipment Already In Production)

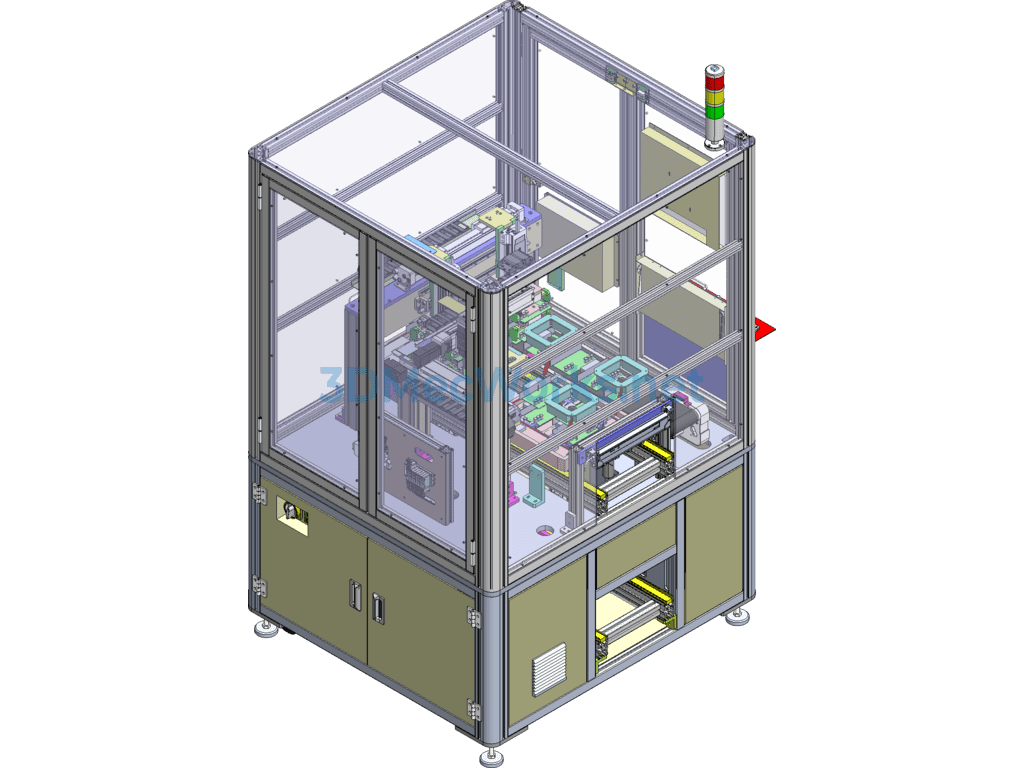

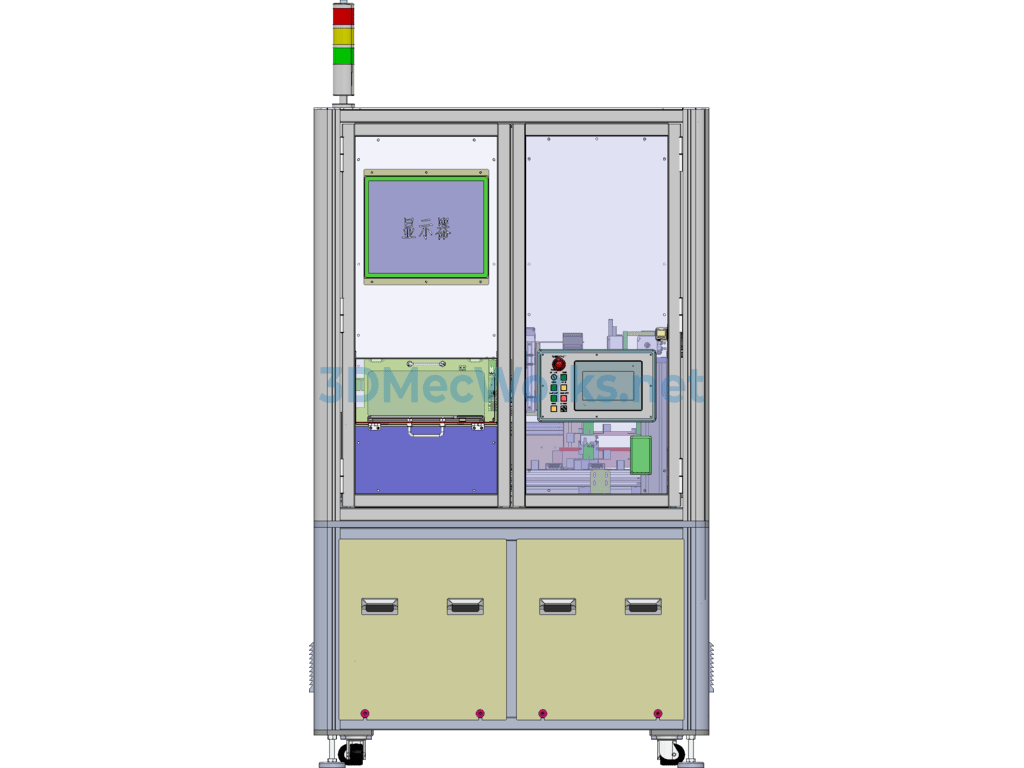

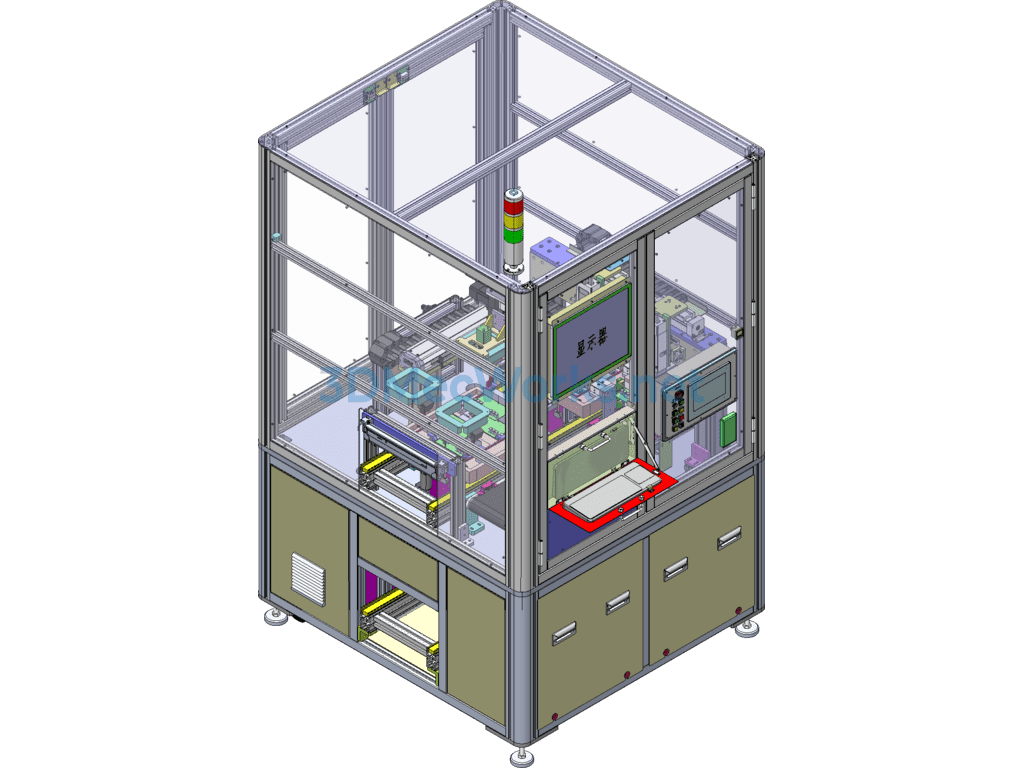

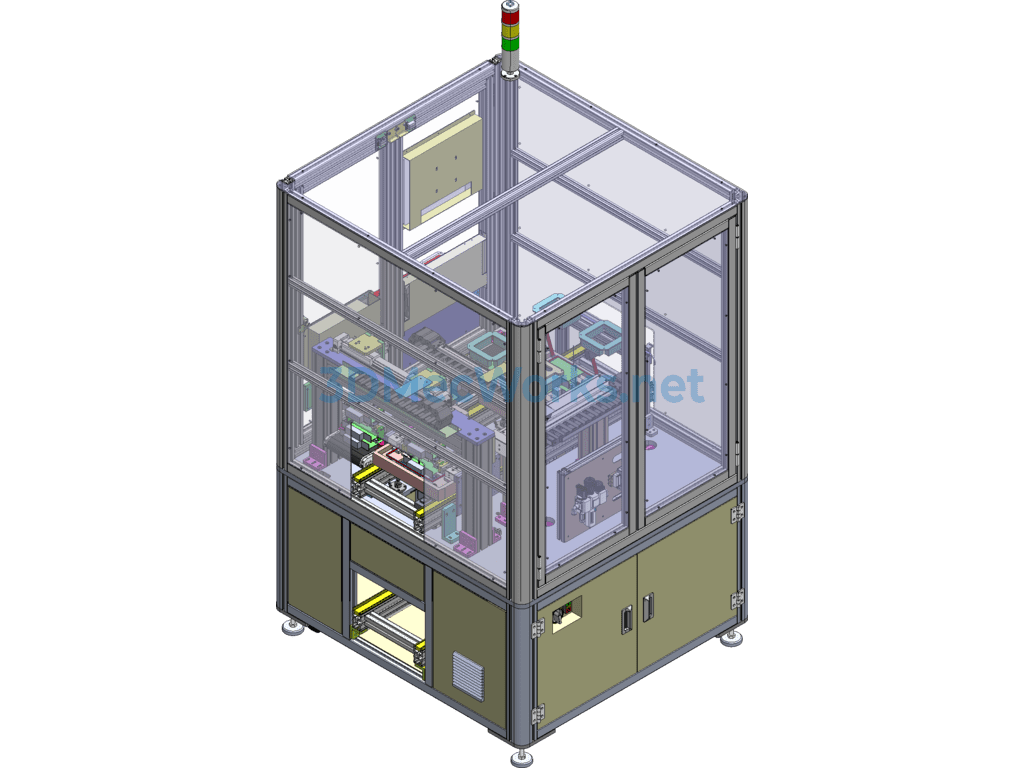

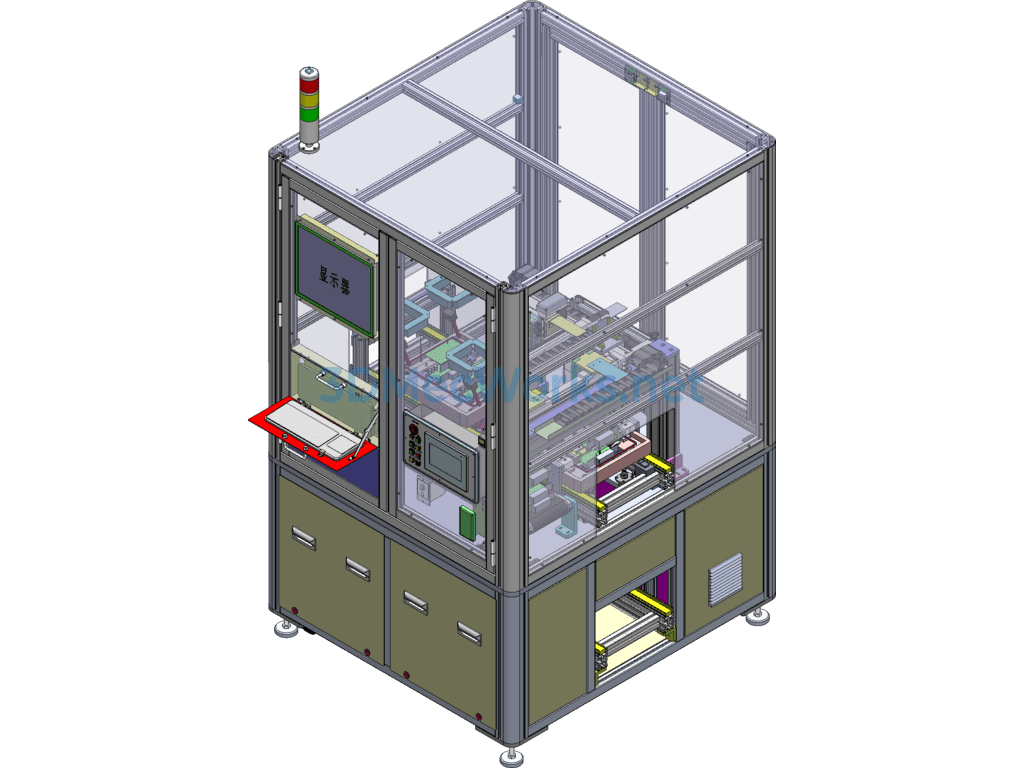

M016-Glue Application Inspection Assembly Drawing
The line equipment supplies materials through line body transportation. The machine uses a servo screw module for loading and unloading positioning. Fixtures are transported using side-edge positioning. After dispensing, UV curing, inspection, and unloading are completed. The whole machine is controlled by PLC and can be opened with SOLIDWORKS 2017 version, making it excellent learning material. It includes a complete set of equipment parts in XT universal format, and the equipment has been in stable production operation.
