Automatic Glass Edging Machine

0
Sold by
MrBlue
@ MrBlue
[mecworks-btn]

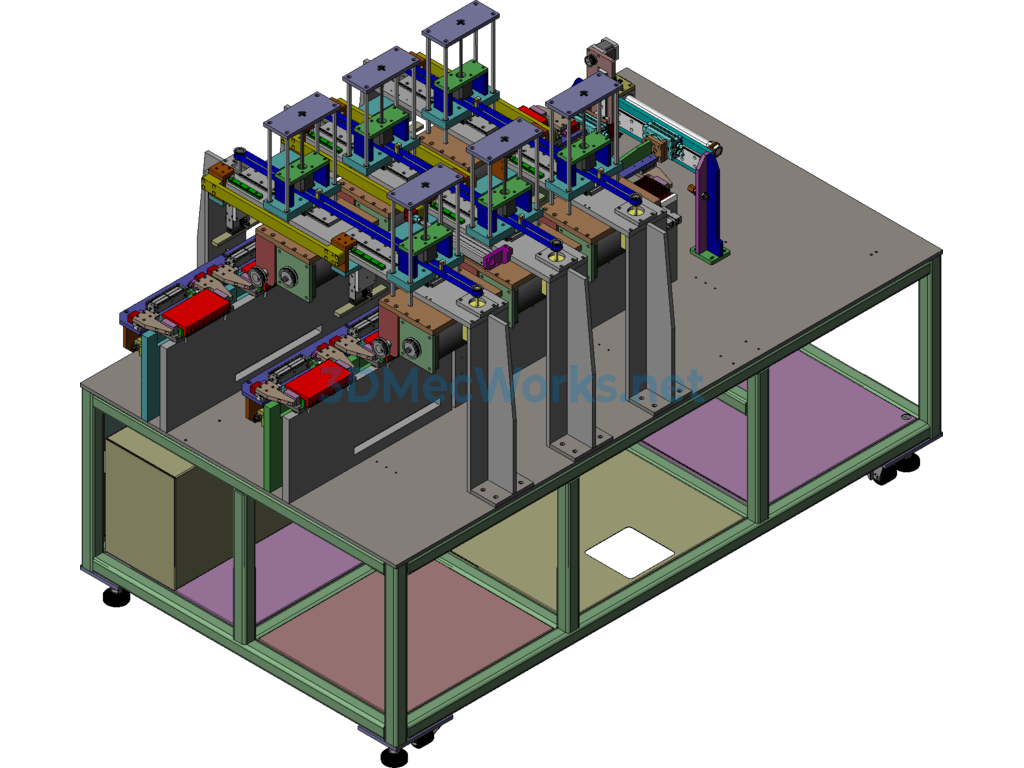

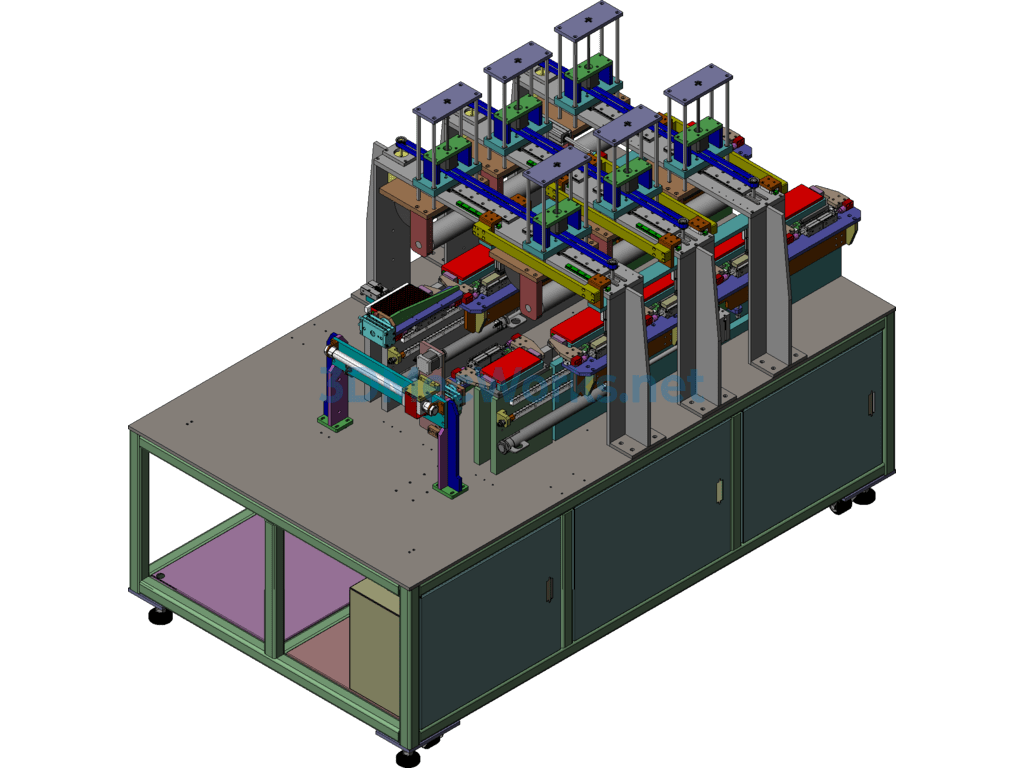

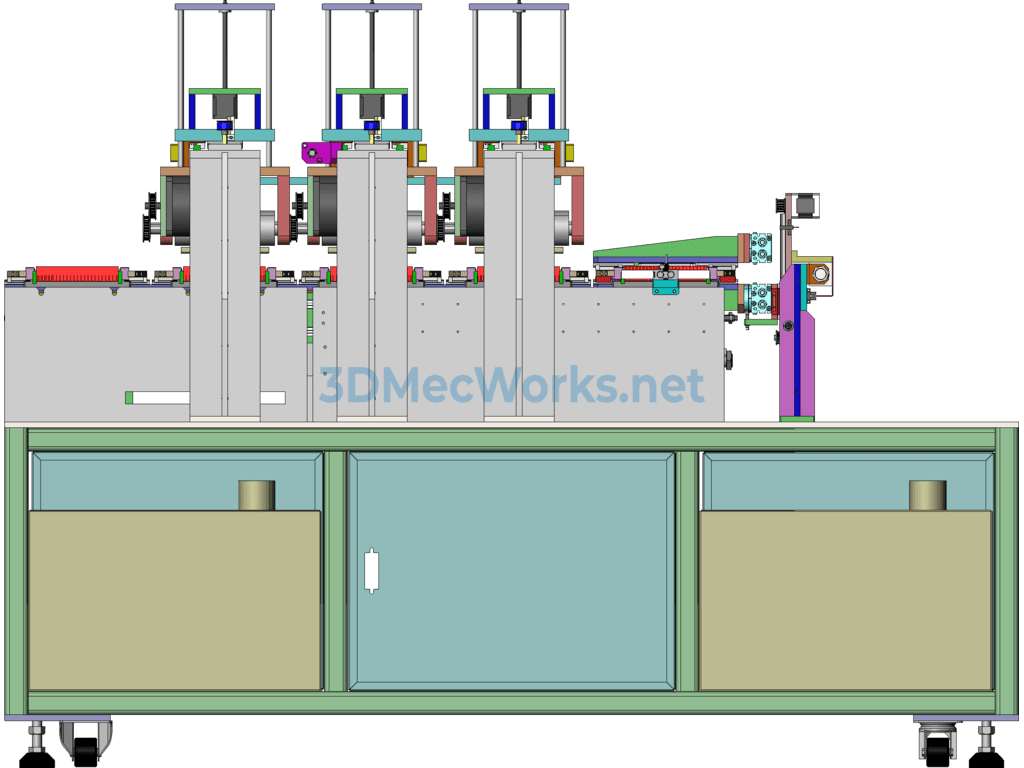

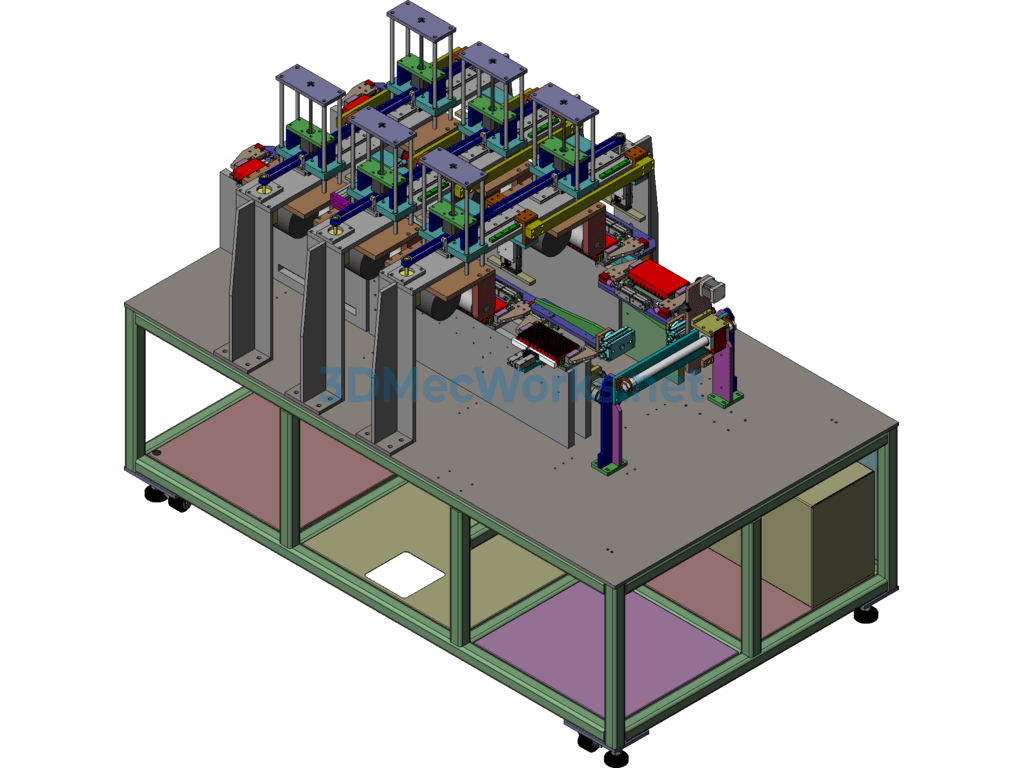

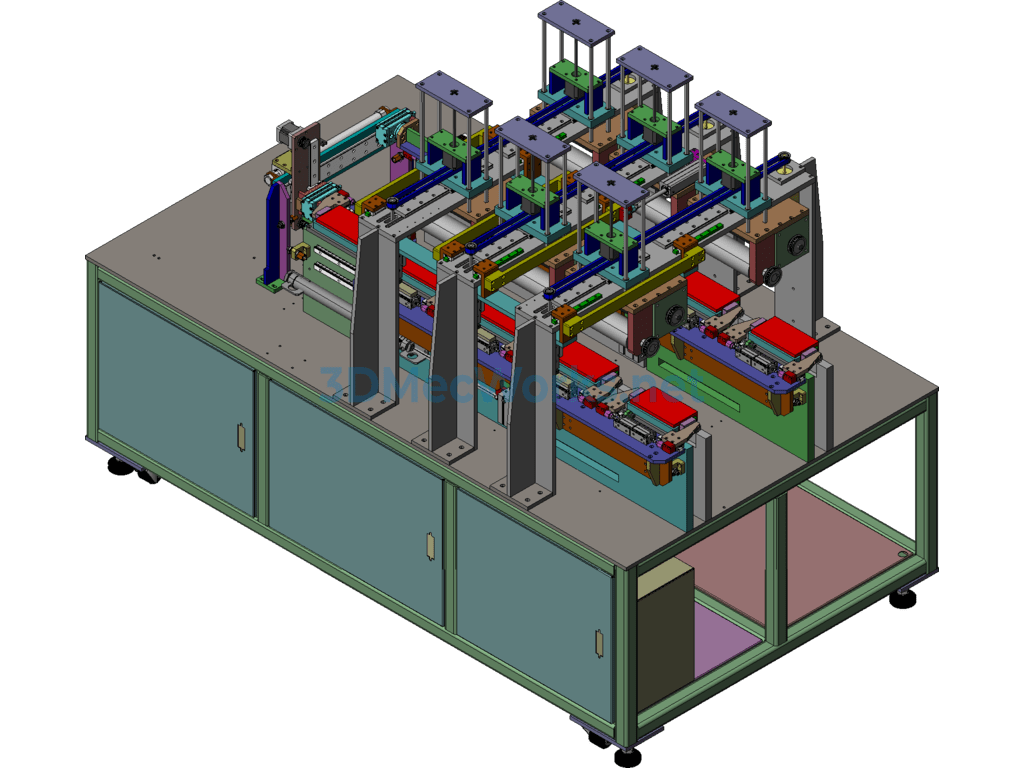

A 3D model of an automated glass edge grinding machine, a good non-standard automation machine model, provides SolidWorks 2014 source files with parameters for free editing. This equipment includes: finished product extraction station, rough and fine grinding mechanism, manipulator assembly, glass conveying mechanism, flipping simulation, glass clamping assembly, frame, frame welding body, glass clamping component (180-degree flip), glass carrier, glass pushing component, grinding mechanism, and finished product extraction station, etc. The assembly drawing is clearly layered, with multi-level assembly, detailed and complete structure, worth referencing.

Specification: Automatic Glass Edging Machine

Design Software

Editable

File Formats

,

Industry Application

Sharing Level

Version
