Automatic Fuse Box Assembly Machine

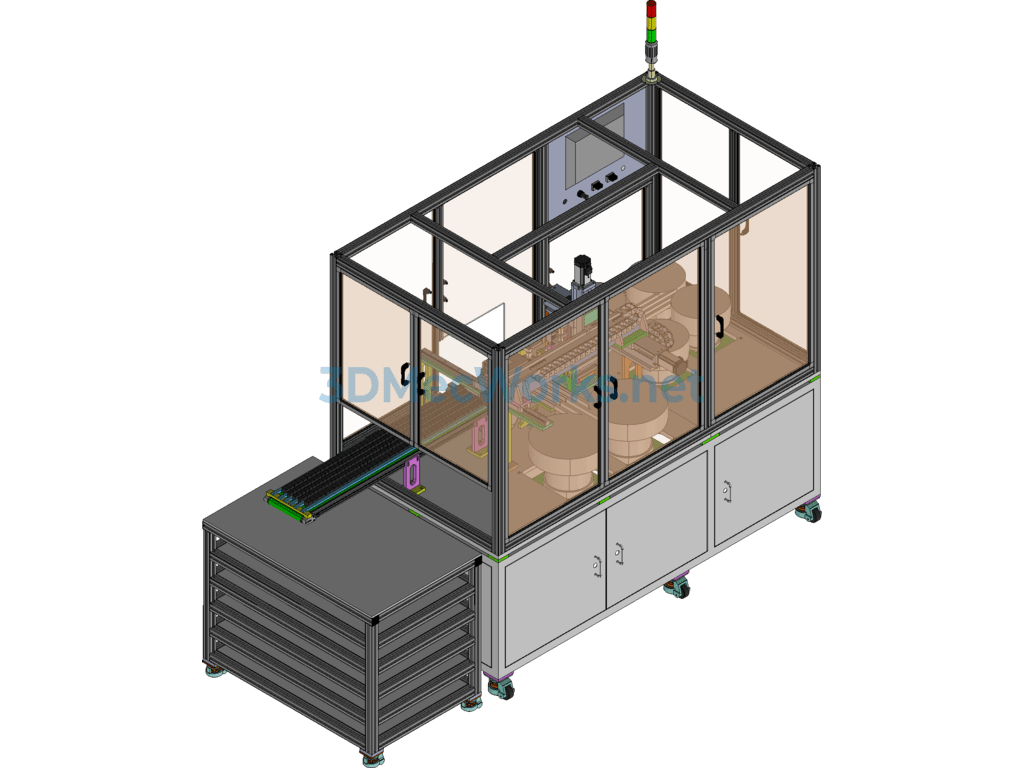

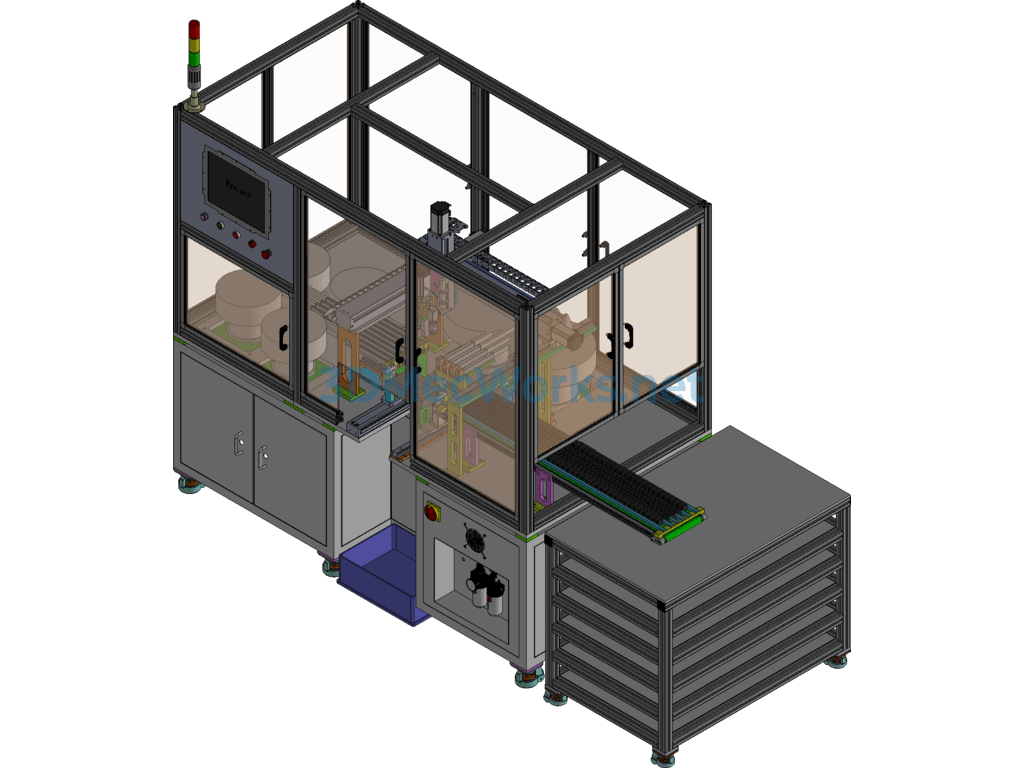

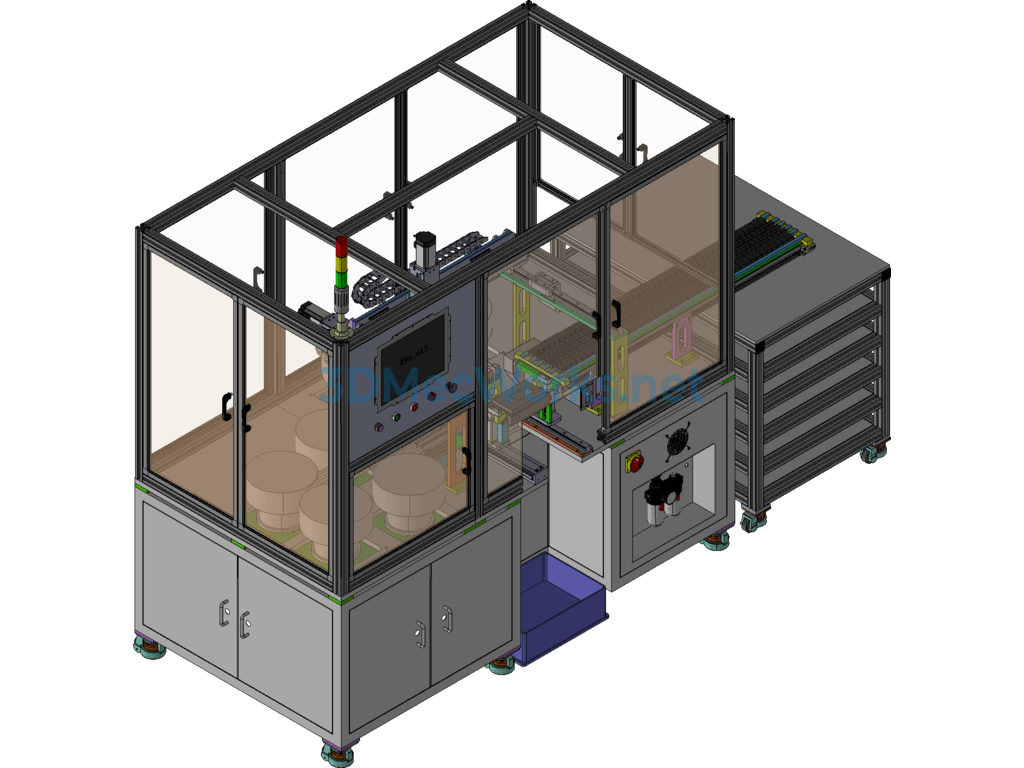

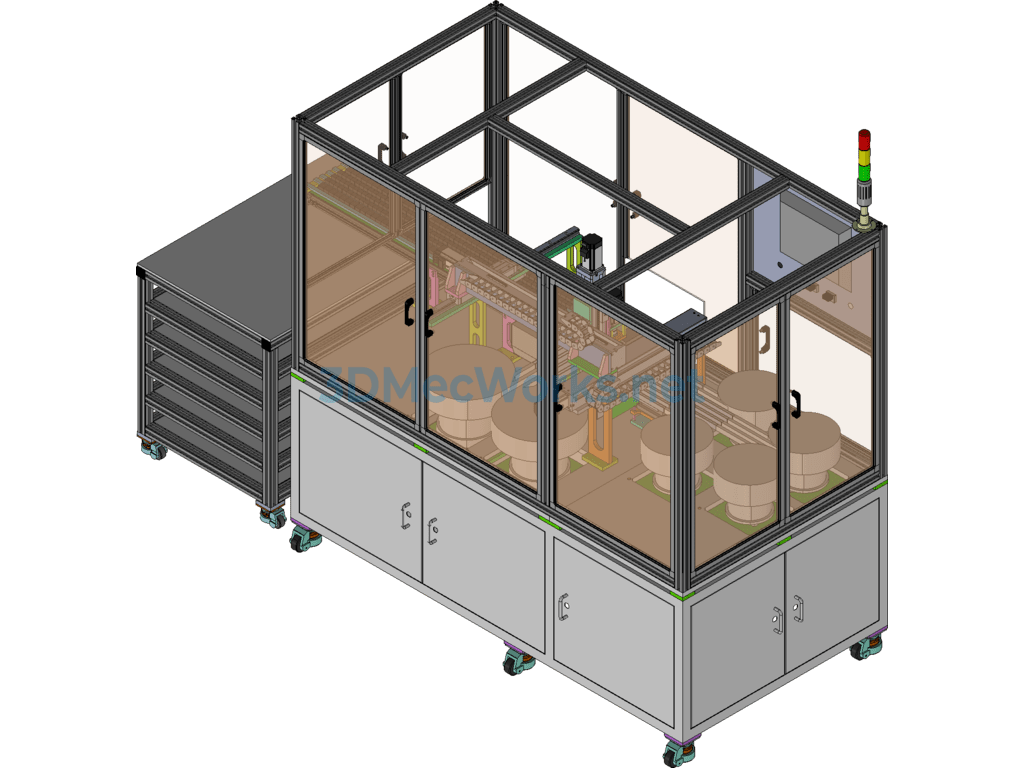

This equipment is an automatic assembly and insertion machine for automotive fuse boxes. Different inserts are automatically sorted by vibrating trays and then picked up by a three-axis manipulator for insertion into the fuse box body. Once insertion is complete, the product is automatically identified and inspected by a CCD system to check for incorrect insertion or reversed positions. Defective products are collected by a mechanism into a pending area.
