Automatic Fuel Pump Oil Intake Plate Assembly Machine - SolidWorks - Free Download

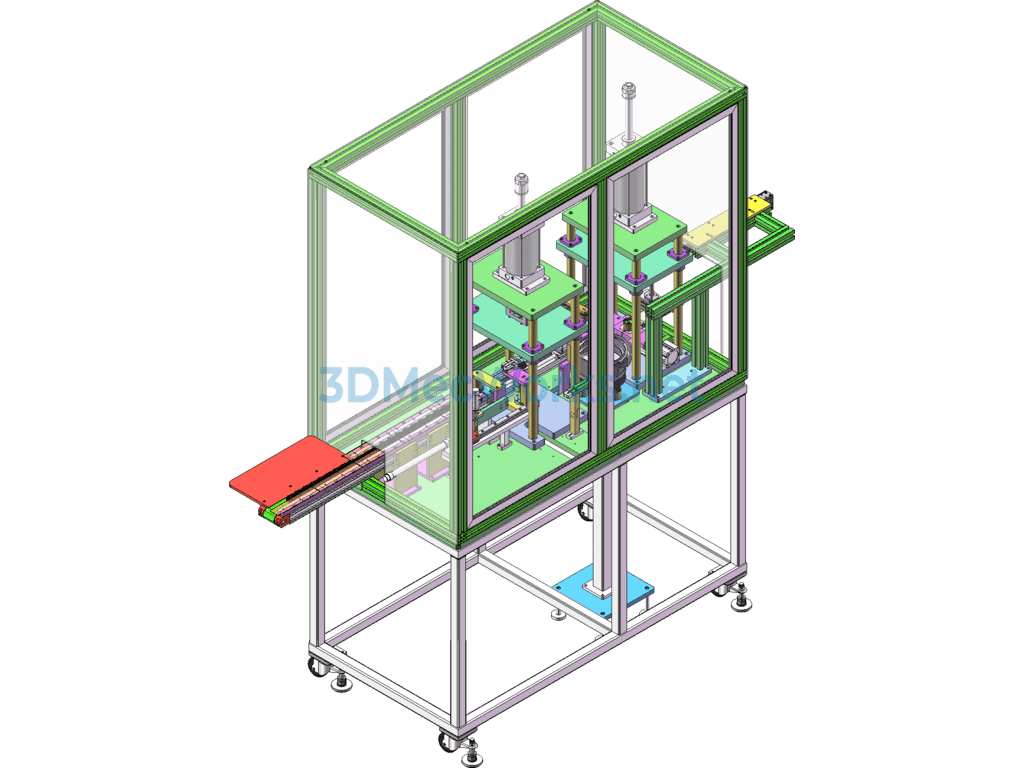

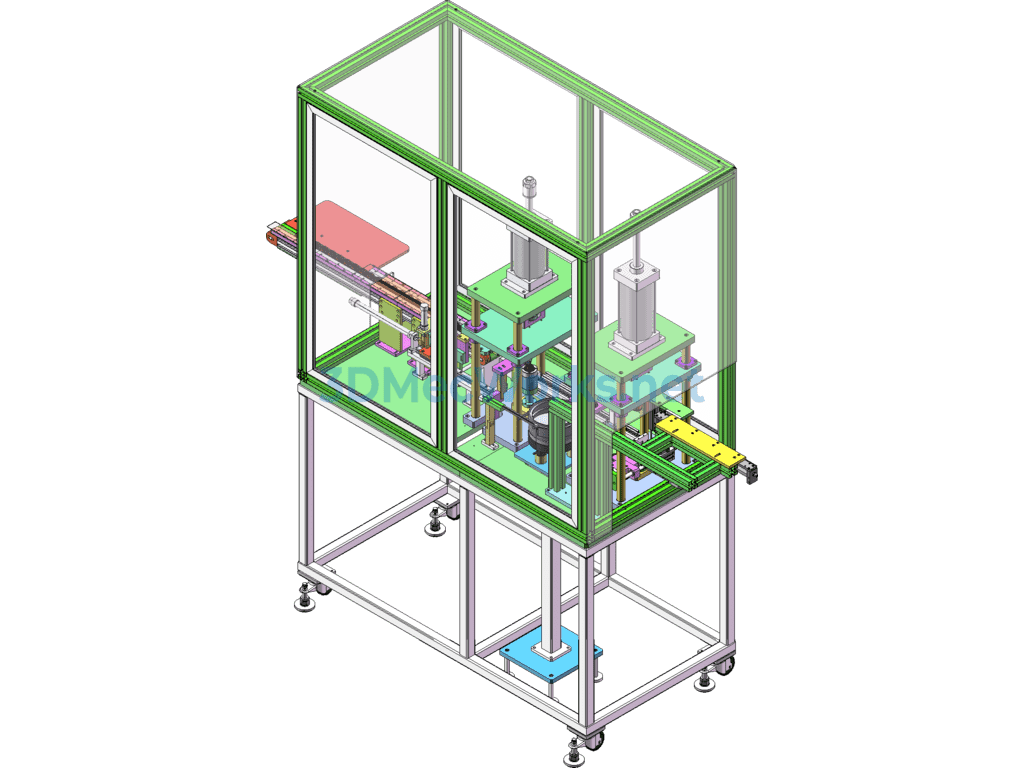

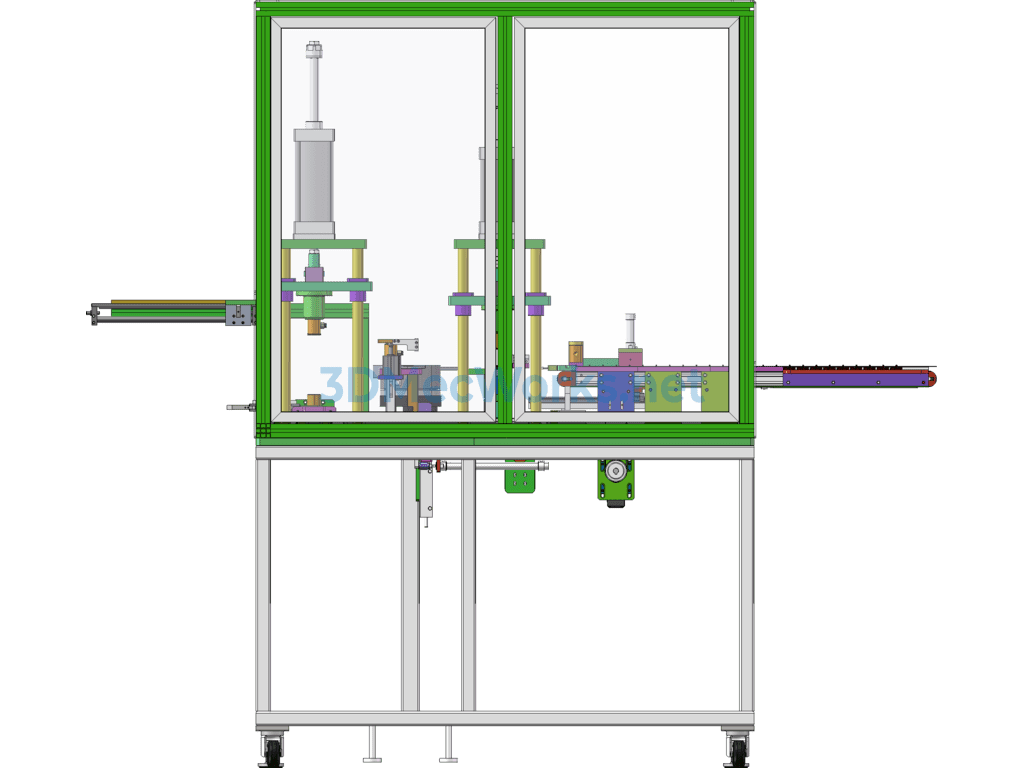

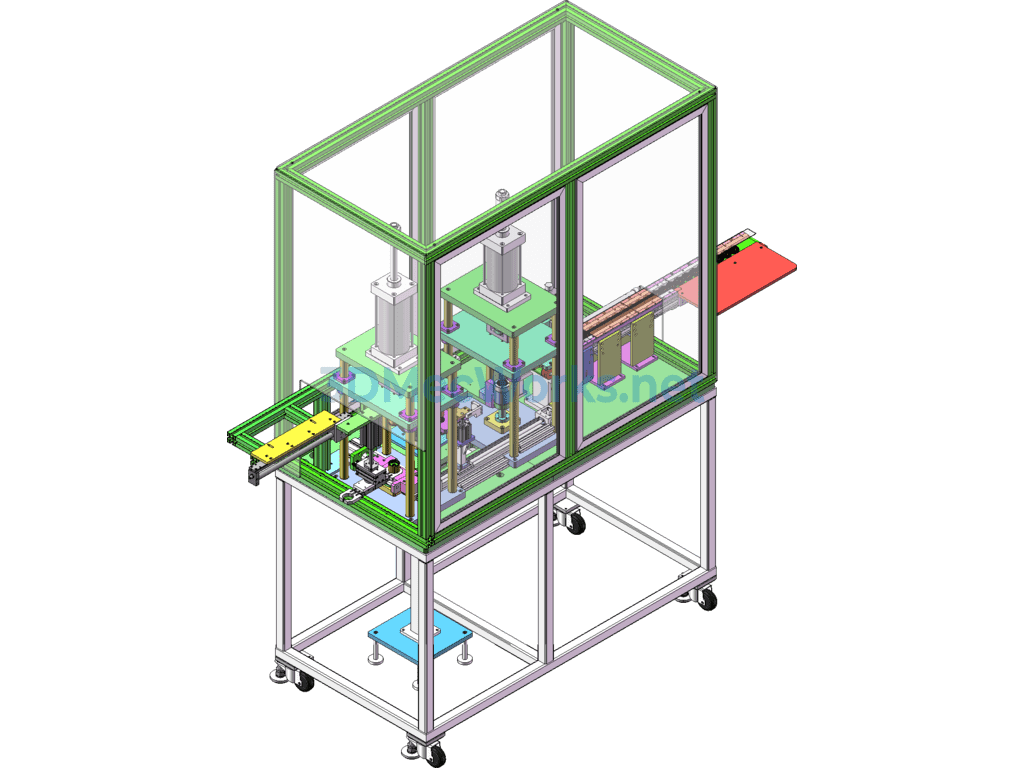

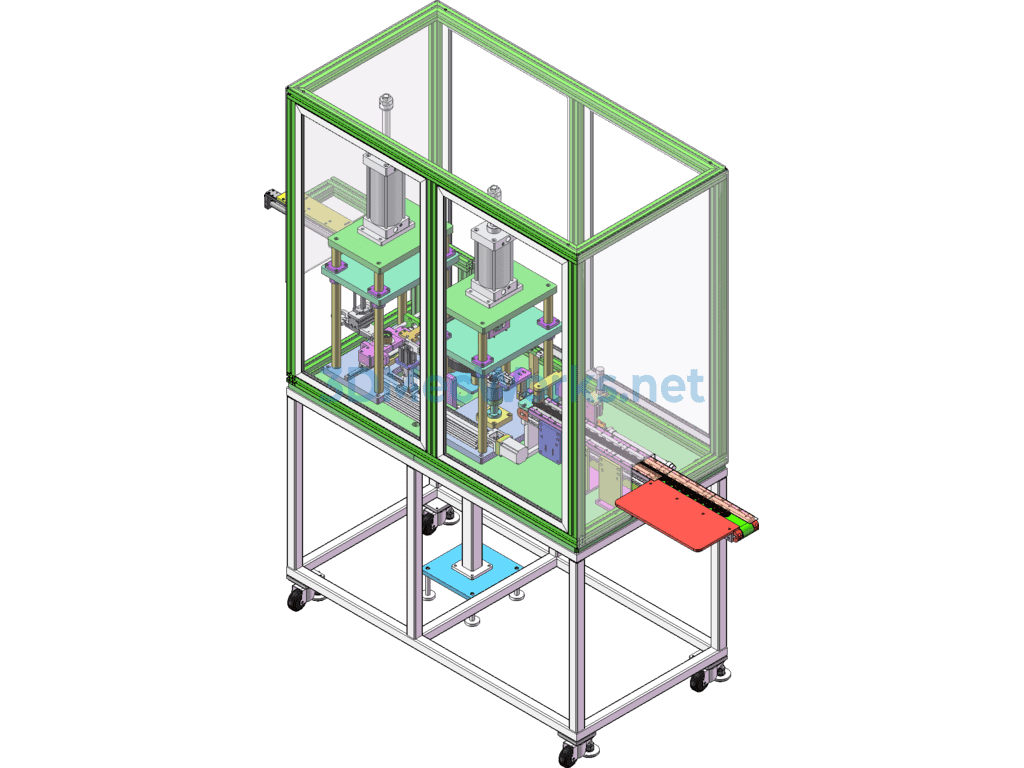

This is an original design for an automotive fuel pump core automatic assembly drawing. The drawings are clear, the design is reasonable, and the structure is very detailed. It includes engineering drawings and a list of purchased parts. The drawings have already been used in actual production and can be used directly. Working principle of the equipment: The oil inlet plate, rivets, pump core shell, and other components are installed together inside the pump core. The entire process does not require manual operation and there are many general mechanical structures that can be used for reference. The drawing format is SolidWorks 2018, and everyone is welcome to download.
