Automatic Four-Unit Cutting Machine - SolidWorks - Free Download

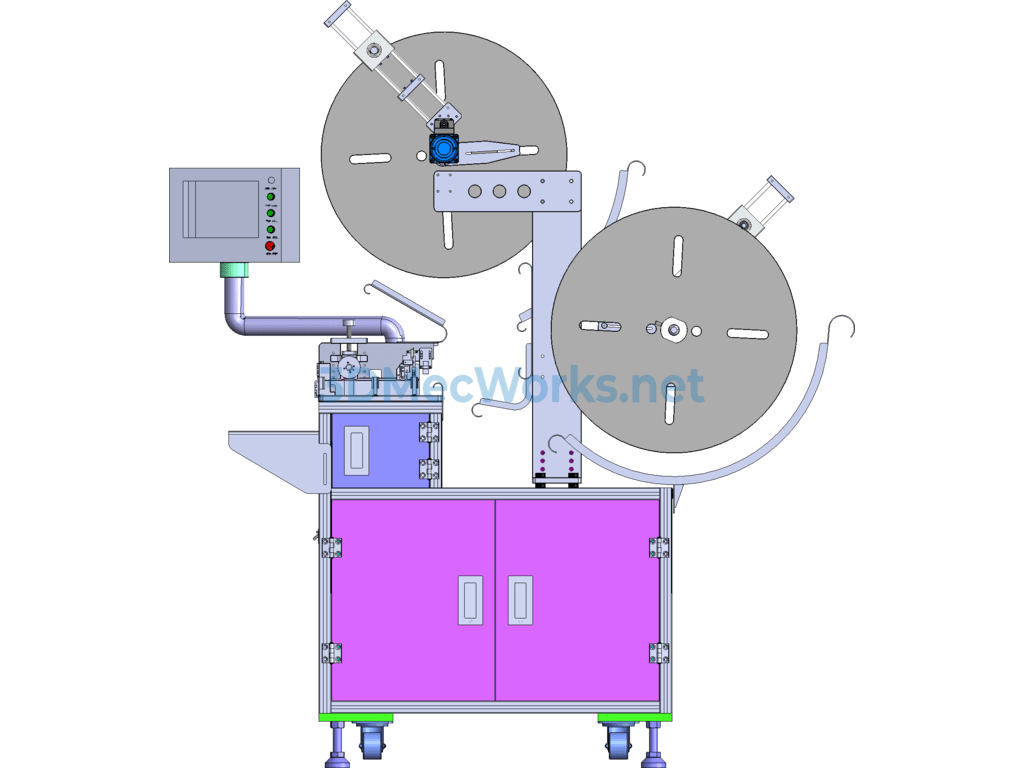

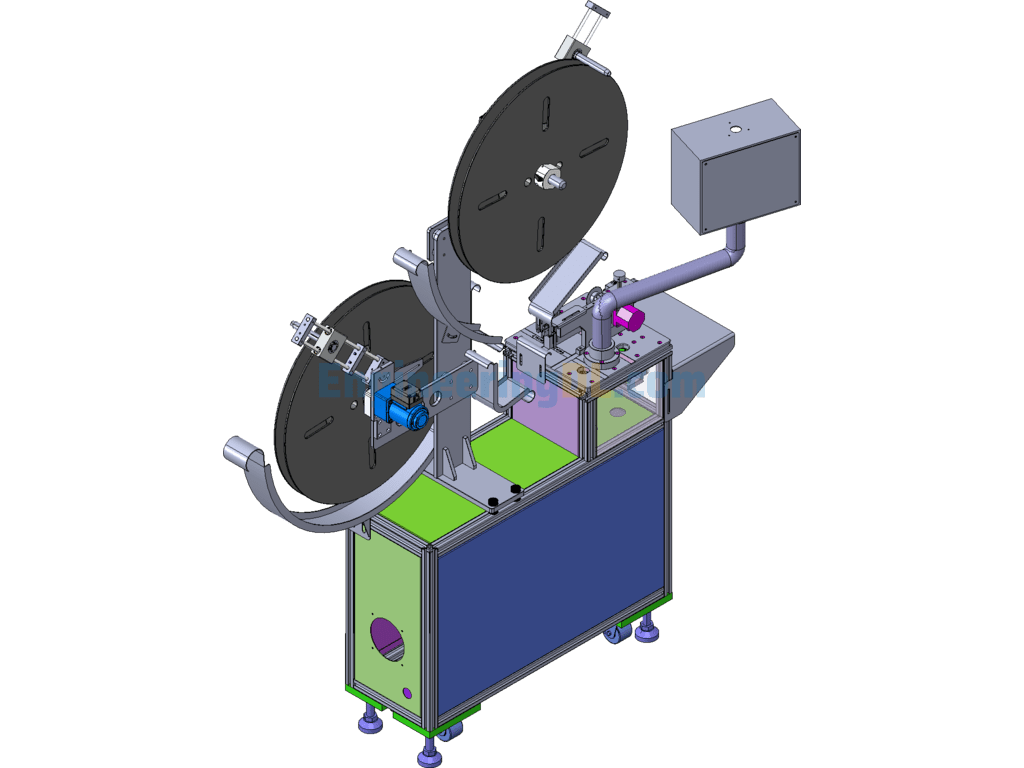

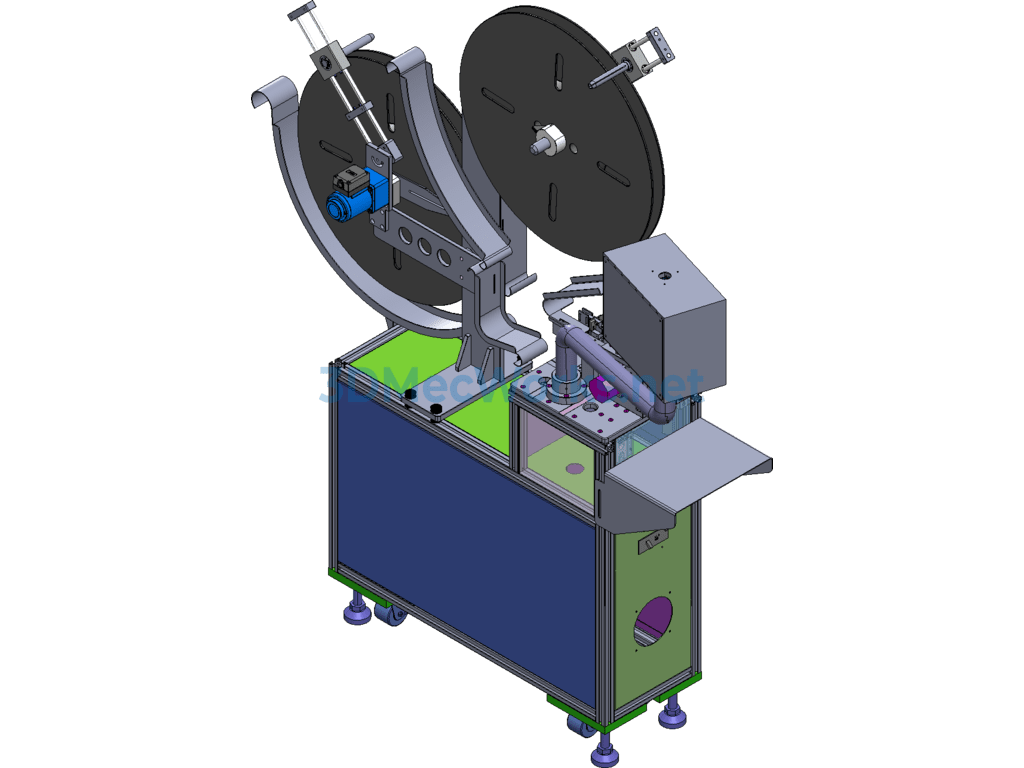

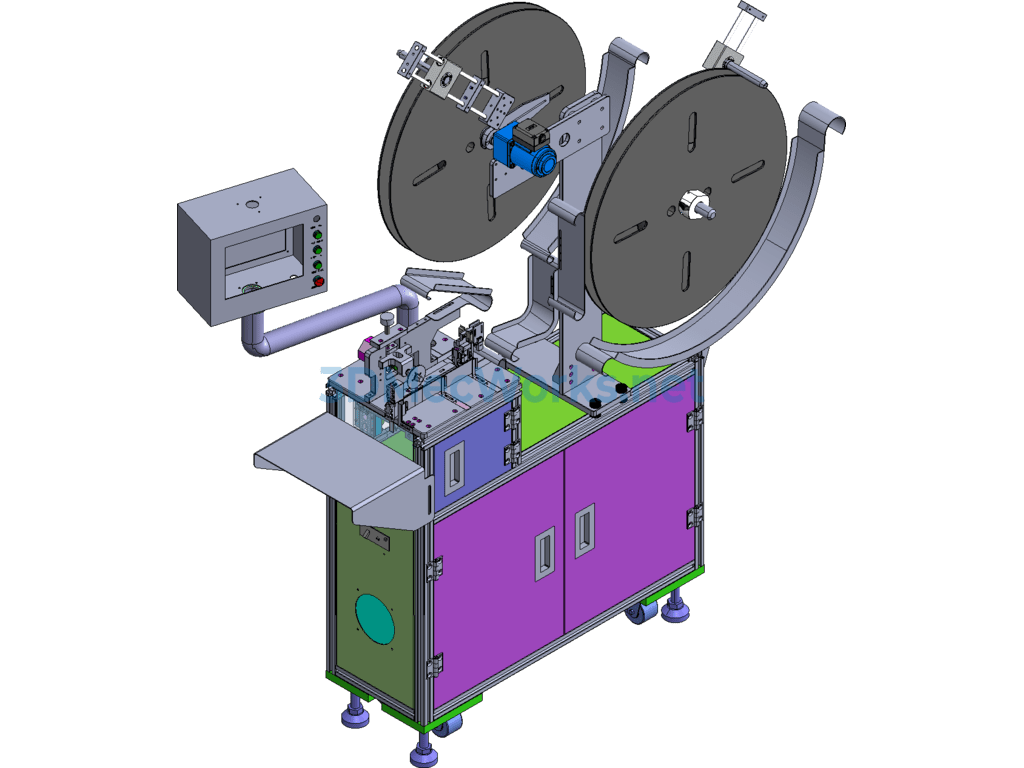

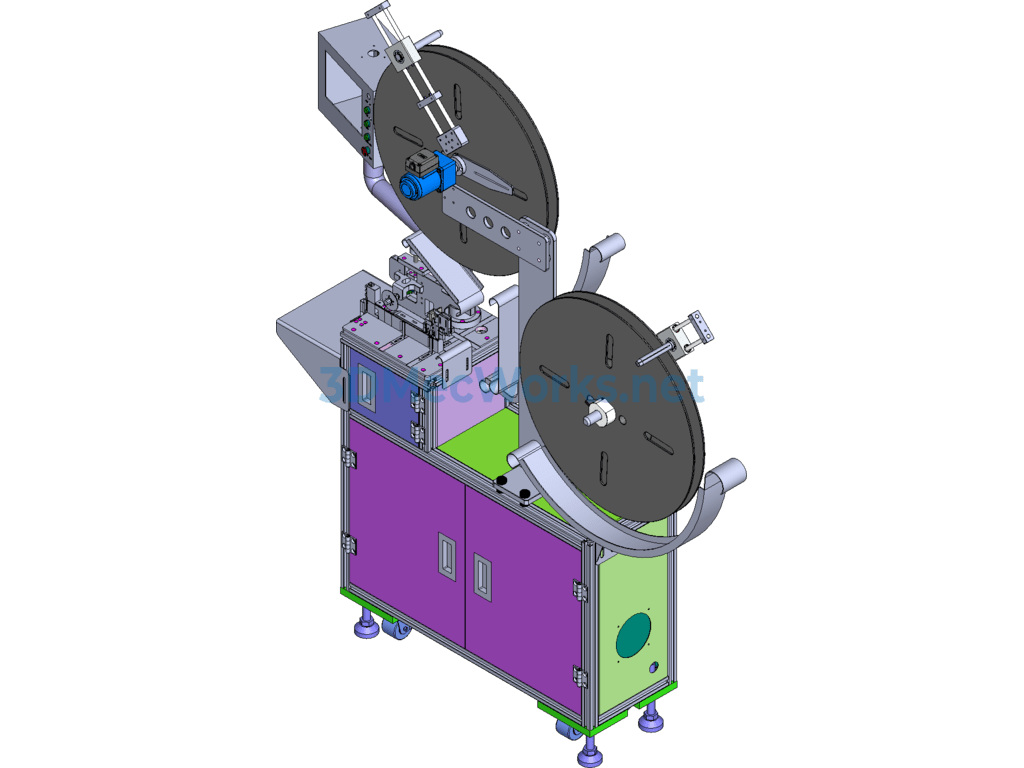

The terminal strip cutting and four-station cutting is a compact type of cutting device that cuts the plastic core into four units while simultaneously cutting four terminal strips of the plastic core. The jig uses two cylinders to control the movement and cutting of the terminal strip of the plastic core, cutting four unit strips up and down, meeting the requirements of subsequent workstations. The file contains an editable XT format, and we welcome exchanges and downloads.
