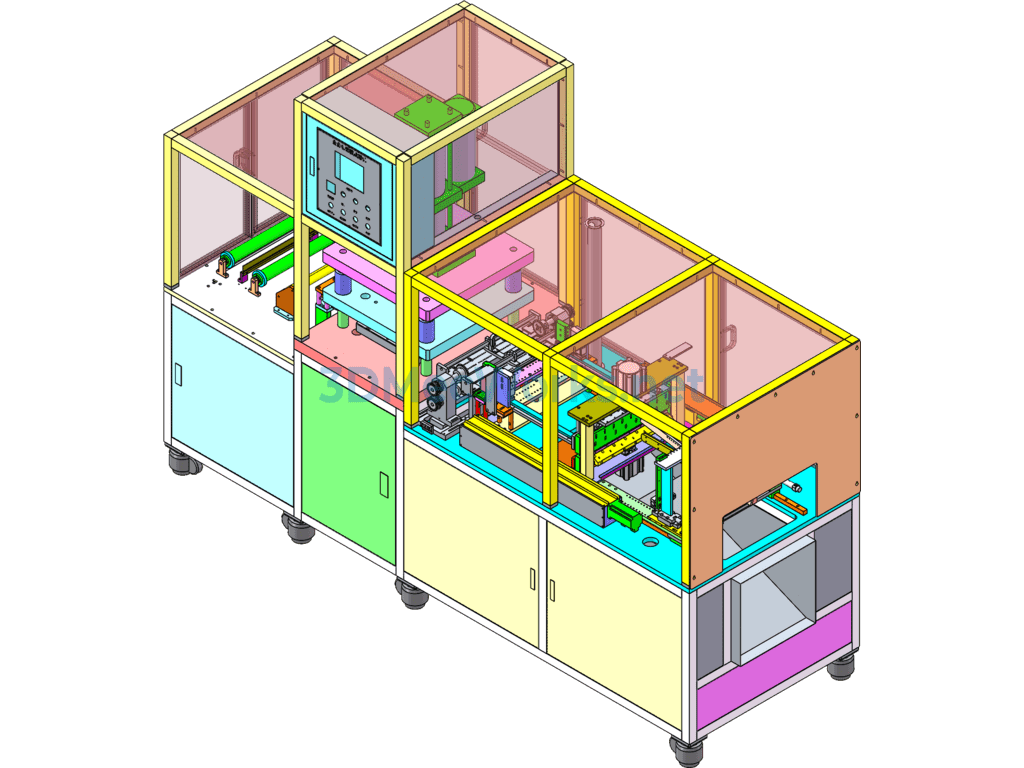

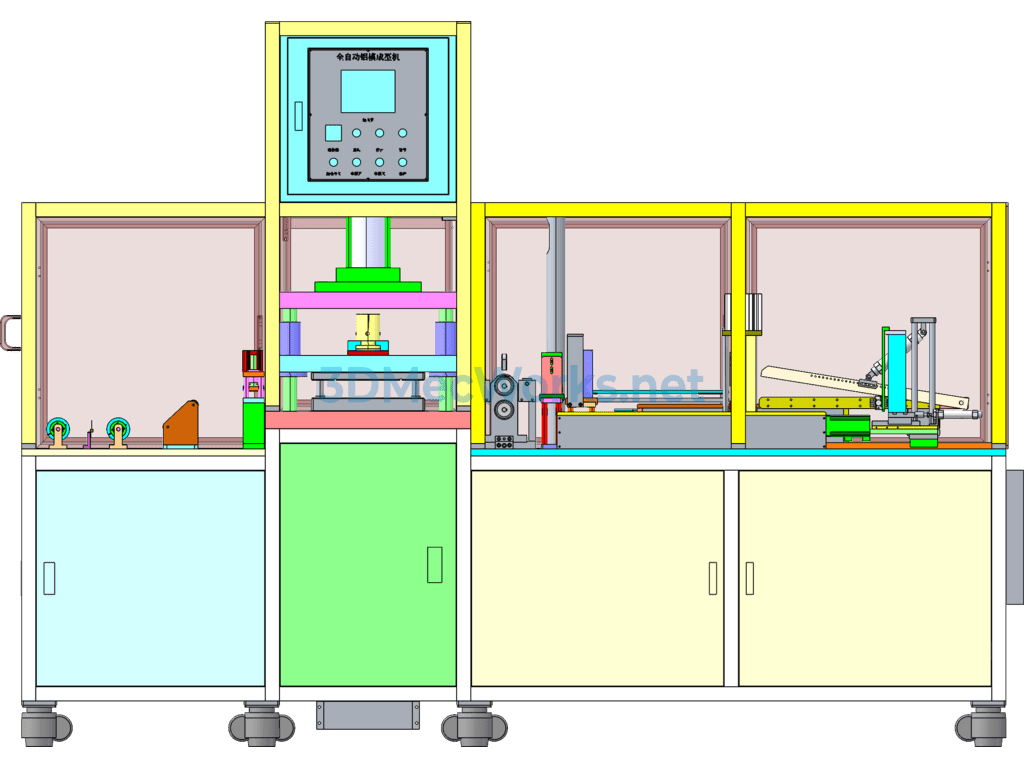

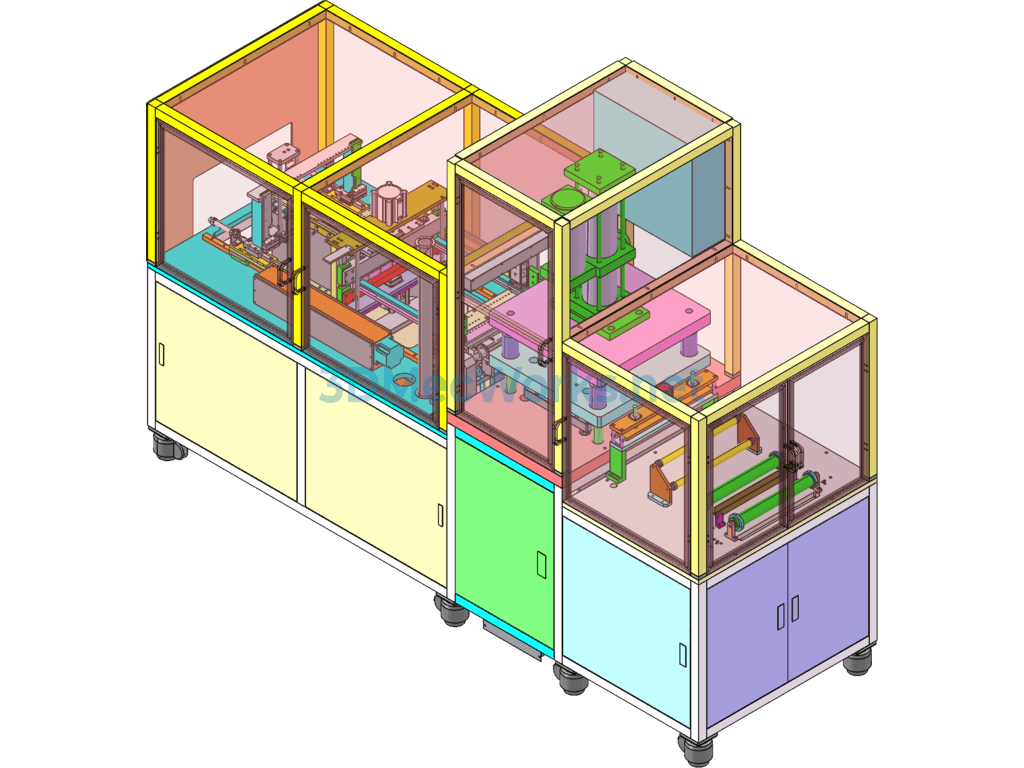

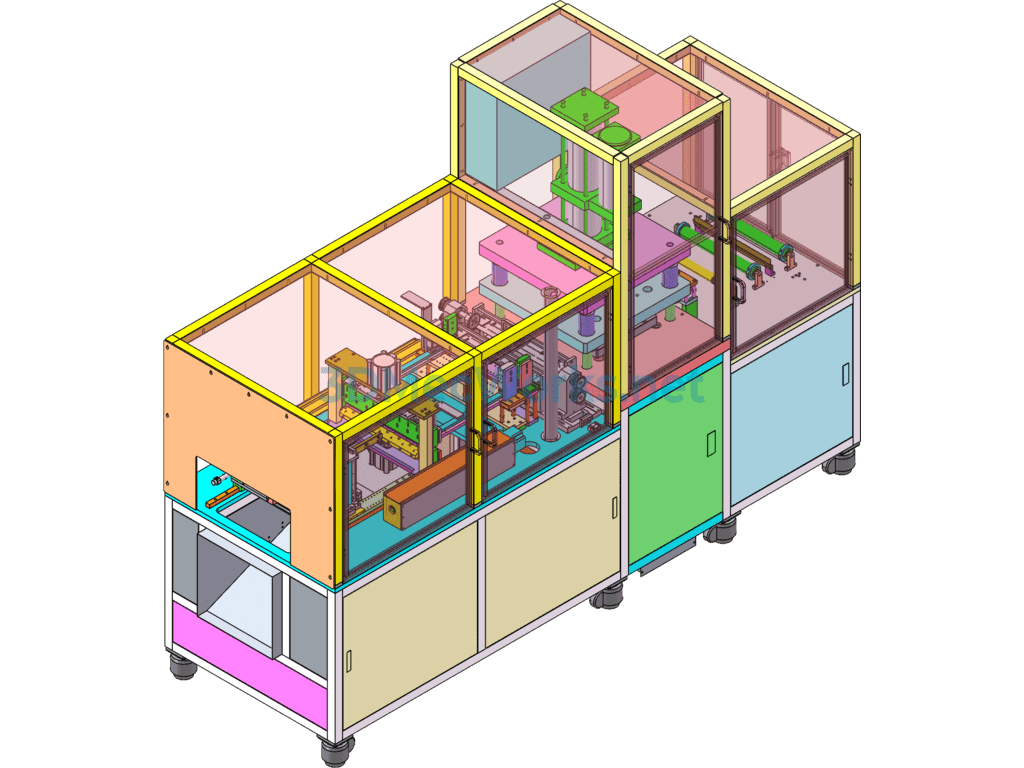

Automatic Forming Machine for Lithium Battery Aluminum Film

Automatic Lithium Battery Aluminum Film Forming Machine, also known as a Soft Package Lithium Battery Automatic Shell Punching Machine 3D Model. This equipment utilizes a structure mode of automatic material roll feeding, step feeding, stretch forming, and fixed-length cutting. It continuously forms and cuts the roll material into individual units, achieving automated production. By using the principle of gas-liquid pressurization to achieve the pressure required for stamping, it converts a smaller air source pressure into a larger hydraulic output force, thereby driving the mold to form the aluminum-plastic mold shell.

The 3D model designed with Solidworks 2014 provides sldasm and sldprt source files, welcome to download.
