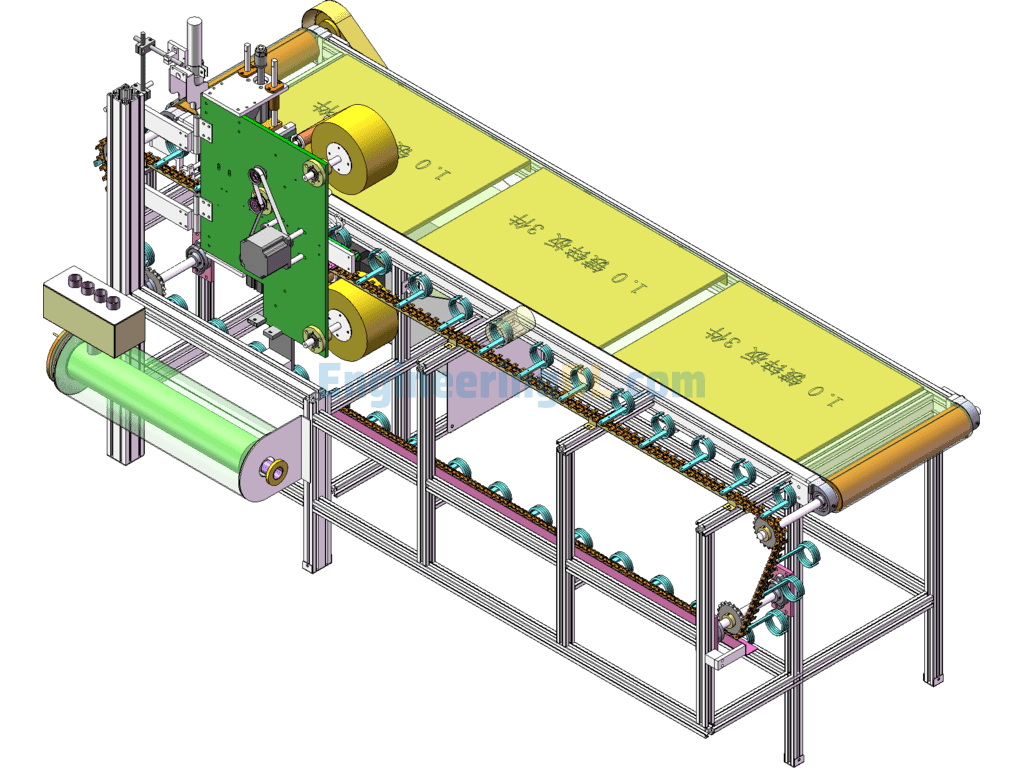

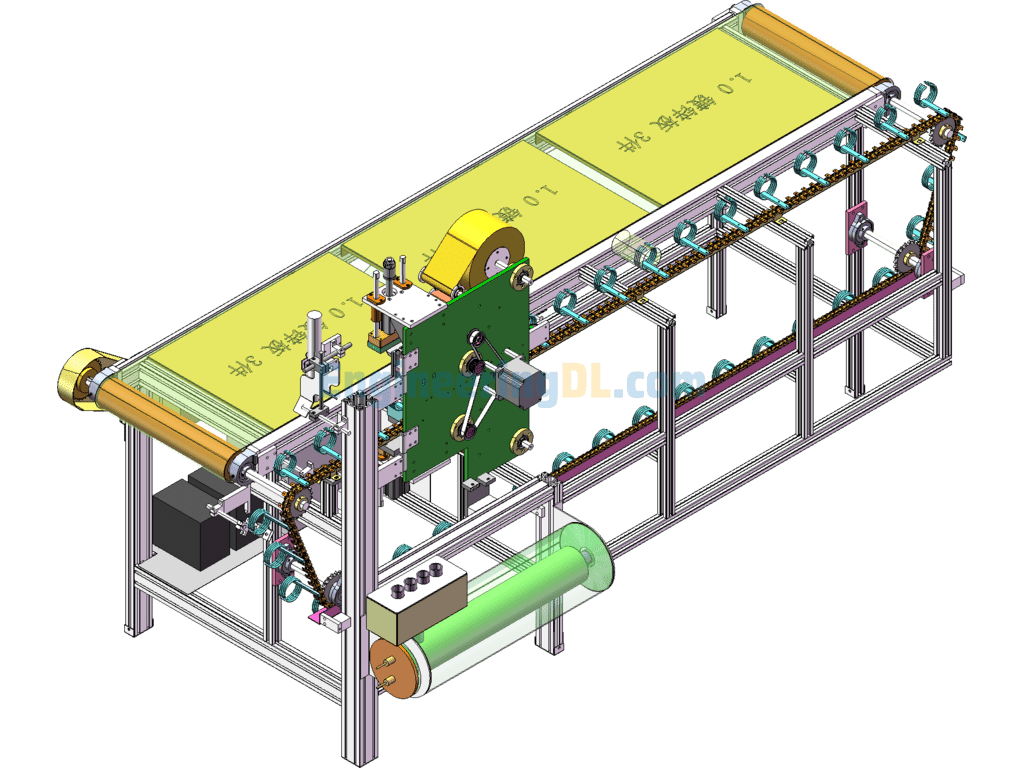

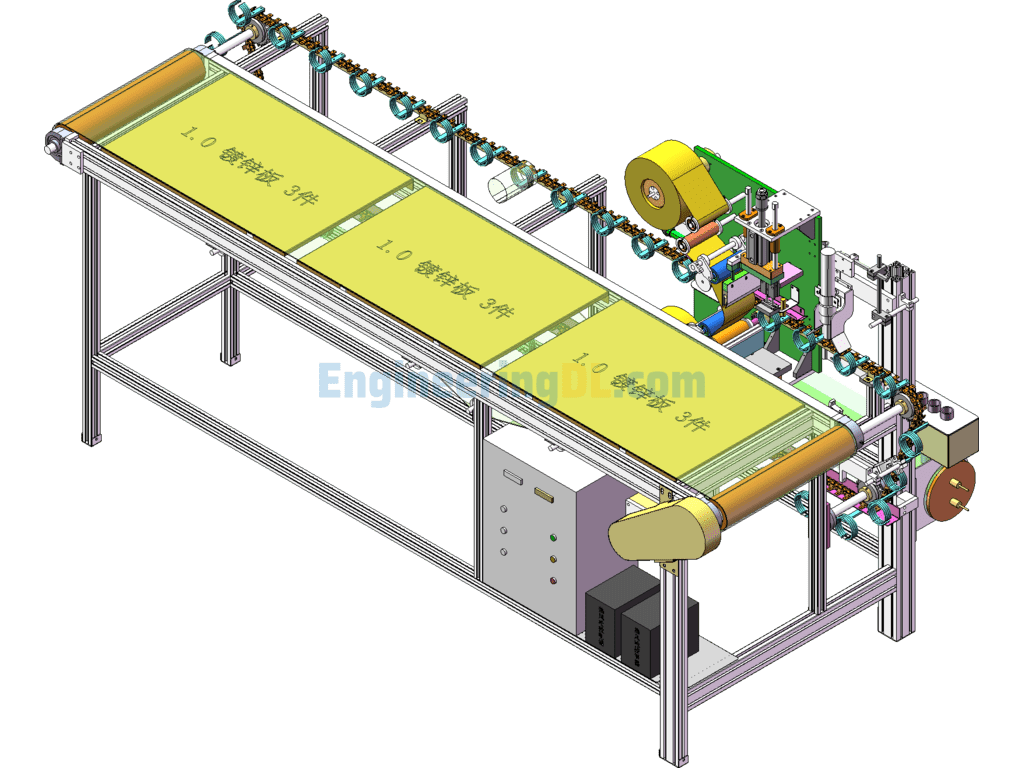

This is a 3D model drawing of an automatic flower bagging machine. The structure of the drawing is very detailed, containing engineering drawings, and it has already been used for processing and production. The purpose of the automatic flower bagging machine is to put a bag over the flower head, requiring the flower head to be wrapped around but exposed. The structure of the automatic flower bagging machine includes: a conveyor line, equipped with a flower ring, where the flower head is placed into the ring; a conveyor chain and belt, transporting the flowers to the bagging mechanism for bagging; a bag-making mechanism, which forms bags by heat-cutting two rolls of film; a film-cutting mechanism, utilizing a heat-cutting knife to cut the film; and a hot air heating system, delivering hot air to the freshly cut film for heat shrinkage. The drawing is in SolidWorks 2018 format, and you are welcome to download it for reference.
