Automatic Feeding Station for Casing Installation

0
Published by
Callum Zimmerman
35,515 views
|
29,513 downloads

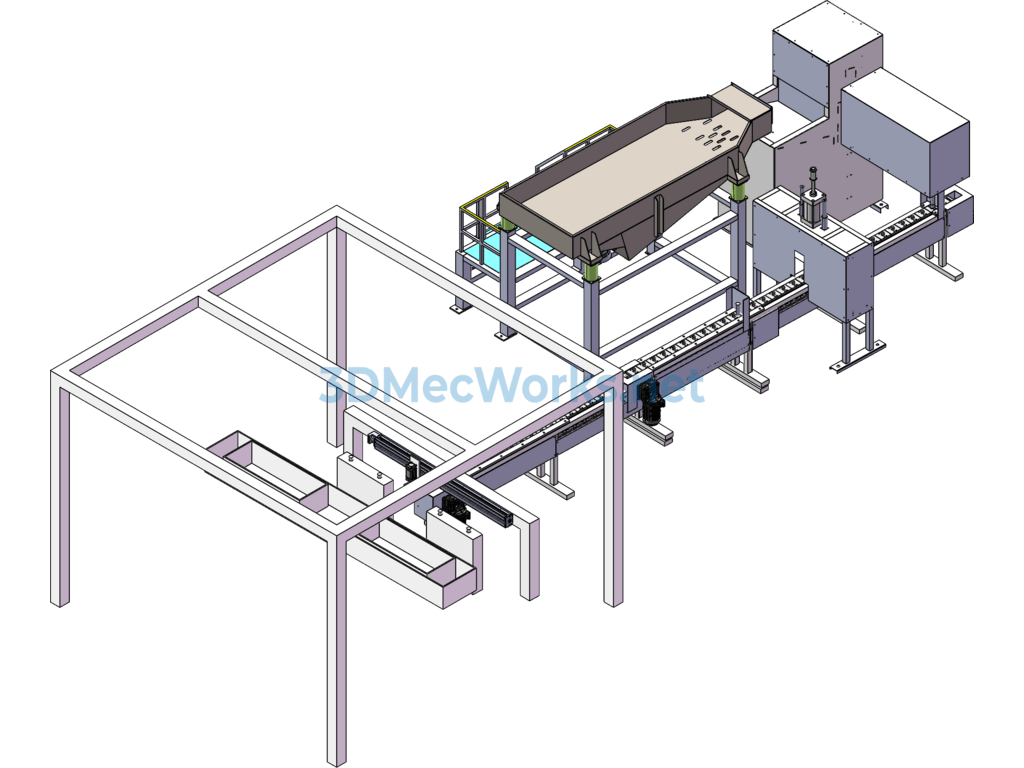

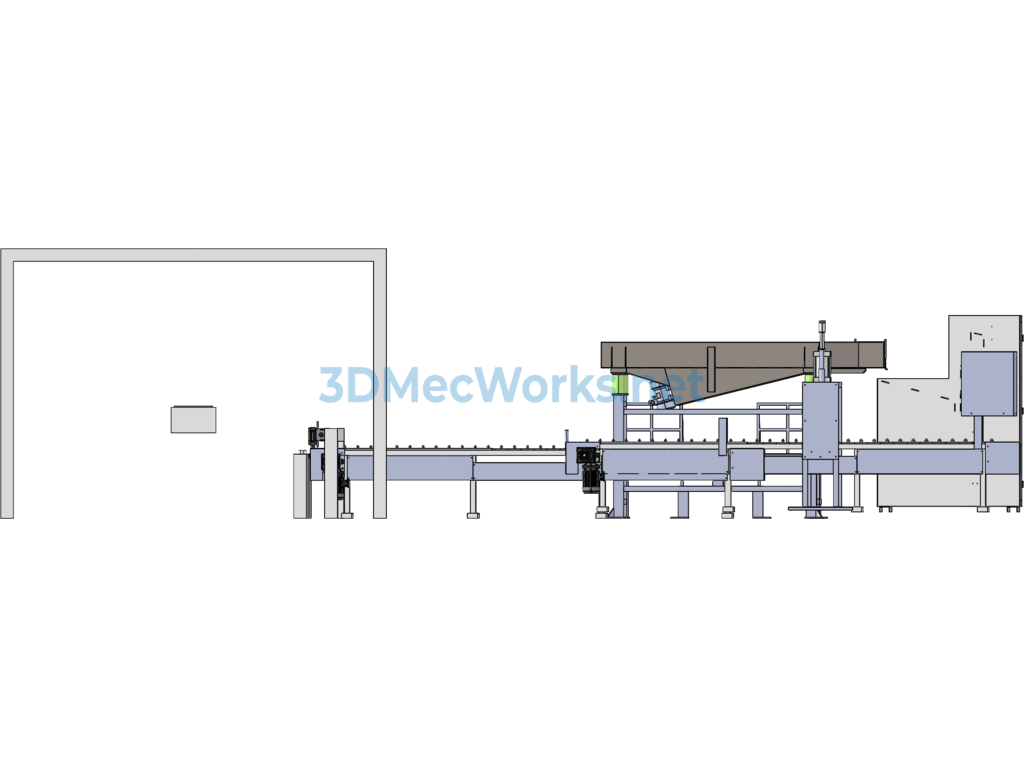

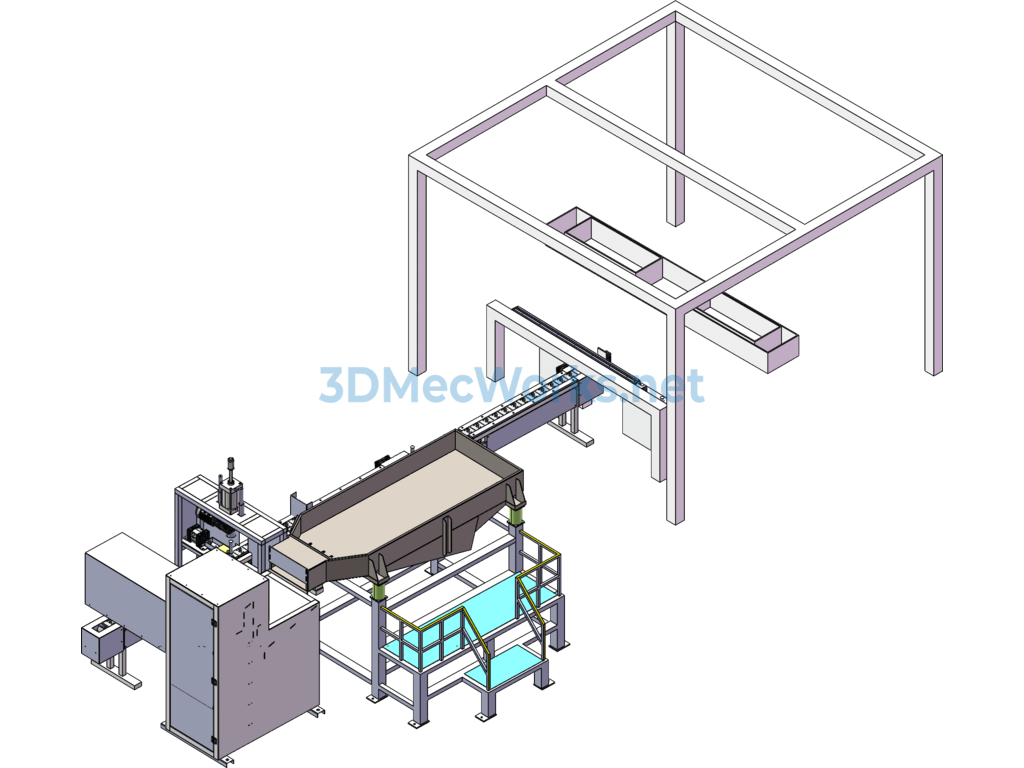

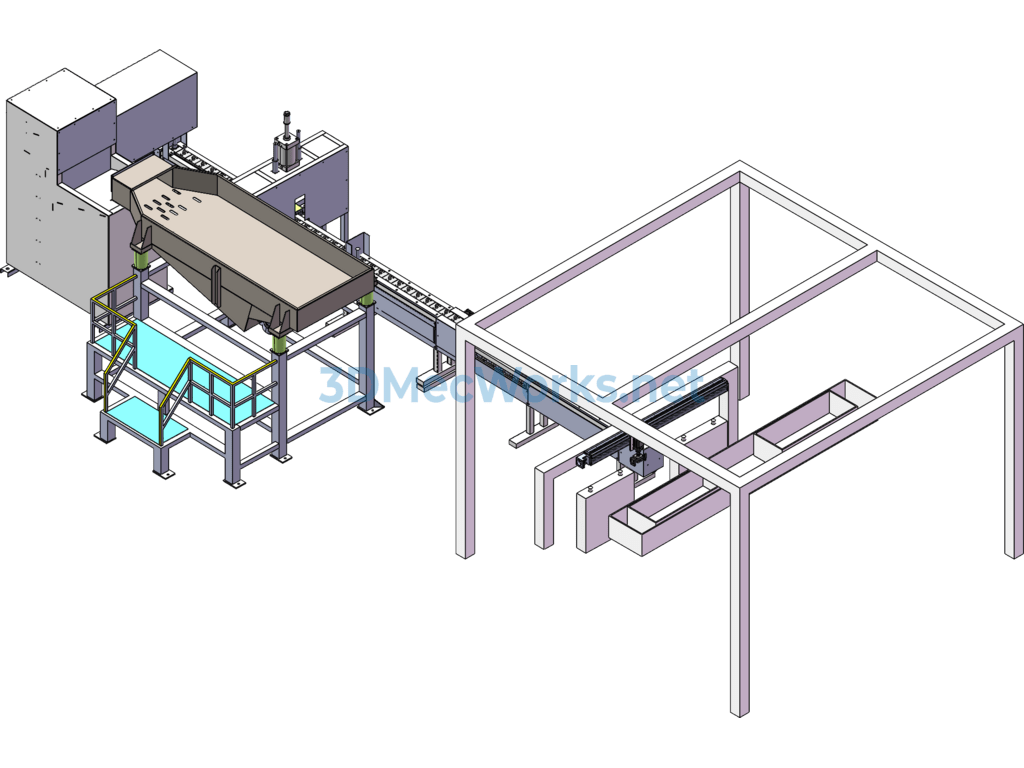

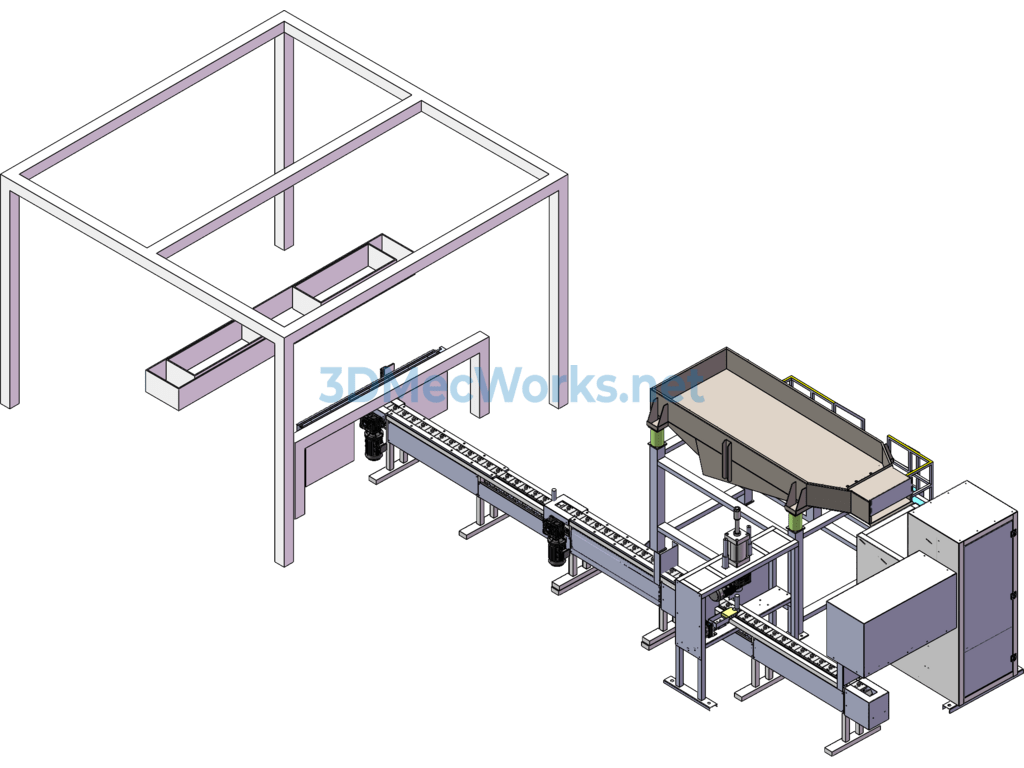

Sleeve automatic feeding workstation, includes components such as the feeding machine, guiding device, and conveyor belt. During operation, an operator places the sleeve onto the guiding device, then the feeding machine moves individual sleeves onto the conveyor belt according to instructions. The sleeves are then conveyed to the designated position, completing the sleeve feeding process.

Specification: Automatic Feeding Station for Casing Installation

Design Software

Editable

,

File Formats

,

Industry Application

, , ,

Sharing Level

Version
