Automatic Feeding Press

0
Published by
Bronson Bowers
15,307 views
|
11,740 downloads

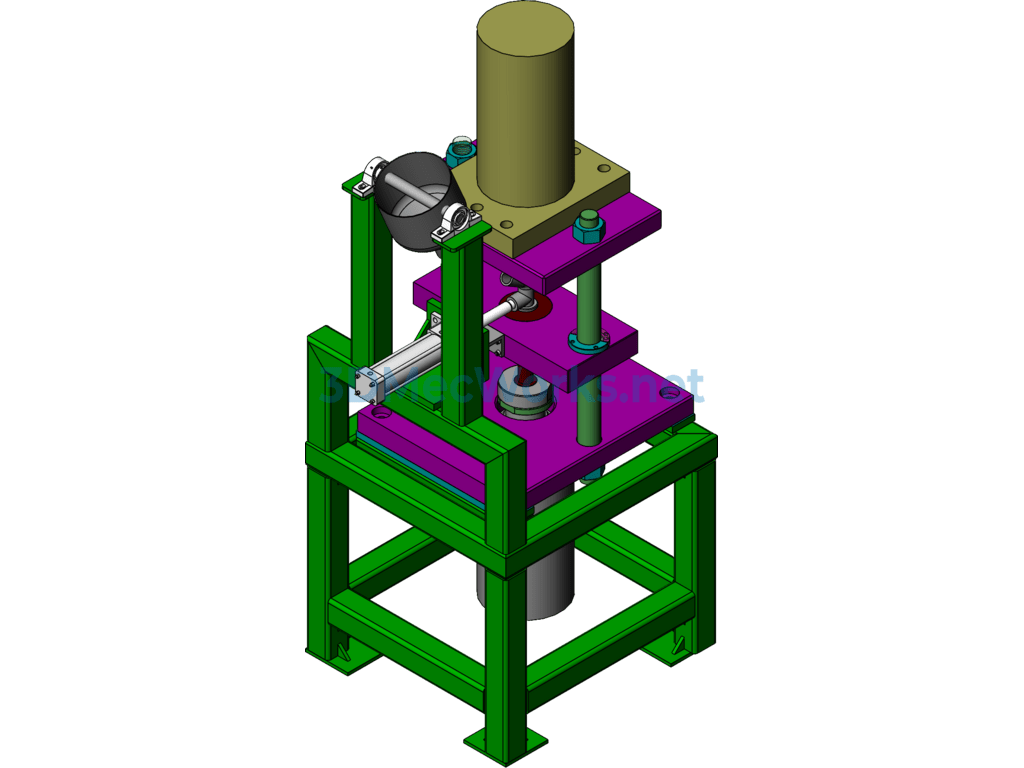

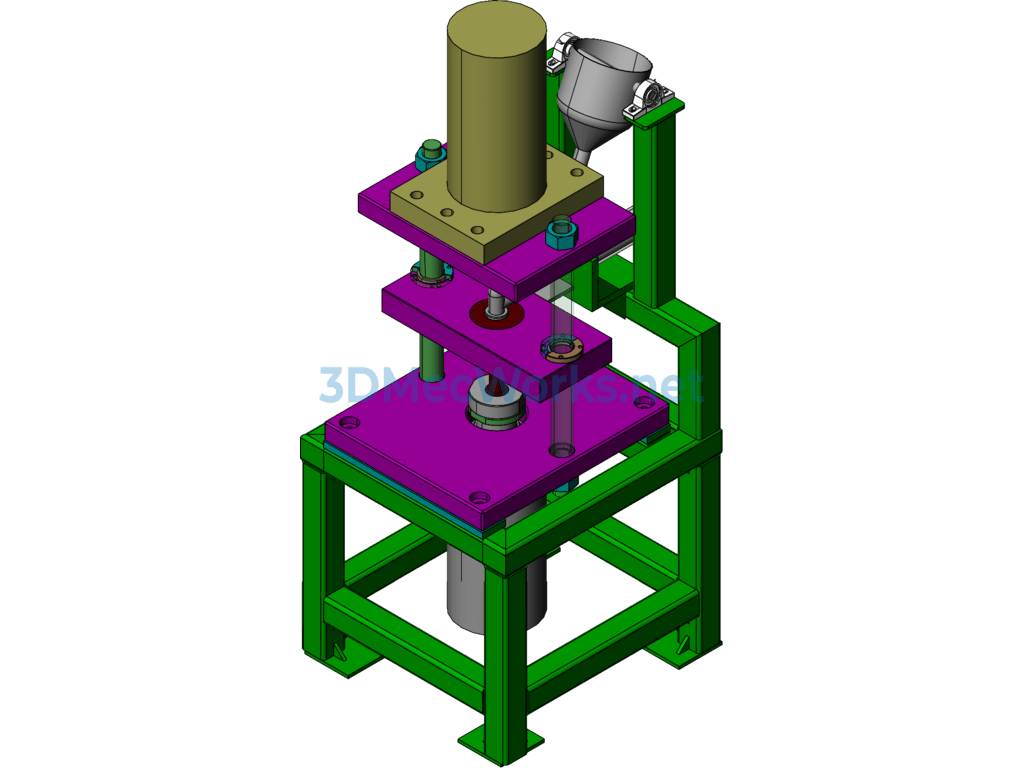

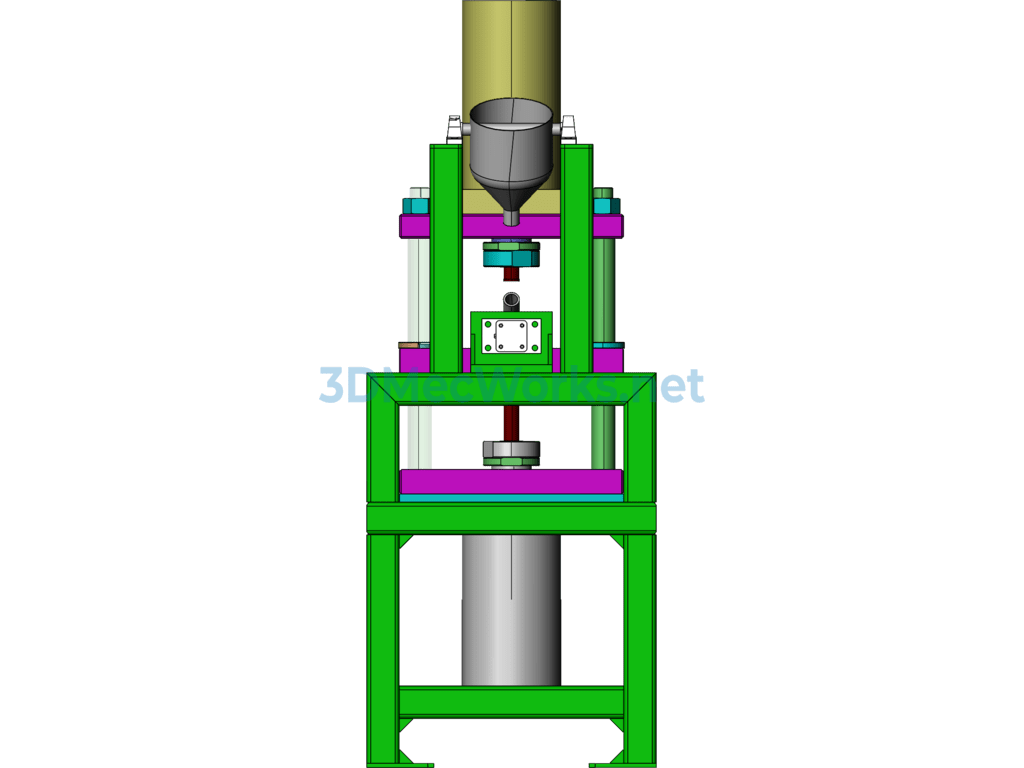

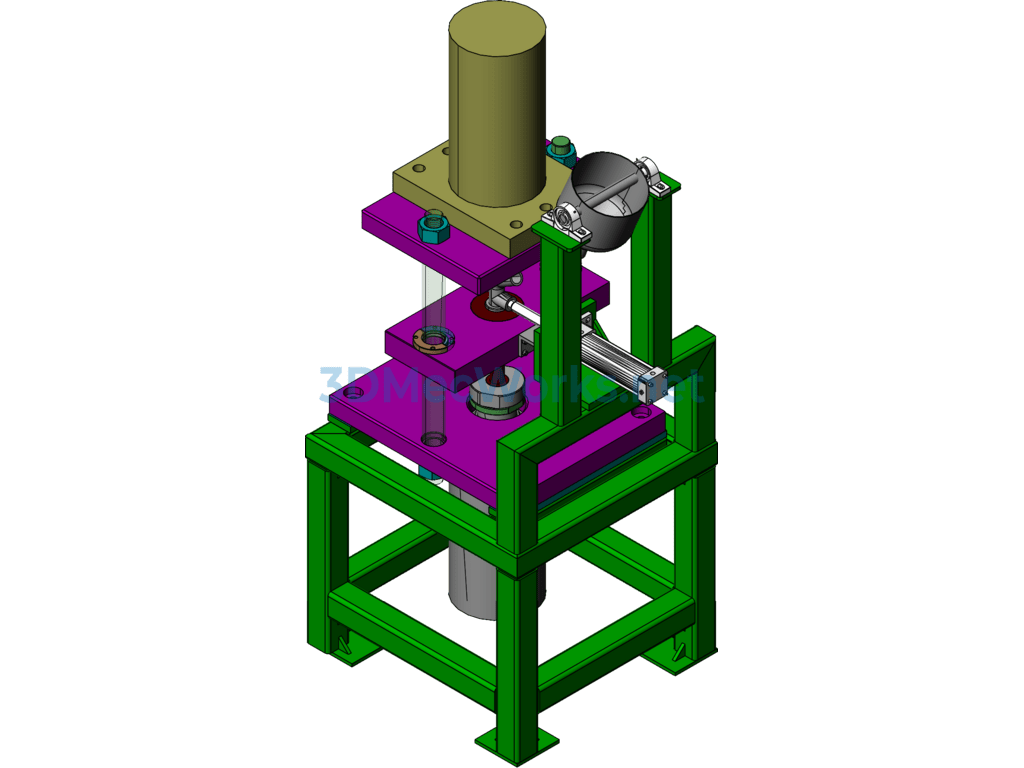

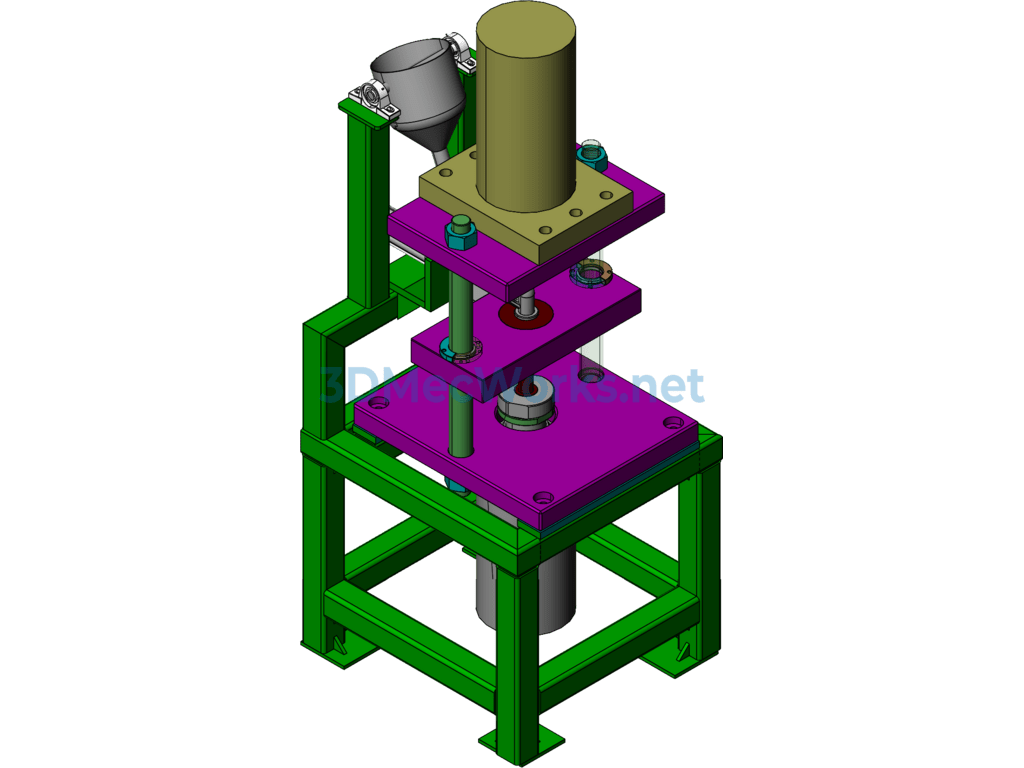

Automatic Feeding Press: To mold cylindrical bar stock, the cylinder drives the automatic feeding port to move to the position of the material chamber, filling the chamber completely. After the upper and lower oil cylinders press and mold the powder into a solid entity, the lower oil cylinder performs a secondary stroke to eject the workpiece, achieving the purpose of automatic feeding without manual intervention.

Specification: Automatic Feeding Press

Design Software

Editable

,

File Formats

,

Industry Application

Sharing Level

Version
