Automatic Feeding Mechanism for Plug-In Machine

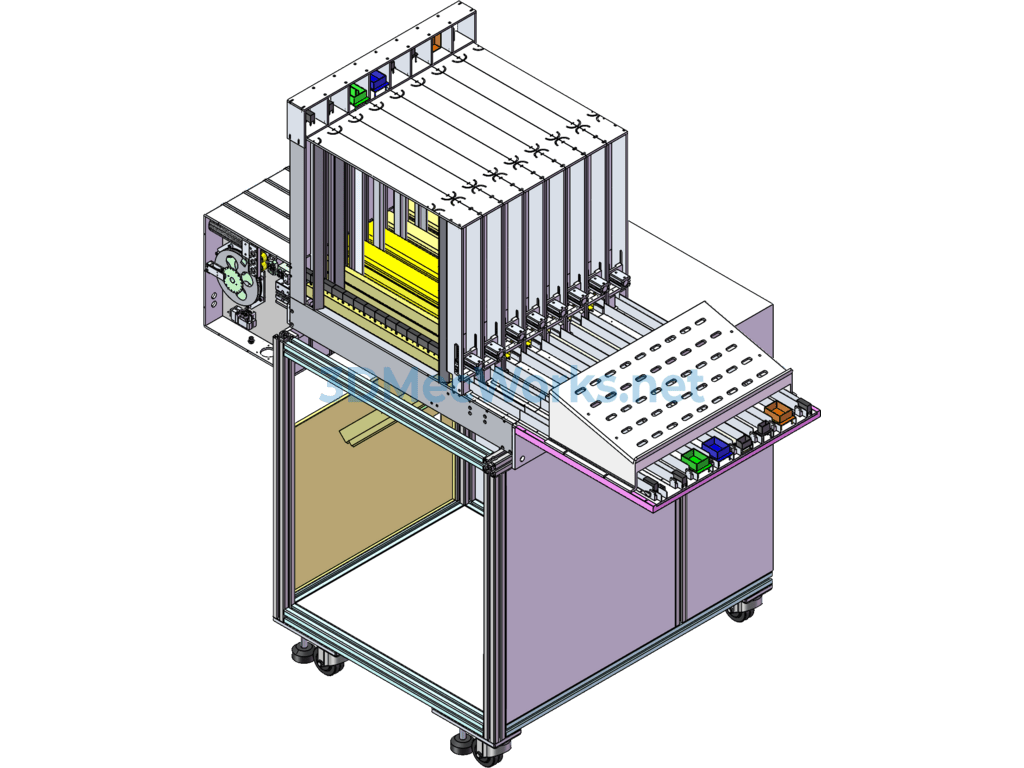

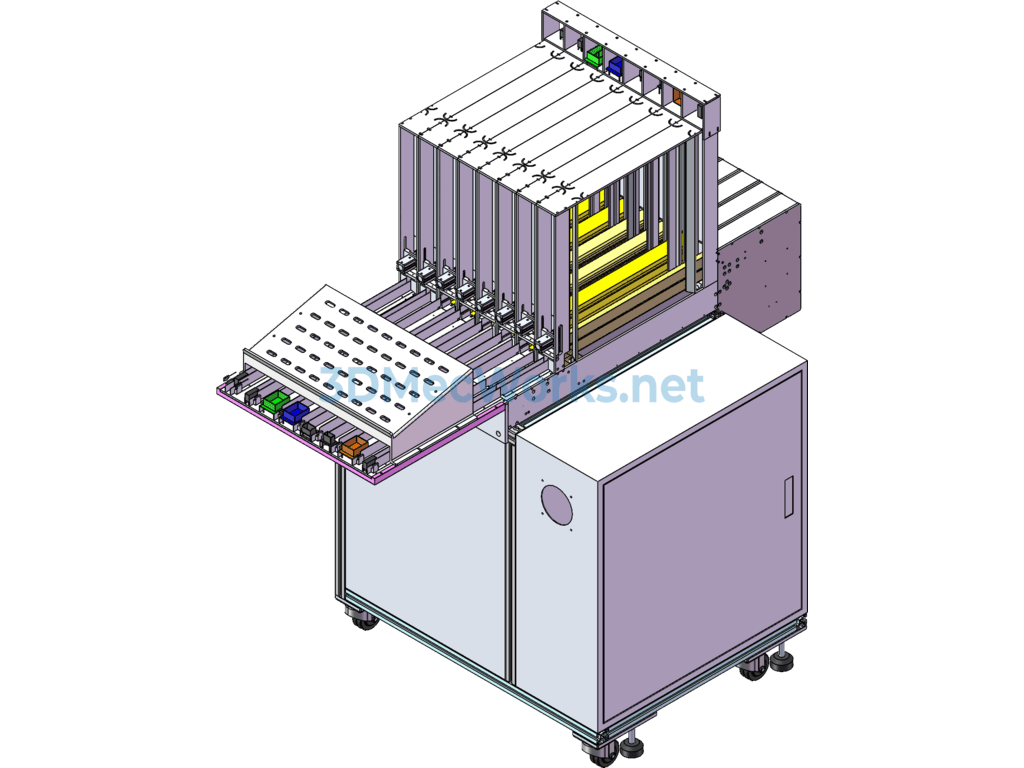

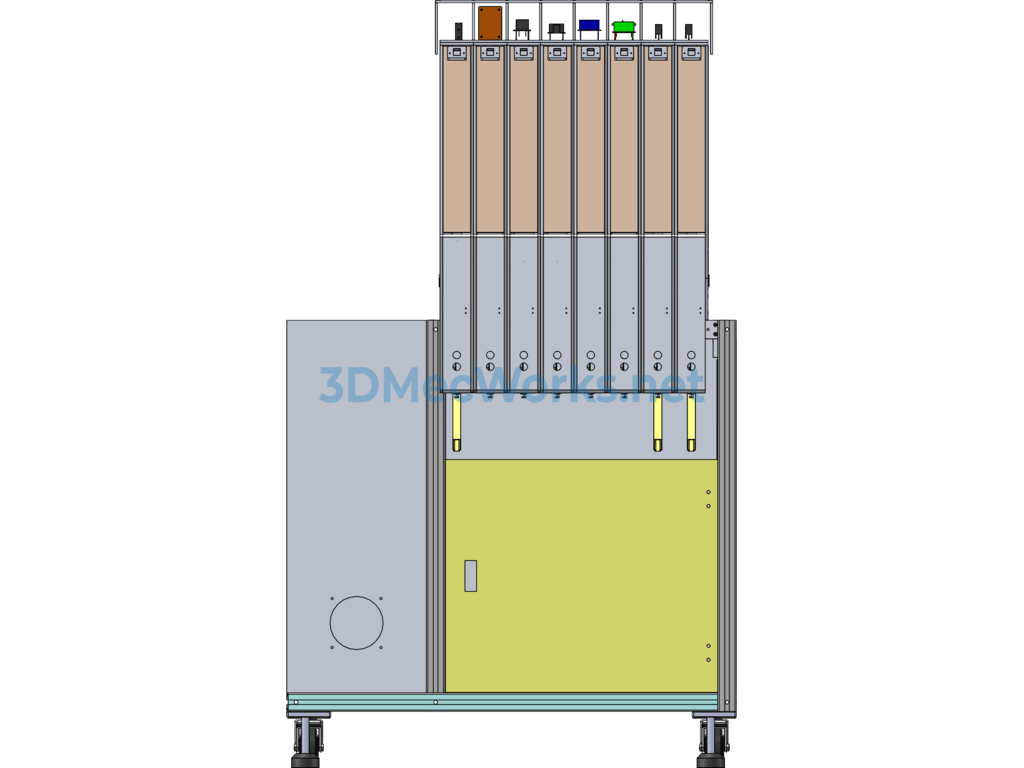

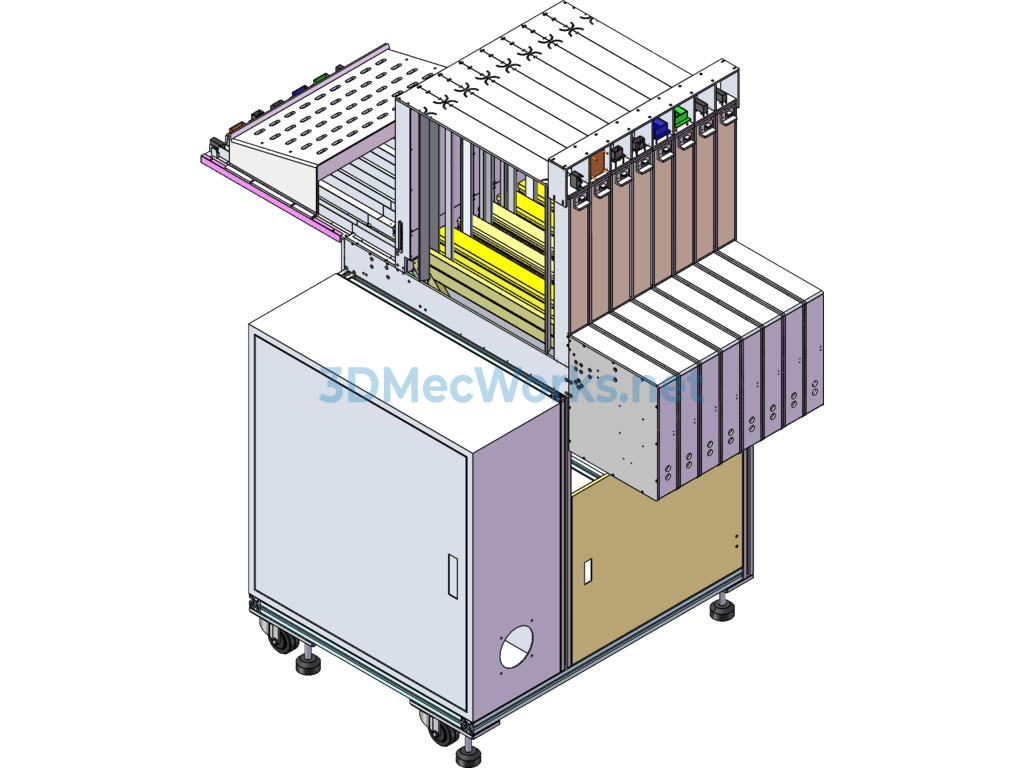

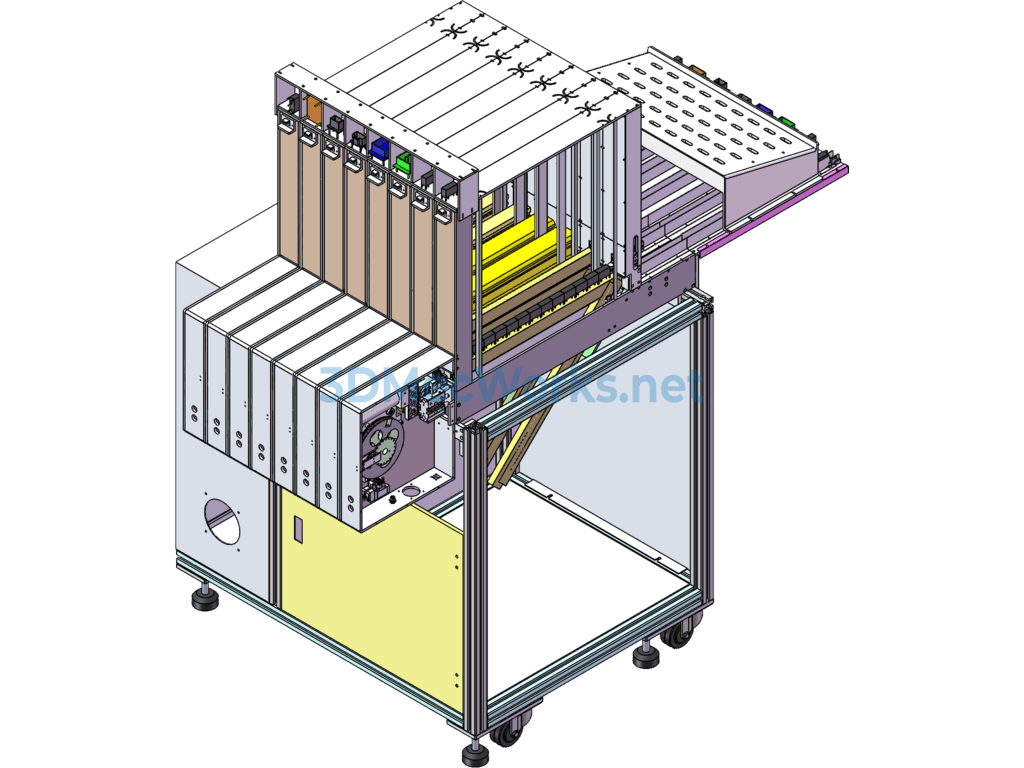

Surface mount and insertion machine automatic feeding mechanism 3D model. The design model of the fully automatic feeding insertion machine is a type of mechanical equipment that automatically (also called an “automatic insertion machine”) inserts standardized electronic components into the conductive through-holes of printed circuit boards in an orderly manner. This model is an automatic feeding device of this equipment, with highly detailed structures that are worth referencing and learning from. The structure includes a material gear positioning device, a right feeding gear positioning device, a synchronization rod, and cylinder left or right feeding systems. The left feeding system is connected to the right feeding system through the synchronization rod.
