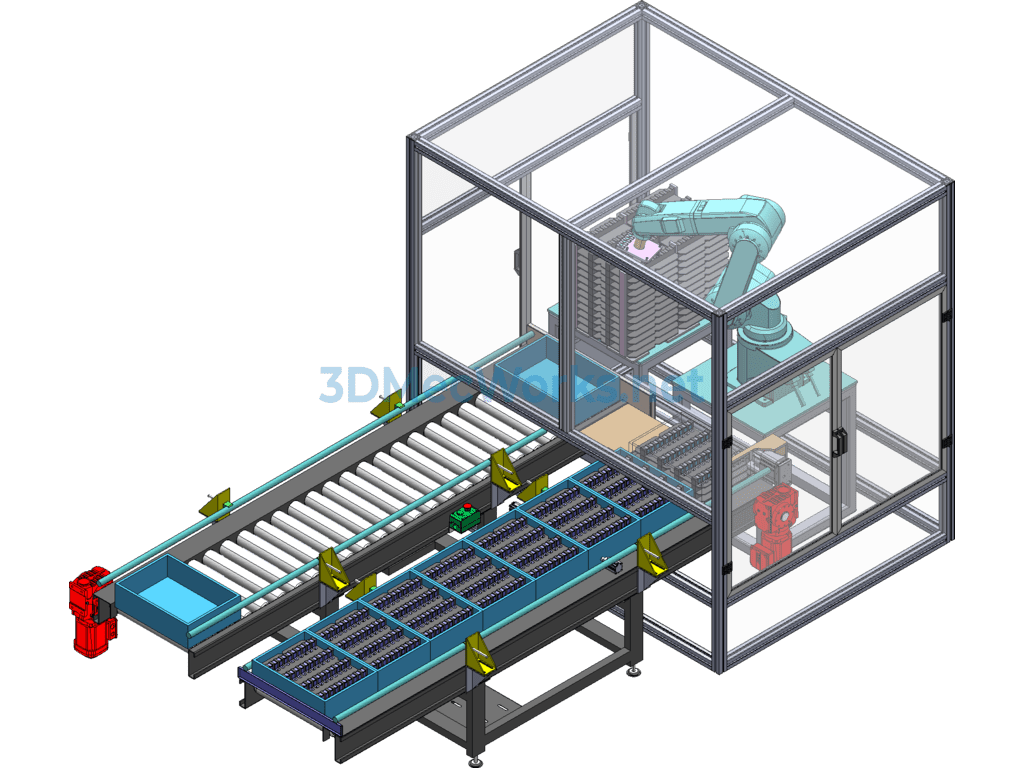

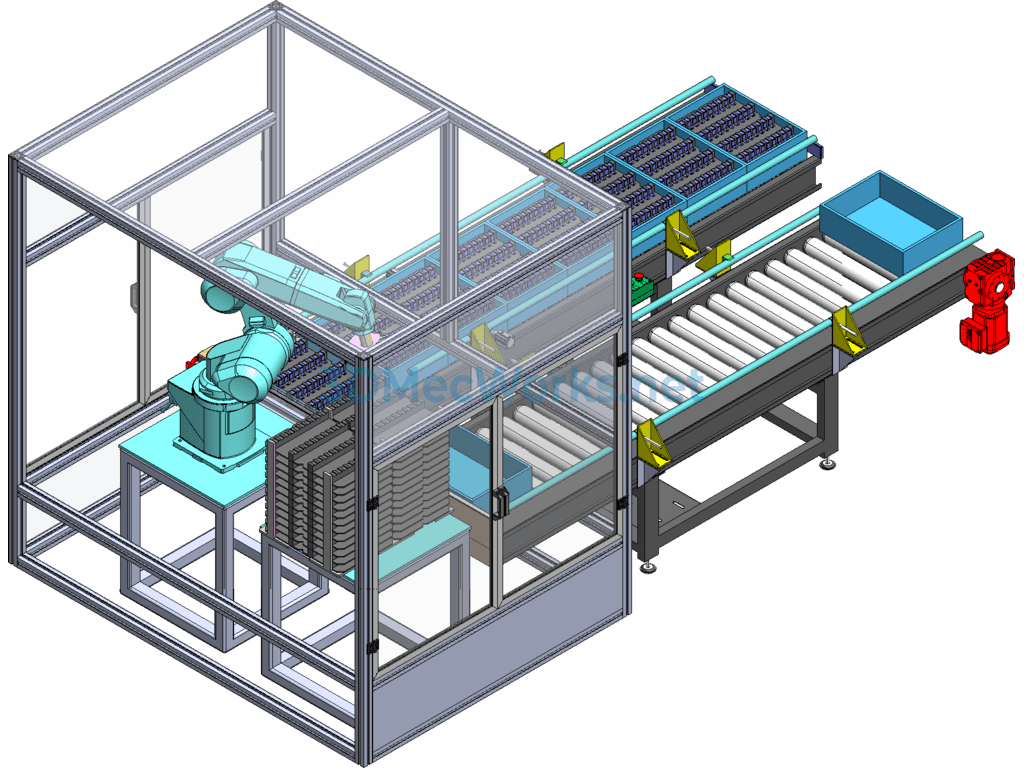

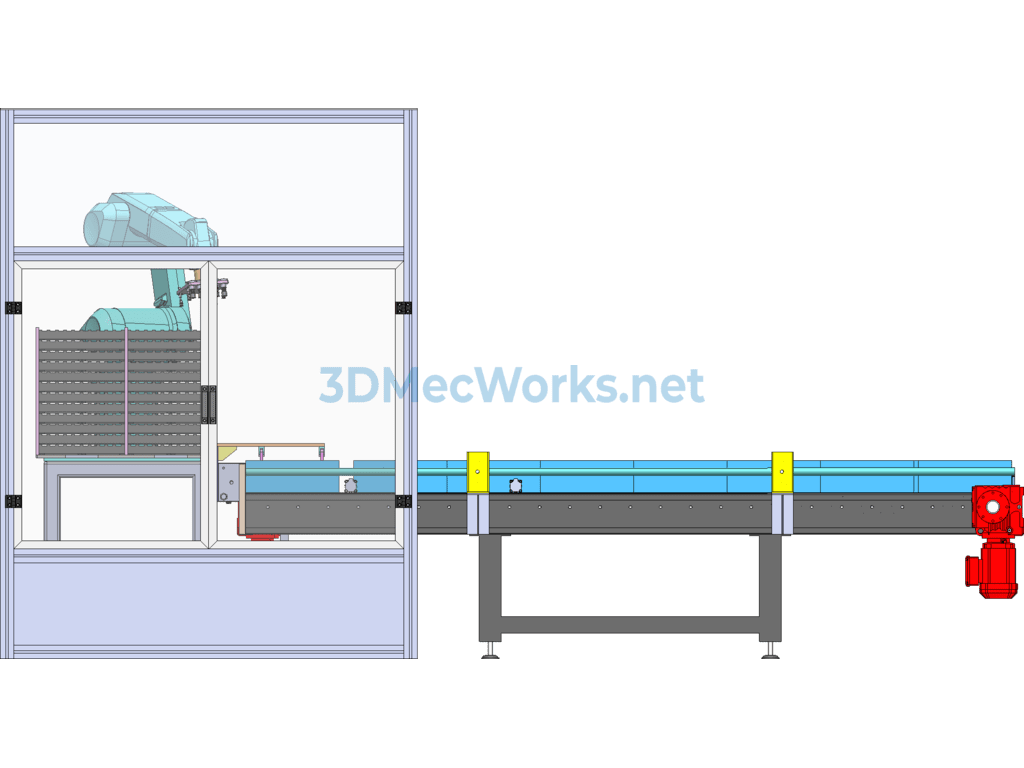

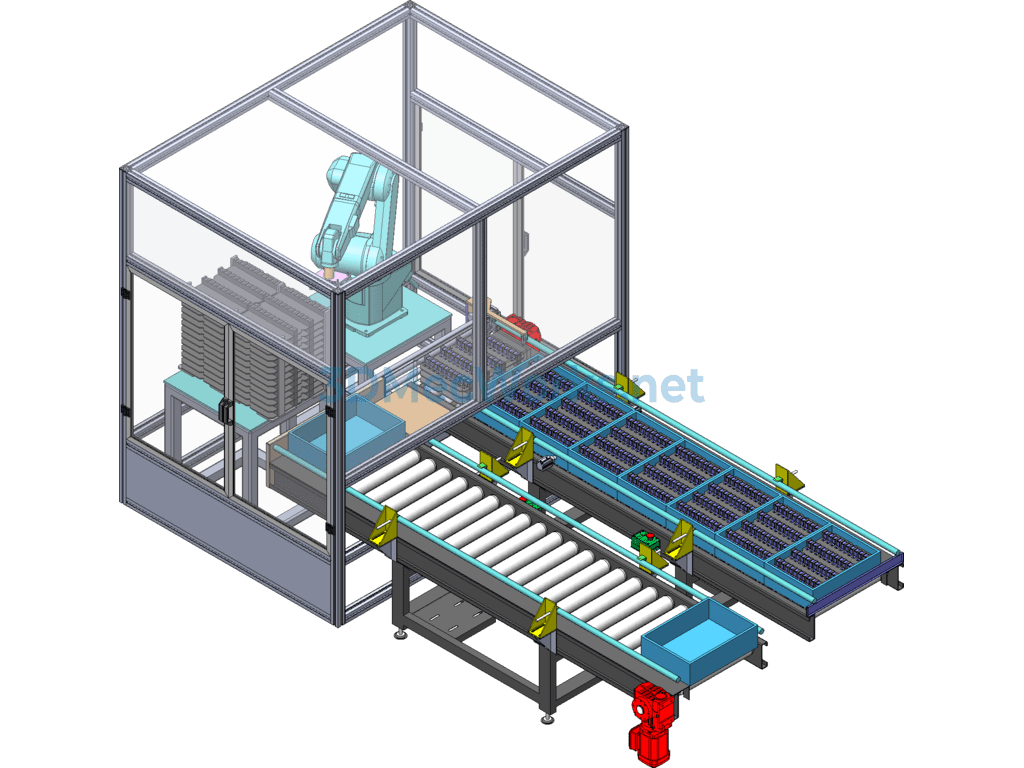

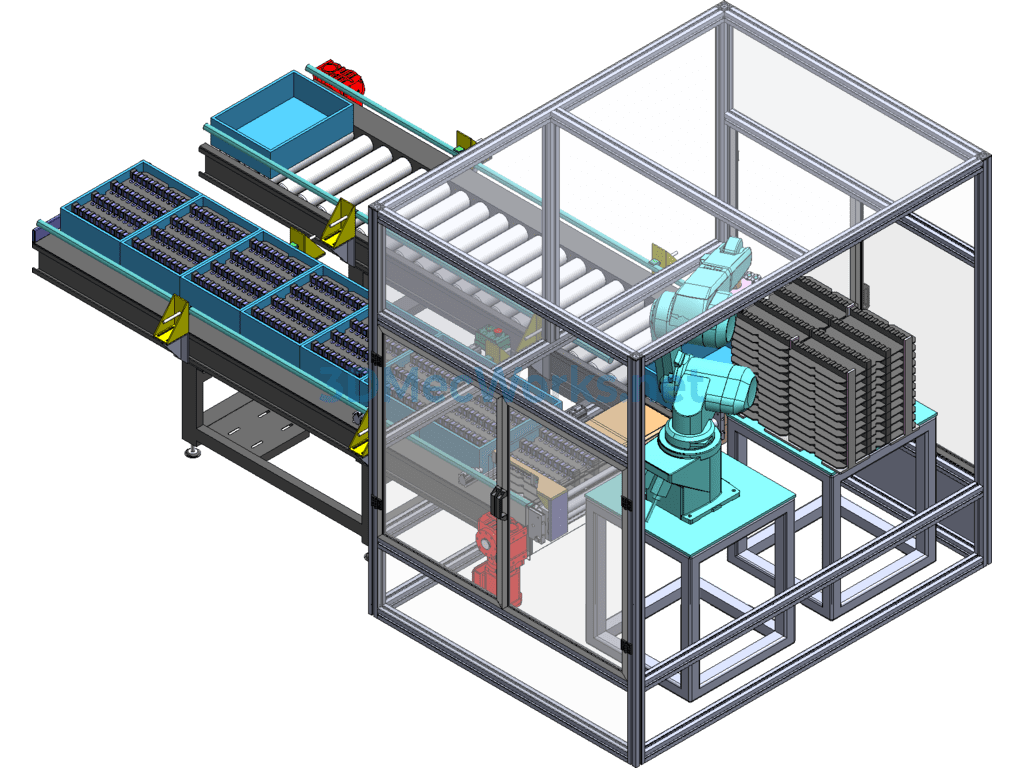

Automatic Feeding Equipment Action Process for Stamped Parts:
1. Manually place the transfer box into 8 sets of roller lines;
2. Robot uses magnetic force to pick up the product and place it onto the transfer line for the next station equipment;
3. Robot uses vacuum suction to place the empty tray into the tray rack;
4. Elevate and transfer to move the empty transfer box to the unloading line;
5. Manually unload the empty transfer box and empty tray;
