Automatic Equipment for Optical Fiber Connector Assembly and Testing Pin Automation

YY01-00 Fiber Optic Connector 3D Model

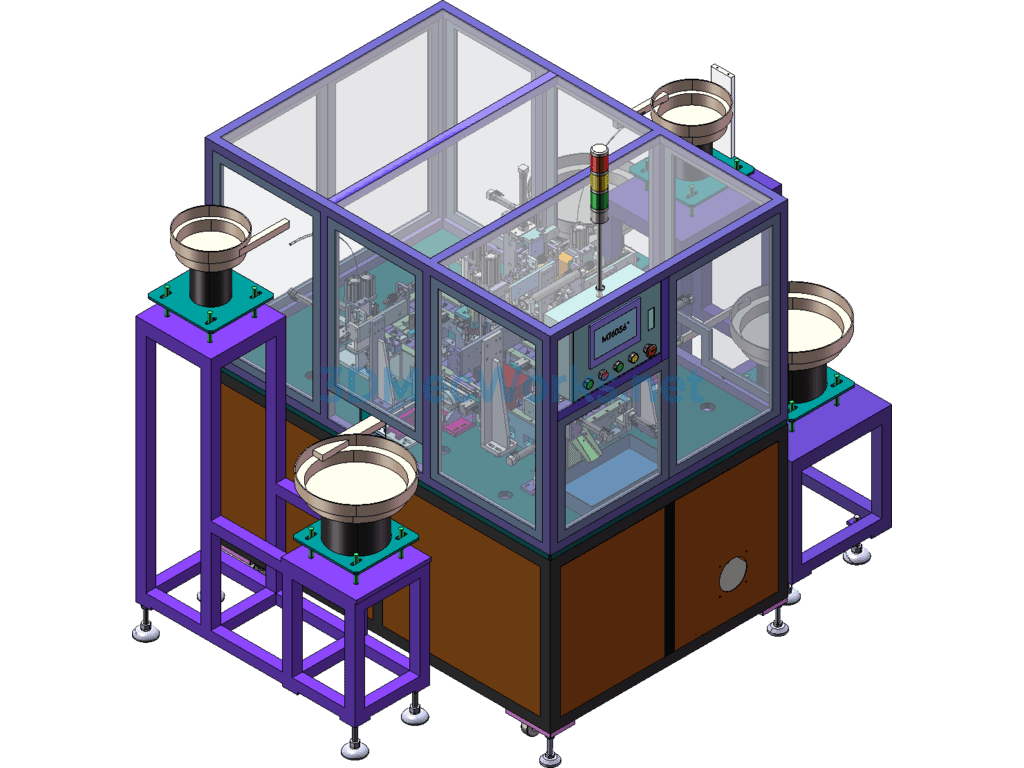

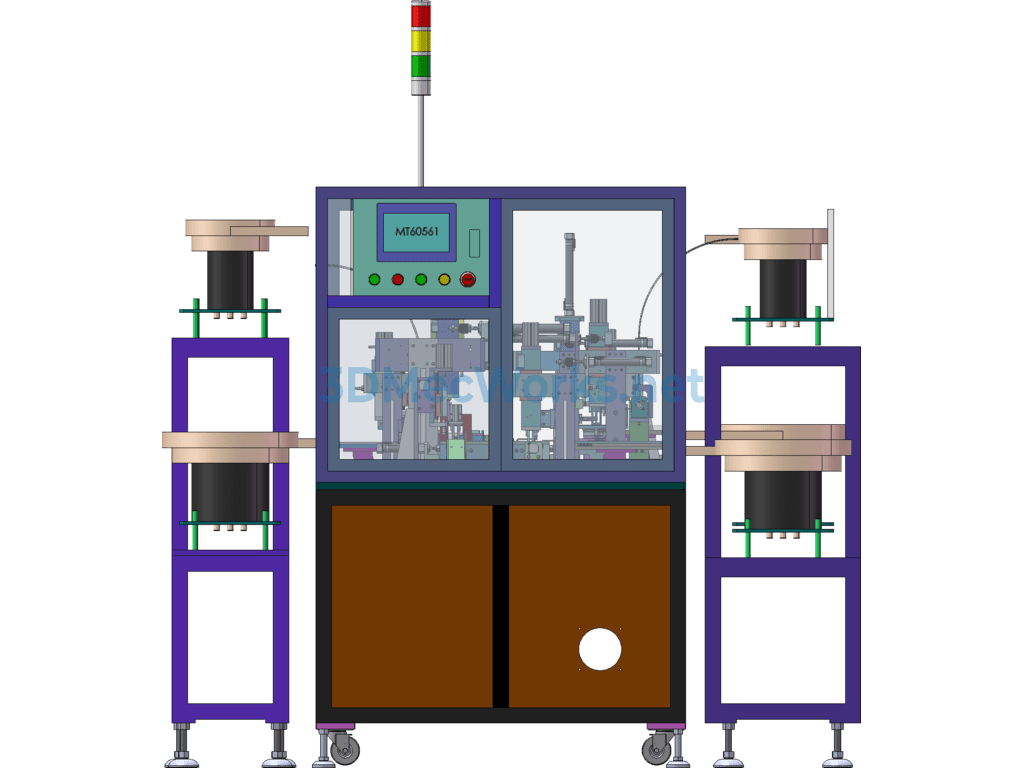

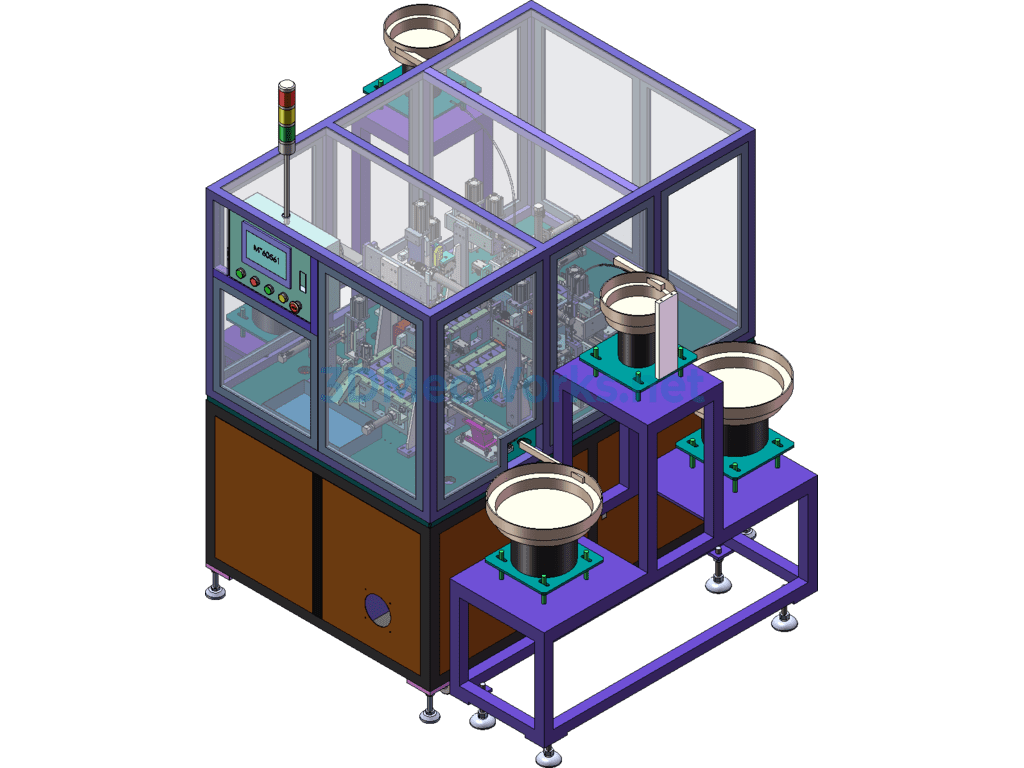

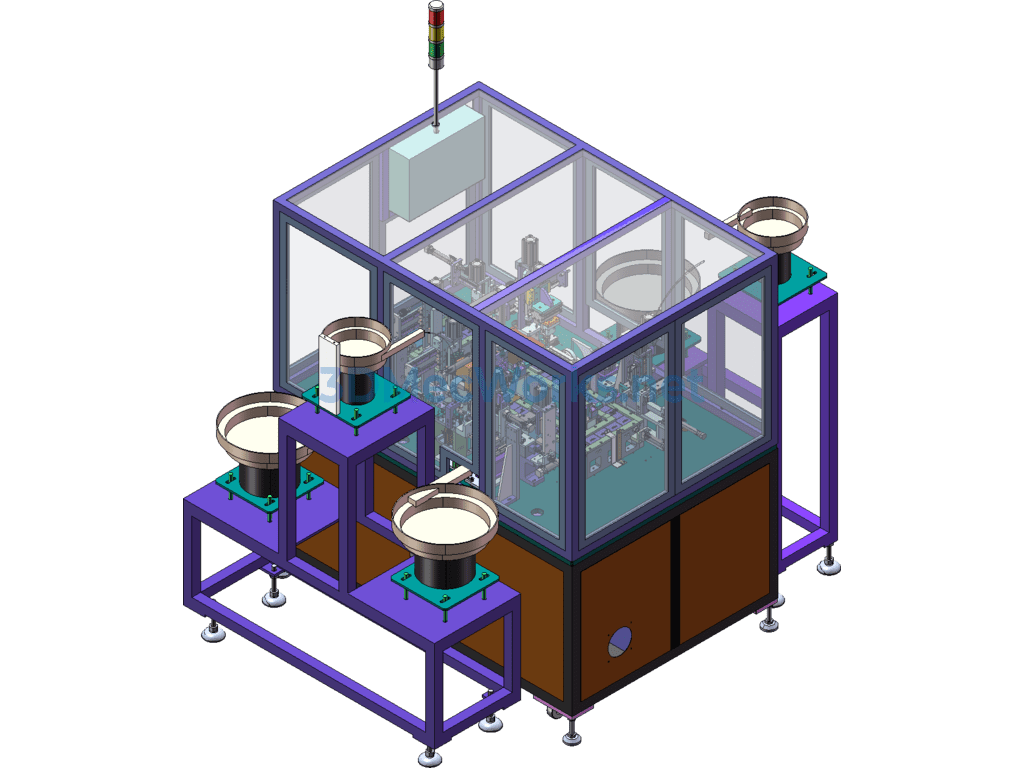

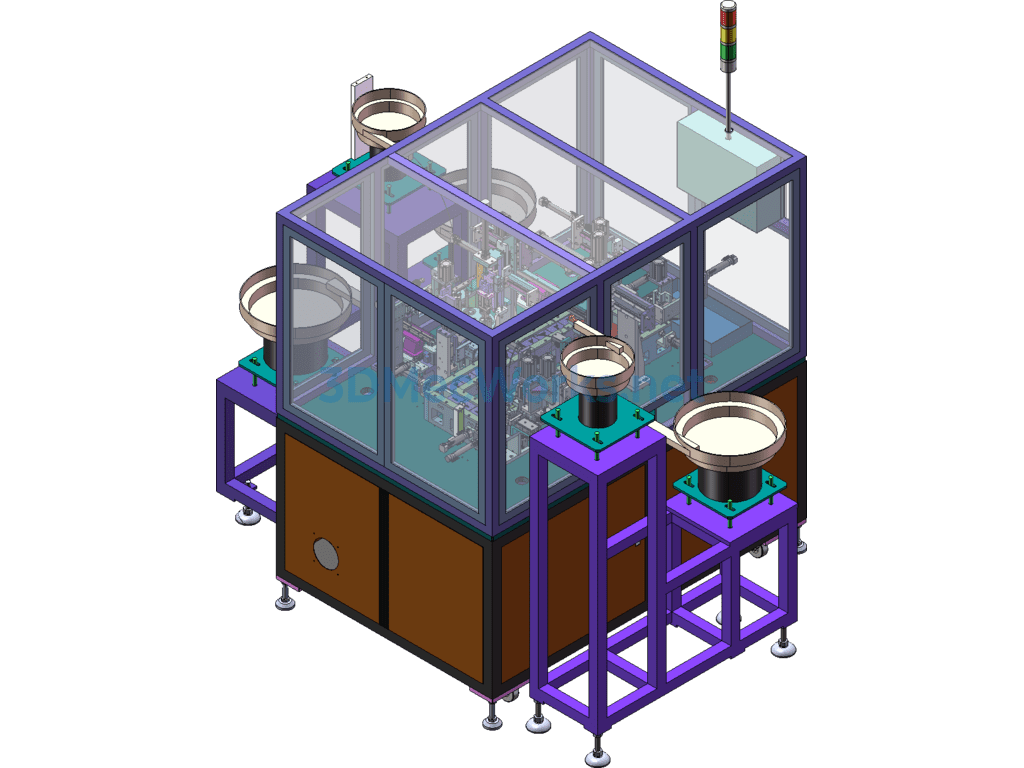

This device is an automated assembly and testing pin insertion machine for fiber optic connectors. The equipment has numerous complex structures and operates stably, employing multiple robotic arms to grasp products with a turntable design. The drawings are relatively complete and possess reference value.
A structurally classic and well-developed fiber optic connector assembly machine, with numerous mechanisms and reasonable design, offering high production efficiency, is worth learning from.
