Automatic E-Type Adhesive Tape Applicator Machine

0
Sold by
MrBlue
@ MrBlue
[mecworks-btn]

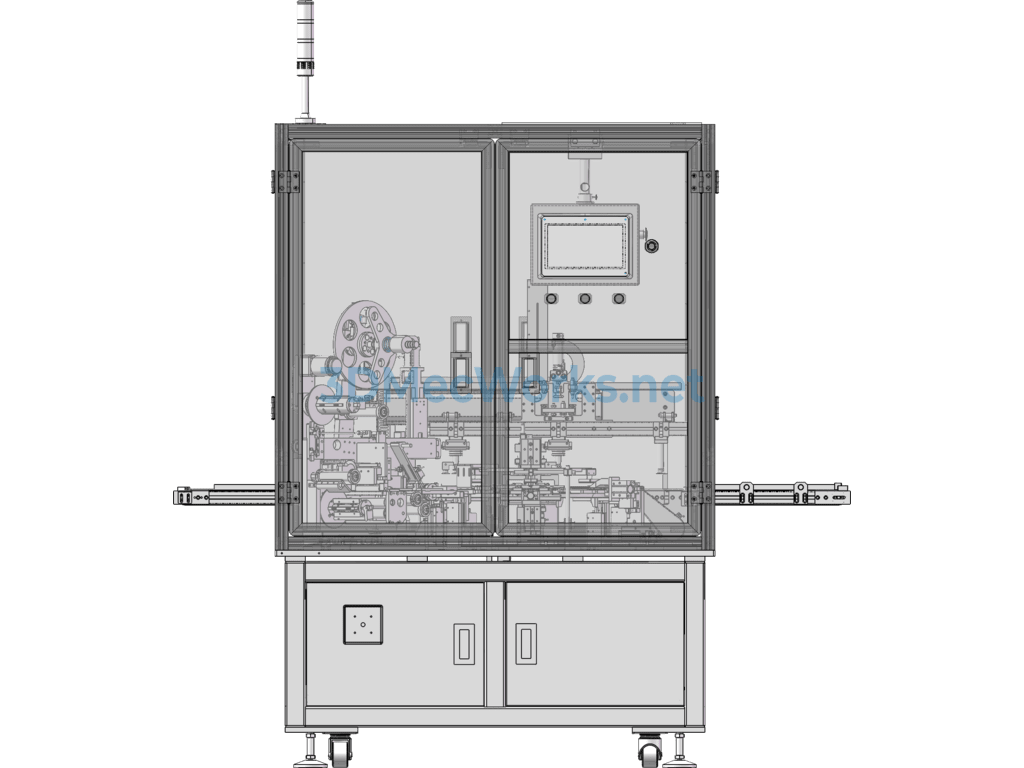

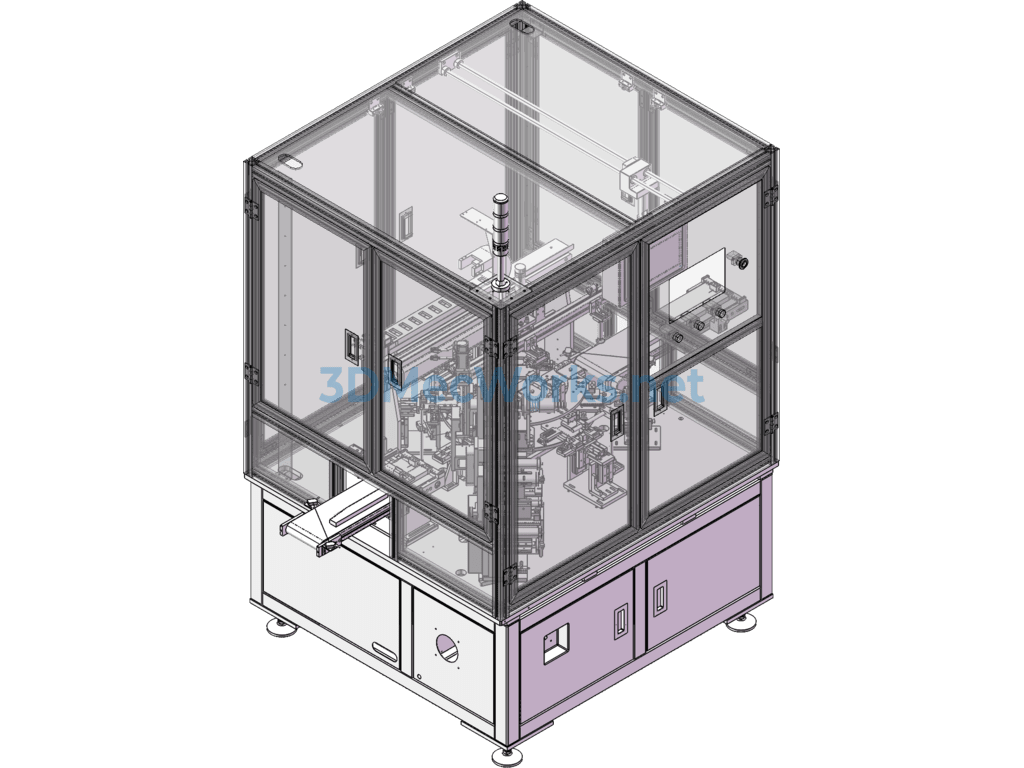

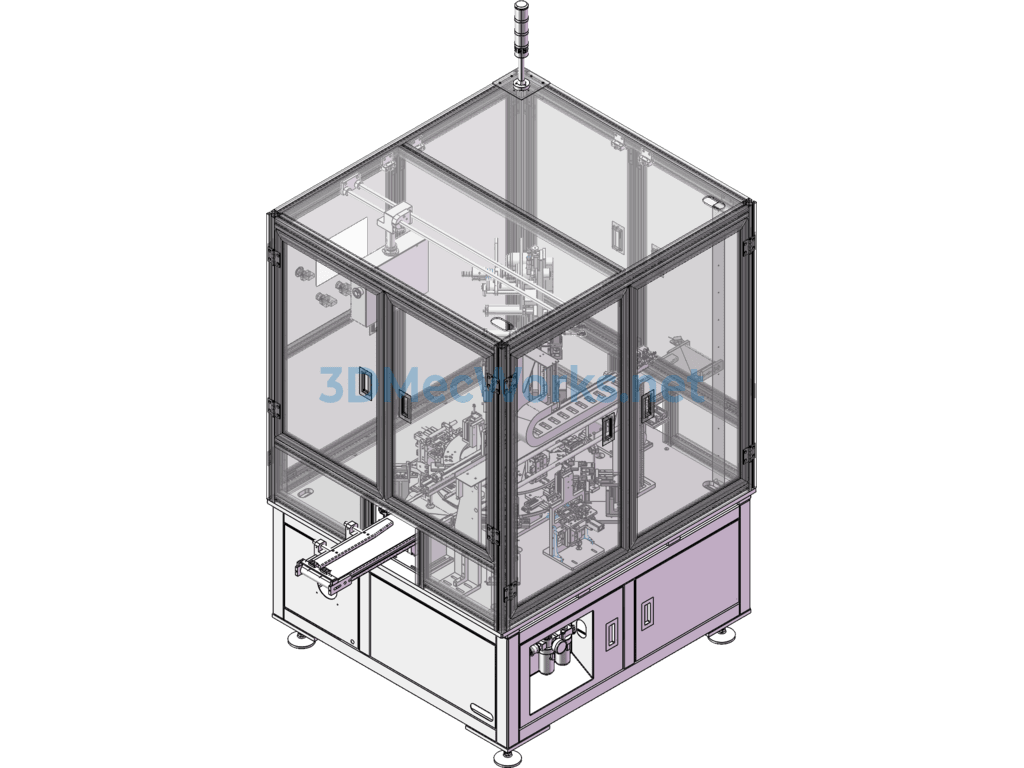

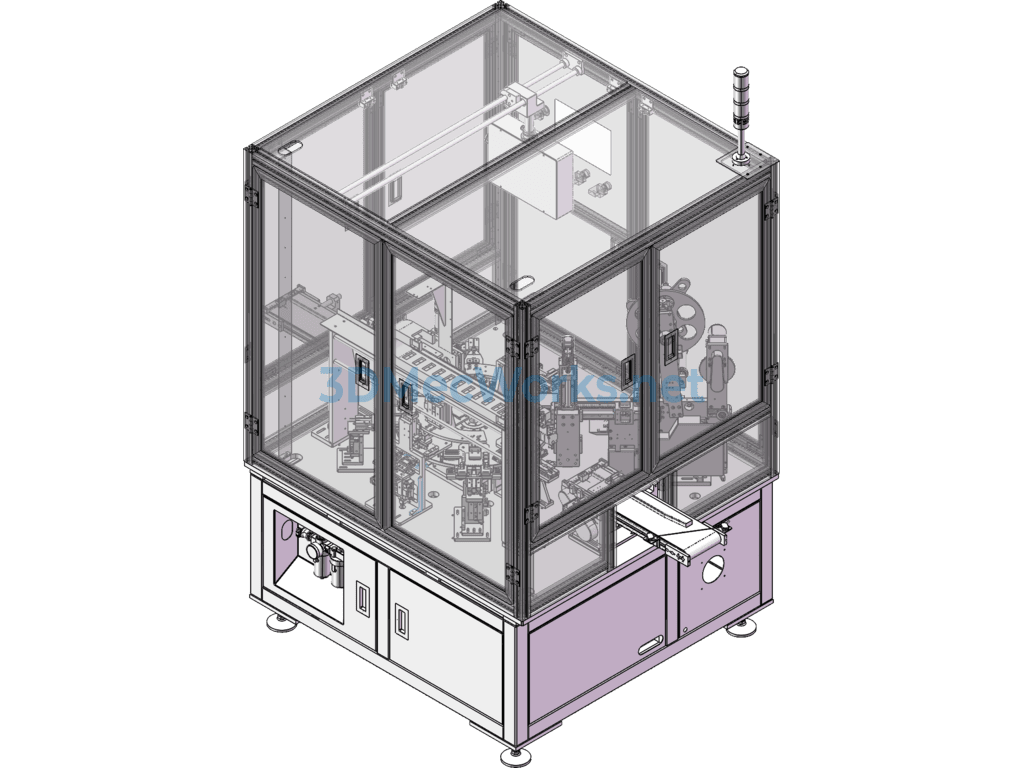

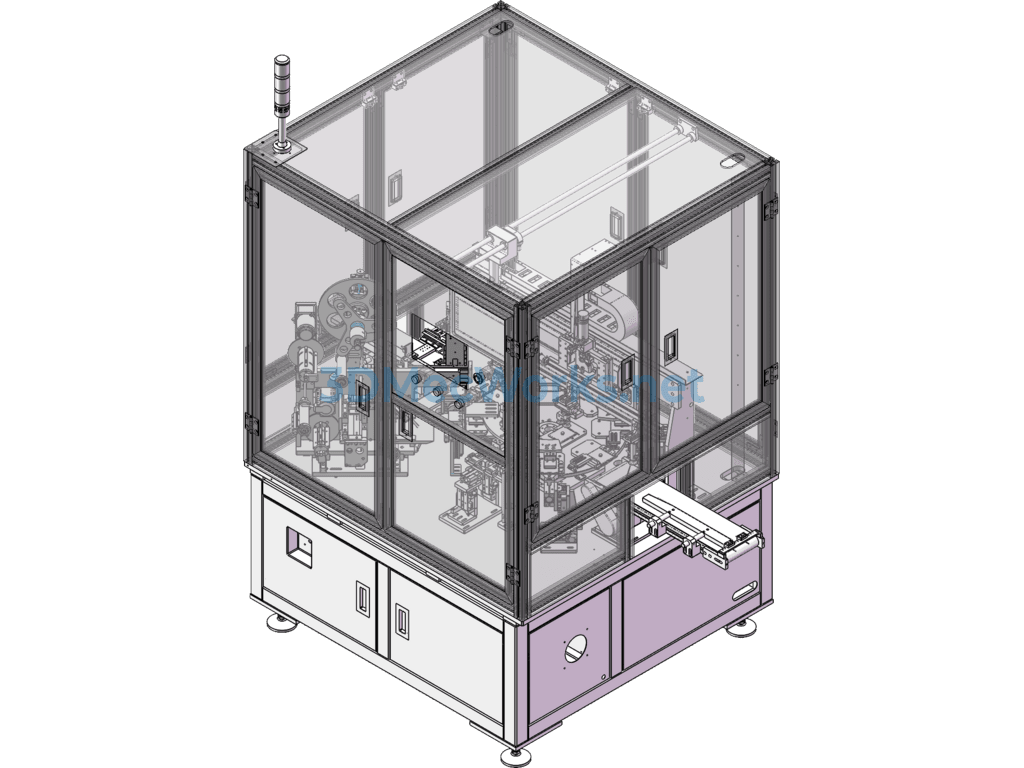

This equipment is used in the top-side sealing high-temperature E-type adhesive tape process on a mobile phone battery production line. It is a fully automatic adhesive tape applicator with automatic belt feeding and unloading. It supports both forward and reverse modes of E-type adhesive tape application. After pressure forming, it wraps the top-side seal and ear adhesive tape. Featuring an 8-station turntable design, the manipulator is linked for unloading. The design capacity is 1000 PCS/h. Equipment dimensions are 1200x1300x1900. The structural details of each module are clear, and the clever design adapts to various adhesive tape application modes, serving as a reference for scheme use.

Specification: Automatic E-Type Adhesive Tape Applicator Machine
