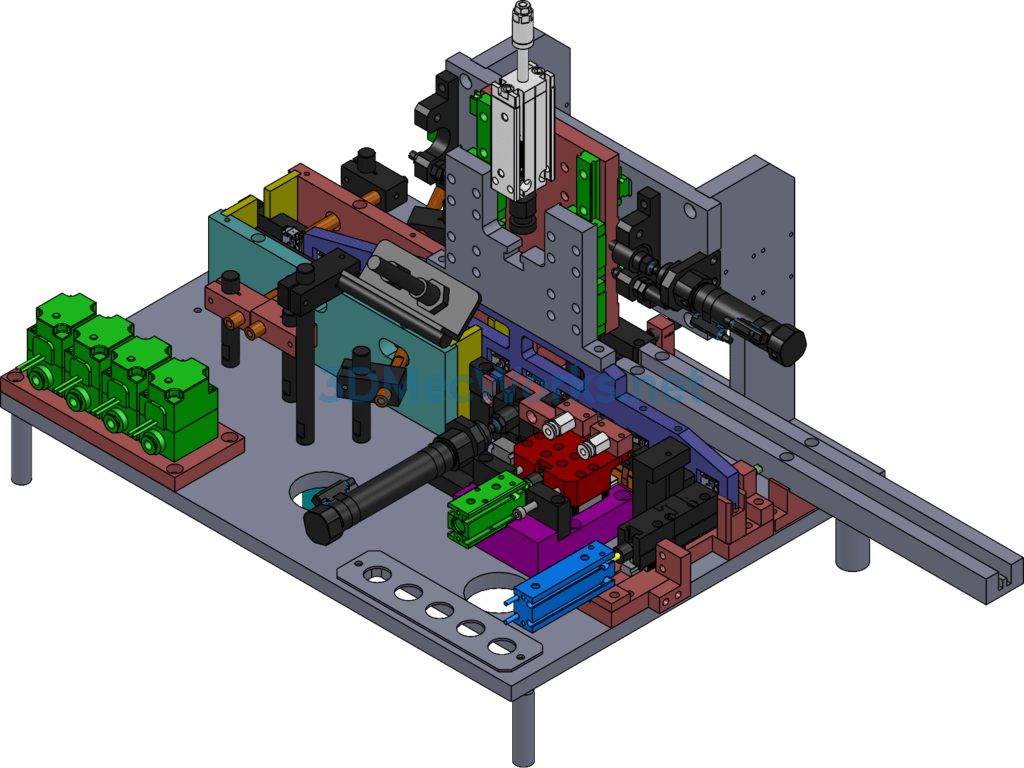

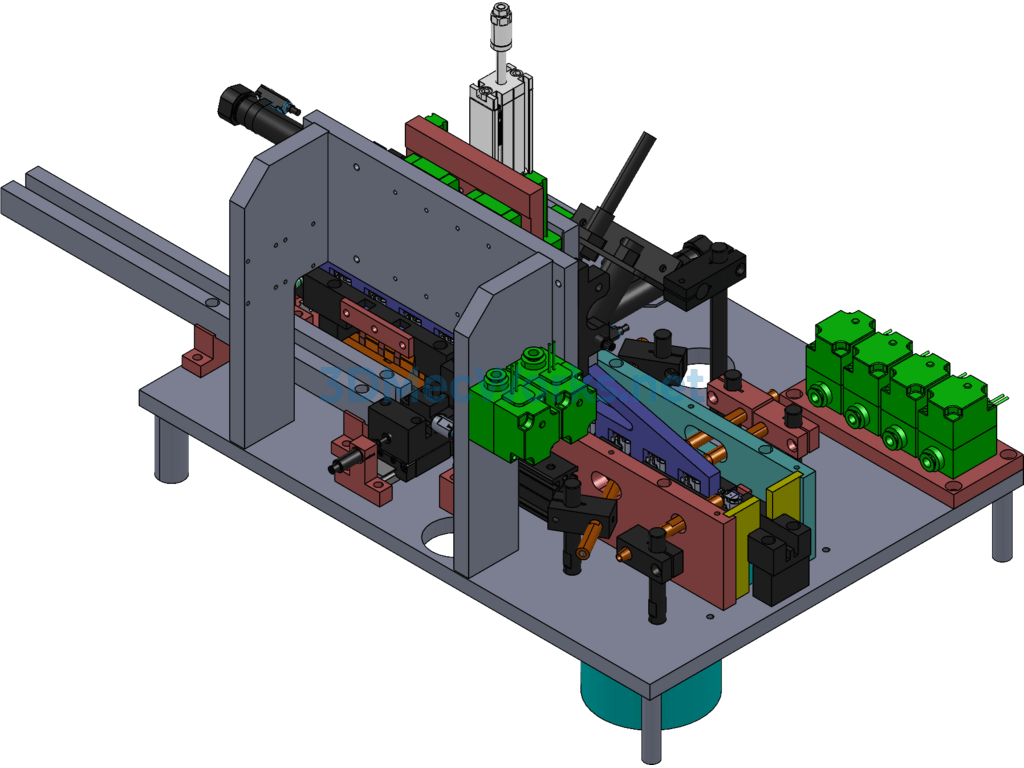

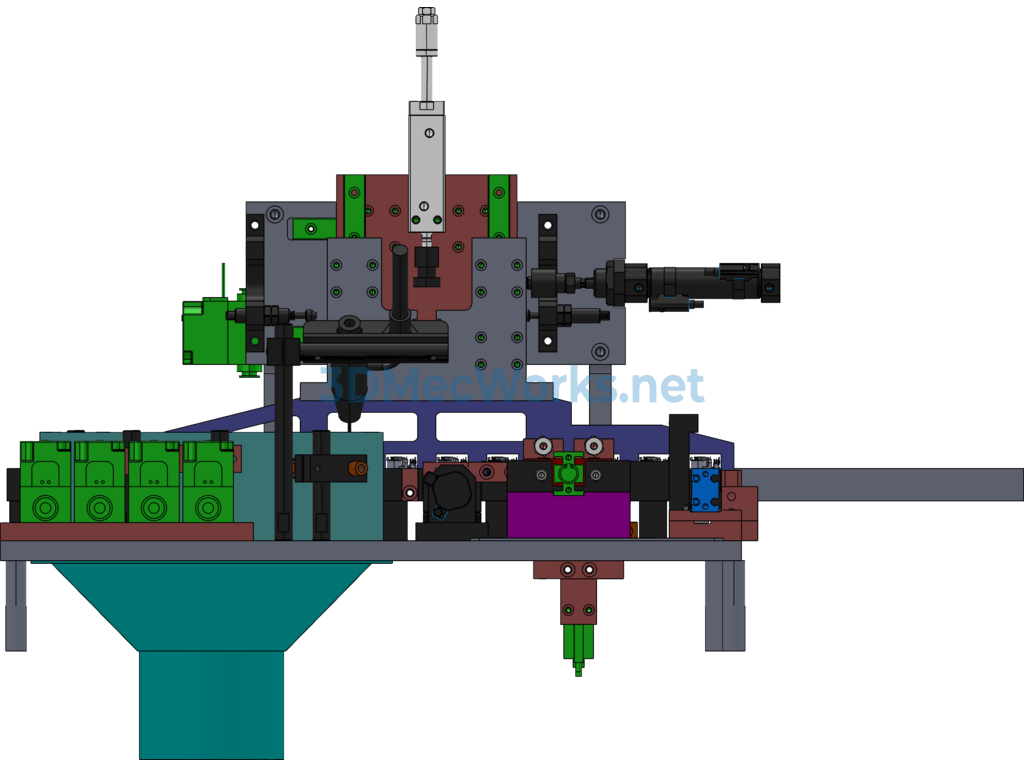

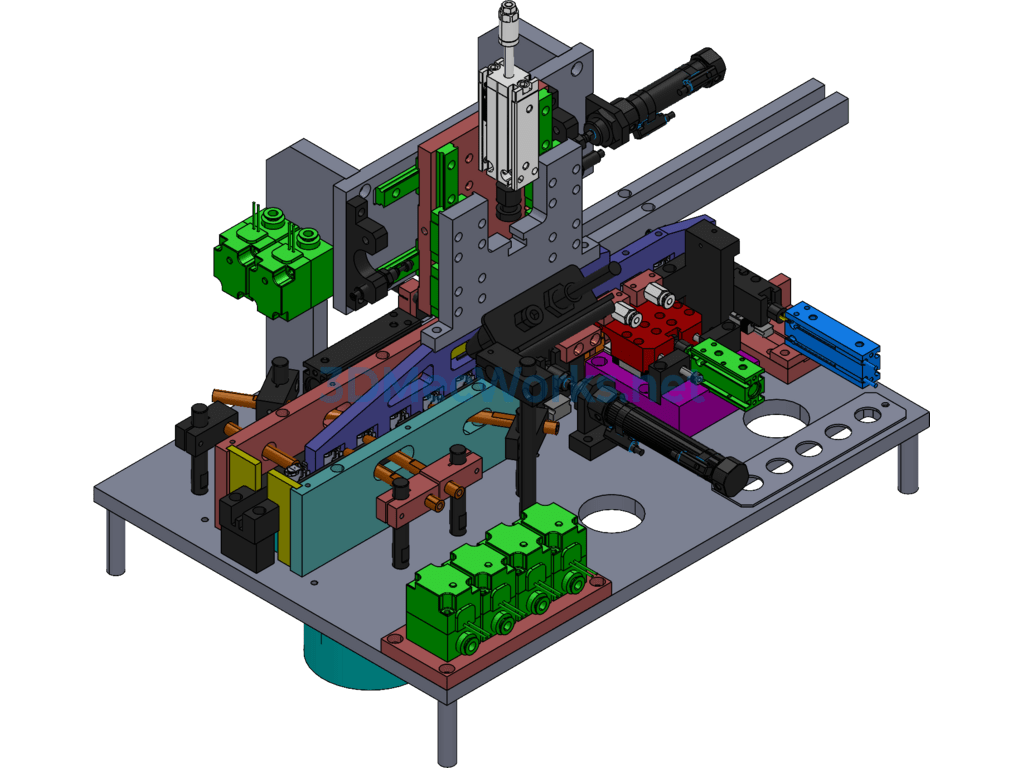

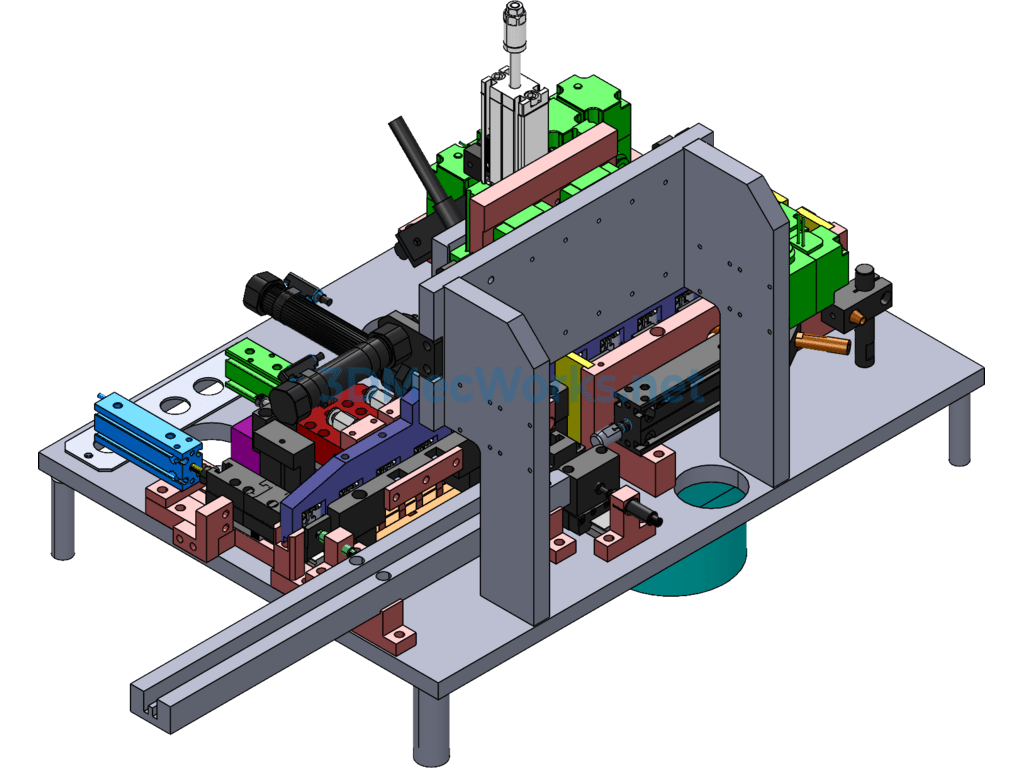

Automatic Dust Removal Blowing Machine 3D Model SW Design Source File Sharing
The drawings are comprehensive, with most models being parametric, allowing for parametric editing. The mechanism is mature and stable, offering high efficiency by using a fully cam-based transfer system to move products. Everyone is welcome to download and reference!
It moves products forward intermittently along a rectangular motion path. This equipment is used for air blowing and dust removal for electronic components. The conveyor belt connects to a previous process device, transporting products to this dust removal equipment. The cam automatically distributes materials, and the main shaft transmission structure includes a clutch design. When the sensor on the conveyor belt does not detect materials reaching the corresponding position, the clutch disengages, waiting for the material to arrive at the position. This structure is stable and reliable.
The equipment uses PLC control, and a standard AC speed-regulating motor is sufficient to achieve fully automated production, keeping costs low. It offers significant reference value.
Specification: Automatic Dust Removal Blowing Machine (full Cam Mechanism Blowing Dust Removal Equipment)
|
