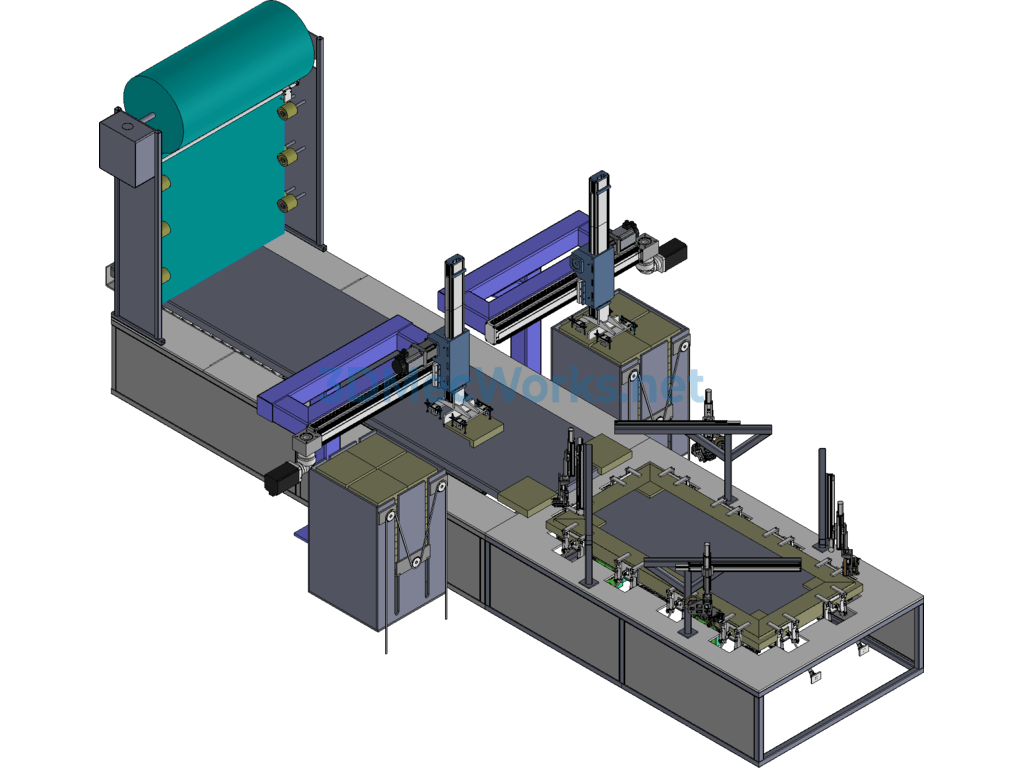

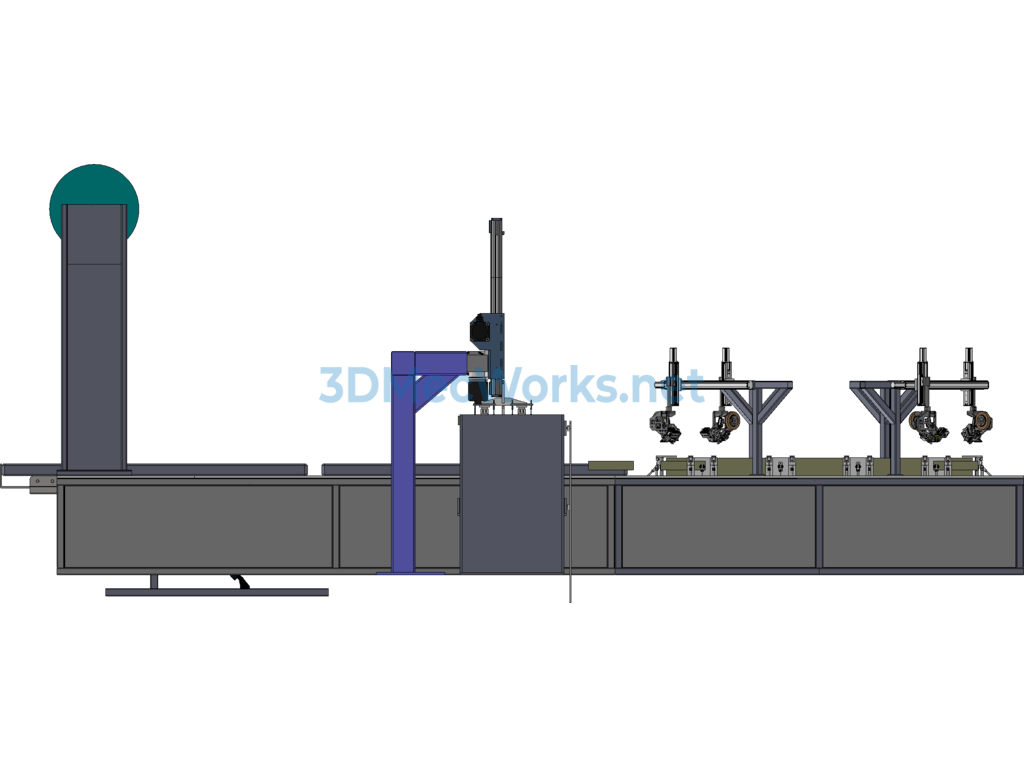

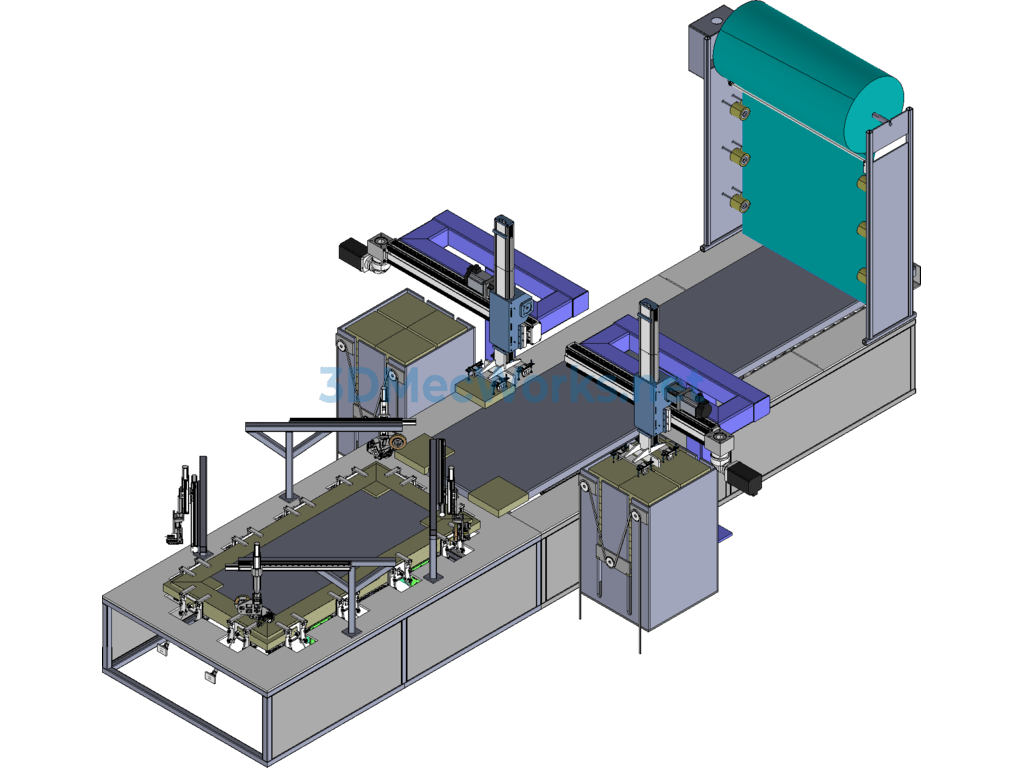

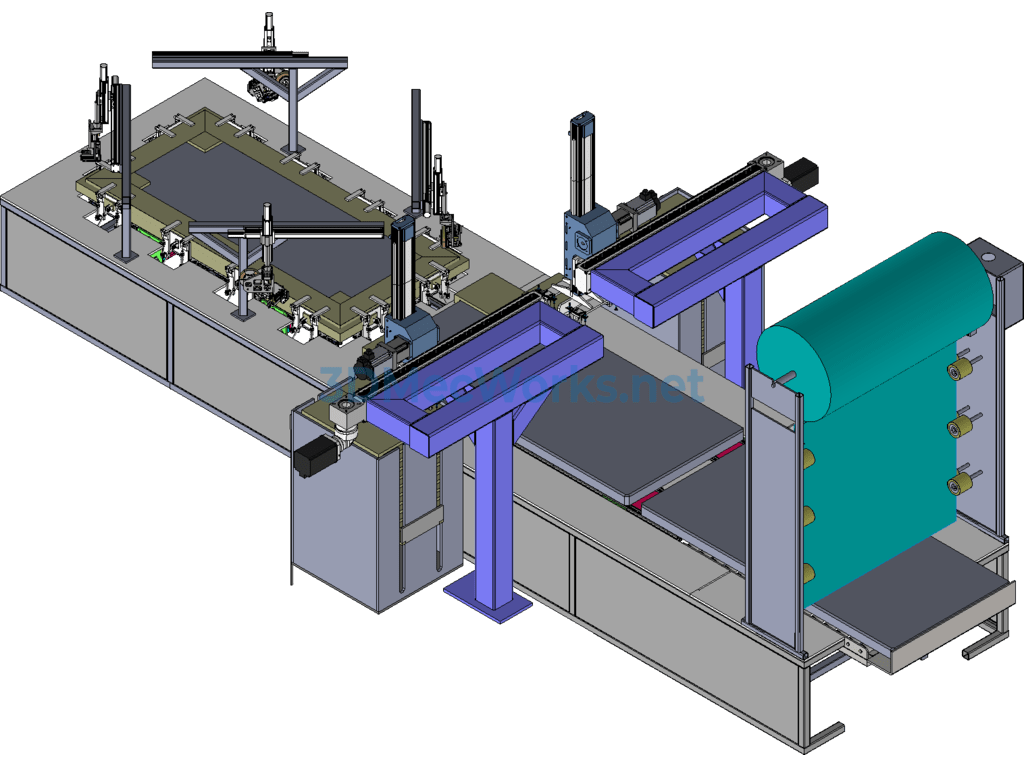

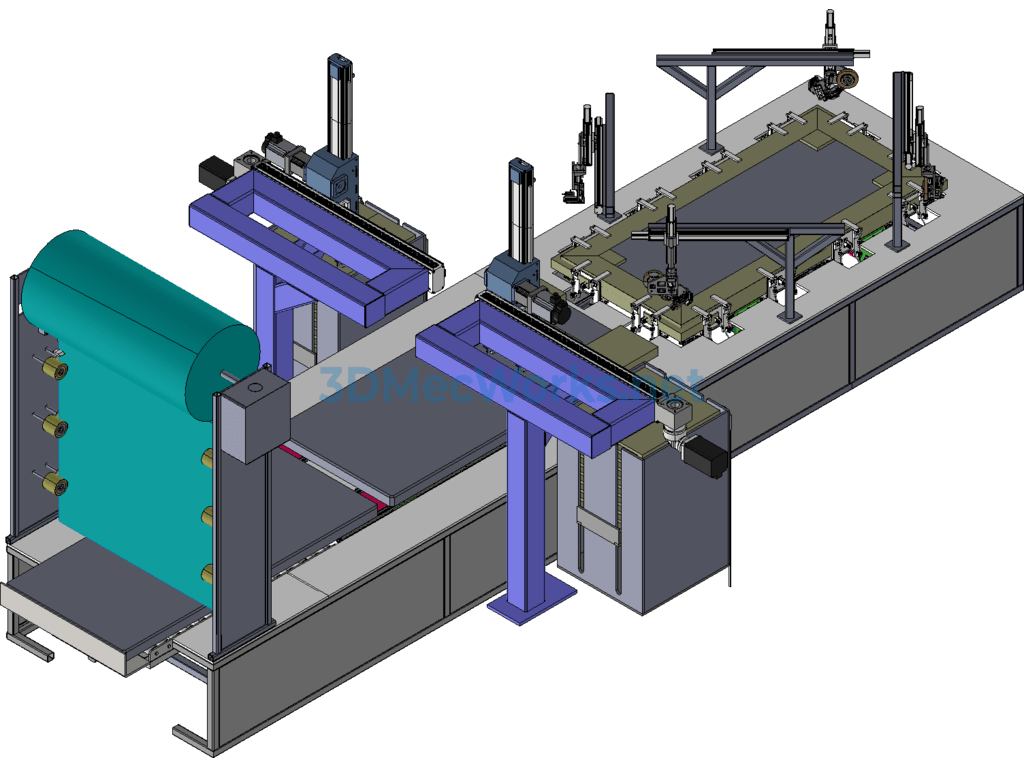

Automatic Door Frame Packaging Line

Automatic door frame packaging line composition:
Bubble wrap roll unwinder, turnover loading mechanism, conveyor belt, foam placing robotic arm, foam loader, tape applying robotic arm, bubble wrap bender, frame, etc.
Automatic packaging line dimensions:
Length 6480mm, Height 2500mm, Max width 3400mm, Uniform width 1650mm.
Applicable door frame specifications:
Max length 2050mm, Max width 1200mm, Max weight 180kg
Action steps:
1. Automatically grab the door frame from the chain conveyor and place it in the packaging area.
2. Automatically place foam at the four corners of the door frame.
3. Automatically wrap with bubble wrap.
4. Automatically bind foam and bubble wrap with tape.
