Automatic Detection Equipment (BOM, DMF Generated) - SolidWorks - Free Download

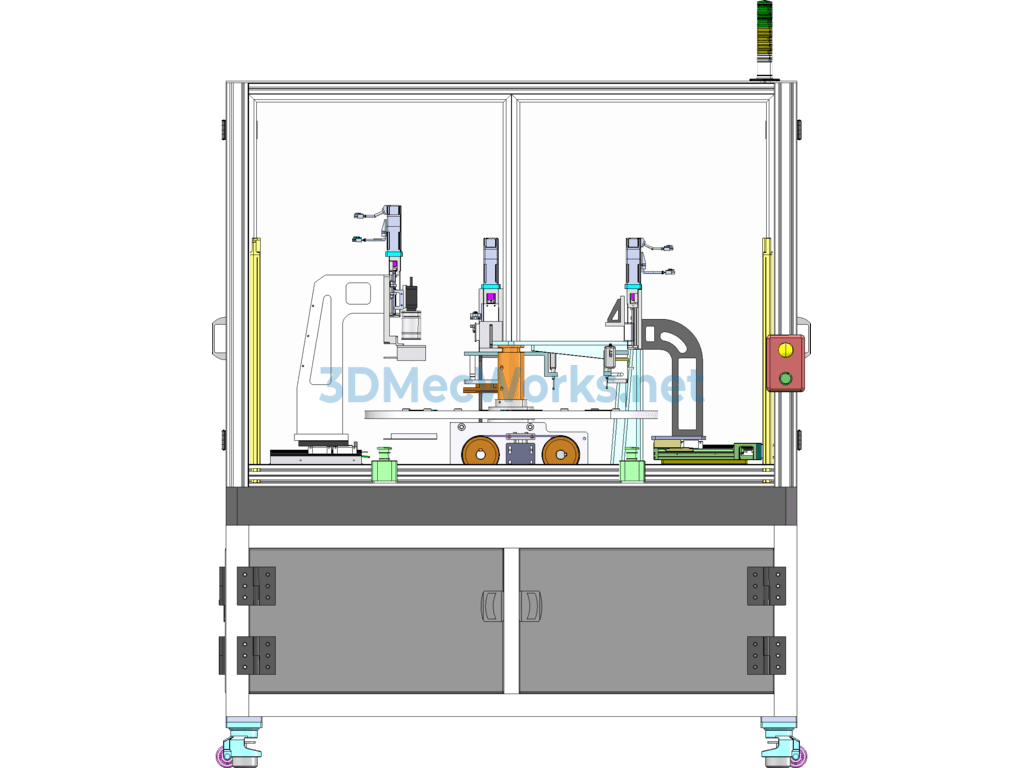

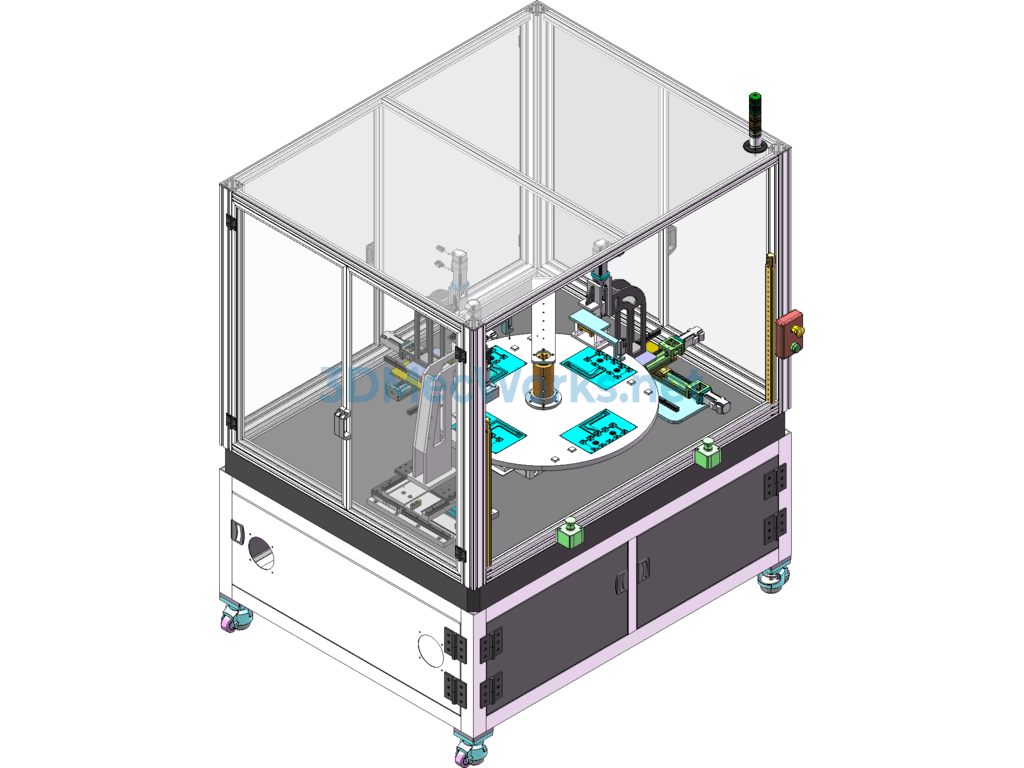

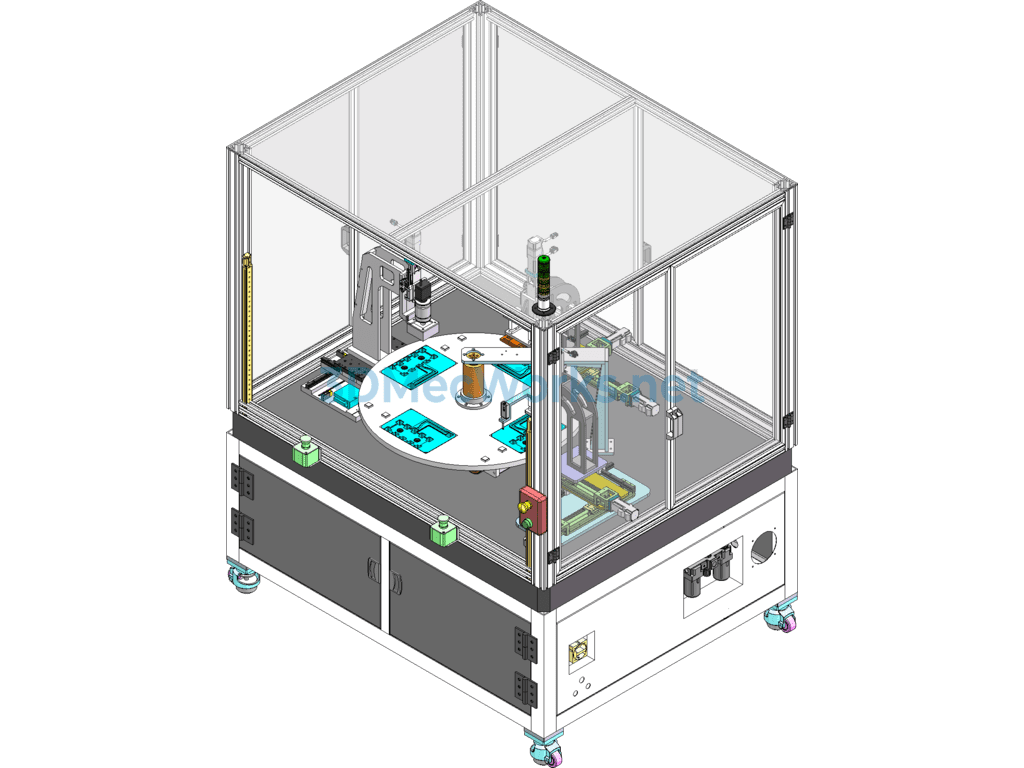

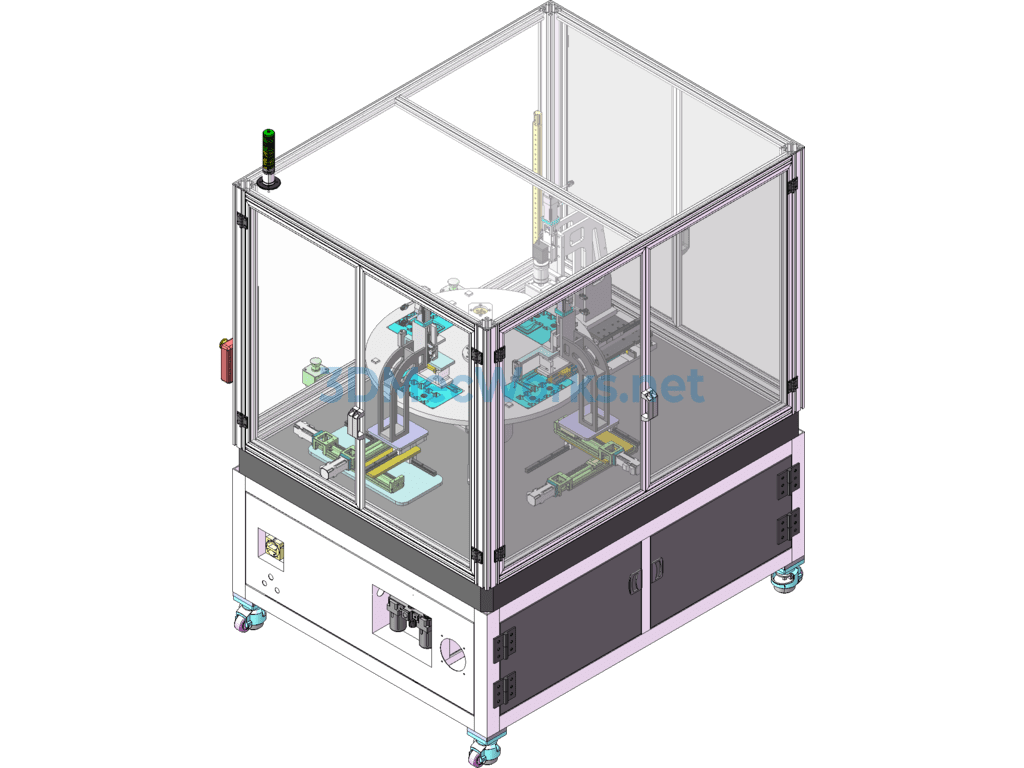

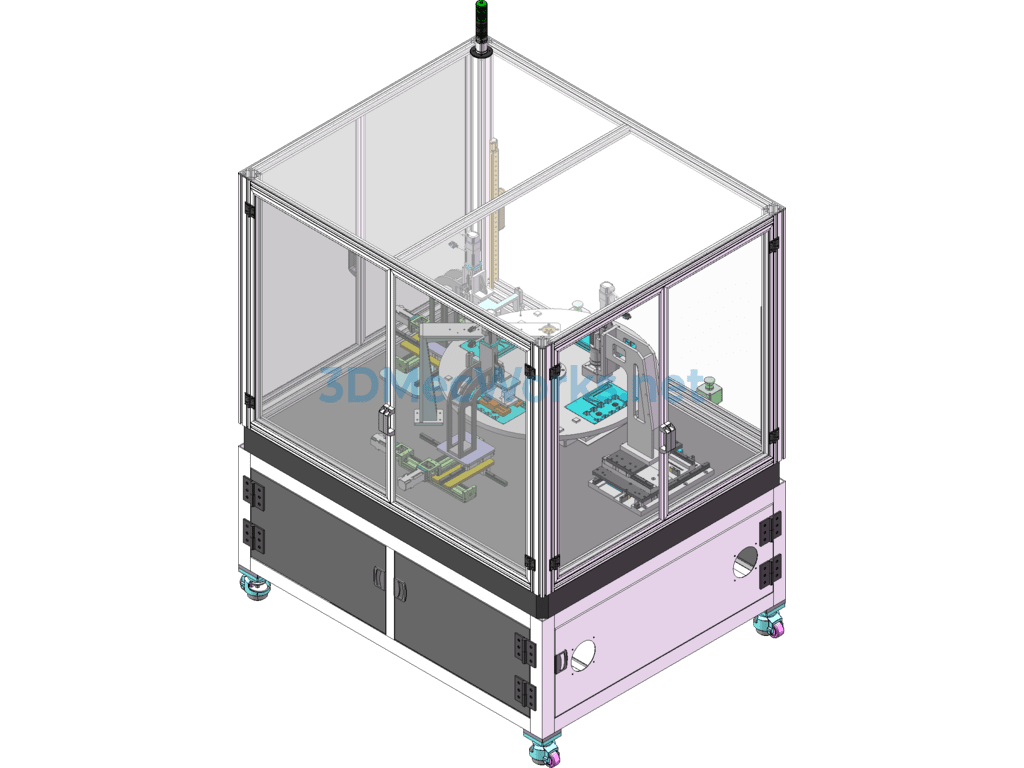

Automatic Detection Machine Motion Process:
1. Manually load material onto the fixture in the device’s turntable position, with vacuum suction side clamping;
2. Four-station rotational synchronous test method, saving cycle time and increasing productivity;
3. Station 1 manual loading;
4. Station 2 CCD detection of external dimensions and scratches;
5. Station 3 pressing inspection, controlled by pressure sensor;
6. Station 4 GT test head checks if the product is qualified after pressing down.
