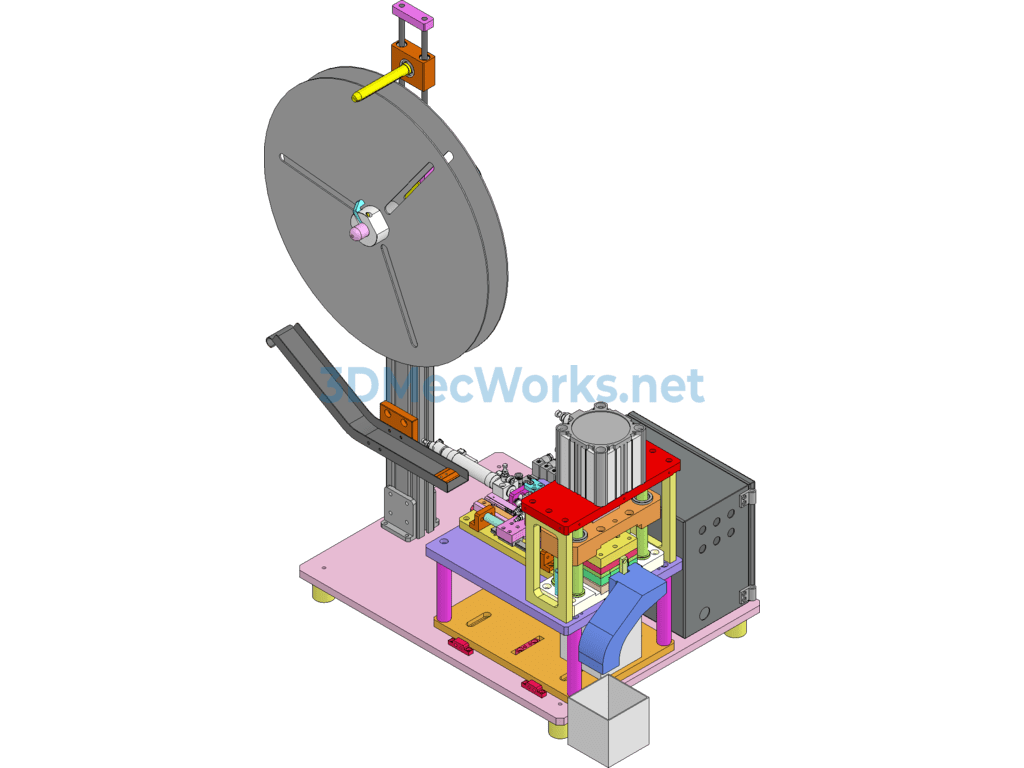

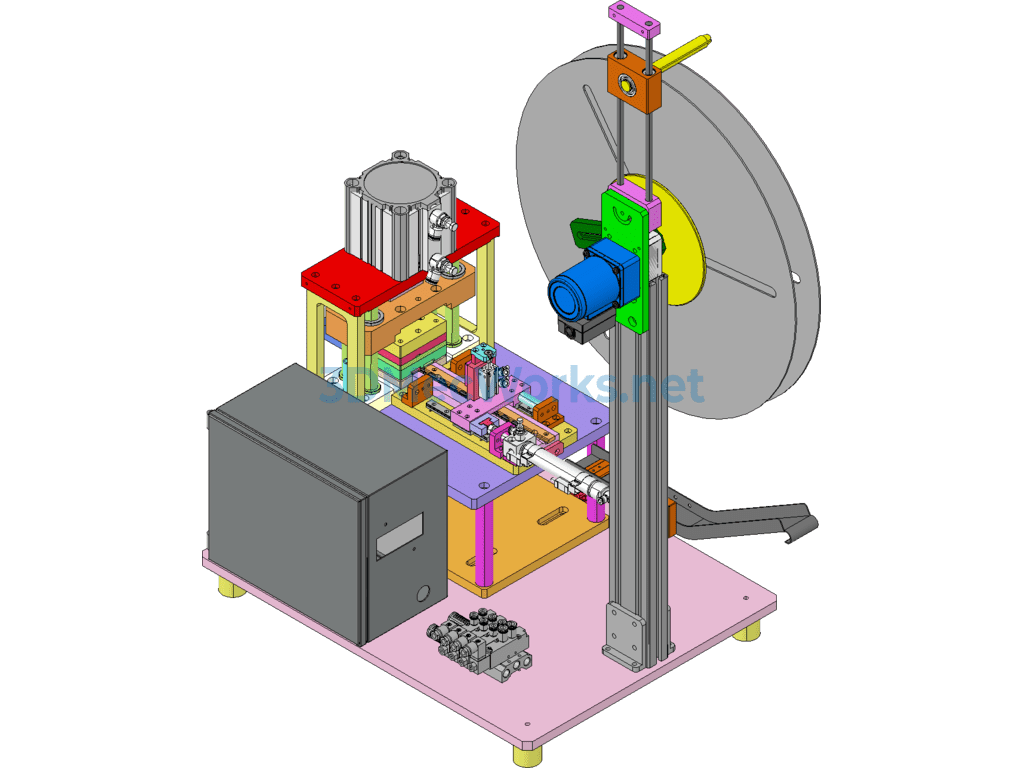

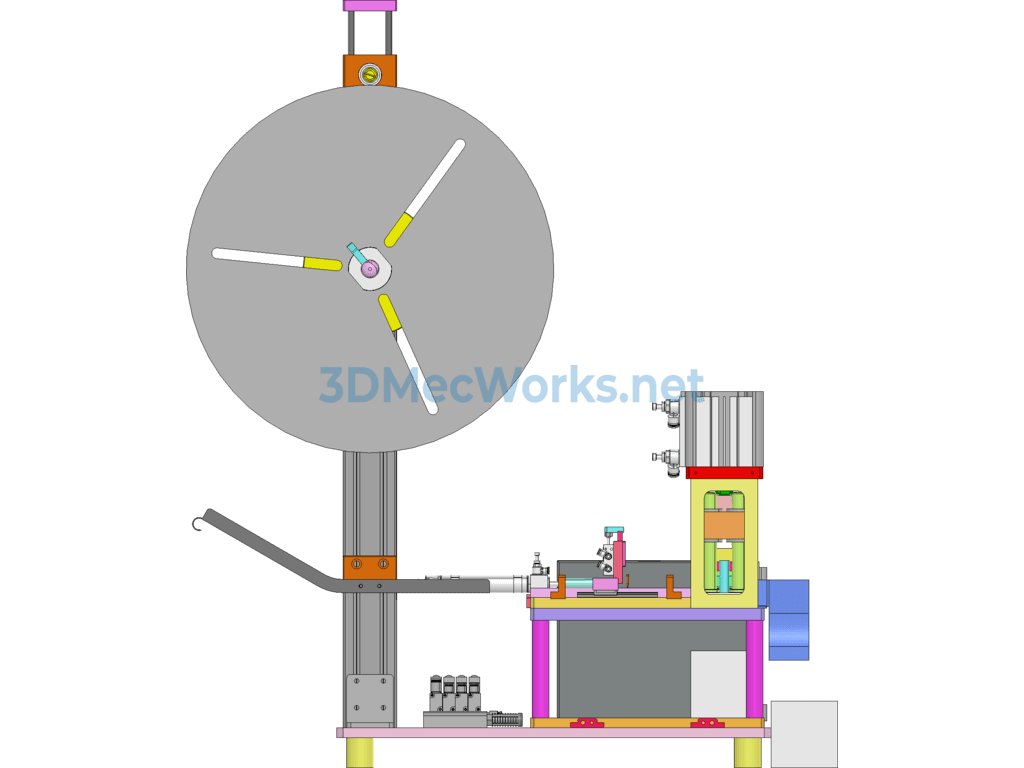

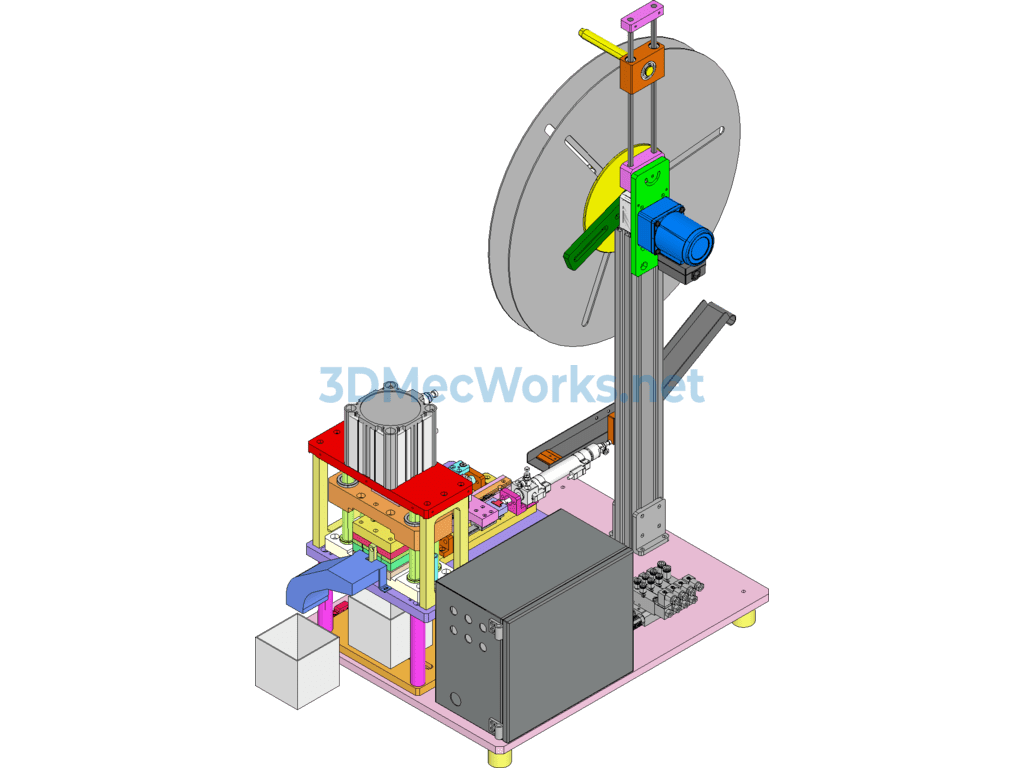

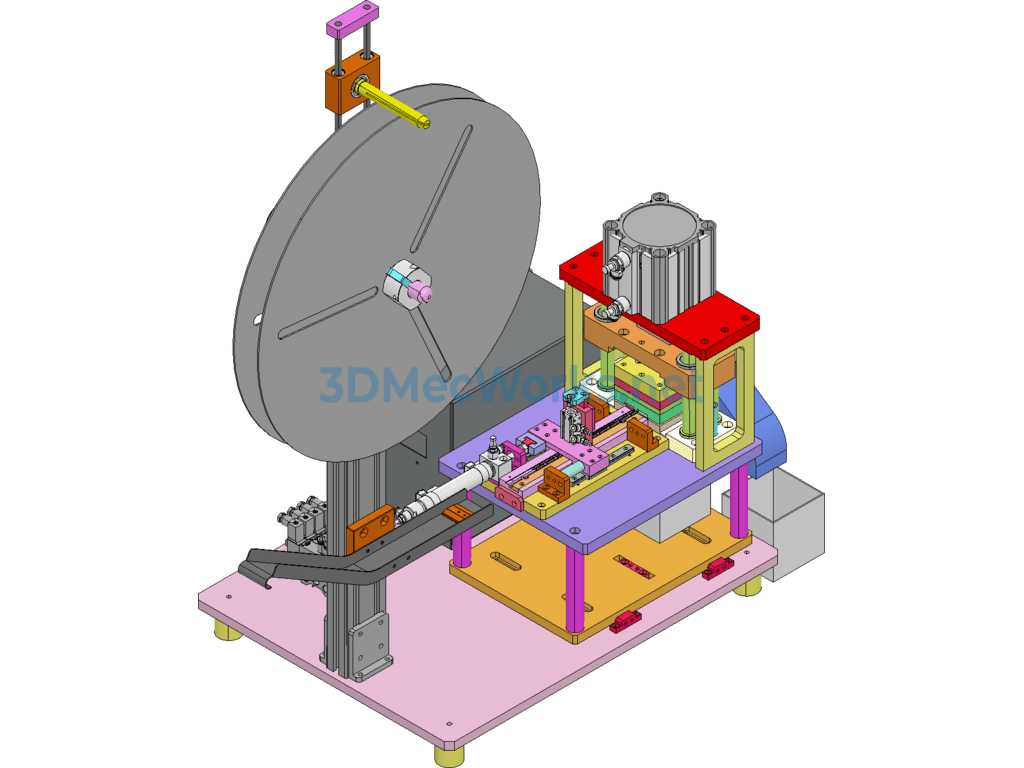

Automatic Cutting Machine Operation Process:
1. The material tray is manually loaded onto the equipment turntable for positioning;
2. The feed-assist motor starts rotating to supply material;
3. The feeding push cylinder module pushes materials in sections;
4. The cutting and punching cylinder group moves to segment and cut the product;
5. After the material box is full, it prompts for manual unloading.
