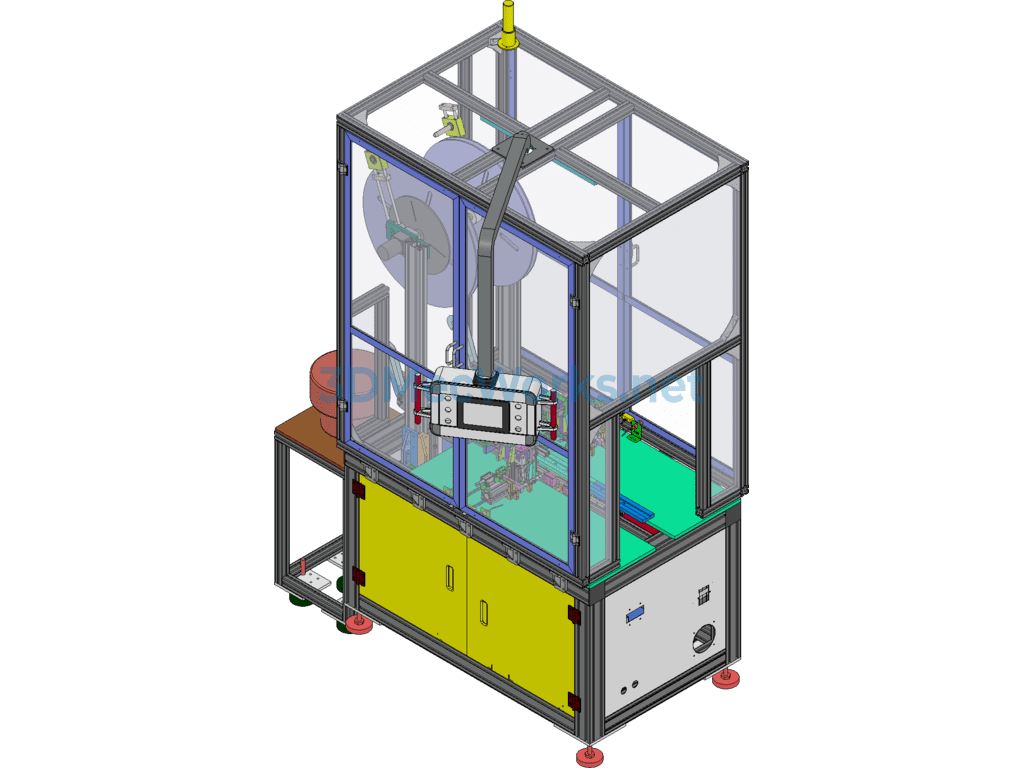

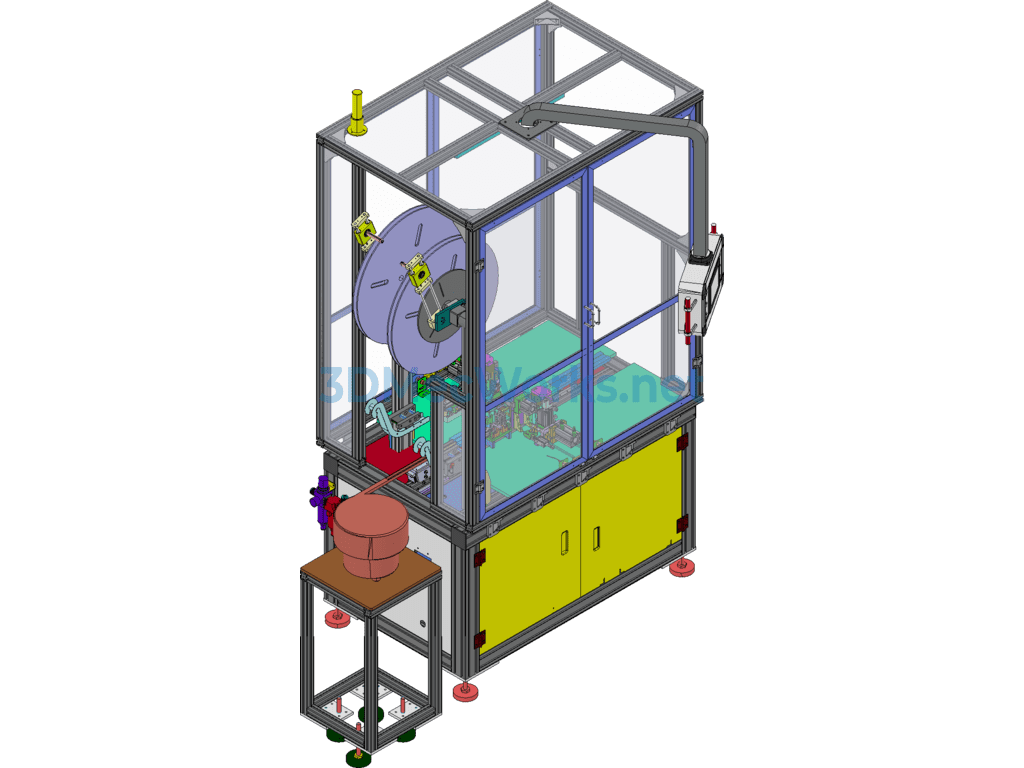

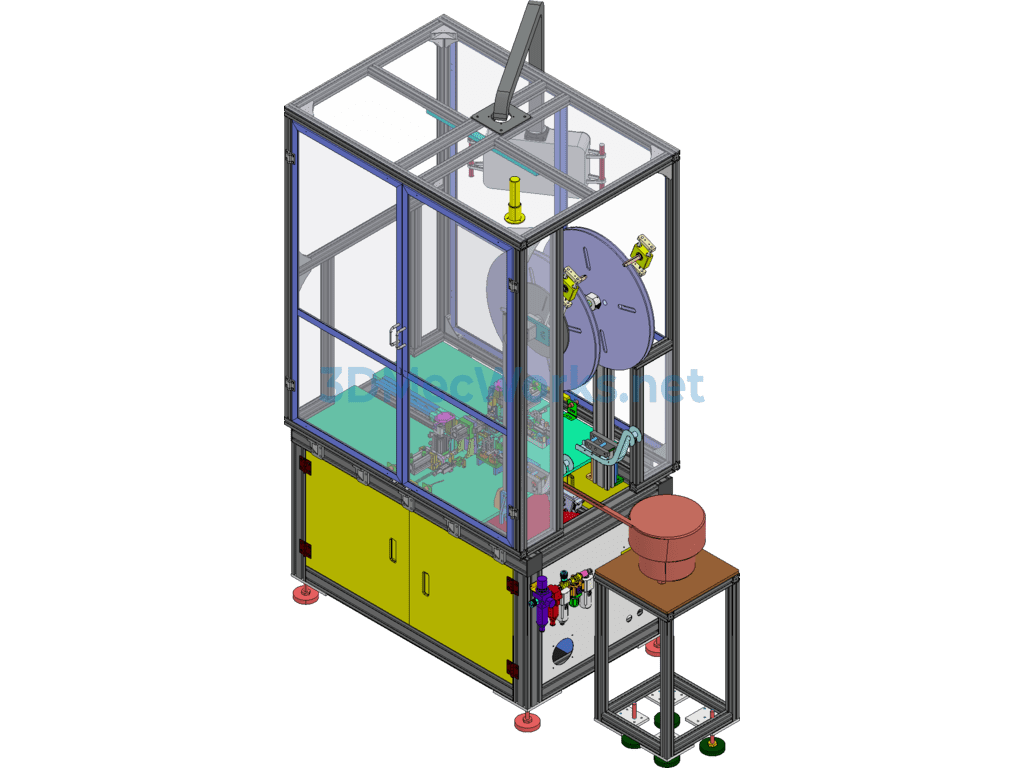

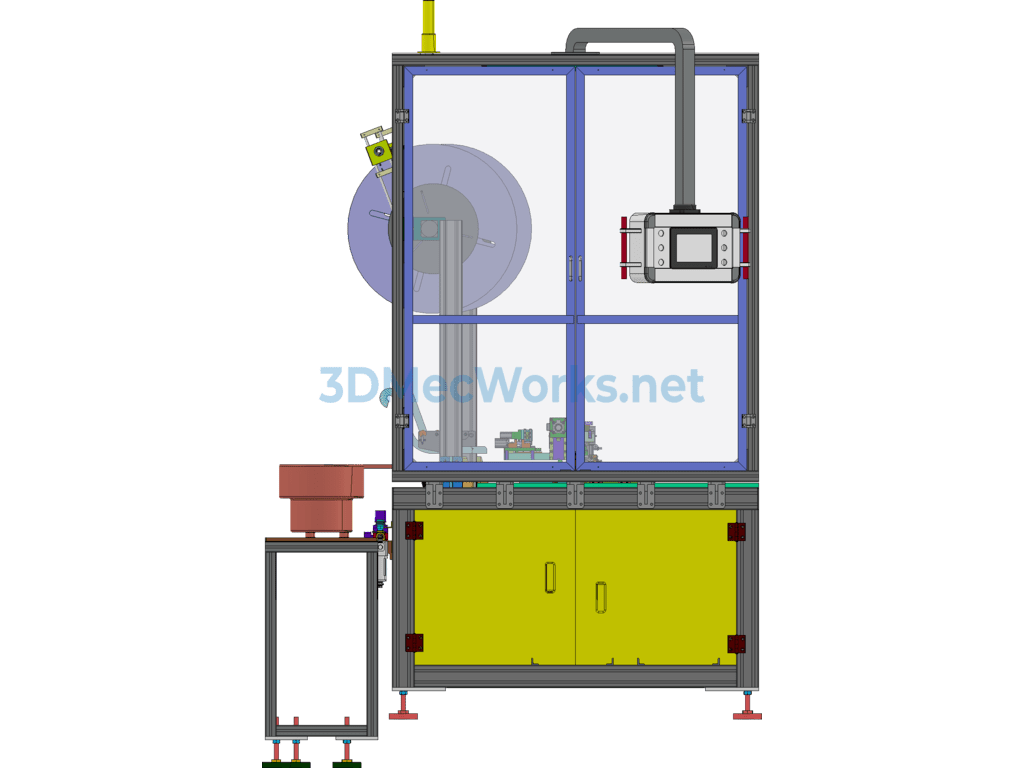

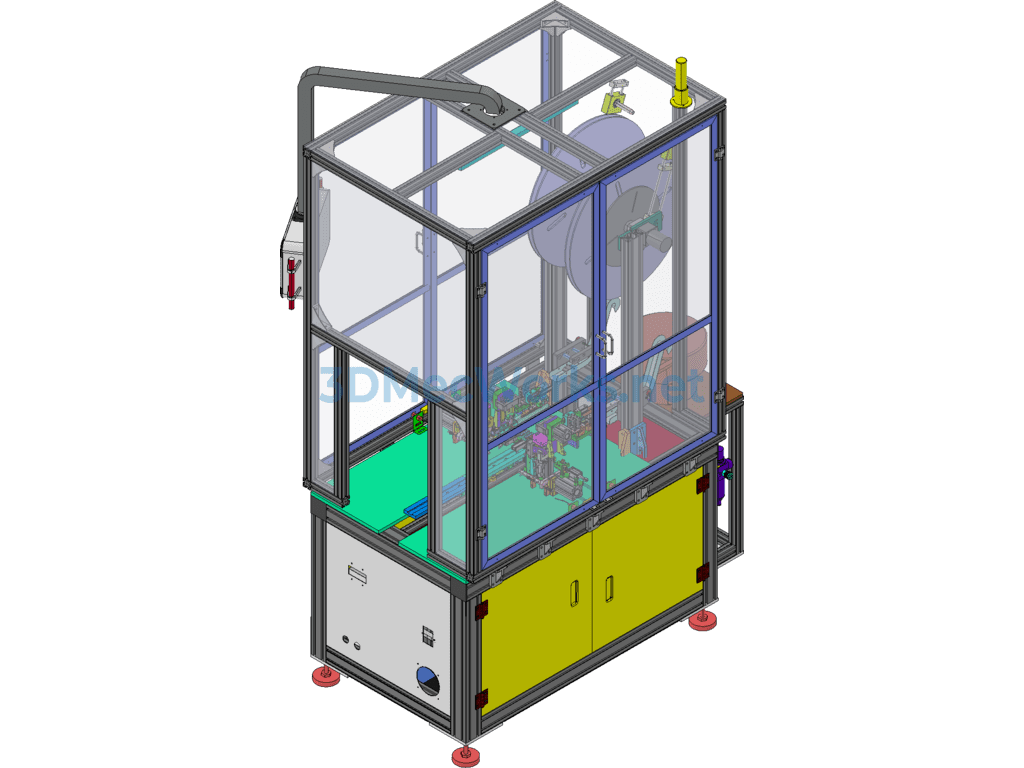

Automatic Cutting And PIN Installation Equipment (Including DFM, BOM) - SolidWorks - Free Download

Automatic Cutting and PIN Insertion Machine Equipment Action Flow Overview:
1. PIN is fed into the equipment by two sets of turntables, with automatic staged feeding;
2. The plug-in is fed by a vibrating disk, and the product is sent into the equipment and positioned by a linear vibrator;
3. After the PIN enters the equipment, the cylinder module completes the cutting and moves to the next station, where the PIN is directly pressed into the plug-in to complete the assembly.
